XYAY-D6600/D6800/D61000  Rotagravure Press


Product Description



             This latest improved gear box,360non-stopping registration device;pneumatic doctor blade,transverse reciprocating motion;Closed type oven,automatic constant temperature system;Side and up double drying oven  system;unwinding and in feeding equipped with auto tension controller and magnetic powder brack;rewinding and out feeding adopt magnetic powder clutch to control the tension;Turret type unwinding and rewinding machanism,receiving and erplacing material without stopping the machine;Inflatable air shaft for unwinding/rewinding material loading;Printing linear speed and meter indication;Pneumatic printing impress roller and traction impress roller;Pneumatic nip roller for in feeding and out feeding;Main motor:electromagnetic speed regulation motor.



ModelXYAY-D6600XYAY-D6800XYAY-D61000
Effective Printing Width600mm800mm1000mm
Max.width of web620mm820mm1020mm
Max.printing speed80m/min80m/min80m/min
Max.machanical speed

100m/min

100m/min

 100m/min

Max.Diameter of Unwind/rewind600mm600mm600mm
Inside Diameter of roiicore76mm76mm76mm
Diameter of printing cylinder120-320mm120-320mm120-320mm
Accuracy of registration±0.2mm±0.2mm±0.2mm
Tension Control Range3-25kg/Full Width3-25kg/Full Width3-25kg/Full Width
Heating Power of Oven28.8KW36kw43.2kw
Total Power38.6KW47.5kw56.6kw
Weight Of Machine8500kg9500kg10500kg
Overall Dimension9300x2300x2300mm9300x2500x2300mm9300x2700x2300mm

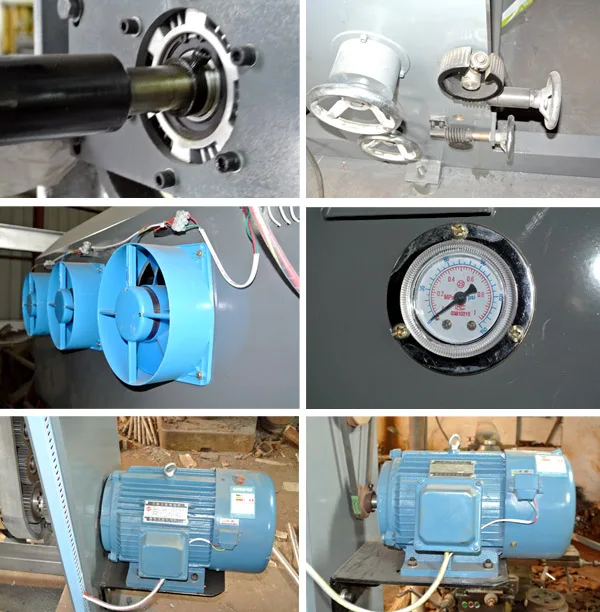

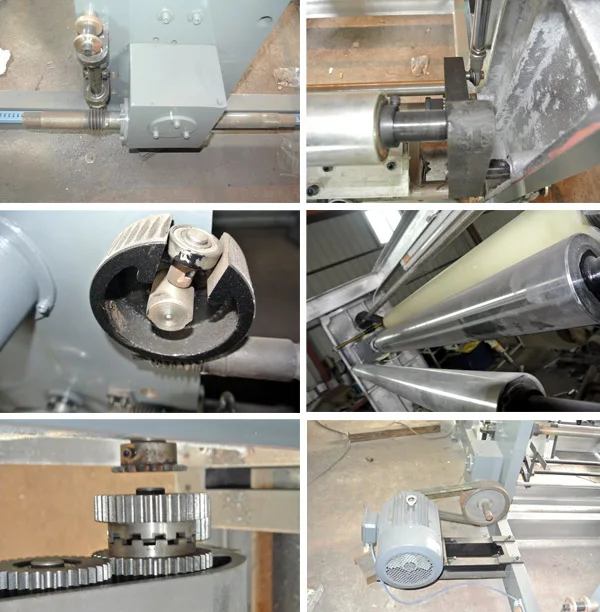

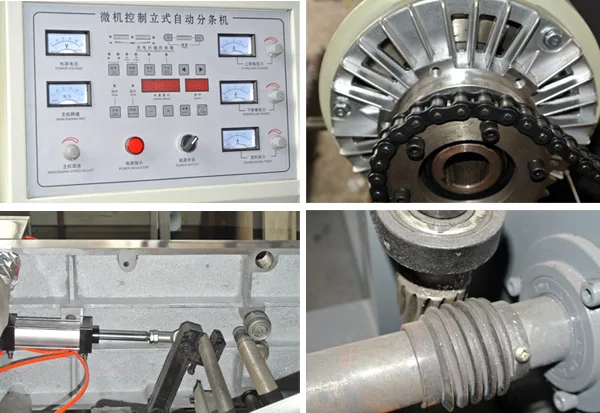

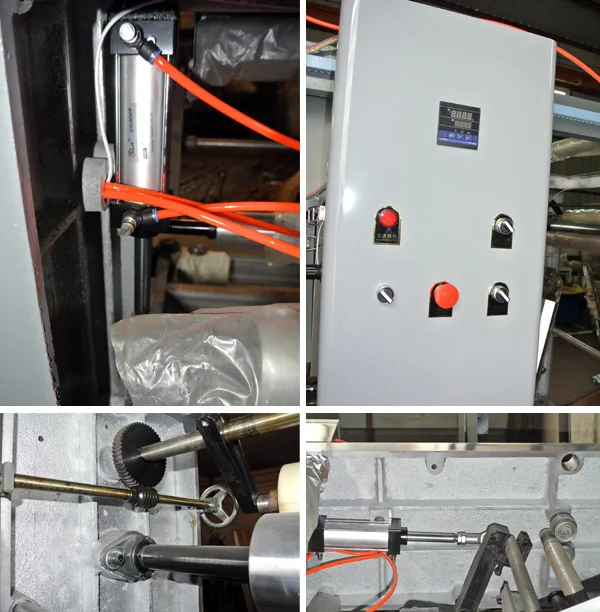

Details:

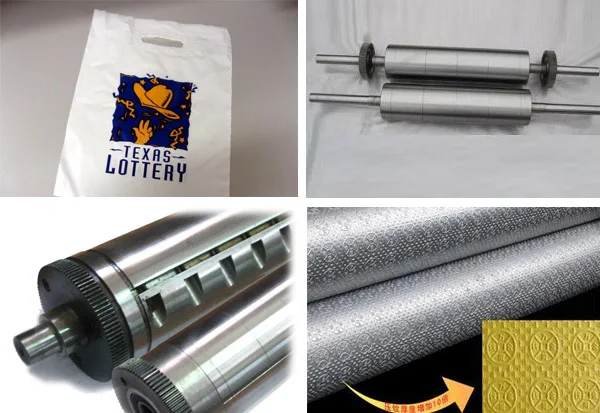

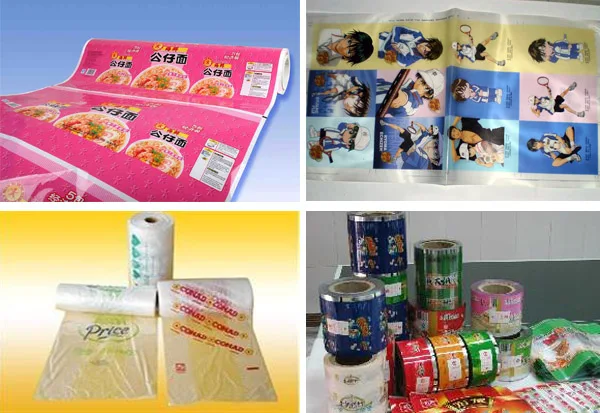

Samples:


Certificates:

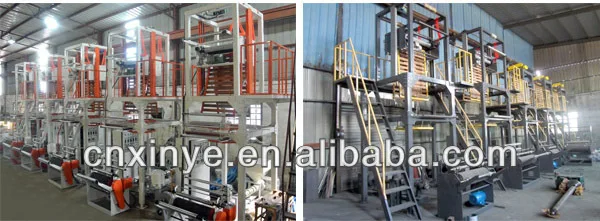

Our workshop:




Exhibitions:




Packaging & Shipping

Wooden case, wooden block, or nude packing(packing with foam film and pp film).

The finished goods would be sent from our factory to Ningbo by Van,then shipping from Ningbo to customers' country.

Any thing could be discussed as your requirement.







Our Services:
.After Sales Service
         We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

.Installation Services

        Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.


Company Information:
             Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It is specialized in producing Series of plastics-packaging equipment.We are engaged in producing bag-making  machine,Printing Machine,Film Blowing Machine, etc.

1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft  handle  bag-making  Machine ; high  speed  heat  sealing  and  slitting  bag-making  Machine;Microcomputer control bag-making Machine;Computerized vest bag-making  Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;

2) Printing Machine: Flexography Press; Rotogravure Printing Press;

3) Film Blowing Machine: HDPE-LDPE  Dual-purpose  Film Blowing  Machine,High  Speed  Film Blowing Machine Unit;

4) Others:Auto Slitting and Rewinding Machine, Hem Folding  Machine, Material Cutting  and Punch Machine.Since its  establishment,  with the purpose of " Gain the customer’s confidence  base on good quality."and "Improve continuously,  meet customer’s needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
