Neodymium Pro Audio Titanium Diaphragm Compression Speaker Tweeter

Product Overview

Description

Guangzhou Hiwell Audio Equipment Factory

--Professional audio woofers, drivers and OEM designs.



Model: 72NT04A  (8 ohm) Tweeter



(72.2mm)  2.8 inch voice coil 110 watts High Frequency Compression Speaker Driver



Features:

72.2mm 2.8 inch CCAW copper clad aluminum voice coil

Tintanium diaphragm Material

124 mm Sintered NdFeB in high grade



Two version: 8 ohm and 16 ohm.









Specifications	72NT04	72NT04A
Nominal Diameter	124/4.9	124/4.9	mm/inch
Nominal Impedance	16	8	Ohm
Minimum Impedance	12	6.3	Ohm
Power handling
(1200-20000Hz)
Nominall	110	110	Watt
Continuous Program	220	220	Watt
Sensitivity (1W/1m)3	110	110	dB
Frequency Range	750-1800	750-1800	Hz
Voice Coil Diameter	72.2/2.8	72.2/2.8	mm/inch
Winding Material	CCAW	ALR
Former Marerial	KSV	KSV
Recommended Crossover5	1.2	1.2	kHz
Re	12	6	Ohm
Le	0.13	0.13	mH
Exit Throat Size	37/1.5	37/1.5	mm/inch

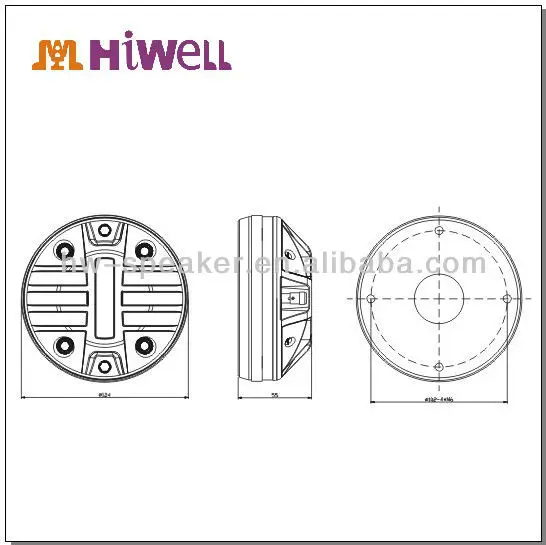

Mounting and Shipping Information
Baffie Cutout Diameter	124/4.9	124/4.9	mm/inch
Flang and Gasket Tickness	55/2.2	55/2.2	mm/inch
Net Weight	2.2	2.2	Kg
Shipping Weight	2.3	2.3	Kg
Shipping BOX	180*180*80	180*180*80	mm
Magnet Size	124*80*8	124*80*8	mm
