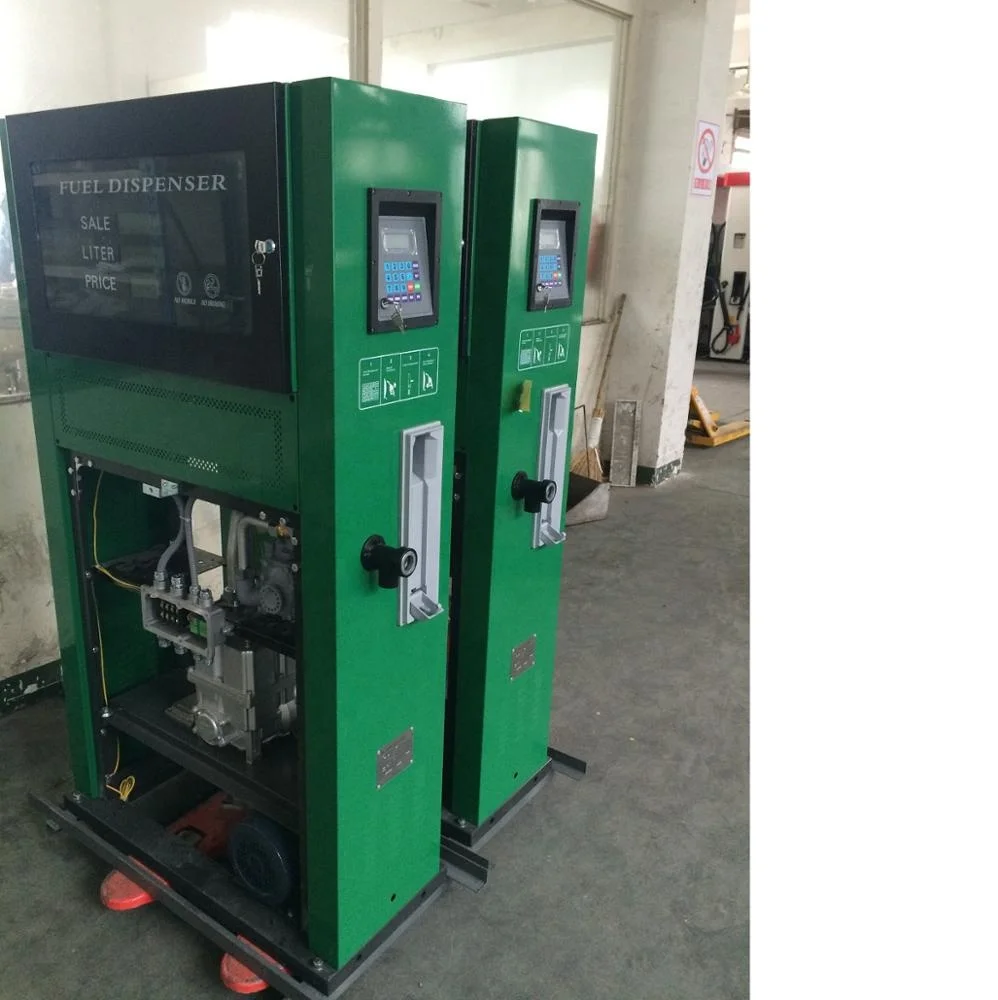

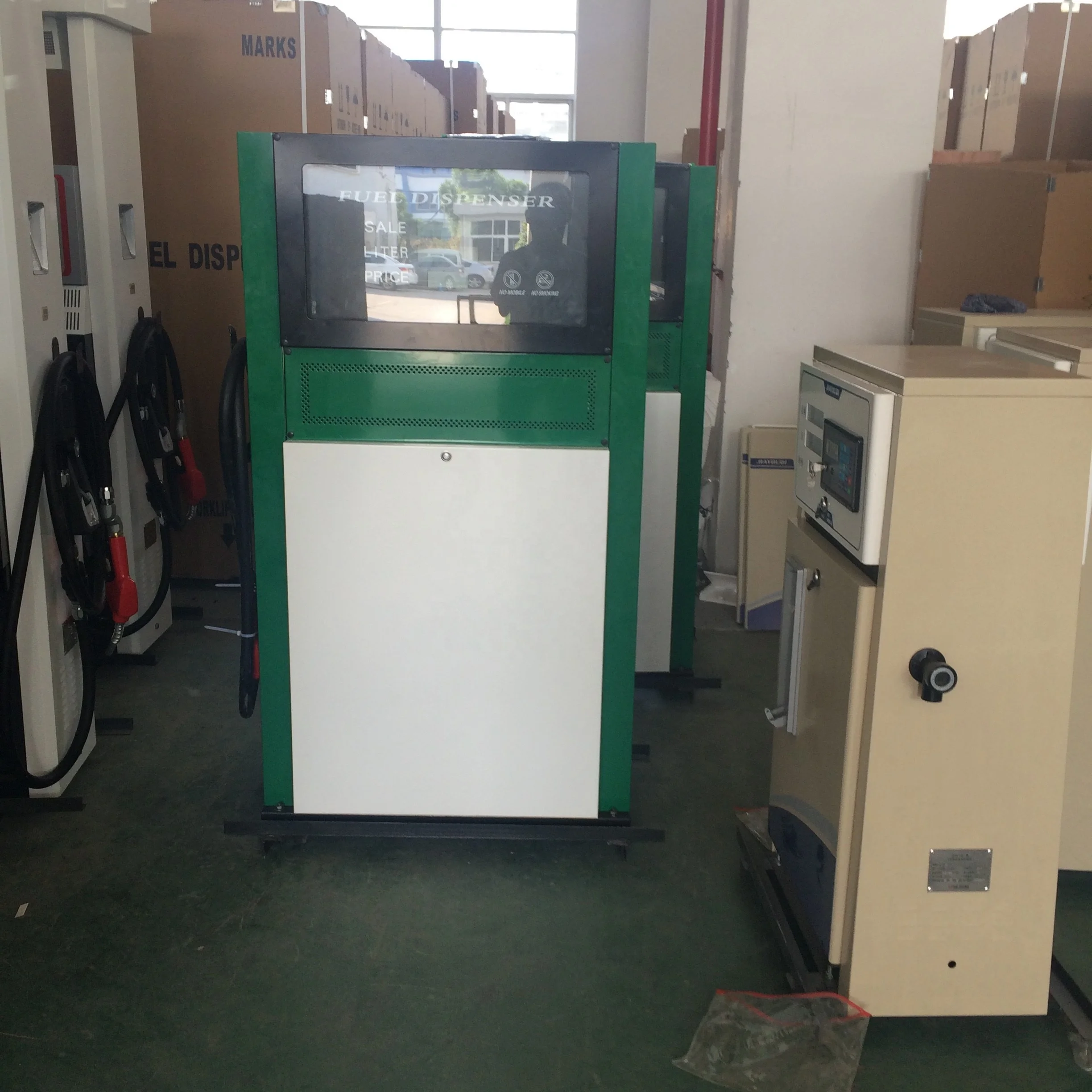

Petrol Pump Machine Fuel Dispenser Integrated P Series CMD1687SK G Tatsuno Flowmeter HONGYANG CN;ZHE
- Category: >>>
- Supplier: Hongyang Group Co. Ltd.
Share on (1582741493):
Product Overview
Description
| Specifications/Feature | ||
| Model | P series CMD1687SK-G | |
| Pump | Type | Gear pump(U102-B) |
| Inlet Pressure | ≥54kPa. | |
| Flow rate (L/min.) | 55±5 | |
| Suction Distance (m) | 6(verticalmente) / 50(orizzontalmente) | |
| FlowMeter | Type | Flowmeter(U101-B) |
| Accuracy | ±0.2% | |
| Motor | Voltage(V) | 110V/220V/380V,50Hz/60Hz |
| Capacity(hp) | 1HP(0.75kw) | |
| Input Voltage | 110V/220V/380V,50Hz/60Hz | |
| Nozzle | Auto Shut-off Nozzle | |
| Environmental Condition | -40°C~~+55°C | |
| Control Type | Solenold Vale Control Type | |
| Preset | Function Provided(Small LCDIndicator) | |
| Display(Counter) | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~999,999(6 Digits),Decimal point can be changed | |
| Digit of Amount | 0~~999,999(6 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~9999(4 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Optional Display | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Amount | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~999999(6 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Totalizer | 1~~9,999,999 | |
| Hose | 4.5m | |
| Weight | ||
| Dimension(L×W×H) | 1060 x 550 x 1620 mm | |
| Dimension(L×W×H)Of Qty of Container | 22 sets/20" container; 44 sets/40" container |
