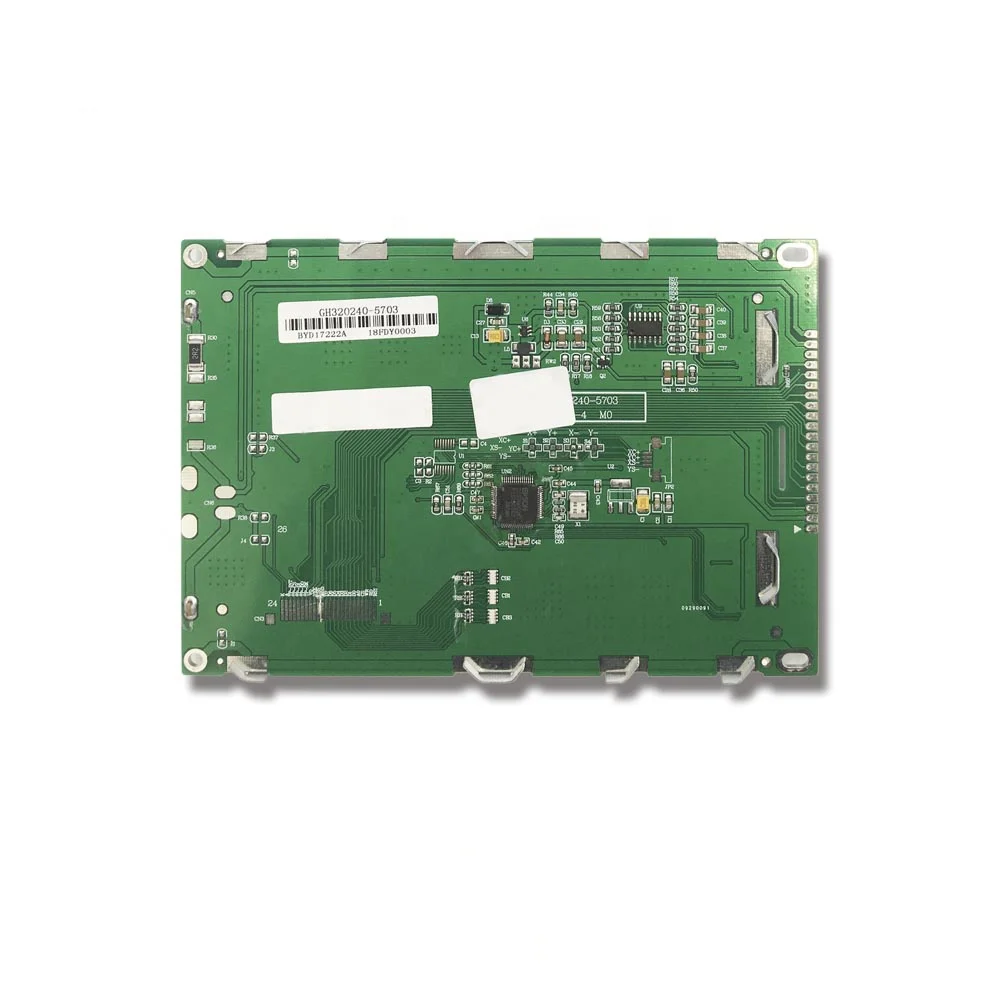

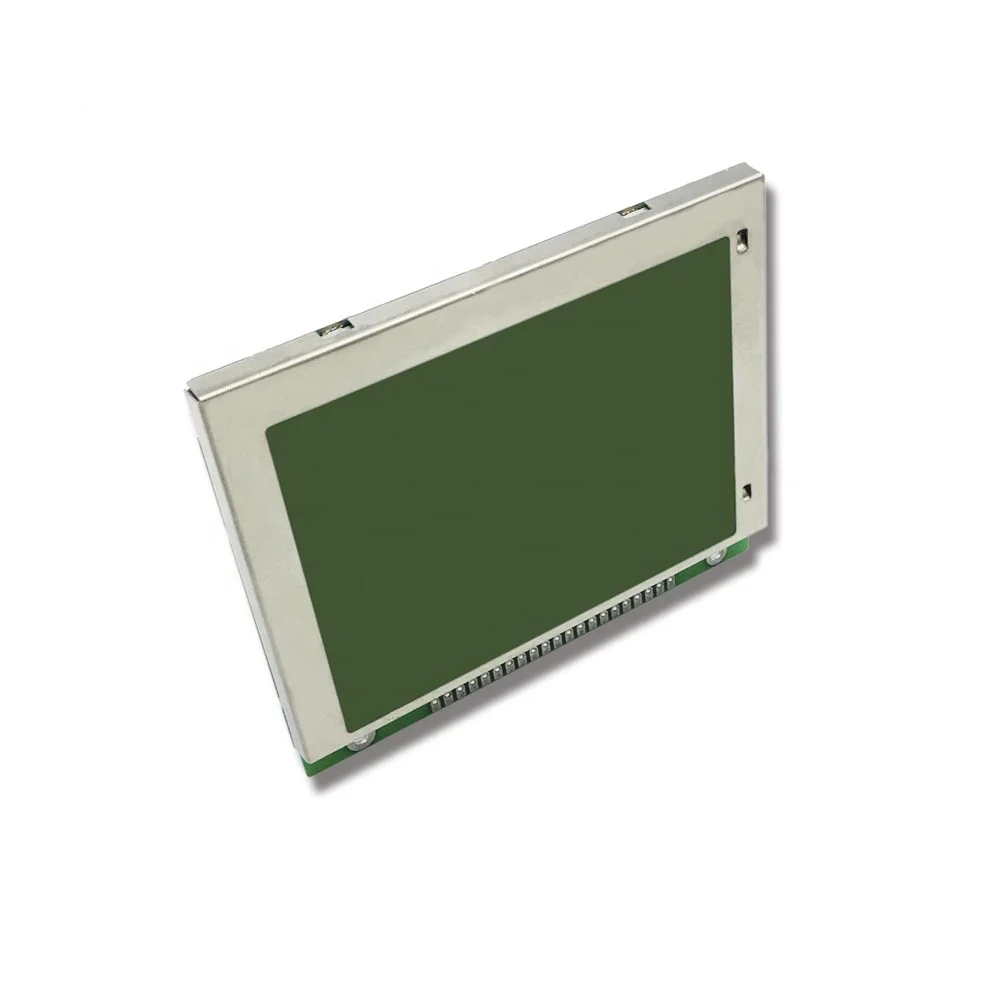

320X240 Graphic lcd module lcd display IC Controller RA8835 Graphic lcd screen 3.3V

Product Overview

Description

The Module Datesheet





320X240 Graphic lcd module of lcd,RA8835 Controller Graphic lcd display screen 3.3V



Model:	VISLCD-057HY149A
Construction	COB
Display Type	STN,Negative or Positive ,Transmissive
Operating Voltage (VDD)	3.3V,5V
Backlight Voltage(VBL)	3.3V,5V
Operating Temperature (degree Celsius)	-20°C~70°C
Storage Temperature (degree Celsius)	-30°C~80°C
Viewing Direction	6:00
Dot Matrix	240*128
Viewing Area	114.00*64.00
Active Area	107.50*57.55
Outline Dimension	144.00*104.00*12.00
Controller	RA8820 or equivalent controller
Backlight	LED,Y-G,White







Interface definition describe



GH240128-5103	Number	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
	interface definition	VSS	VDD	V0	RS	R/W	R/D	CS	BUSY	RST	D0	D1	D2	D3	D4	D5	D6	D7	VLCD	LED+	LED-





Similar product



Part Number	V.A Size(L*Wmm)	Description	Controller	Outline Dimension
GH240128-5101	114.00*64.00mm	STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V	T6963	144.00*104.00*12.00mm
GH240128-5102	114.00*64.00mm	STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V	T6963	144.00*104.00*12.00mm
GH240128-5103	114.00*64.00mm	STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V	RA8820	144.00*104.00*12.00mm
GH240128-5107	114.00*64.00mm	STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V	T6963	144.00*104.00*12.00mm
GH240128-5108	114.00*64.00mm	STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V	T6963	144.00*104.00*12.00mm
GH240128-5109	114.00*64.00mm	STN/COB,LED,Y-G,WHITE/6:00/3.3V,5V	RA8806	144.00*104.00*12.00mm
GH240128-5110	115.00*64.50mm	STN/COG,6:00/3.3V,5V	UC1698U	144.00*104.00*10.00mm



320X240  Graphic module of lcd,RA8835 Controller lcd display screen 3.3V LCD
