Digital display, touch control, air cooled intermediate frequency centrifugal casting machine

Product Overview

Description

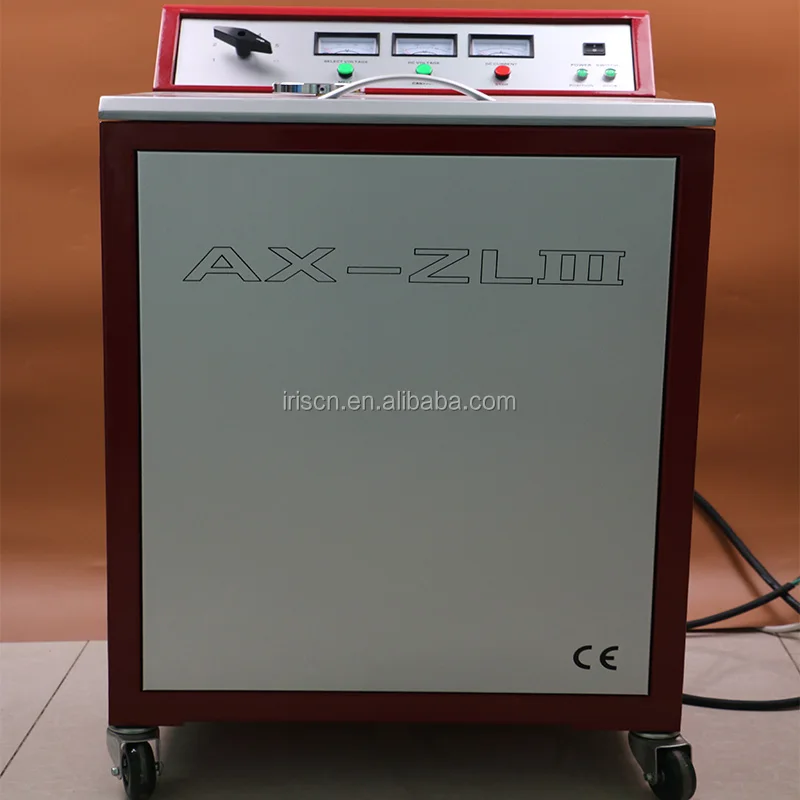

Digital display, touch control, air-cooled intermediate frequency centrifugal casting machine(AX-ZL3A)





AX-ZL3A Middle Frequency Induction Casting Machine



Technical Data

Power Supply	220V/110V 50/60Hz
Power Consumption	2,500W
Motor	370W
Centrifugal Rev	550rpm
Centrifugal Radius	21cm
Casting Method	Centrifugal Casting
Max. Melting Amout	50g
Heating Method	Medium Frequency Induction Heating
Melting Time	30g≤65sec (standard)
Cooling Fashion	Air Cooling
Dimensions	93cm x 52cm x 52cm (H W D)
Shipping Dimensions	111cm x 61cm x 60cm (H W D)
Weight	120kg

Certification
ISO9001:2000 Approved



Purpose
This unit be used with most dental alloys except titanium. It can be used for casting partial frameworks as well we crown and bridge.



Description

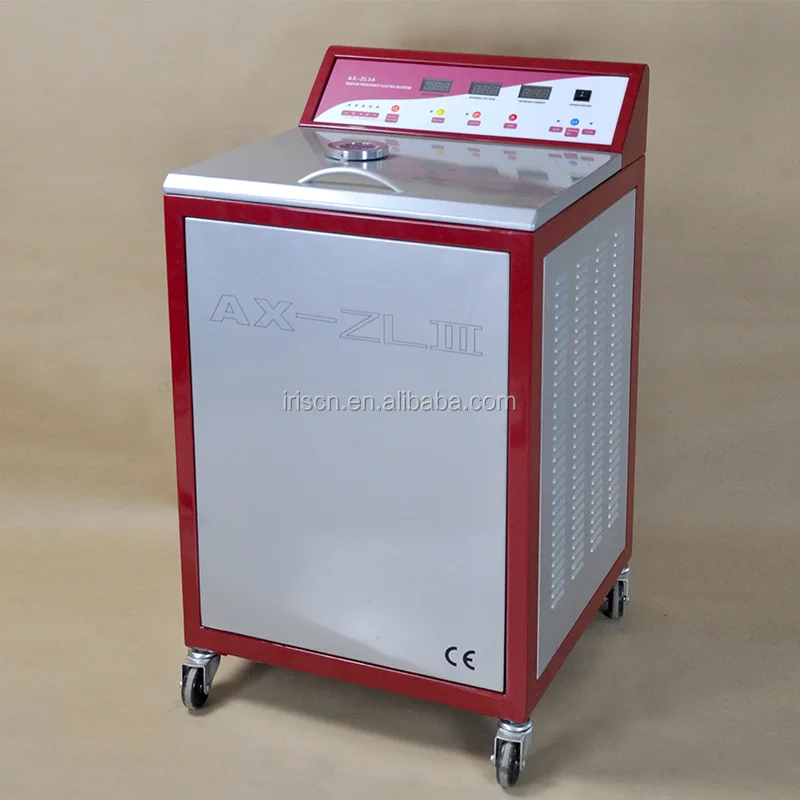

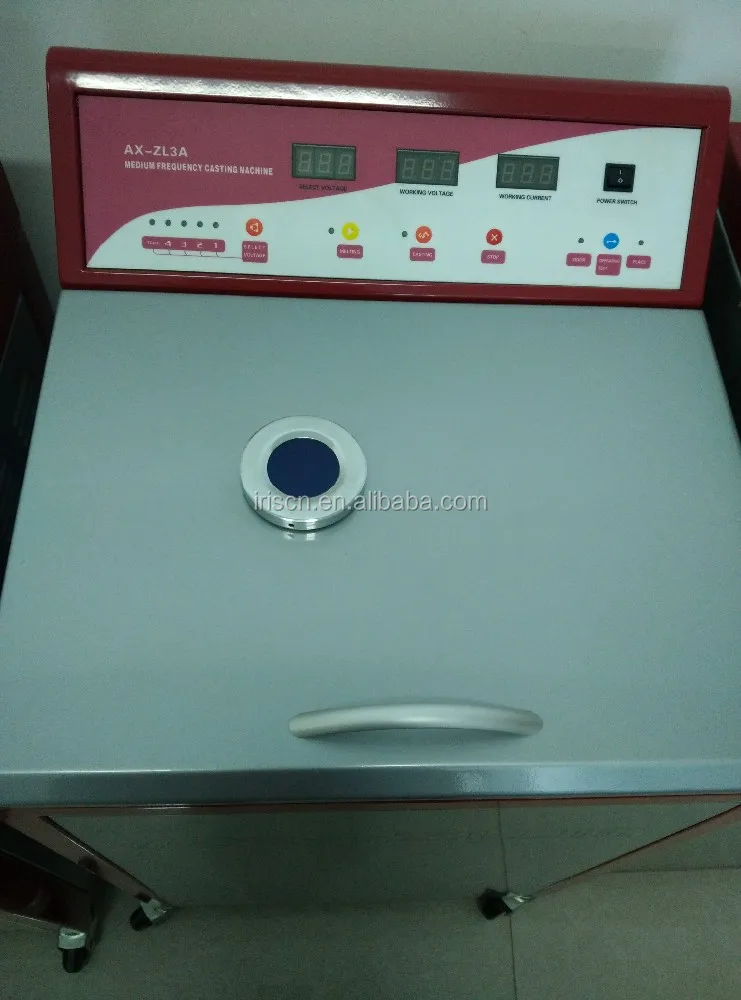

The AX-ZL3A Medium Frequency Induction Casting Machine is upgraded from the AX-ZL3 model with digital display and touch control buttons, which makes voltage reading and operations much easier.



Comparing to a high frequency induction casting machine, it has the following advantages.

1. Highly efficient, low power consumption and low power rating (2.5kW) thanks to the advance all-transistor circuitry.
2. No preheating is needed, melting and casting can start immediately. The interval time between two castings is only two minutes, excellent for continuous casting.
3. It can work under 220V/110V voltage.
4. Safer and more reliable thanks to the low working voltage and low high-frequency radiation.
5. Compact size and lower weight.



---

Parts Included
Machine × 1
Manual × 1
Fuse × 16

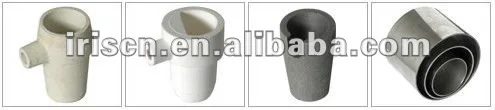

Crucible × 5
Brush ×1
Tongs × 1
Casting Rings × 3
"V" Rings Bracket × 3
Silicon Bridge × 2
Electric Resistance × 1
Capacitance × 1
