SHENPENG DS 9C High Performance Bag Closing Sewing Machine/Woven Bag Sewing Machine

Product Overview

Description

 DS-9C High Performance Bag Closing Sewing Machine/Woven Bag Closing Machine



Applications



DS-9C high performance bag closing sewing machine,woven bag closing machine is the fastest single needle double thread chain stitch bag closing machine equipped with pneumatic guillotine type crepe tape cutter, sewing speed up to 2,700 spm, designed for closing all sorts of fill bags.



DS-9C could replaced Newlong DS-9C, YaoHan N980AC and Union Special 80800ULM



Features

1. Single needle double thread chain stitch 401


2. Highest speed 2,700 s.p.m in the world


3. Sewing capacity up to 8mm (5/16 in.), 32 plies of paper


4. Adjustable stitch length from 7-10.5mm


5. Built-in pneumatic guillotine type crepe tape cutter


6. Full closed oil bath lubrication system, no need for oiling


7. Complete genuine NLW/NLI parts assembly machine, ensure the top standard quality


8. Well balanced rotational parts ensure very little vibration and promote a highly reliable closing system


9. Ideally suited for high speed bag closing and filling line applications where conveyor speeds exceed 25m/min (80FPM)


10. Split presser foot design ensure bag top control during thread and / or tape cutting


11. All parts are enclosed and protected inside the casting housing, the bag closing machine suitable for use in high dust and corrosive environment



SPECIFICATIONS

Model	DS-9C
Max. Sewing Speed	2,700 s.p.m
Max. Sewing Capacity	8mm (5/16 in.), 24 plies of paper
Stitch Length	7~10.5mm
Stitch Type	Single needle double thread chain stitch 401
Feed Type	Drop feed
Thread Chain Cutter	Pneumatic guillotine type crepe tape cutter
Air Supply	0.4MP 3.5NI/min
Crepe Tape Width	55mm
Lubrication	Full closed oil bath
Needle	DR-H30
Thread	Polyester 20/6, 20/9 (2×3, 3×3)
Dimension	540×380×570mm

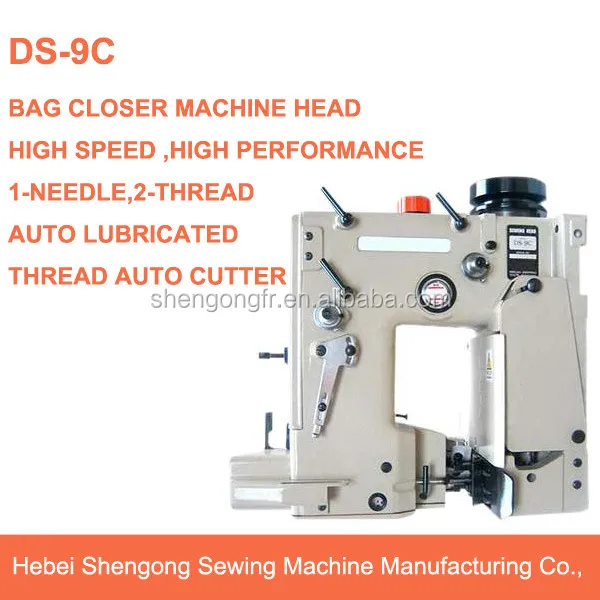

DS-9C Machine Head









DS-9C  Working Process

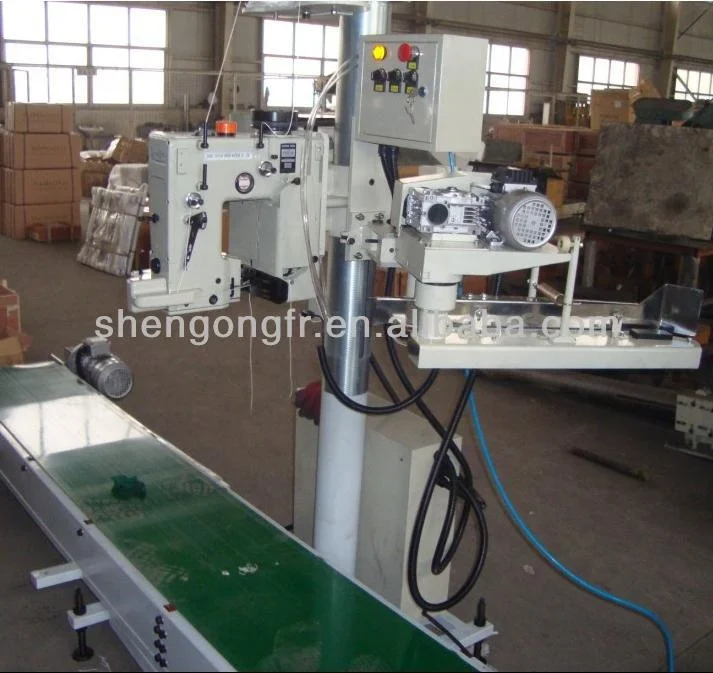

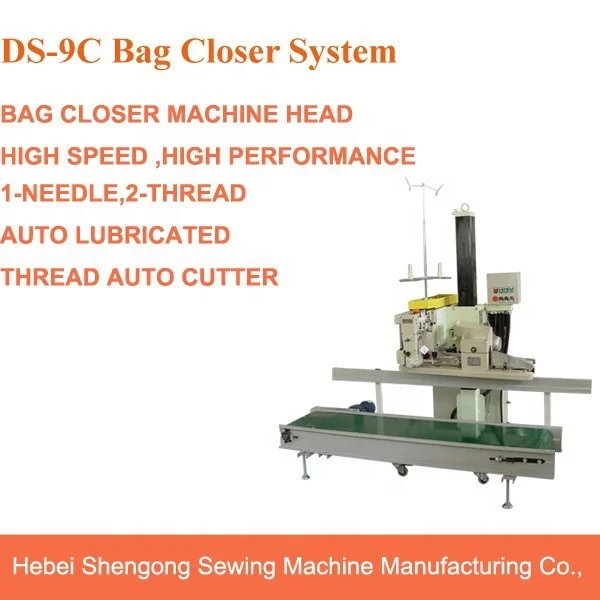

DS-9C Bag Closing System(DS-9C+CP4900 Folding Infeed +A1-PB  Pedestal +Conveyor)

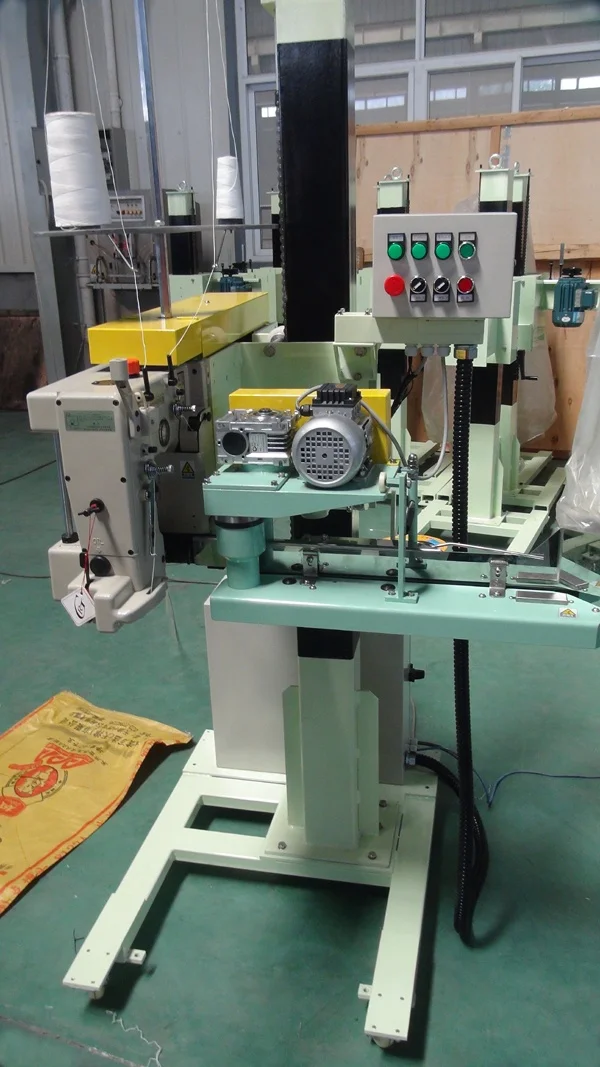

DS-9C Bag Closing System(DS-9C+CP4900 Folding Infeed +A1-PB  Pedestal )



  DS-9C Bag Closing System(DS-9C+CP6000 Folding Infeed +A1-PB  Pedestal )

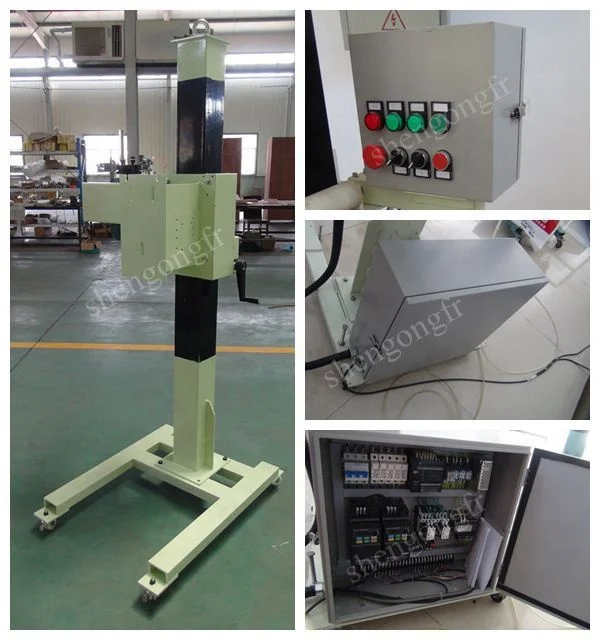

A1-PB Pedestal

(contain motor, columns, frequency conversion control cabinet, electric cabinet)
