excavator hyundai excavator quick attach

Product Overview

Description

1.Product introduction

We can design and produce quick hitches for various brands of excavators according to
custormers’ requipment.Quick hitch can be used on the excavators to change every accessory
(such as bucket,breaker,shear.etc)easily and quickly,which has enlarged the use scope of the
excavators and a lot of time.



2.Product characteristics

(1)Use material of high hardness:Suitable for different machines of 1-45Ton
(2)Use security device of hydraulic cntrol valve to ensure the safety.
(3)Can change the accessories without disassembling the pin and axle.Thus
    realize faster installation and much higher efficiency.

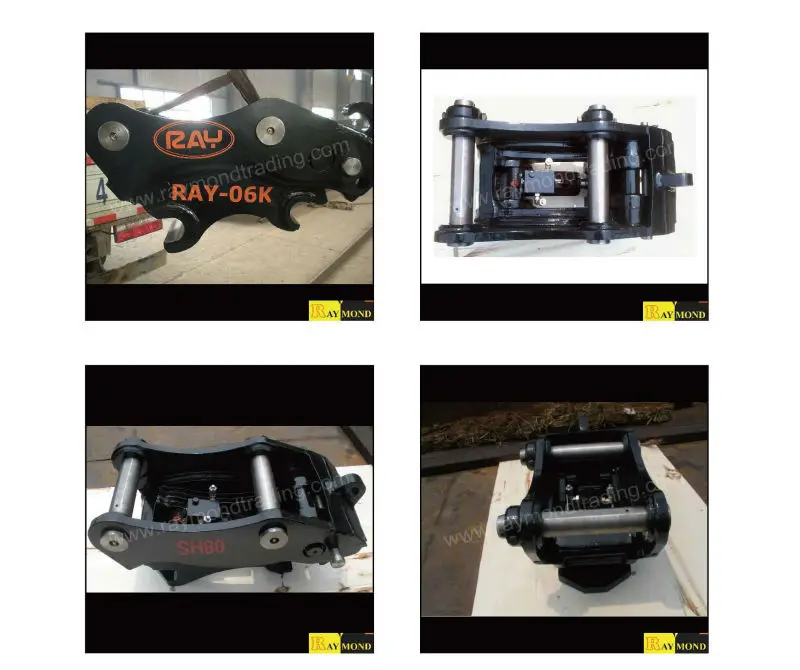

3.pictures of products

3.parameter list of products



Model Contents		MINI	RAY-02	RAY-04	RAY-06	RAY-08	RAY-10	RAY-17
Operating Weight	Kg	30	50-60	80	120-130	280-290	420-430	450-580
Overall Length(L)	mm	306-475	534-545	600	765	924-944	983-1050	1006-1173
Overall Height(H)	mm	230-268	307	310	388	492	574	558-610
Overall Width(W)	mm	175-242	258-263	270-280	353-436	449-483	543-568	606-663
Arm Width(W1)	mm	86-185	155-170	180-200	232-315	306-340	375-411	416-469
Installation width(W2)	mm	82	151-164	176-196	256	328	397	397
Equpping Distance(L2)	mm	90-140	208-315	340-450	340-486	256-390	413-590	520-590
Pin Diameter(D)	mm	25-40	45-50	50	50-70	70-80	80-90	90-120
Offset Height(H1)	mm	159-165	150	195	220	275	300	360
Working pressure	Kgf/cm2	40-380	40-380	40-380	40-380	40-380	40-380	40-380
Oil flow	l/min	10-20	10-20	10-20	10-20	10-20	10-20	10-20



          If you are interested in our products.please feel free to contact us!
