Solar Water Heater Accessory Single Pipeline Solar Working Station With WILO Water Pump WS I Series

Product Overview

Description



Solar Water Heater Accessory Single Pipeline Solar Working Station With WILO Water Pump WS-I Series





WS-I is a combined circulation unit for solar applications.

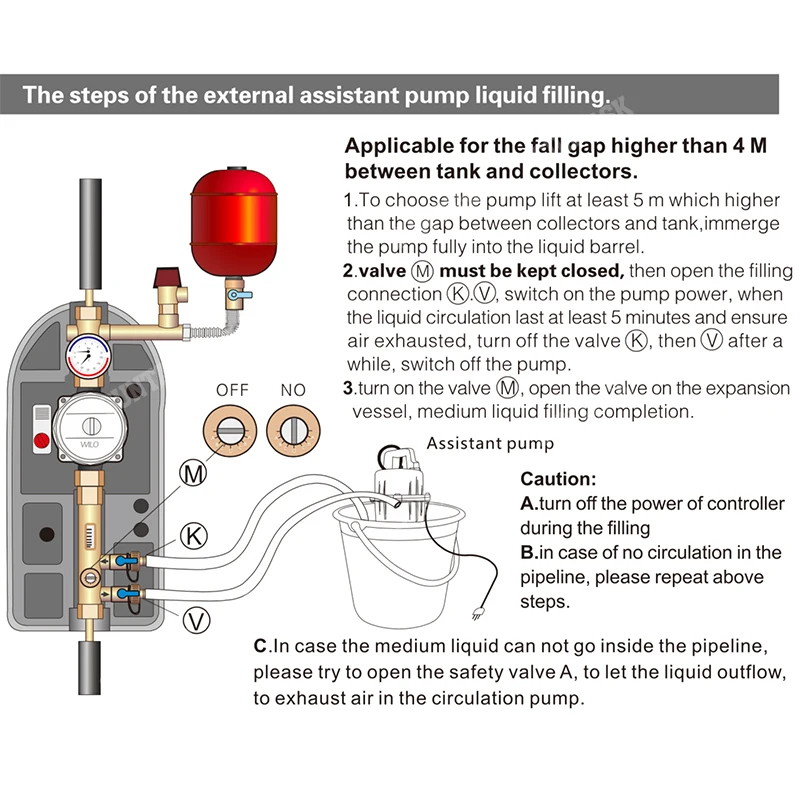

•No filling pump needed, Using the working station with the container supplied could simplify the installation on filling medium liquid. The circulation pump will allow one man to fill the system.

•Multifunctional ball valve to simplify the system filling.

•Install the collector and the cylinder separately.

•Preset the flow rate.

•Air stop device , manual integrated vent.

•Can work conjunction with any controller.

•Safety operation, excellent performance, Maintenance free.





Application range:Combined self-fill circulation unit for solar thermal  applications

Max  pressure :10 Bar

Max working temperature: 100 degrees Celsius

Max surrounding temperature:  45 degrees Celsius

connection size:  G3/4’’ female
