| Model: | 150CC | 200CC | ||||
| Specification: | ||||||
| Dimension(mm): | 2020×790×1185 | 2020×790×1185 | ||||
| Net Weight(kg): | 132 | 148 | ||||
| Max Load(kg): | 150 | 150 | ||||
| Brake Type: | F: disk R: disk | F: disk R: disk | ||||
| Brake Operation: | F: hand R: foot | F: hand R: foot | ||||
| Tyre Size: | F: 110/90-16 R: 120/90-15 | F: 110/90-16 R: 120/90-15 | ||||
| Max Speed(km/h): | 88 | 98 | ||||
| Economic fuel consuption(l/100kms): | ≤2.5 | ≤2.9 | ||||
| Engine type: | CG type, single-cyliner, air-cool, 4-stroke, with balance shaft. | |||||
| Displacement(ml): | 149 | 197 | ||||
| Max Power(kw/r/min): | 7.5/7500 | 9.6/7000 | ||||
| Max Torque(n.m/r/min) | 9.8/7000 | 13.2/5500 | ||||
| start: | electric/kick | electric/kick | ||||
| Ignition: | CDI | CDI | ||||
| Gear Shift: | international 5 gear | international 5 gear | ||||
| Fuel tank capacity(l): | 12 | 12 | ||||
| Container Loading Quantity(units): | 20FT(SKD): 30 | 40HQ(SKD): 75 | ||||
Detailed Picture

Factory Overview

Assembly Line

Packing Line

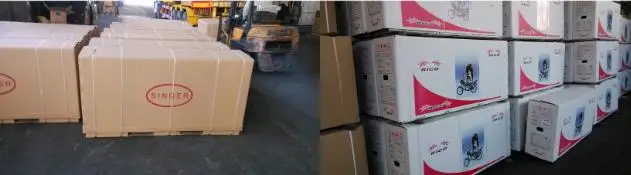

Packing

Testing facility

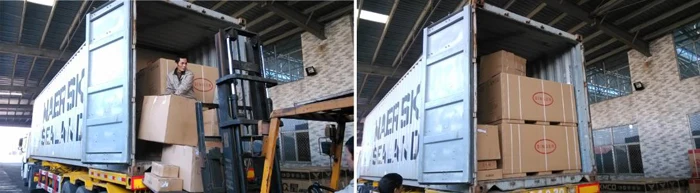

Container Loading
