LS4500 Gold Concentrate Deister Table
- Category: >>>
- Supplier: Jiangxi Jinshibao Mining Machinery Manufacturing Co. Ltd.
Share on (1586117240):
Product Overview
Description
Product Description
Gold Concentrate Deister Table is one of the main equipments of gravity concentration. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. Gold Concentrate Deister Table's effective recycling size scope is 2-0.22 millimeters.
There are 2 different LY4500 Gold Concentrate Deister Table above.
Upper one is #28 Gold Concentrate Deister Table. Suitable for difficult ground.
Below one is #10 Gold Concentrate Deister Table. Cheaper, lighter, suitable for flat ground.
Rock ore should be crushed first. Then go to ball mill& spiral Classifier. With its size small enough, gold concentrator could be used to collect valuble ore. Gold Concentrate Deister Table is always the last step to collect the rare ore, like gold and others.
1. Several models of Gold Concentrate Deister Table
2. Specification of Gold Concentrate Deister Table
Model Performance | LS4500 | LY3000 | LY2100 | LY1100 | |
Feeding Range | Coarse Ore(mm) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
Fine Sand Ore(mm) | 0.074.0.5 | 0.074.0.5 | 0.074.0.5 | 0.074.0.5 | |
Slime Ore(mm) | -0.074 | -0.1 | -0.074 | -0.074 | |
Feeding Density(%) | 10-30 | 10-30 | 10-30 | 10-30 | |
Capacity | Sand ore(t/h) | 0.5-1.8 | 0.7-1.5 | 0.4-0.8 | 0.1-0.2 |
Water Consumption(t/h) | 0.4-0.7 | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
Motor | Power(Kw) | 1.1 | 1.1 | 1.1 | 0.55 |
Size | L*W*H(mm) | 5600*1850*860 | 4075*1320*780 | 3040*1050*1020 | 1530*500*800 |
Table Weight(kg) | 750 | 650 | 400 | 150 | |
3. How to select the right decks for Gold Concentrate Deister Table?
Several decks are available.
Coarse ore: 0.5-2mm (46 slots)
Fine Sand: 0.074-0.5mm (60 slots)
Slim Sand: 0.05-0.074mm (136 slots)
Common: 120 slots
4. Applications of Gold Concentrate Deister Table
This case is taken in Australia. The general process line is like this:
Jaw crusher-hammer mill- Gold Concentrate Deister Table
This process line is for rock gold.
This case is taken in Sudan, also for gold.
5. Structure of Gold Concentrate Deister Table
6. Other kinds of Gold Concentrate Deister Table
There are 3-deck Gold Concentrate Deister Table and 2-deck Gold Concentrate Deister Table. Based on its structure, single layer one is what we suggest you to take.
Other Series of mining machines
Those are shaking table, jig, centrifugal concentrator, spiral chute.
Packaging & Shipping

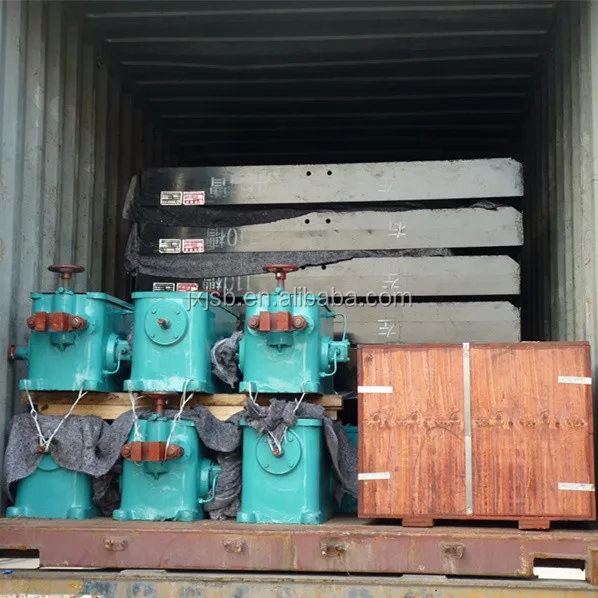

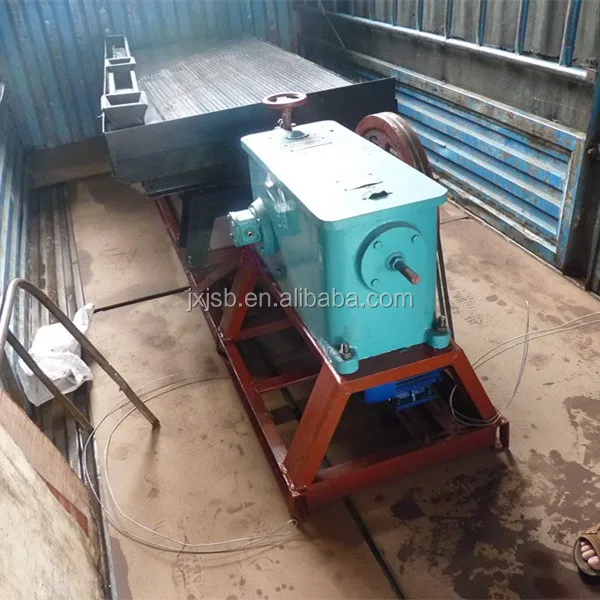

FCL of Gold Concentrate Deister Table
LCL of Gold Concentrate Deister Table
Company Information
Gold Concentrate Deister Table is our flagship product. The place we locate, Shicheng County, is the home of Gold Concentrate Deister Table in China. Based on this, we grow up stronger and stronger.
20 Year-experienced skill ensure our product a stable structure and better performance. Among so many products from us, Gold Concentrate Deister Table is the most popular one and enjoy a really good reputation and feedback from our customers from all over the world.

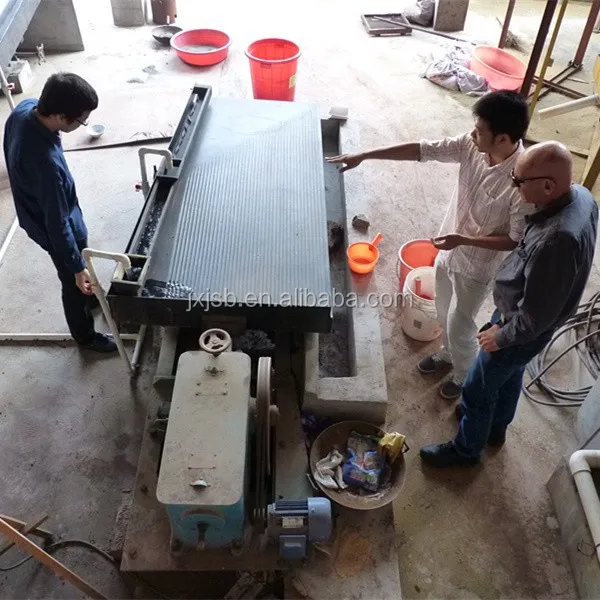

Customer Visiting Us
Certifications
FAQ
Q1. Are you a manufactory or trading company?
A: We are a manufacturer.
Q2. Where is your factory? How can I visit there?
A: Our factory is located in Shicheng County, Jiangxi Province, China.
U could fly to Guangzhou port first. Then to Ganzhou port. We'll pick U up there.
Why buy from us?
1. High quality and most competitive price----we are famous for our shaking table. And the city we located in was the home of shaking table in China.
2. Delivery fast -----Goods be sent out within 15 to 30 days based on order quantity.
3. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business.
