Full Automatic Plastic Shopping Bag T-shirt Bag Making Machine
US $33000-$53000
Supply PE bag making machine,PP Plastic bag producing machine,flat bag making machine
- Category: Packaging Material Making Machine >>>
- Supplier: Ruian Xinye Packaging Machine Co. Ltd
Share on (1586900054):
Product Overview
Description
GFQ-600/700/900/1000
Computer Control Double Layer Film Sealing And Cutting Machine
Product Description
1)This machine could make both flat bags& t-shirt/vest bags. Besides, it can make two lines of bags with only 1 photo-eye. ( We can also make machine with 2 photo-eyes, but the price is different)
2) It is equipped with computer to set the bag length , width, pieces and batches of bags you want to control the speed and temperature, etc.,with a photo-eye to track the printed films to make printed bags. It has such functions like auto-alarming, auto-stop, and auto counting etc.
.Main Technical Variables:
Model | GFQ-600 | GFQ-700 | GFQ-900 | GFQ-1000 |
Max of Width | 550mm | 650mm | 850mm | 1000mm |
Max of Length | 1600mm | 1600mm | 1600mm | 1600mm |
Sealing and Cutting Thickness | 0.006-0.10mm | 0.006-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Speed | 40-120pcs/min | 40-120pcs/min | 40-120pcs/min | 40-120pcs/min |
Error in Length | 1.1mm | 1.1mm | 1.1mm | 1.1mm |
Power of Main Motor | 1.1 kw | 1.5 kw | 1.5 kw | 2.2kw |
Heating Power | 1.2kw | 1.5kw | 2kw | 2.5kw |
Total Power | 2.5kw | 3.2kw | 4.3kw | 5.8kw |
Weight of Machine | 700kg | 820kg | 900kg | 1100kg |
Overall Dimensions | 2650X1200X1550 mm | 2650X1400X1550 mm | 2800X1500X1550 mm | 2800X1700X1550 mm |

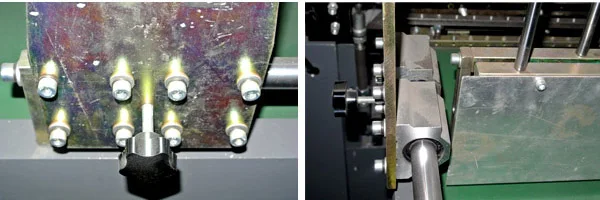

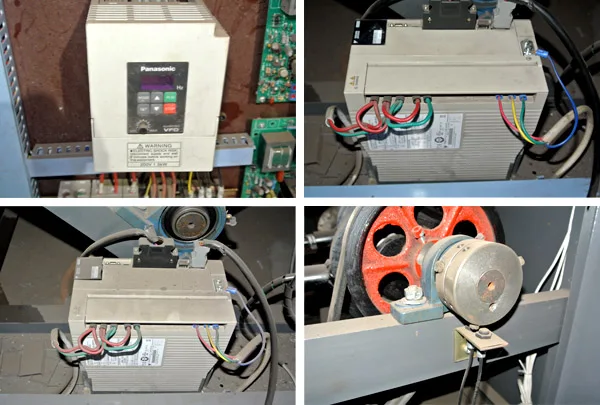

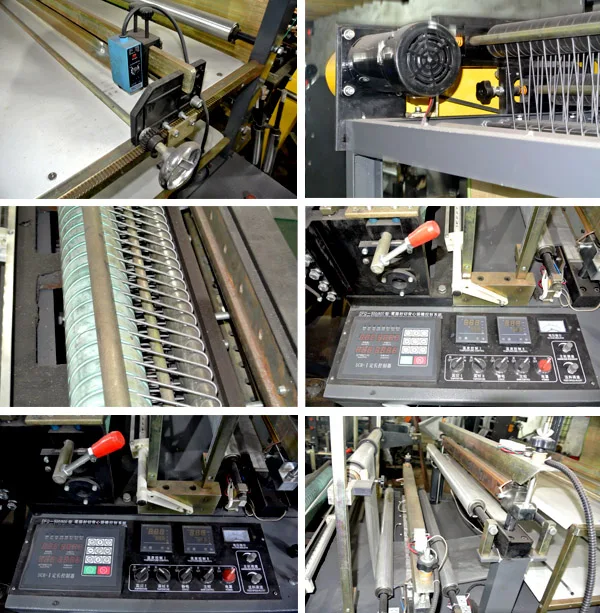

Details:

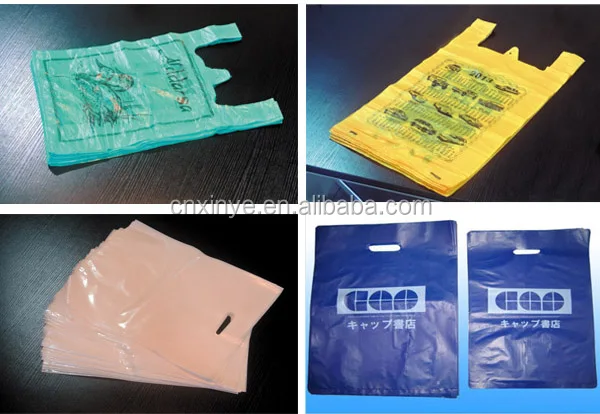

Samples:
Related products :
Our Services
.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
Company Information

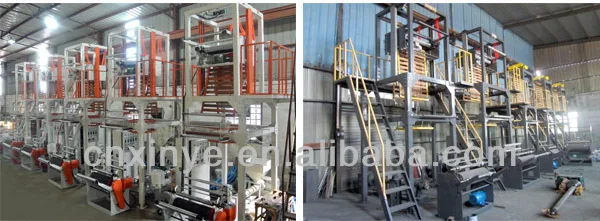

Our workshop:
