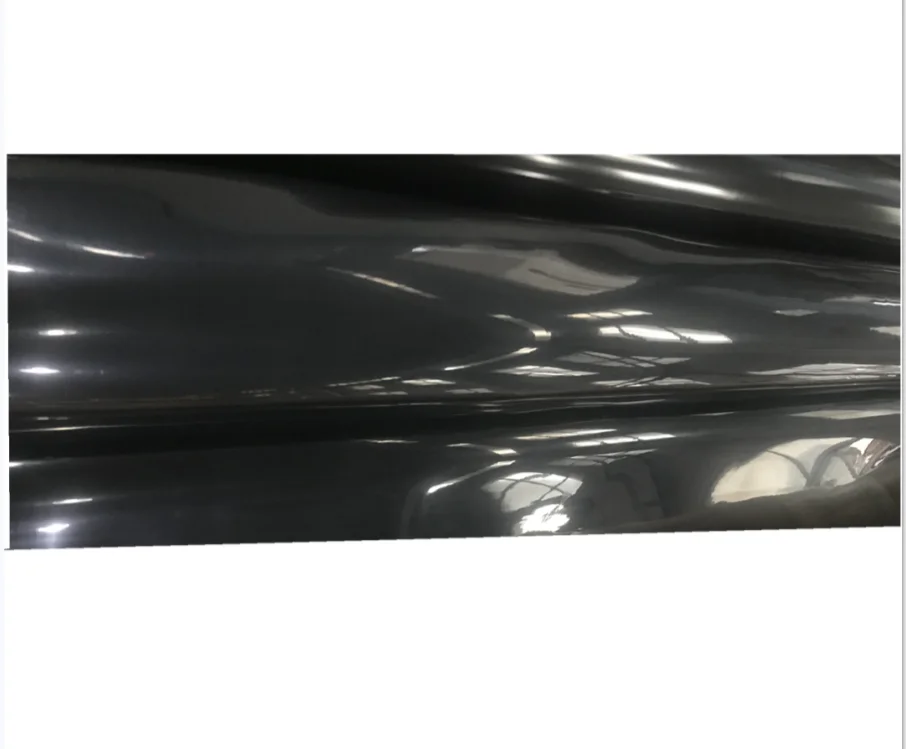

HDPE LDPE LLDPE pond liner waterproof geomembrane sheet

Product Overview

Description

  HDPE LDPE LLDPE pond liner sheet









Description:



SHENZHOU^®  brand HDPE geomembranes are a kind of large molecule (macromolecule) polymer as the basic

raw material composed of waterproof and cut-offs(insulation & separation) geosynthetic material.



Type: HDPE geomembrane, composite geomembrane







Properties:

  High quality 0.20mm to 2.50mm rubber pond liner

high strength, low permeability, chemical corrosion resistance, ultraviolet & sun exposure resistance, oxidation resistance, weather resistance, antimicrobial, erosion resistance.



thickness: 0.5-2.5mm rubber pond liner

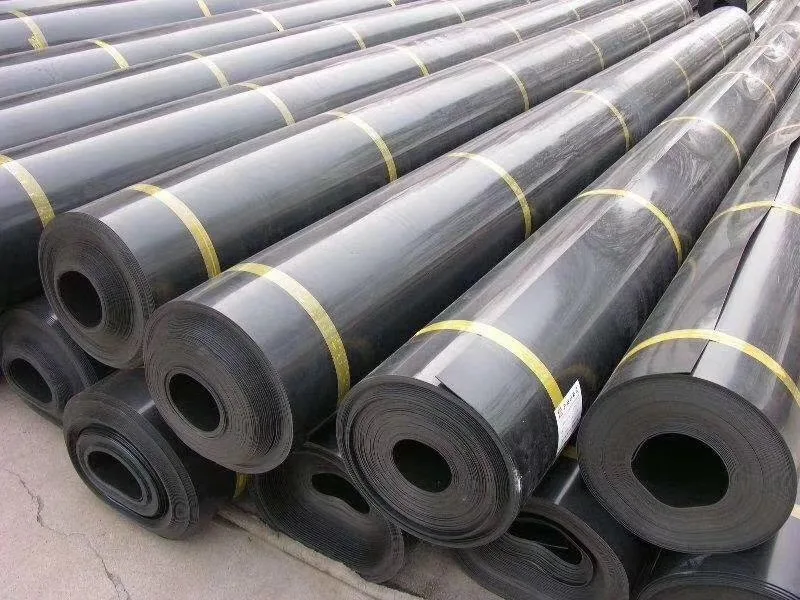

Roll width: 5.9m, maximum roll width is 8 meters

Loading quantity / 40HC: 42 rolls,5.8m*100m , 24360 m2





Specification & index:



No.	properties		Unit	0.5	0.75	1	1.5	2
1	thickness	ASTM D 5199	mm
2	density	ASTM D 1505	g/cm3, min.	0.939
3	tensile strength at yield	ASTM D 6693	kN/m, min.	7	11	15	22	29
4	tensile strength at break	ASTM D 6693	kN/m, min.	13	20	27	40	53
5	elongation at yield	ASTM D 6693	%, max.	12
6	elongation at break	ASTM D 6693	%, max.	700
7	tear resistance	ASTM D 1004	N	55	93	125	187	249
8	puncture resistance	ASTM D 4833	N	160	240	320	480	640
9	carbon black content	ASTM D 1603	%	2-3
10	oxidation induction time (OIT)	ASTM D 3895	minute	100
Other information:
1	Load quantity	20ft hc	sqm	28420	20880	14210	10440	7250
2	FOB price (USD)		sqm	0.94	1.42	1.89	2.82	3.79



Customized specification, type, thickness, width dimension is available.









By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance).

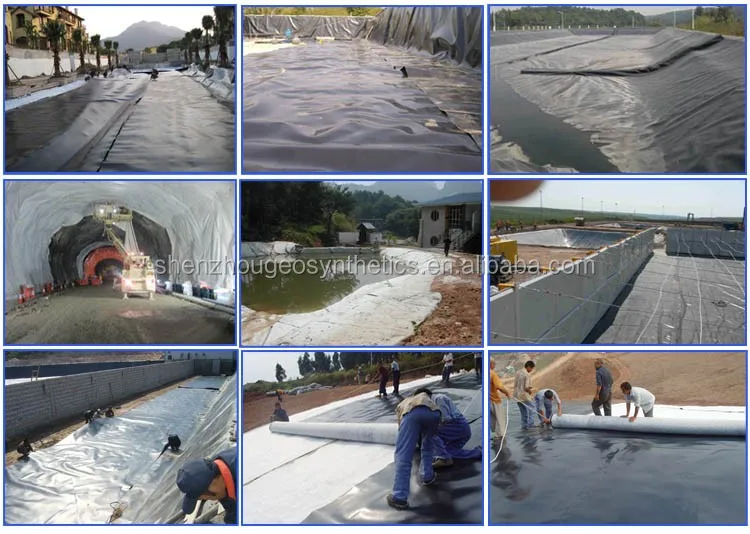

Application industry or engineering & usage:

1. environmental protection, environmental hygiene(such as garbage landfill site, treatment of sewage,  containment of poisonous or harmful wastes, hazardous warehouse, industry wastes, construction & explosive rubbish, etc)
2. water conservancy(such as waterproofing, stopping up leak, reinforcement for lake, river, channels, tunnels, dams and reserviors; vertical wall with core, slope protection, etc)
3. municipal engineering(expressway, subway, underground engineering of building;  and liner of roof pool, roof garden's waterproofing, sewage channel, etc)
4. garden(backing & slope protection of artificial lake, pool,  golf course's pond)
5. petrochemicals(liner secondary lining of chemical reaction tank and deposit tank from chemical plant & refinery; seepage control of oil tank from gas station)
6. mining (backing seepage of washing pond, heap leaching pond, ashery, dissolved pond, deposit pond from the stack and tailing)
7. traffic facilities(highway foundation reinforcement, culvert stopping up leak)
8. agriculture(stopping up leak for reserviors, drinking pools, storage ponds and irrigation system)
9. aquiculture industry(seepage control for sea cucumber circle's slope protection, liner of fish pool & shrimp pond)

10. seepage, corrosion, leaks control & reinforcement for other facility, leachate collection
11. temporary container structure, prefabrication of special parts

















Certifications:





1. How about the delivery time?
   Lead time since receipt of 30% T/T deposit payment: 3 weeks.
   (Samples will be prepared within 3 days.)



2. What kind of payments does jenor support?
   T/T, L/C, Cash are accepted.



3. What's are the MOQ?
   Generally speaking, the MOQ is one container, but we can provide you samples for quality inspection.



4. Do you charge for the samples?
   Accordeing to our company policy, the samples are freee, we only charge the freight fee. And we will return the freight fee during the next order.



5. Can you produce according to customers' design?
   Sure, we are professional manufacturer, OEM and ODM are both welcome.



6. Can you tell me your main customers?
   That's our customers' privacy, we should protect their information.
   At the same time, please rest assured that your information is also safe here.





Thank you for your visiting !
