HSS M2 m2.5 Involute spline hobbing cutter with PA30

Product Overview

Description

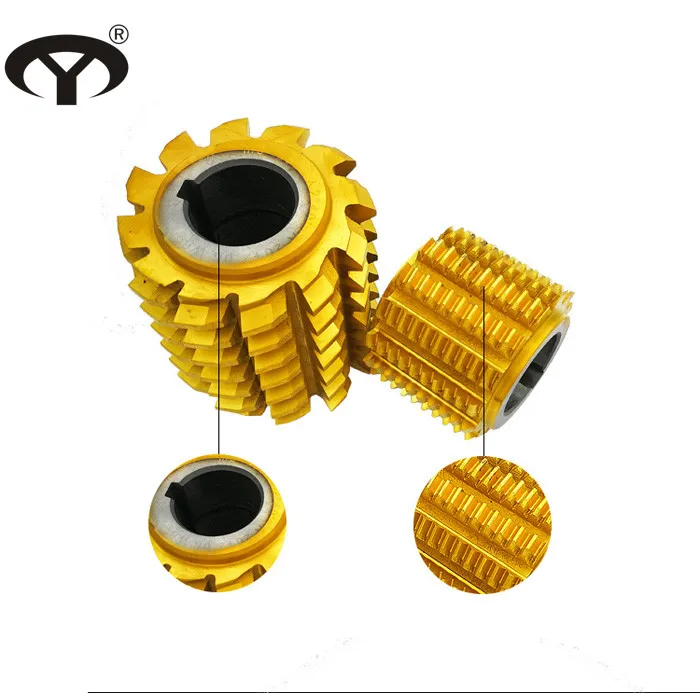

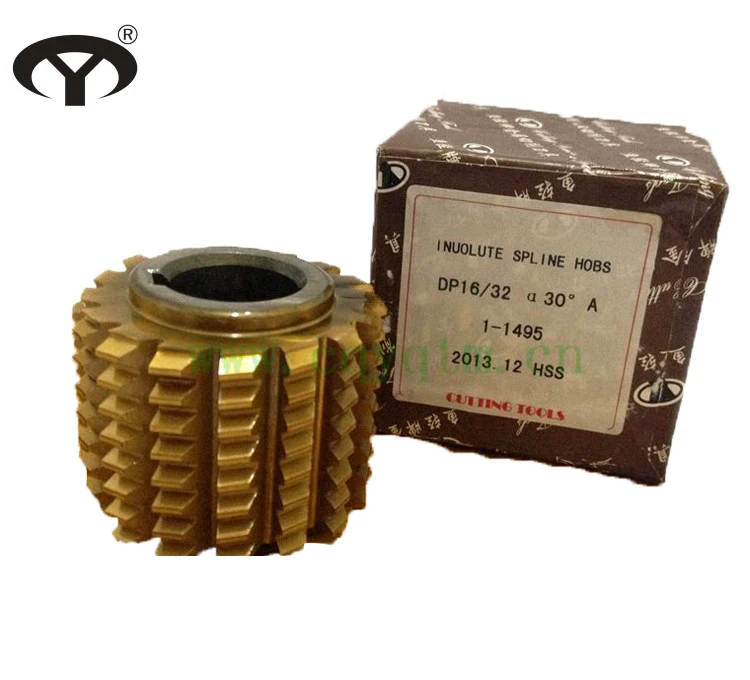

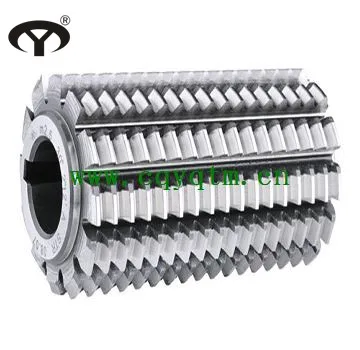

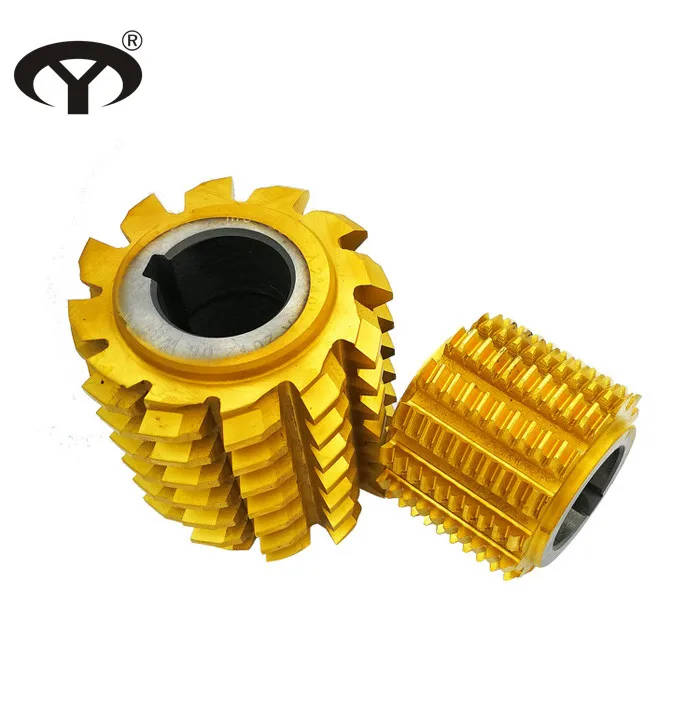

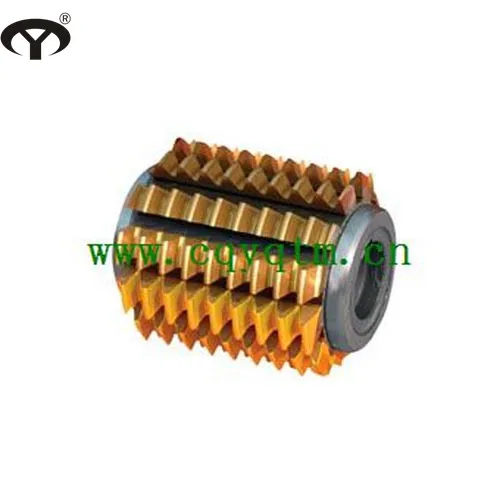

HSS M2 m2.5 Involute spline hobbing cutter with PA30



1. Standard : GB5103-85/DIN5482



2.PA30,  PA45



3.Involute Serration Hobs with 45° pressure angle can be ordered .



4.Size:(mm)



Module	Outside Dia.	Overall Length	Hole Dia.
0.5	45	32	22
0.75
1	50	35
1.25		40
1.5		50
1.75	63	63	32
2
2.5
3	71	71
3.5
4	80	80
5	90	90
6	100	100
8	112	112	40
10	125	125

















Spline Hob Cutters are manufactured as per GB,DIN standards, specific requirement of the customer for straight side splines and involute splines is also supplied by Yuqing tool. We can supply all kinds of the tool, especially we can do the Non-standard ones for u according to ur specific requirements.







Need any further details? Pls dont hesitate to contact us!!! We'll response u ASAP.



Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.





Production process of HSS M2/M35 module dp involute gear hobbing milling cutter with PA20 :









 Material Introduction:



A. W6Mo5Cr4V2 (GB) M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
