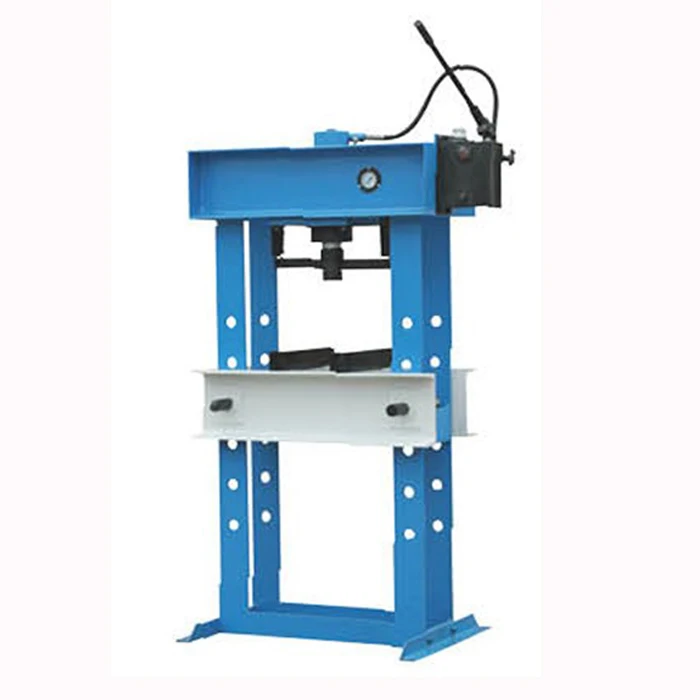

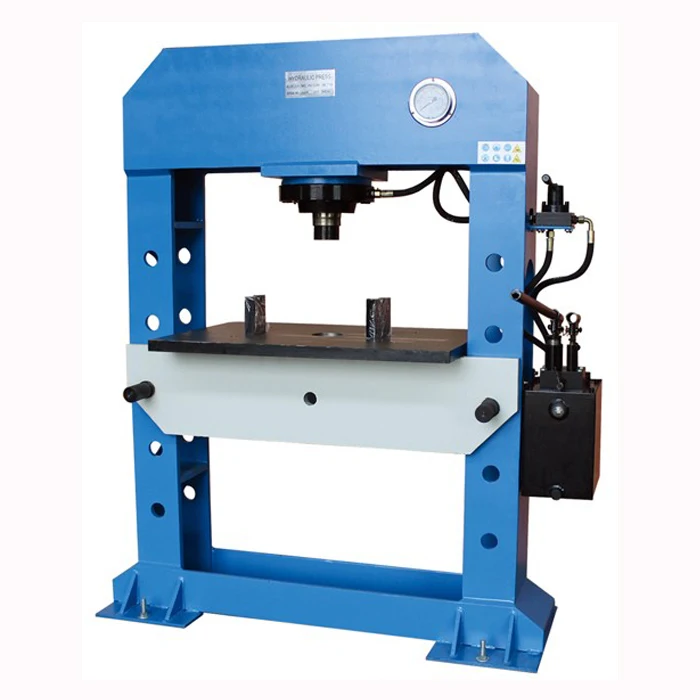

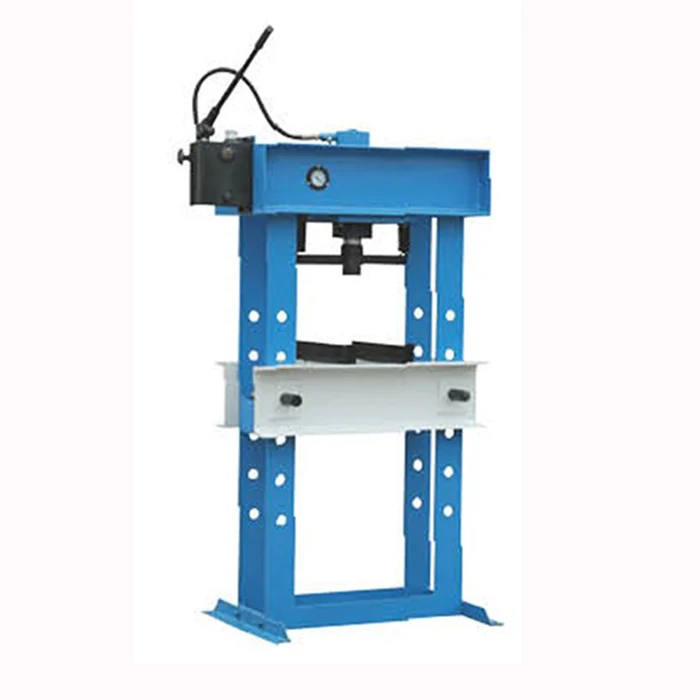

manual H frame hydraulic press 100ton

Product Overview

Description







Manual hydraulic press feature

1. Rigid weldment design
2. Reliable highly accurate hydraulic system
3. Pressing and clamping
4. Straightening beam, shaft and section

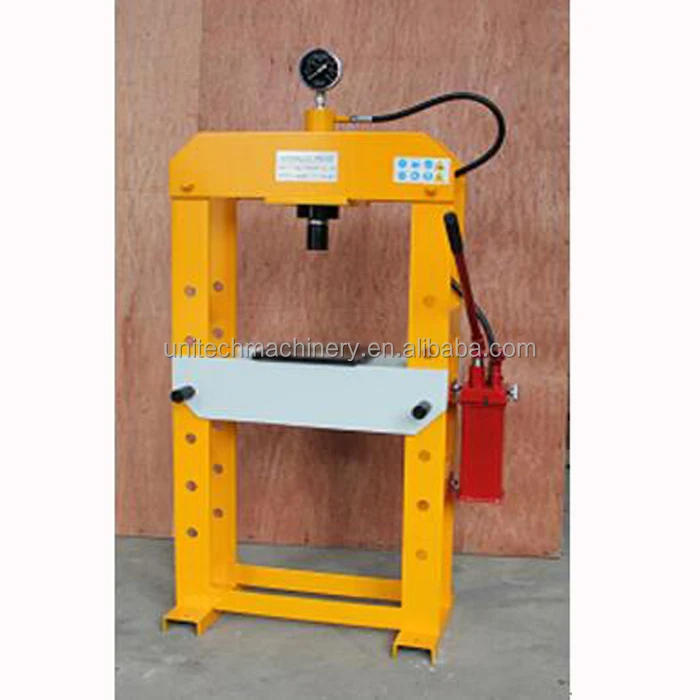

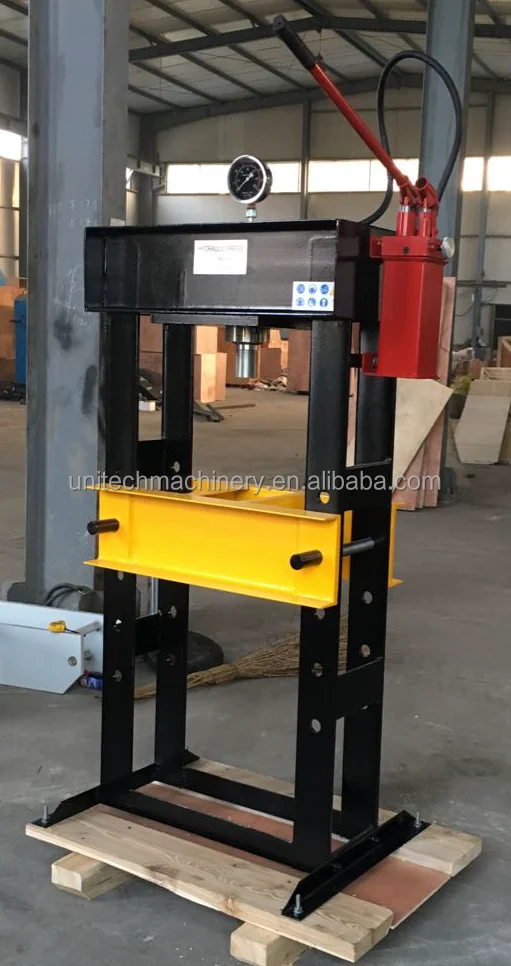

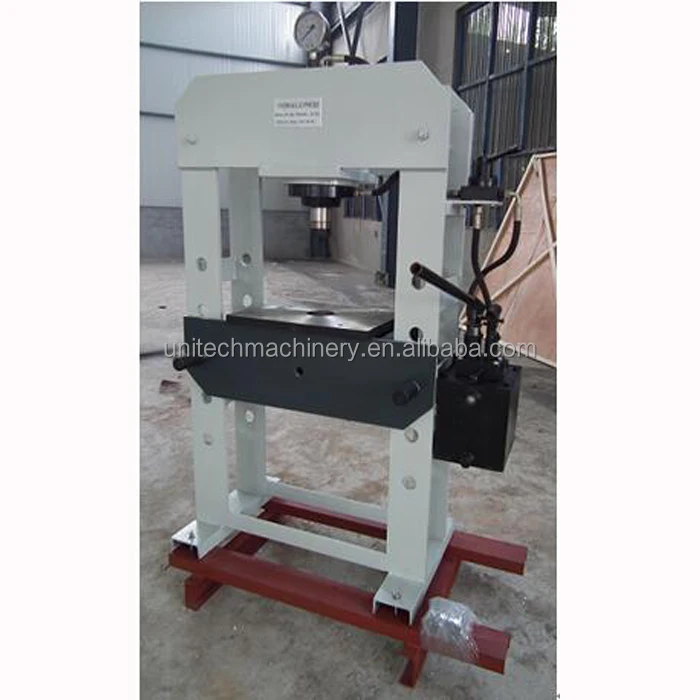

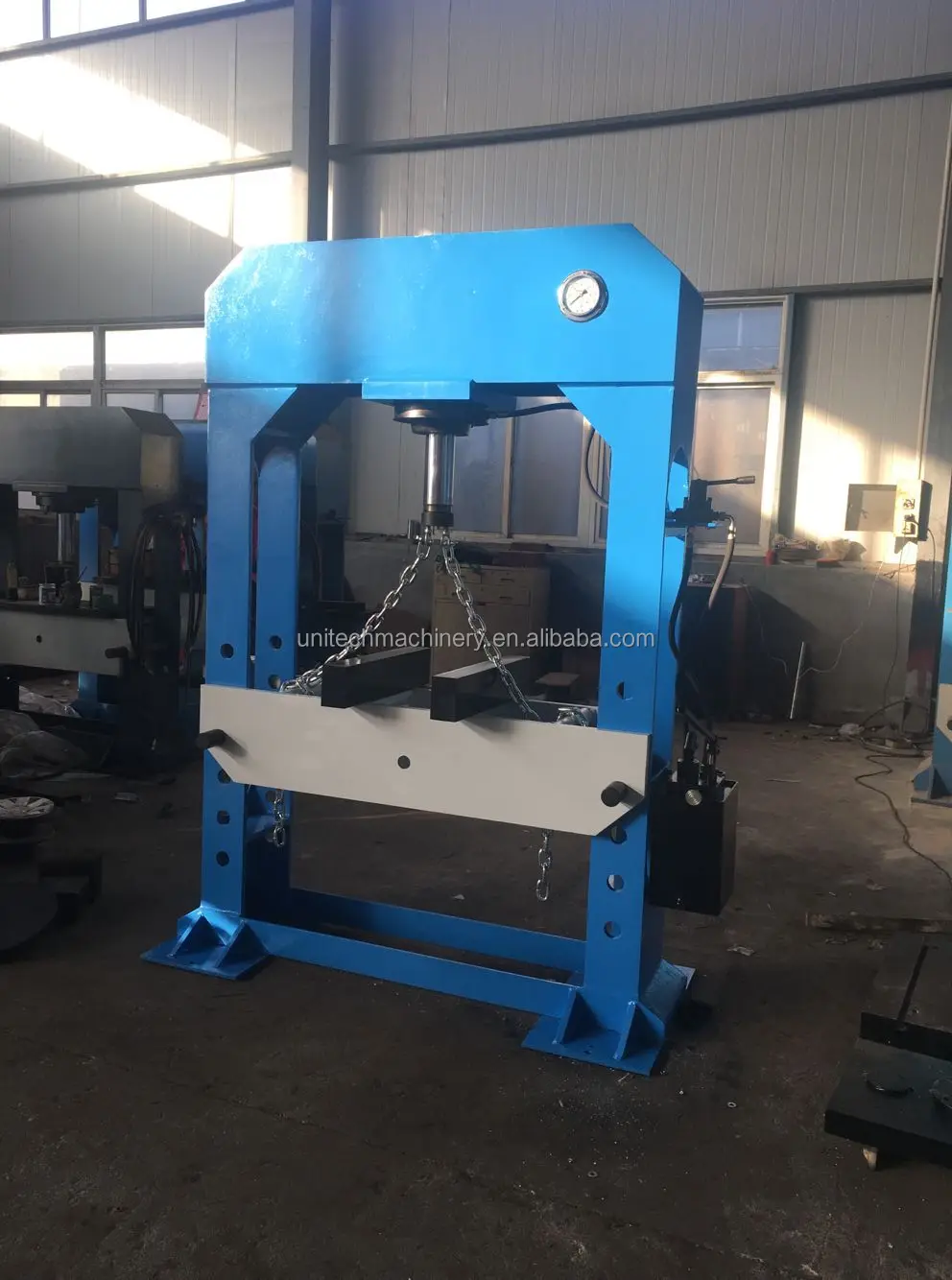

Model		HP-10S		HP-20S	HP-30S	HP-40S	HP-50S	HP-80S	HP-100S	HP-150S	HP-200S
capacity(KN)		100		200	300	400	500	800	1000	1500	2000
pressure(Mpa)		20		50	50	60	60	40	40	40	40
Travel(mm)		180+450		200+450	200+450	250+450	250+450	300	300	300	300
table size(mm)		200x300		200x300	300x400	360x500	360x680	500x400	800x400	800x400	1000x500
dimension(mm)		500x350x1300		500x350x1300	550x400x1500	1000x550x1500	1000x600x1750	1560x650x1950	1600x6502100	1730x730x2150	1800x800x2250
weight(kg)		220		260	320	380	460	820	980	1100	1600
