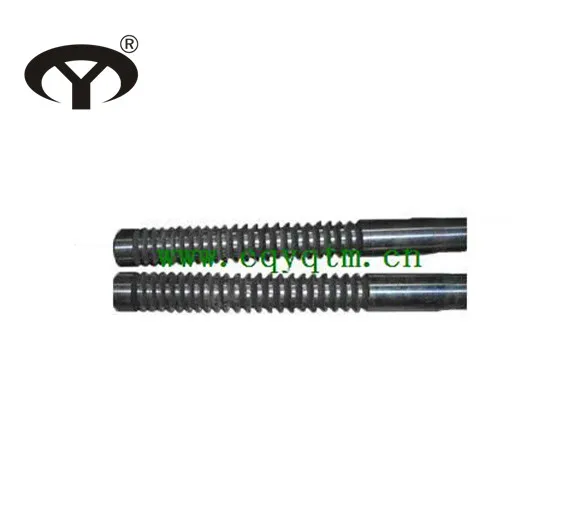

HSS M2/M35 Pull Broaching Tool for Round Hole
Description:
1.HSS Round Broaches
2.Material: HSS (M2/M35)
3.Standard:GB3831-83
4.Type: pull type

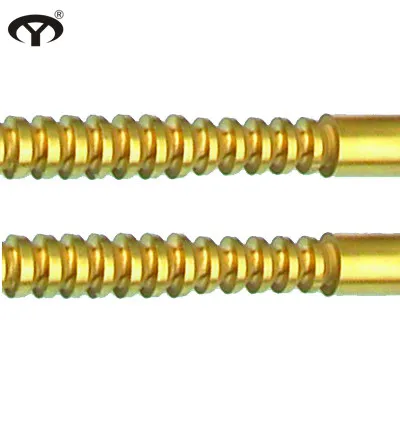

5.Coat: TiN/TiAlN
Round broach is used for broaching cylindrical hole
Specification table of pull round broach :
Nominal Dia. | Overall Length | Broaching Length | Pre-Broaching Hole Dia. |
10 | 380.440 | 10~30 | 9.3 |
11 |
385.450 |
10~30 | 10.3 |
12 | 11.3 | ||
13 |
395.460 |
10~30 | 12.3 |
14 | 13.3 | ||
15 | 14 | ||
16 |
400~520 |
10~50 | 15 |
17 | 16 | ||
18 |
405~530 |
10~30 | 17 |
19 | 18 | ||
20 | 19 | ||
22 |
400~655 |
10~80 | 21 |
24 | 23 | ||
25 | 24 | ||
26 | 25 | ||
28 | 465~745 | 18~120 | 27 |
30 |
480~750 |
18~120 | 29 |
31 | 29.9 | ||
32 | 500~750 | 18~120 | 30.8 |
34 |
500~760 |
18~120 | 32.9 |
35 | 33.9 | ||
36 | 34.8 | ||
38 | 36.8 | ||
40 | 38.8 | ||
42 |
500~770 |
30~120 | 40.8 |
45 | 43.8 | ||
48 |
560~750 |
30~120 | 46.7 |
50 | 48.7 | ||
52 | 50.8 | ||
54 | 52.8 | ||
55 | 53.8 | ||
58 | 56.8 | ||
60 | 58.8 | ||
62 | 60.8 | ||
65 |
570~760 |
30~120 | 63.8 |
70 | 68.8 | ||
75 | 73.8 | ||
80 | 78.8 | ||
85 | 83.8 |
Broach series : Round broach , parallel side spline broach , involute spline broach , keyway broach , square broach and hexagonal broach and so on.
