Fireproof high temperature thermal protection boilers thermocouple wire High Silica Fiber Sleeve

Product Overview

Description

1800 °F/982°C Continuous Exposure: Higher Intermittent

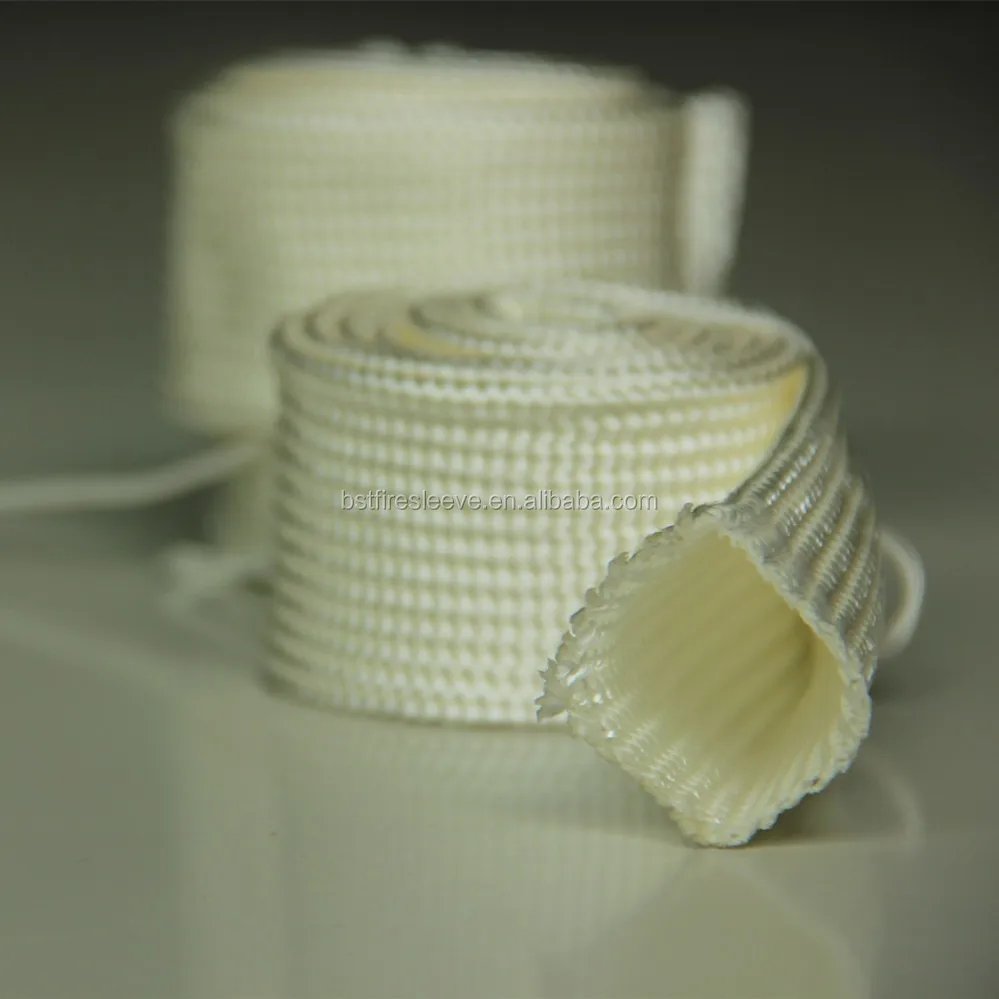

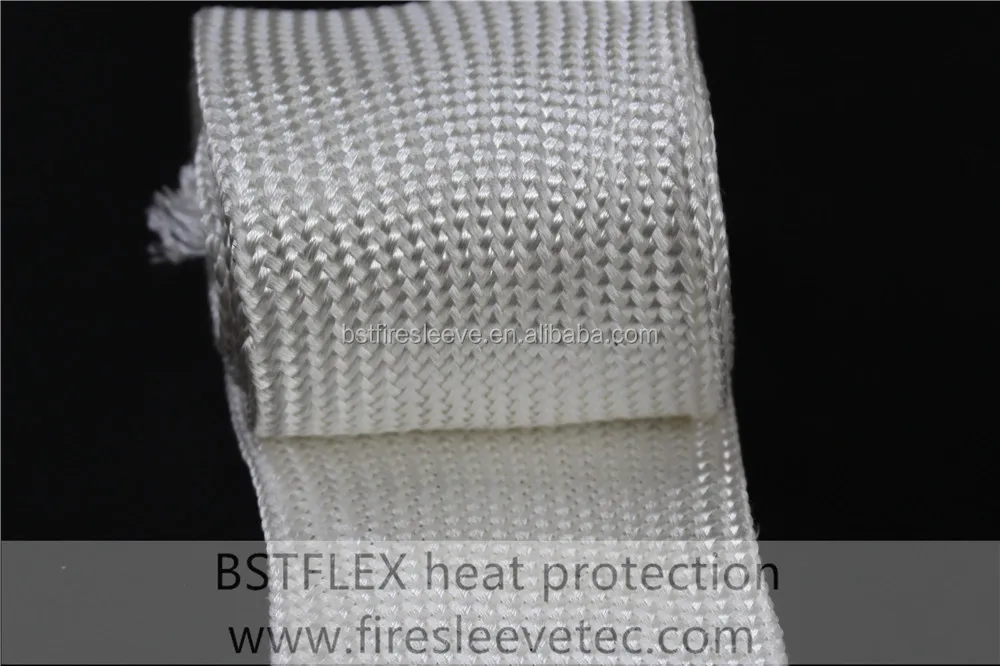

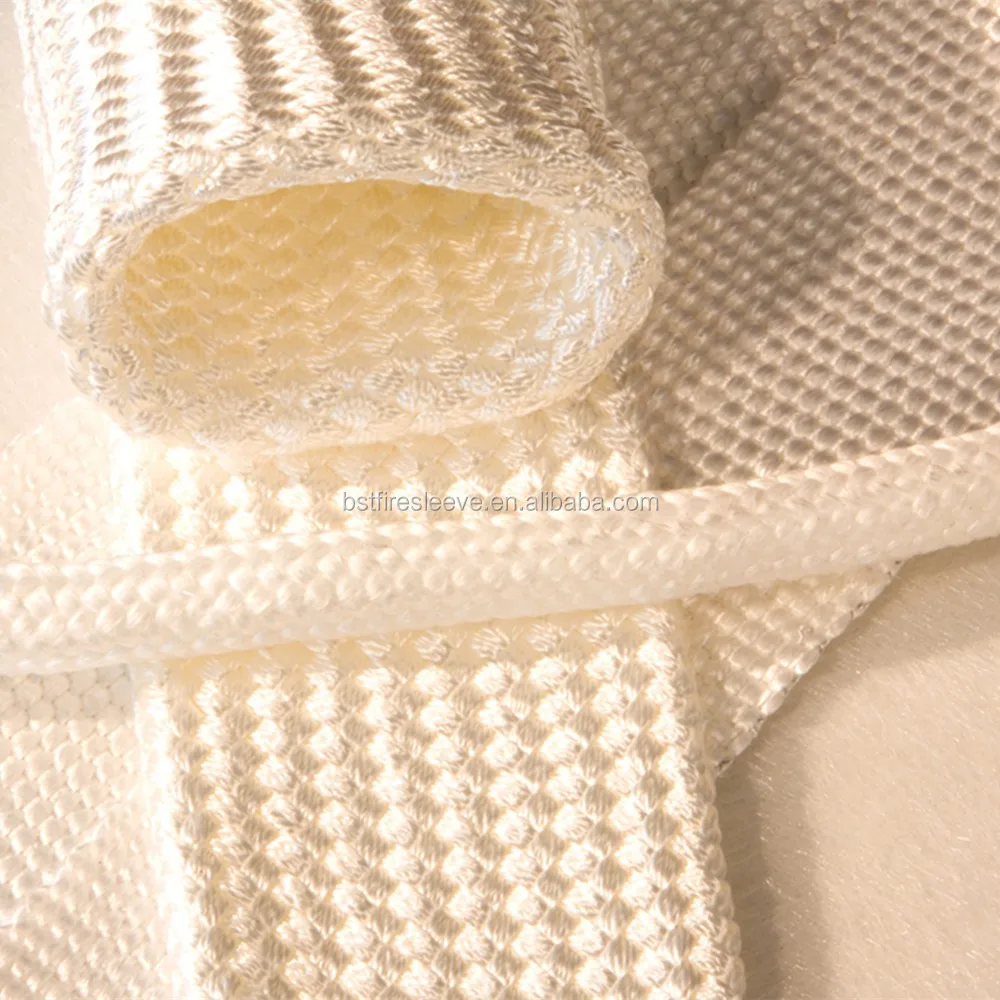

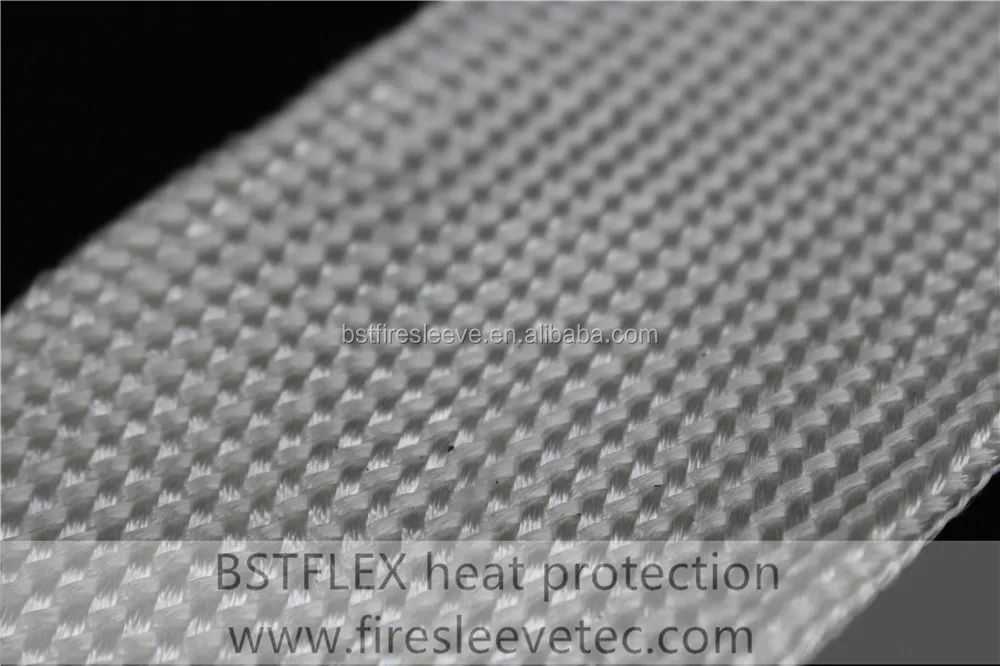

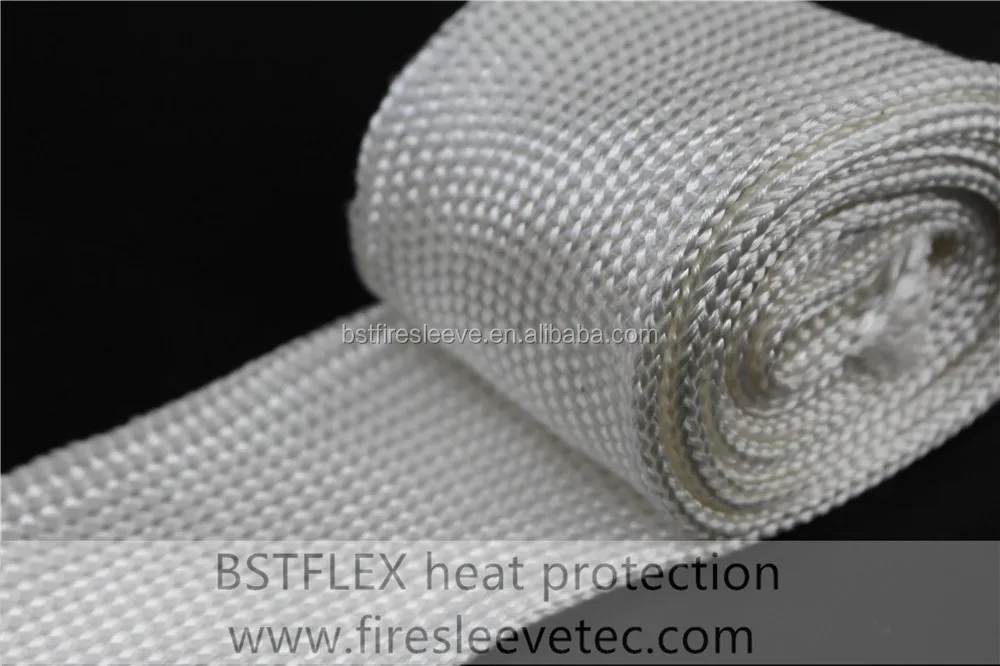

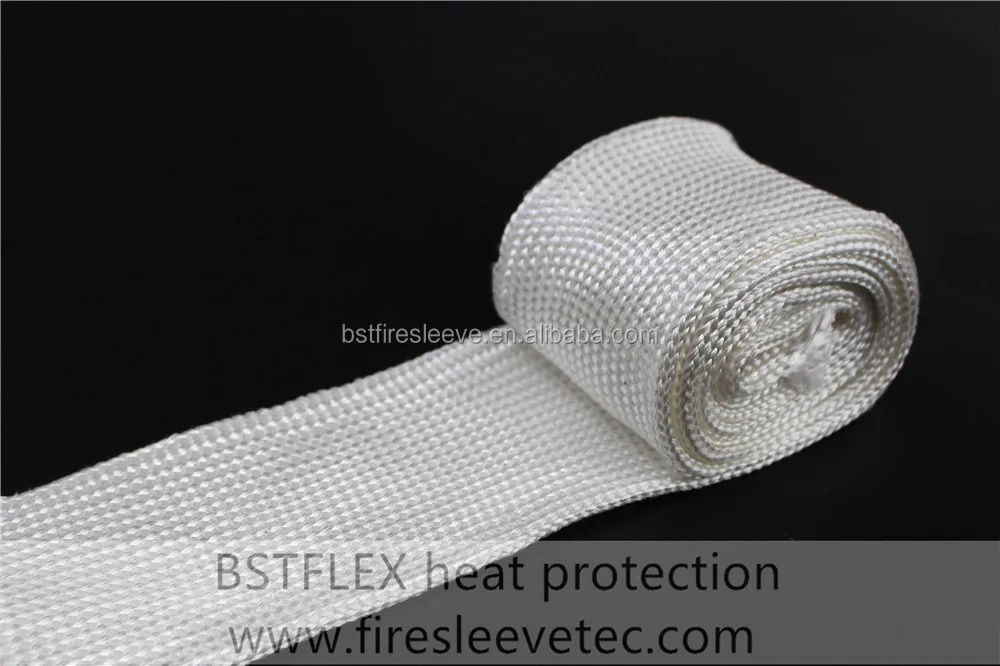

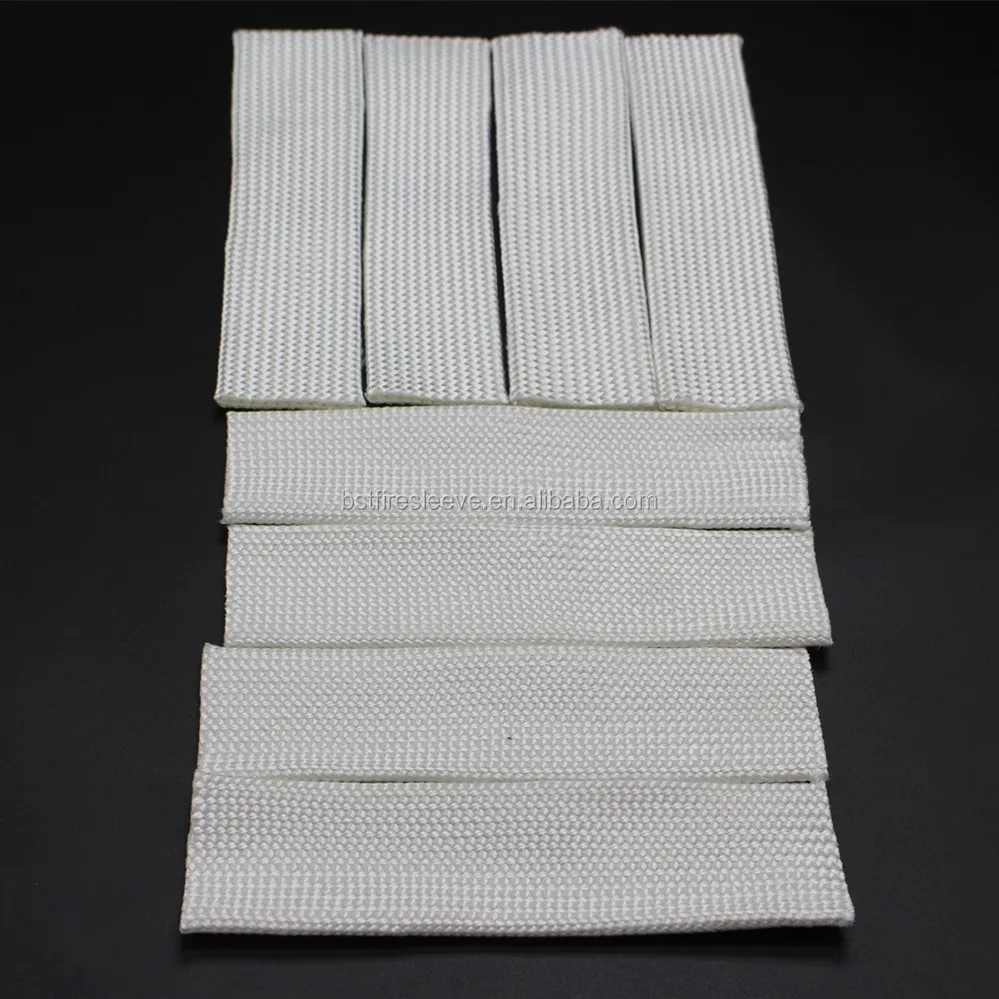

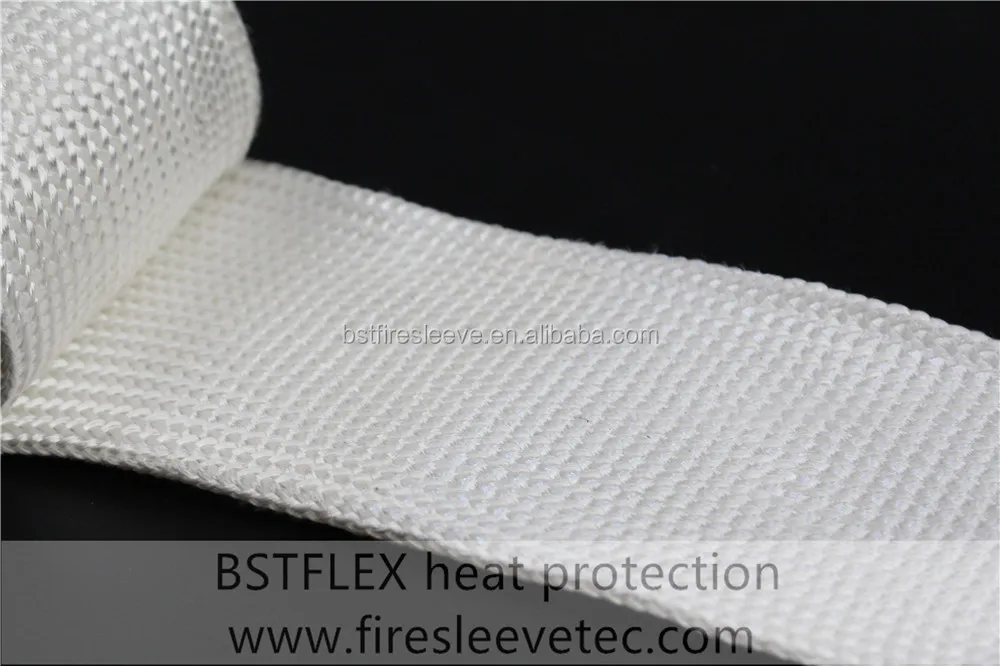

Fireproof high temperature thermal protection boilers thermocouple wire High Silica Fiber Sleeve

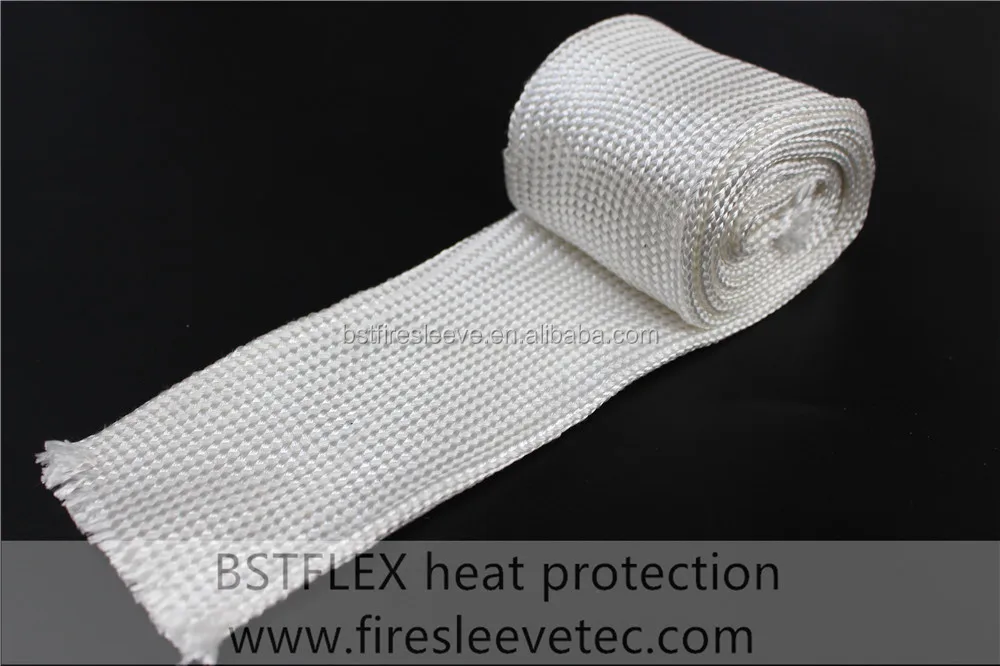

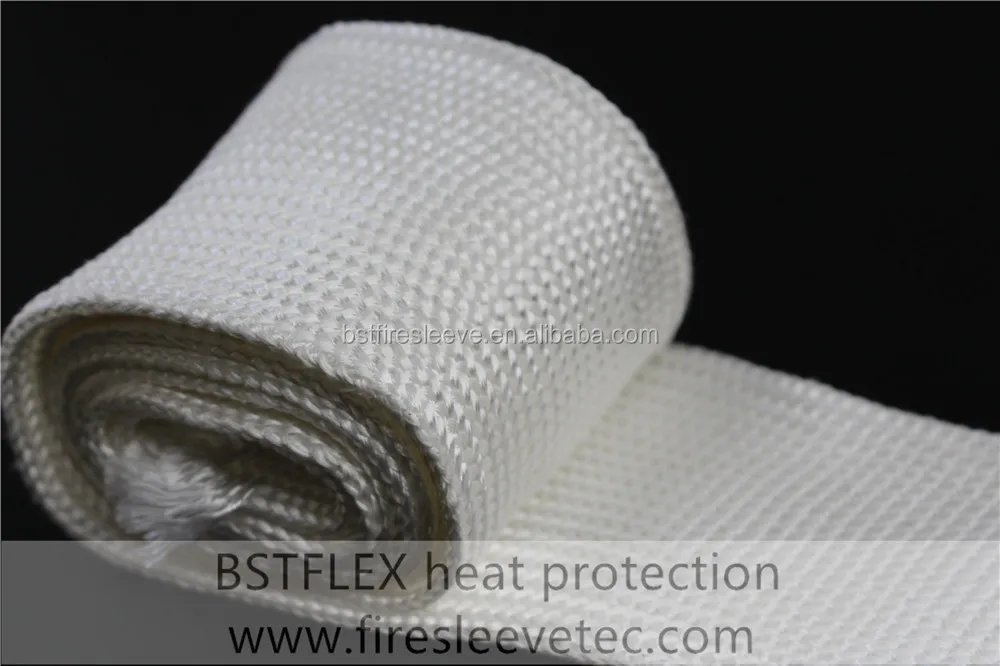

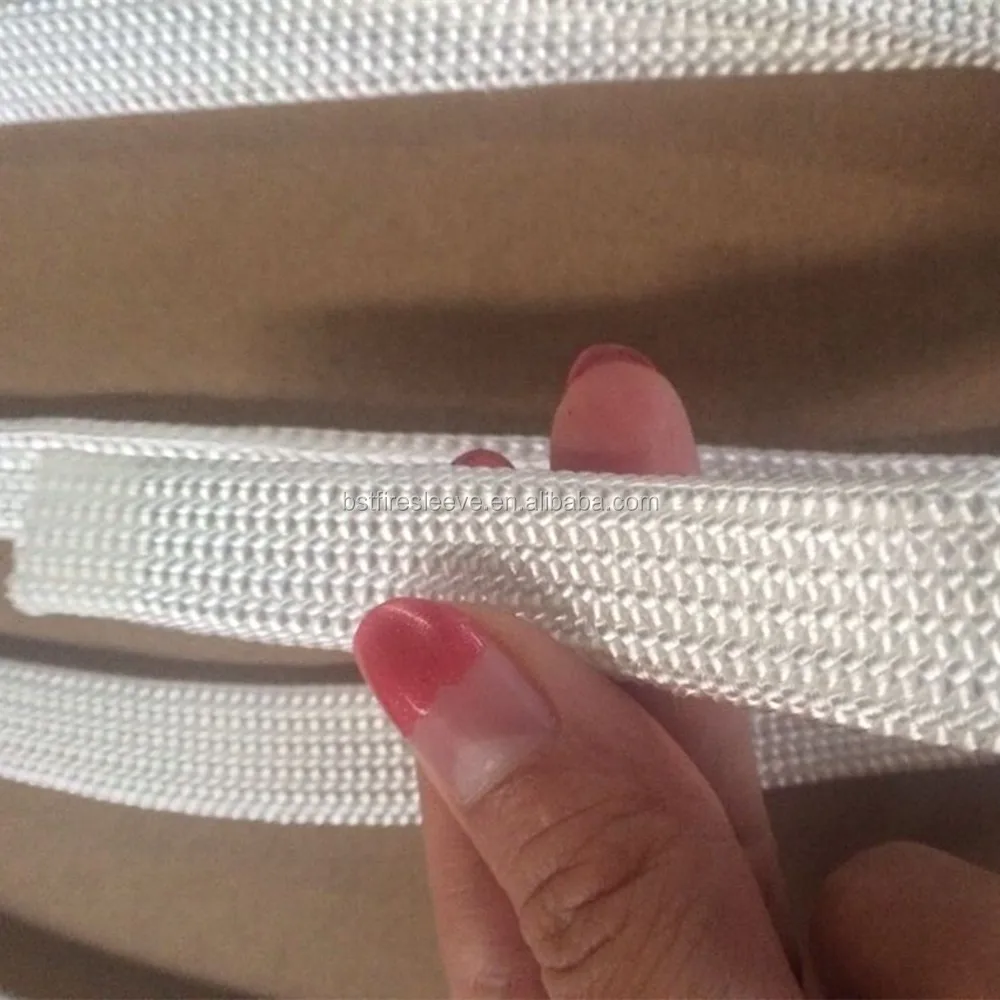

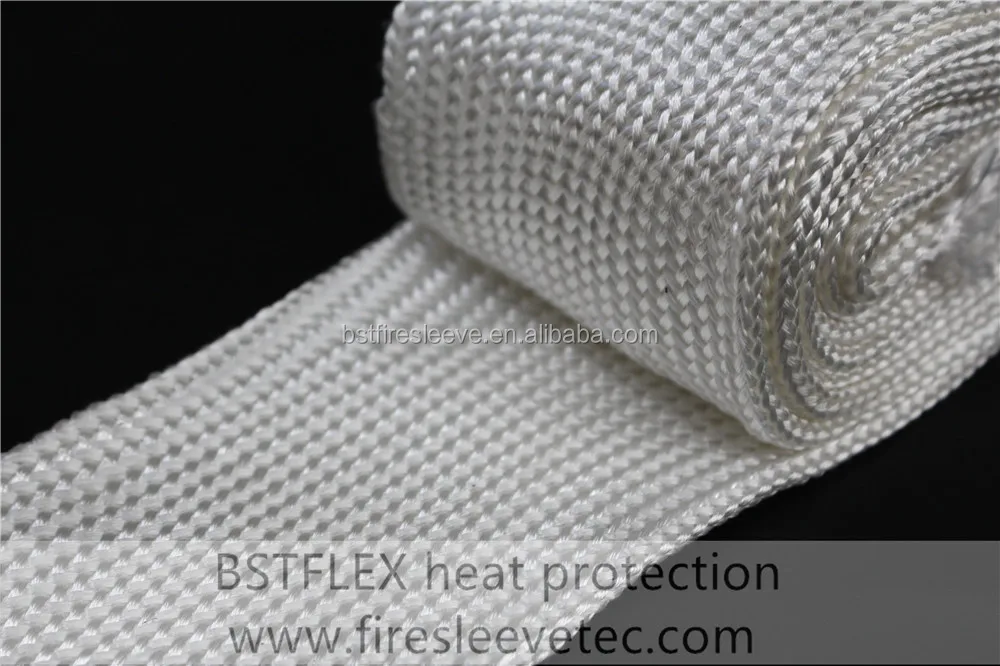

Braided 96% pure silica fiber, the health conscious alternative to asbestos and ceramic sleeves and wraps.



Outstanding durability and flexibility
High Silica Fiber Sleeve set the standard for flexibility and minimum lineal shrinkage under high heat conditions. Durability is further enhanced with a proprietary hydro-carbon coating, giving Silicaflex firesleeves unmatched abrasion resistance and tensile strength.



Excellent high-heat performance

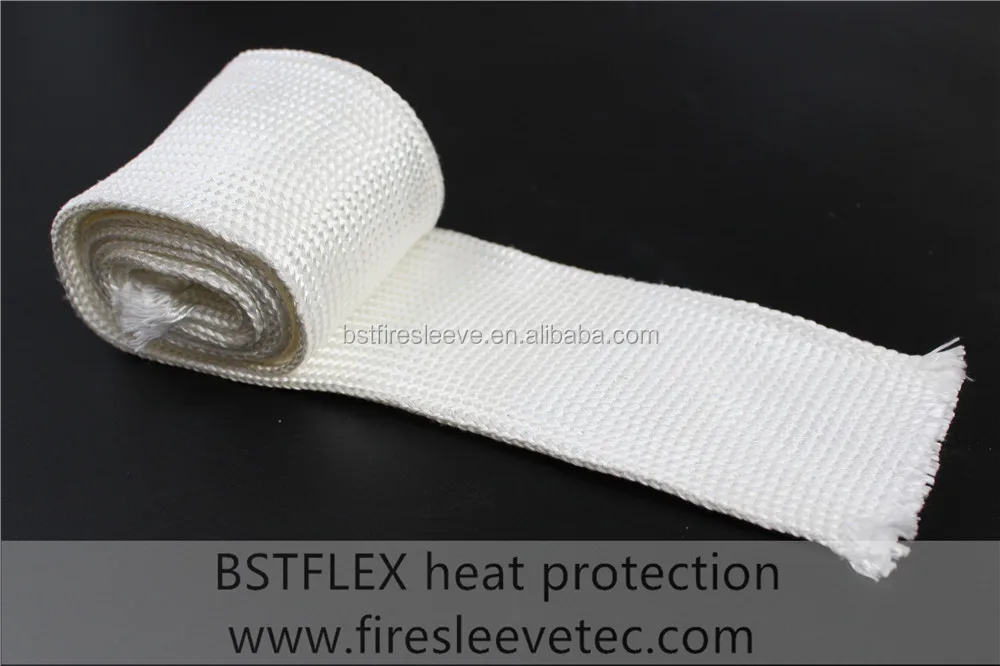

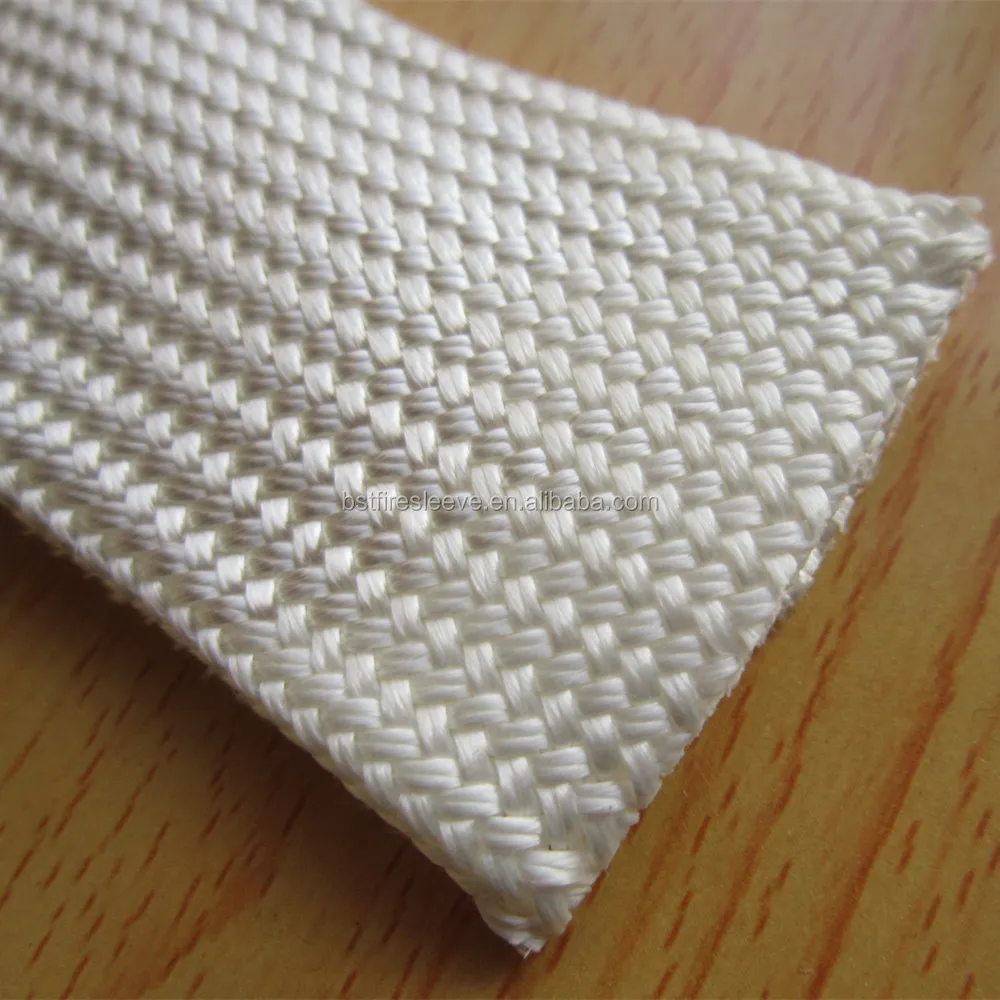

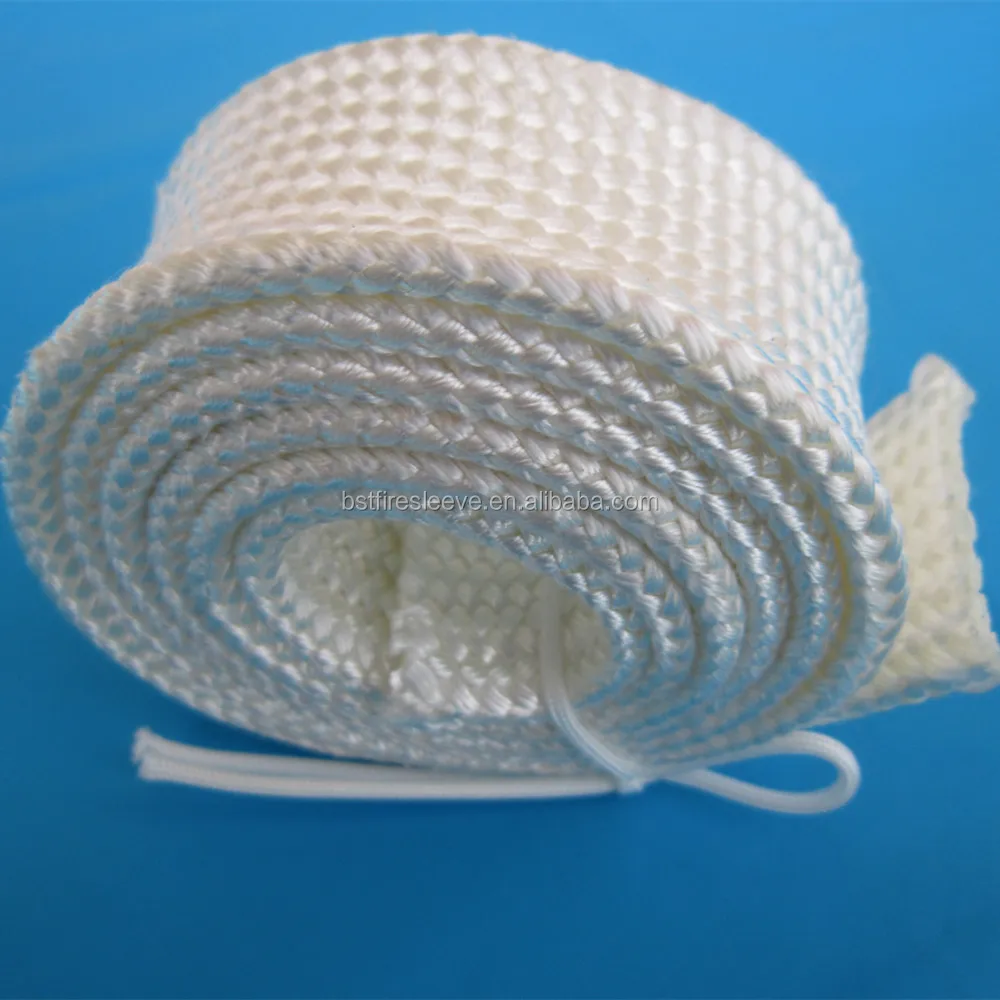

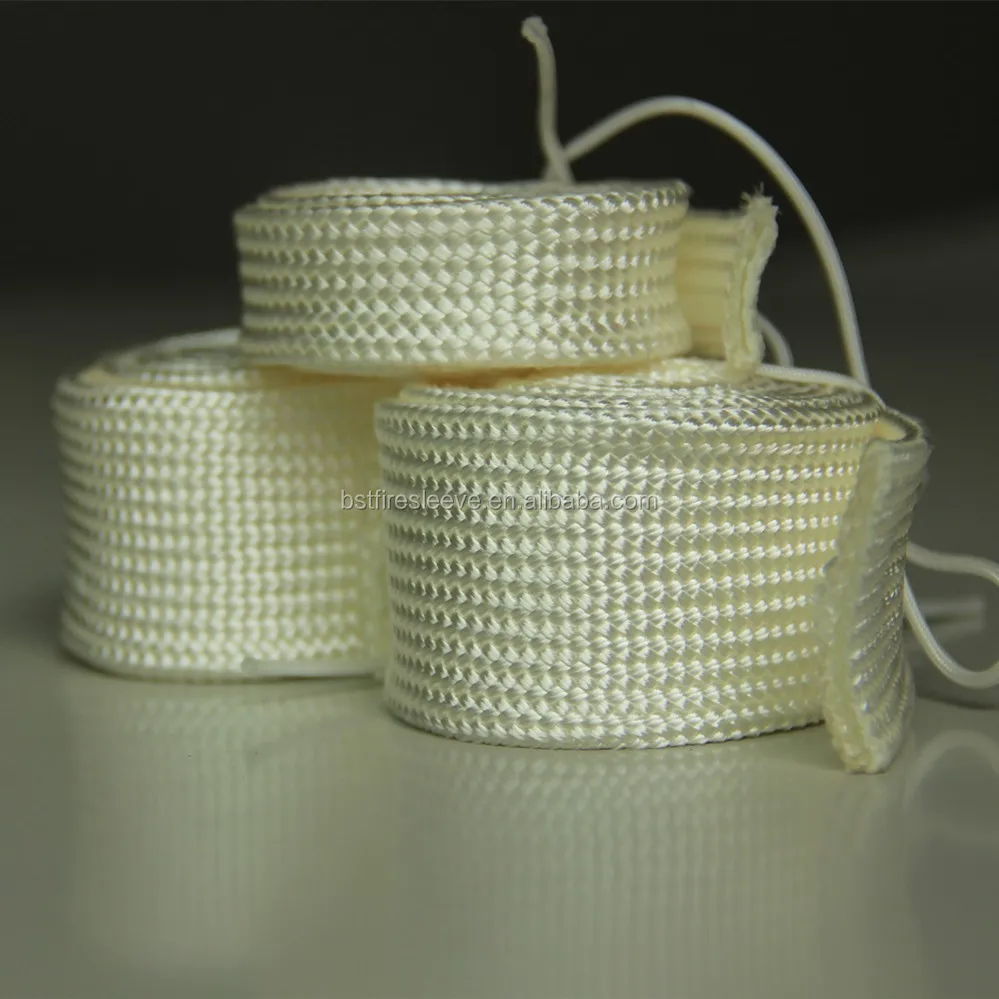

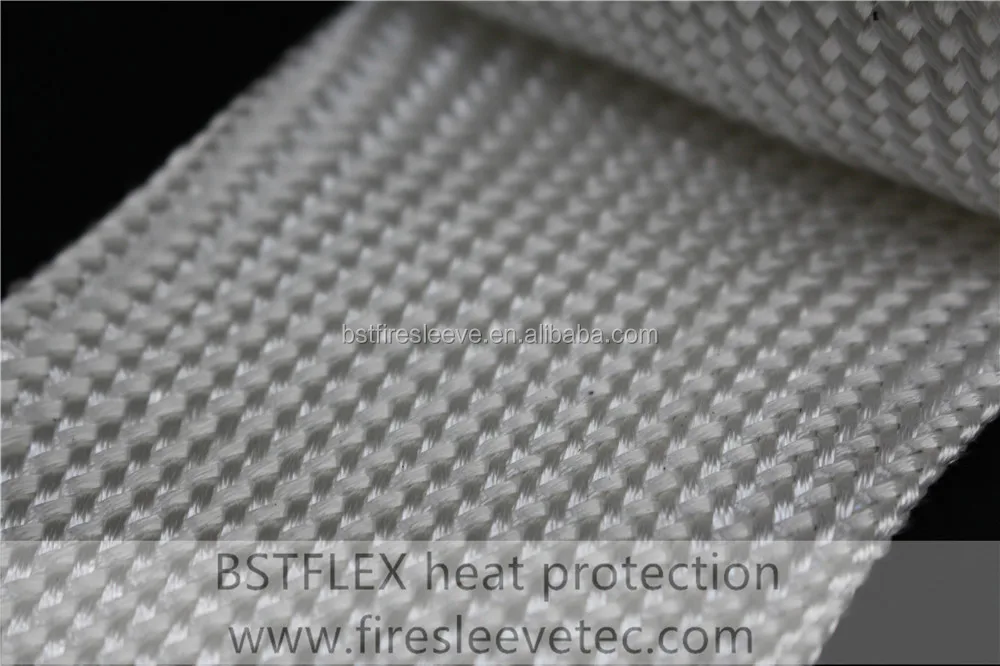

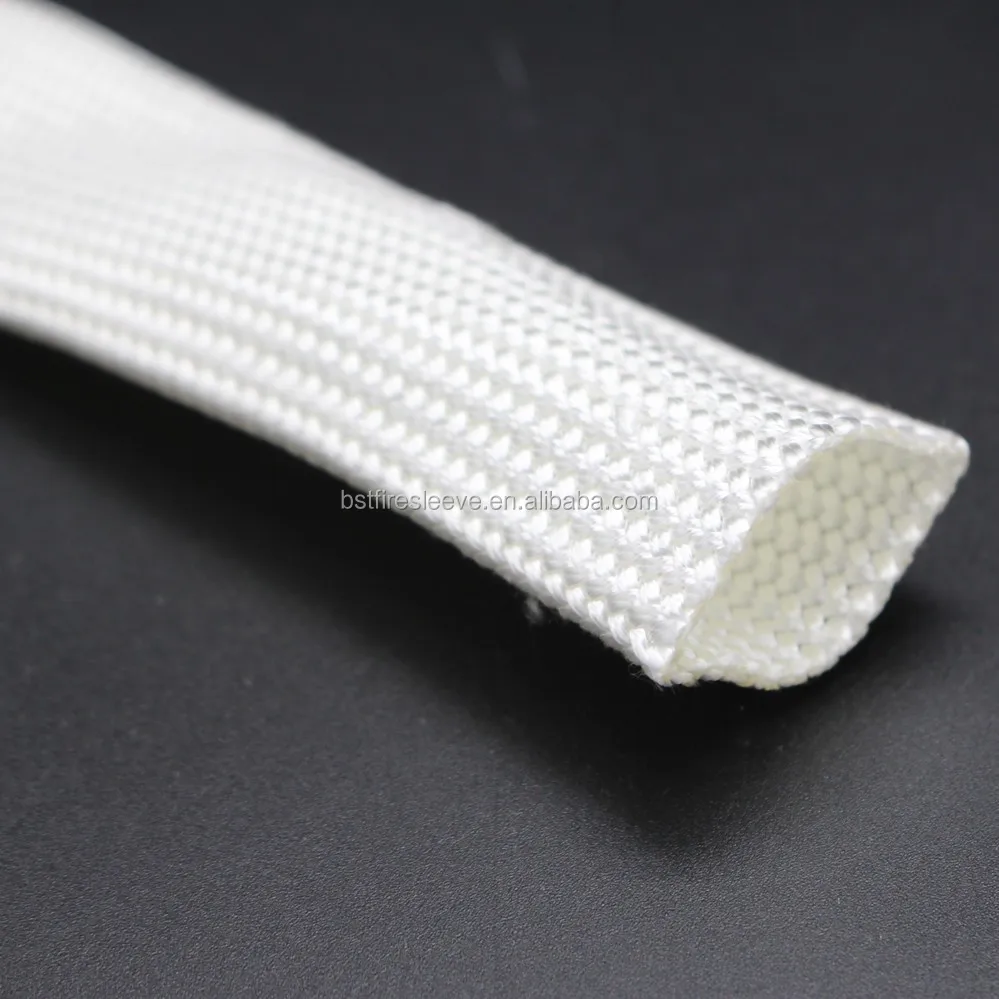

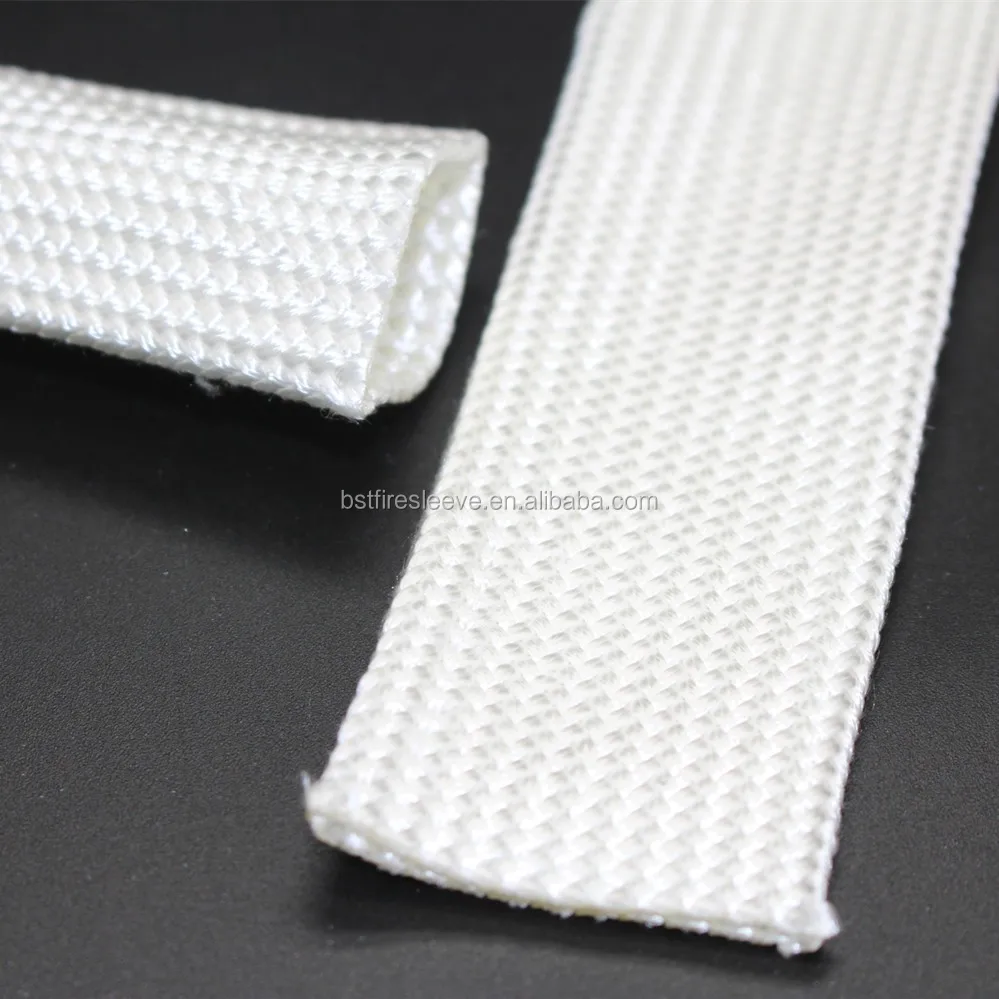

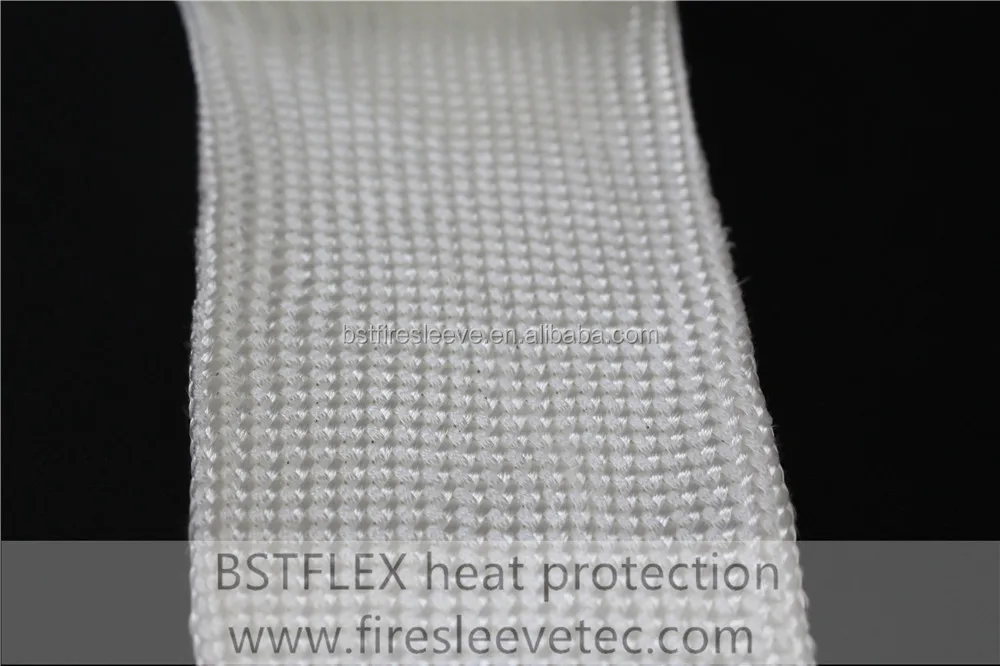

High Silica Fiber Sleeve is a braided silica sleeve, constructed from a 96% pure SiO2 silica fiber, suitable for continuous use at 1800°F (982°C), and able to withstand short term exposure up to 3000°F (1650°C).



Braided silica fiber sleeve can be combined with other low cost sleeve products to increase insulation values or abrasion resistance for the most demanding applications.







High Silica Fiber Sleeve - Quick Facts

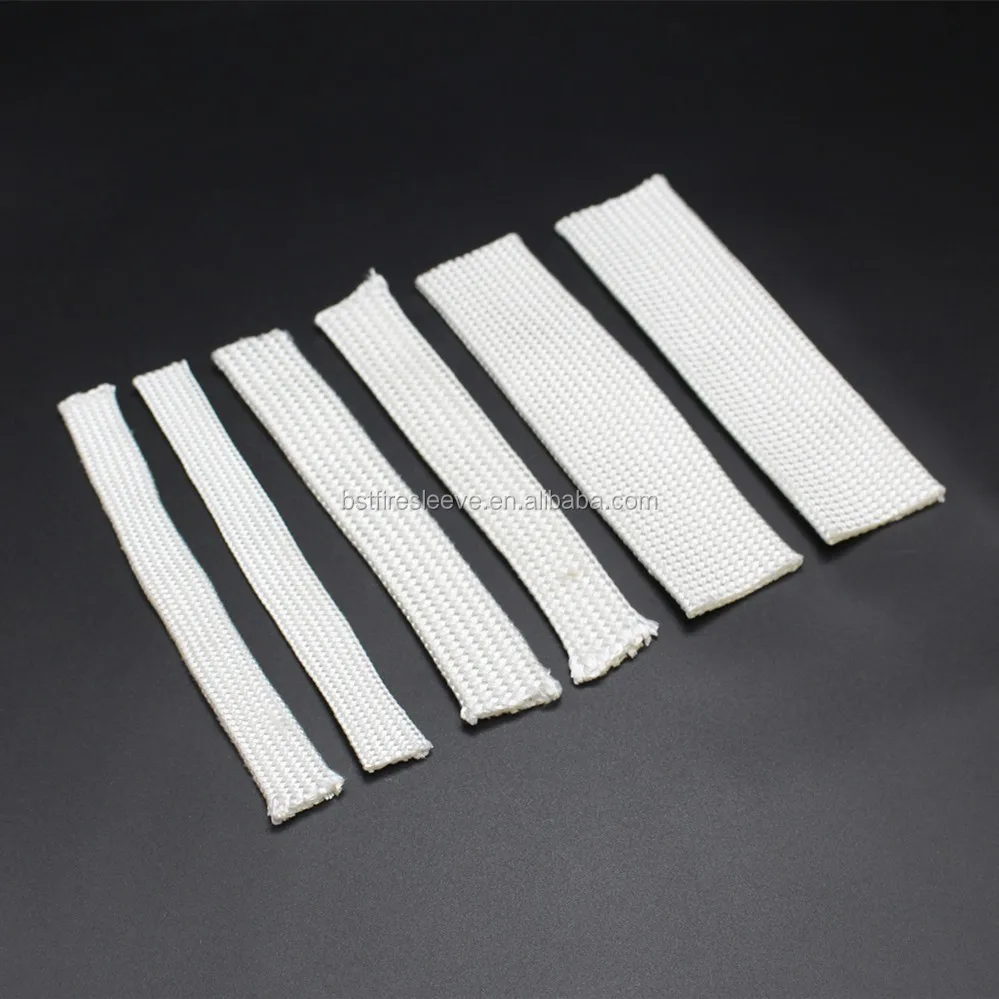

Diameters 1mm up to 150mm
Standard lengths:	30m
Continuous operating temp:	1800°F (982°C)
Max short term exposure:	3000°F (1650°C)
Molten splash resistance:	Good
Weld spatter resistance:	Excellent
Flame resistance:	Outstanding
Abrasion resistance:	Moderate
Flexibility:	Outstanding
Tensile strength:	Outstanding
Water and oil resistance:	Moderate
