High pressure water misting fogging machine

Product Overview

Description

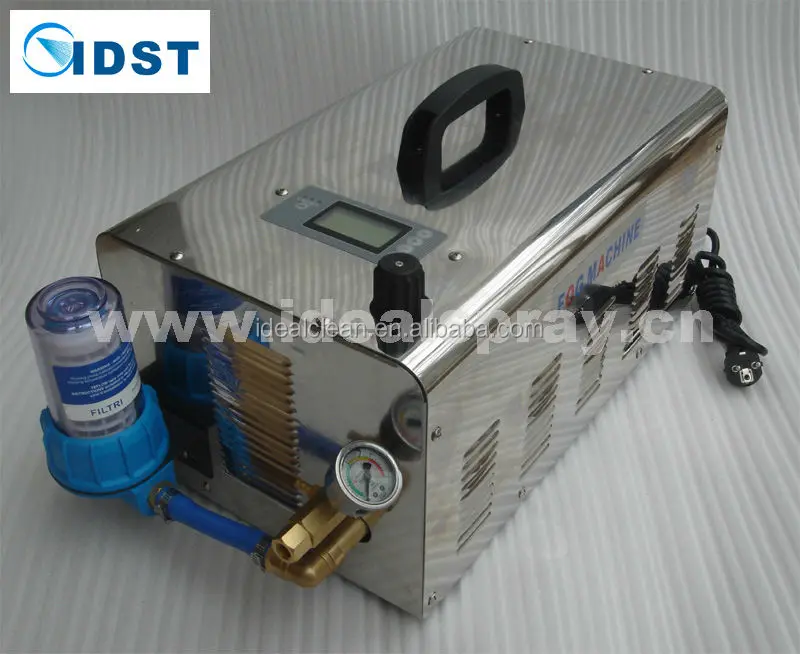

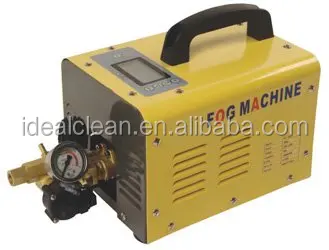

Portable Fog Misting Machine

Powerful Fog Misting Machine, Spray fog and misting for Cooling.

Super Fine High Pressure Misting System, Pump for Cooling.

Product Pictures



1.Fine Ceramic Fog Misting:

Fog Cooling System,Humidifying,Misting, Mist Maker,Dust Control

2.Accessory with:

Filter and anti-drip,Ceramic orifice
3.Thread Size:

10/24,12/24 UNC,1/4'',1/8''
4.Orifice Diameter:

0.1mm-0.5mm

5.Nozzles Design Features:

*Ceramic insert

*Outstanding atomization

*Drip-free performance

*50 micron polypropylene filter

*Safety wire hole available

*Minimum operating pressure 100 psi (7 bar)

6.Mist nozzle's spray Characteristics:

Mist at low pressure; fog nozzles work at high pressure

7.Spray pattern:

Cone-shaped Fog
8.Fogging misting machine:

Type	Size dia./¢	Thread	Pressure	Flow Rate
FGC10	0.10mm/0.004"	10/24,12/24,3/16"	20-70bar	0.016-0.040L/Min
FGC15	0.15mm/0.006"	10/24,12/24,3/16"	20-70bar	0.029-0.046L/Min
FGC20	0.20mm/0.008"	10/24,12/24,3/16"	20-70bar	0.049-0.089L/Min
FGC30	0.30mm/0.012"	10/24,12/24,3/16"	15-70bar	0.065-0.145L/Min
FGC40	0.40mm/0.016"	10/24,12/24,3/16"	7-70bar	0.056-0.178L/Min
FGC50	0.50mm/0.02"	10/24,12/24,3/16"	7-70bar	0.077-0.248L/Min
