Product Overview

Description

  sliding bearing pad,slide bearing plate

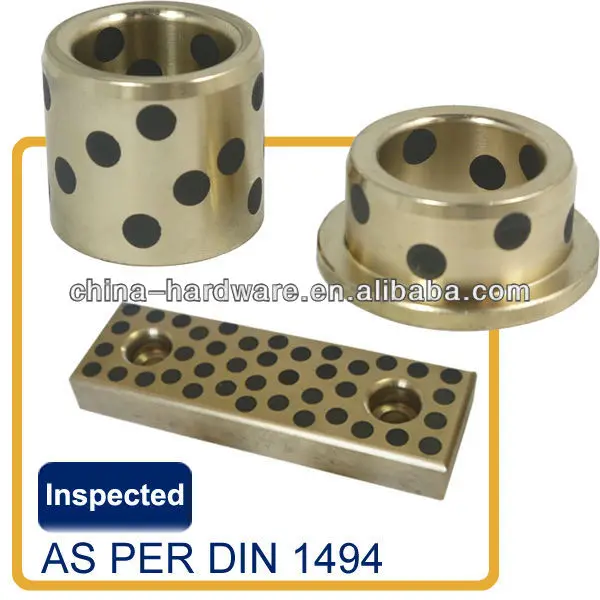

JDB slide Bearing





What is JDB solid slide bearing?





The JDB slide bearing is made from solid bronze/iron material,it is ideally suited for highly demanding applications in tough environments. We offer a standard assortment of plain sleeve bushings, flanged bushings and sliding plates in accordance with ISO 4379 and DIN1850.

The solid bronze body can be drilled holes and filled solid graphite lubricant, in this way it can be used in oilless environments. Also the solid bronze body can be machined oil grooves and holes, it can get better lubricating after filled with grease.



Where to use JDB slide bearing?



Solid Bronze bushings and plates are made completely of tin bronze, CuSn10P, which has very good machine ability. All surfaces of the solid bronze bushings are machined.

Solid iron bushings and plates are made in same way of bronze material, but it is much lower costs if you are not in high performance requirements.



Examples of applications

• Construction machinery


• Transport equipment


• Pulp and papermaking machinery


• Off-shore equipment





Why choose JDB slide bearing?

• Insensitive to dirty environment


• Resistant to shock loads and vibrations at slow speeds


• Enable operation with a poor shaft surface finish


• Good resistance to corrosive conditions



Which other bearings we can supply to you:



Our sliding bearings including:



SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

FR metal mesh+PTFE Soft strips

JGB Graphite bearings







Which sizes bearings we can offer you?





The standard range of composite plain bearings is very comprehensive and covers almost every standard size. This range comprises straight and flanged bushings, thrust washers and strips.



Sleeve Bearings:

Model No.	Min. I.D.	Min.O.D.	Max.I.D.	Max.O.D.	Max. Length
DU,SF-1	6mm	8mm	300mm	305mm	100mm
DX,SF-2	10mm	12mm	300mm	305mm	100mm
JF800	10mm	12mm	173mm	180mm	100mm
FB090	10mm	12mm	300mm	305mm	100mm
FB092	10mm	12mm	300mm	305mm	100mm
JDB,JCB	8mm	12mm	160mm	180mm	150mm
FU	1.5mm	3mm	50mm	70mm	70mm
JGB	1.5mm	3mm	300mm	320mm	100mm

I.D. = inner diameter

O.D. = Outer diameter



Flange Bearings:

Model No.	Min. I.D.	Min.O.D.	Max.I.D.	Max.O.D.	Min.F.D.	Max.F.D.	Max. Length
DU,SF-1	6mm	8mm	40mm	44mm	12mm	53mm	40mm
JF-800	40mm	46mm	95mm	105mm	60mm	144mm	127mm
FB090	25mm	28mm	300mm	305mm	35mm	340mm	90mm
FB092	25mm	28mm	300mm	305mm	35mm	340mm	90mm
JDB	10mm	14mm	120mm	140mm	22mm	170mm	100mm
FU	6mm	12mm	50mm	60mm	14mm	70mm	70mm
JGB	6mm	12mm	300mm	320mm	35mm	340mm	130mm

I.D. = inner diameter

O.D. = Outer diameter

F.D. = Falnge diameter



Part of stanadrd sizes list for your reference:



Sleeve bushing



Flange bushing



General introduction of us



We are a professional manufactuer on various kind of bearings in China for over 14 years already.

With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.

Our experianced engineers and exporting team can answer your inquiry or comment at the first time,and providing professional service from factory visiting, making orders to deliver goods.



RIght now, we have over 100 skilled staff and different kinds of machines including automatic production lines,later machine,milling machine,CNC machine etc.





This picture showing our staff structure and basic machines list



This picture showing updated sintering machine and skilled workers in production





Our workshops are welcome you visiting:



This is our workshops buliding



We are using full new high quality raw materials only.

This is the bronze powder-steel backing sintereing line

This is a full automatic chamfering machine





Detail packing steps:



1.Clean bearings in anti-rust oil
2.Plastic films packing bearings to rollers
3.Bearings rollers put into plastic bag
4.Cartons with goods information label
5.Pallet for every 12ctns/24ctns/36ctns

Our packings are suitable for FCL or LCL sea shipping.



MOQ:1pc or 100pcs or 1000pcs

(Different model and size have different requirement)

Delivery: you can choose different delivery ways for different qty orders.



Our quality management:



We will make inter inspection on every step of production.

Also you can order inspection company monitoring our production in our workshops.



1.ISO/TS 16949 Production Quality Management Certification

2.We will make measure guages calibration every 6 months

3.Record of calibration in certified lab

4.Certificate of lab





Awaiting for your inquiry,we will response you at the first time!

Please contact us from this page or find our contacts from the Index page of our site.
