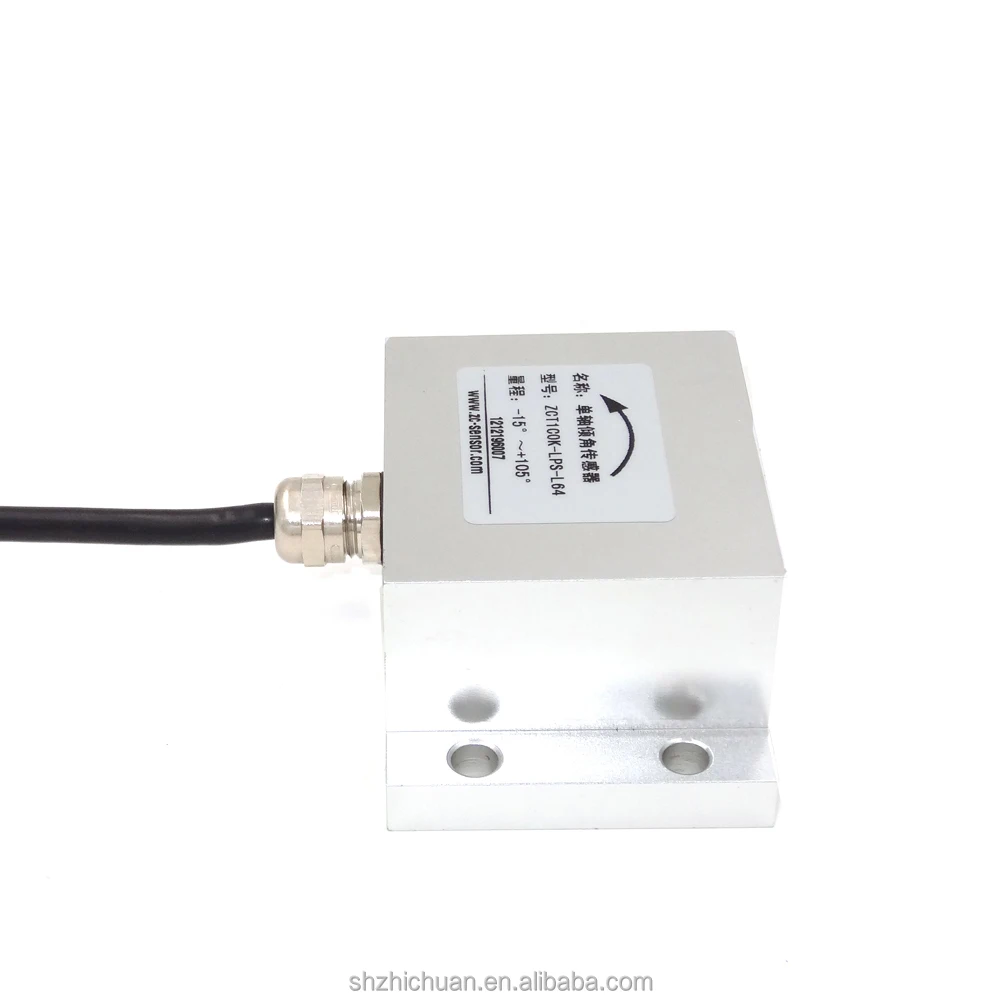

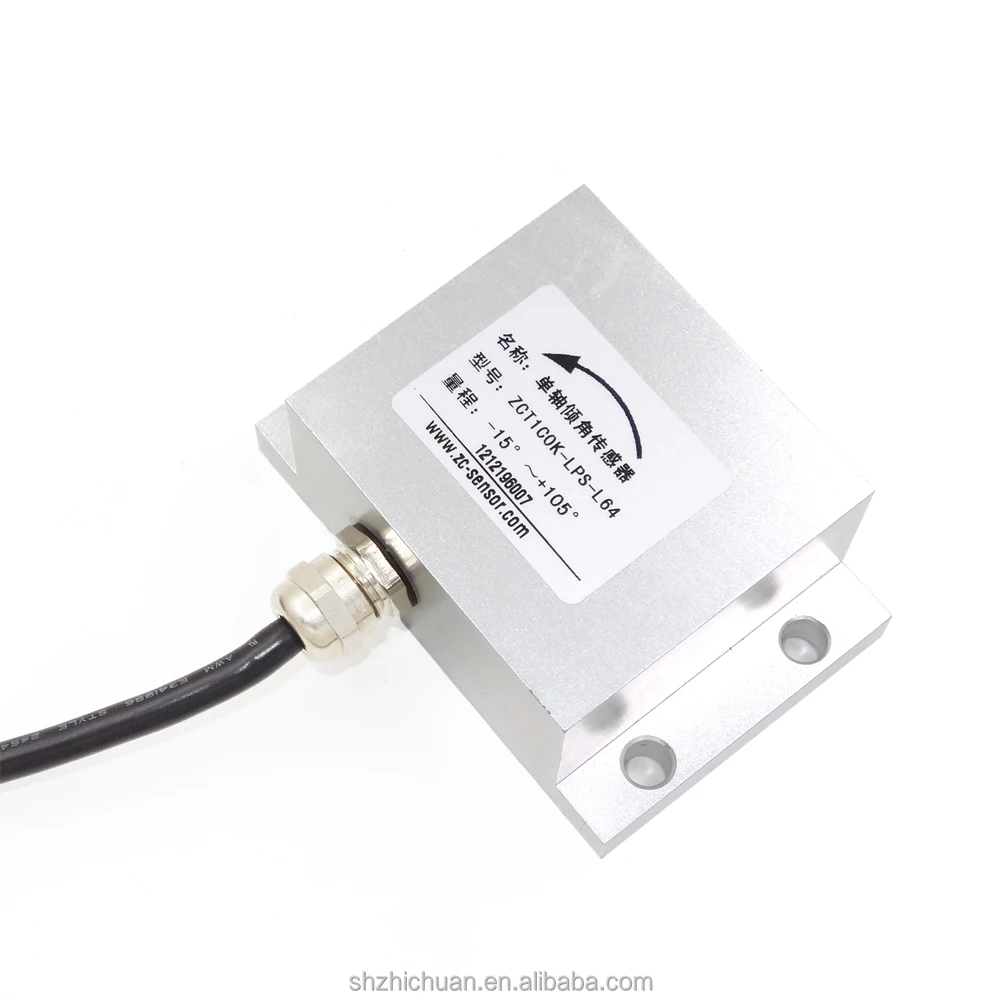

Single Axis 4 20mA Analog Current Output Inclinometer/Tilt Sensor ZCT1XXK LPS X64

Product Model: ZCT1XXK-LPS-X64 Series

1. Applications:

Engineering mechanism;

Sercuity control, monitoring, alarm.

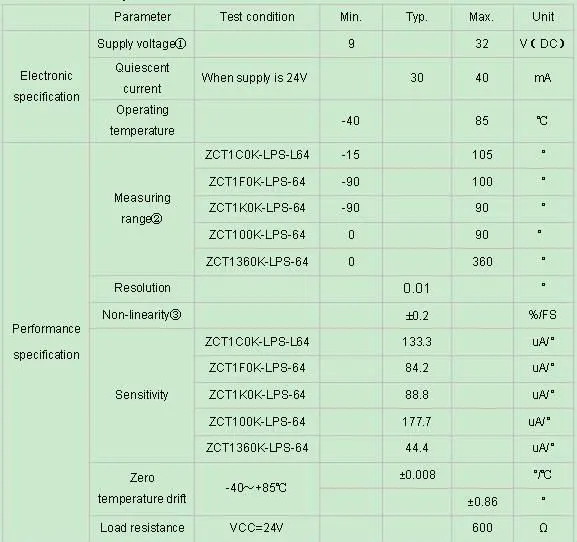

2. Technical parameter:

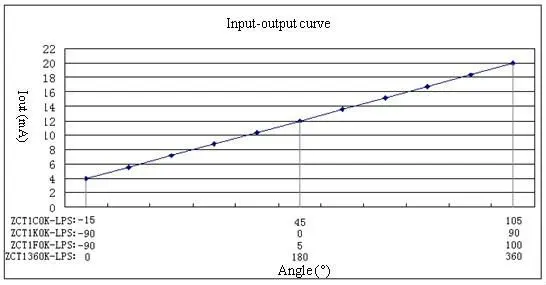

3. Input-output characteristics:

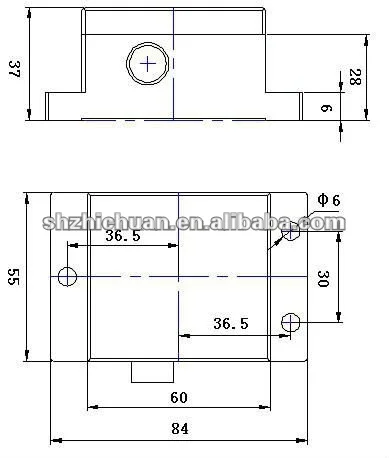

4. Mounting Size:

5. Wire connection:

Red: Power VCD

Black: Power GND

Yellow: Iout

Blue: NC

6. Order info:

ZCT1C0K-LPS-L64      measuring range   -15 ~ 105 deg.

ZCT1K0K-LPS-64         measuring range   -90 ~ 90 deg.

ZCT1F0K-LPS-64         measuring range   -90 ~ 100 deg.

ZCT1000K-LPS-64       measuring range   0 ~ 90 deg.

ZCT1360K-LPS-64       measuring range   0 ~ 360 deg.
