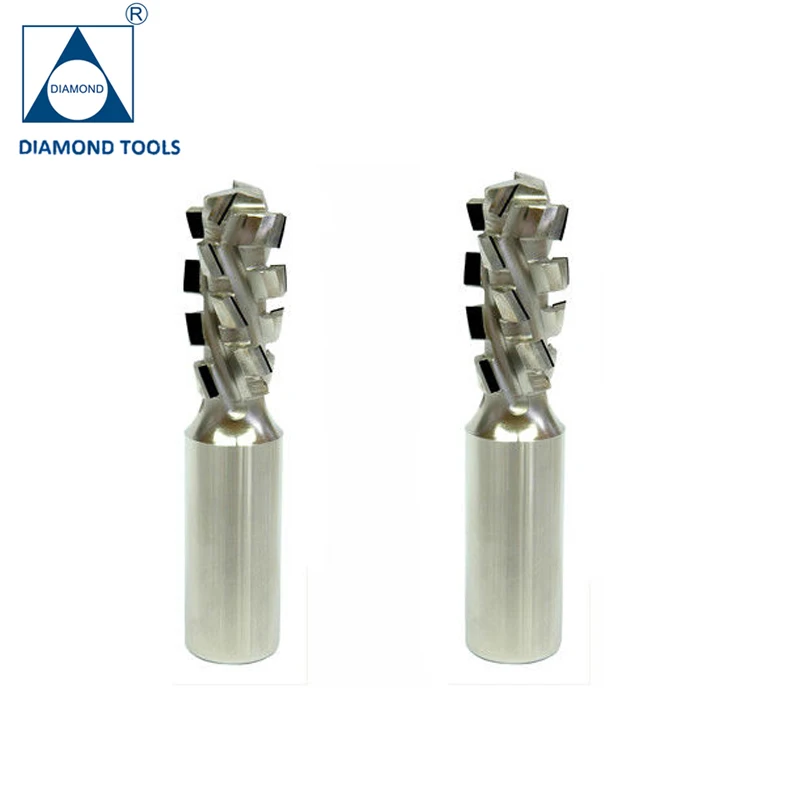

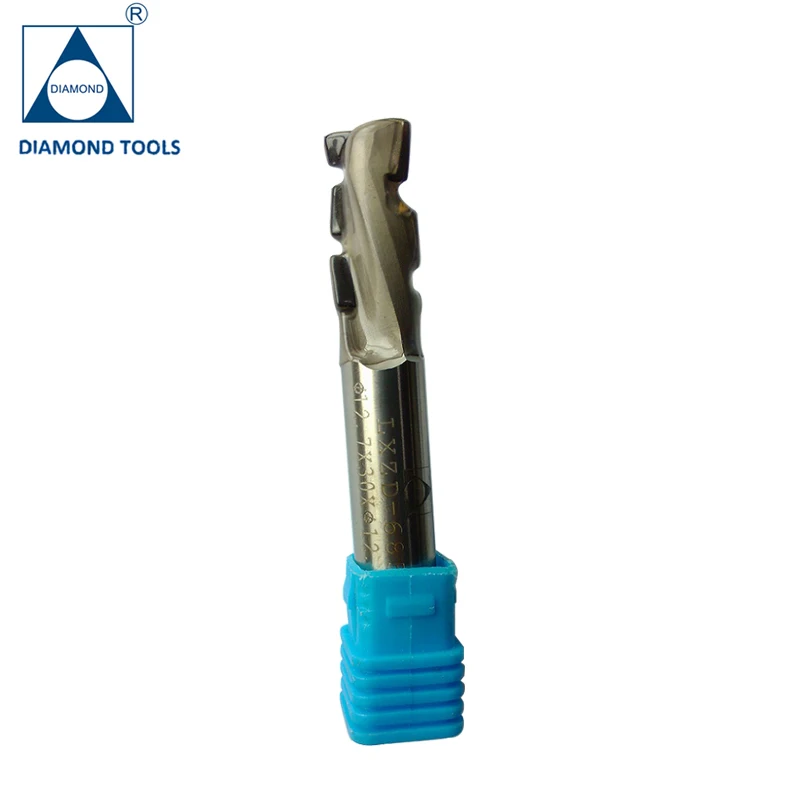

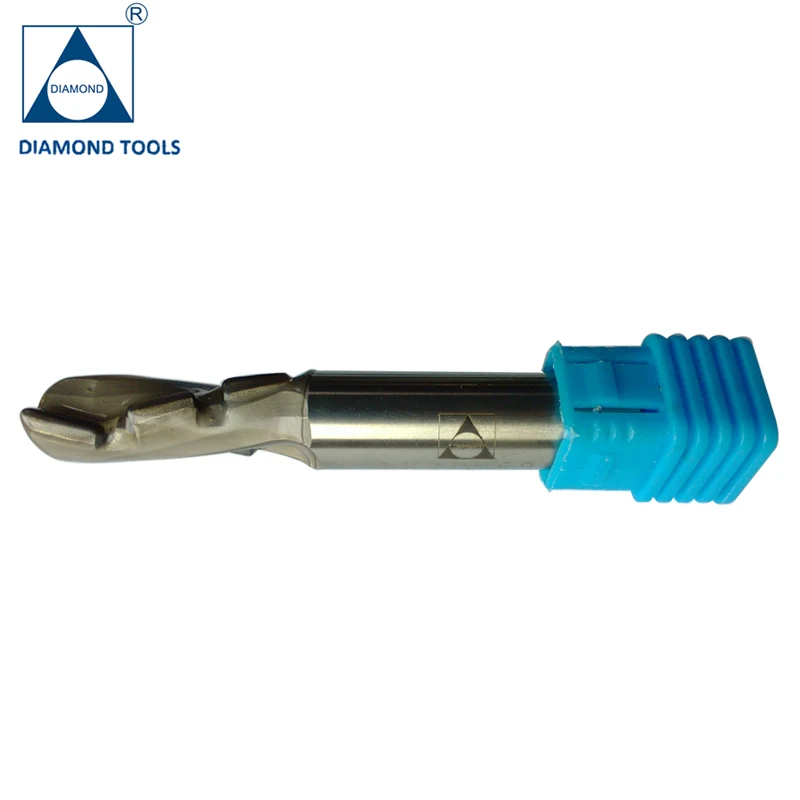

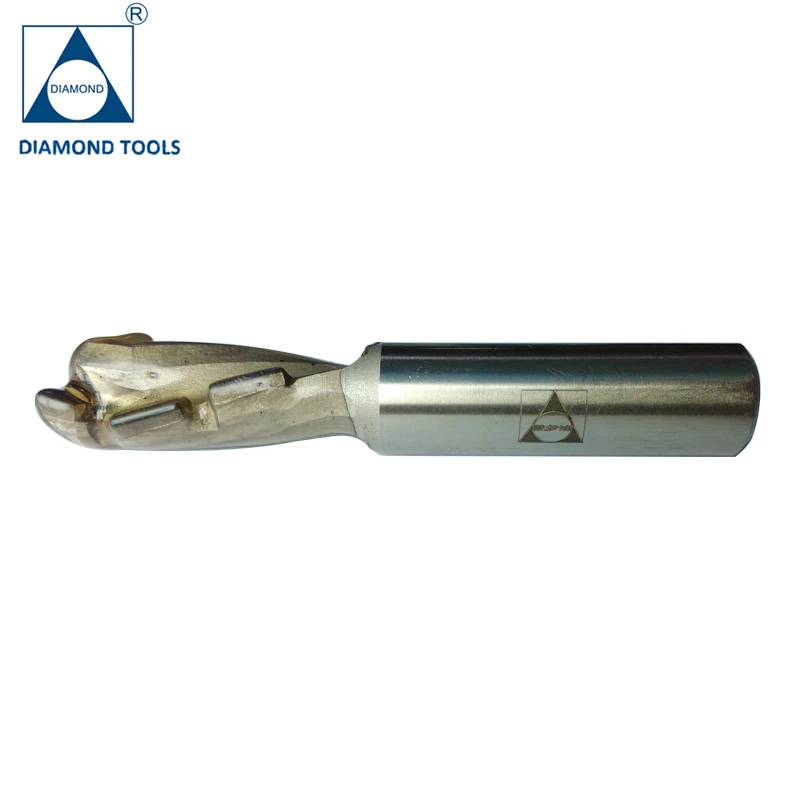

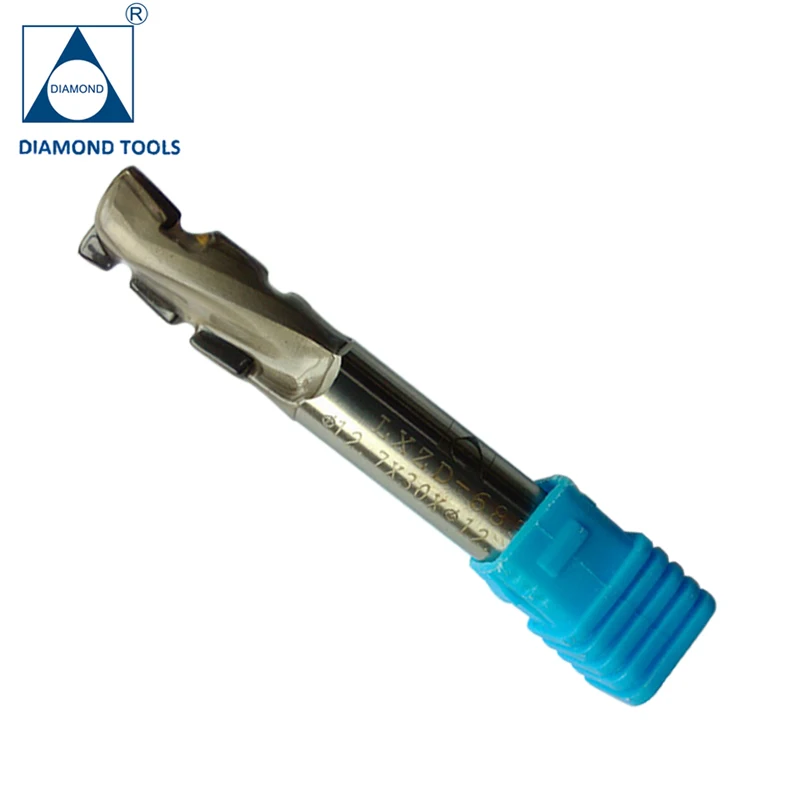

CNC router bit MDF cutting tool DJD08L10 2Z CNC router bit

Product Overview

Description



CNC router bit MDF cutting tool DJD08L10-2Z CNC router bit



2) As different workpiece and situation, we have rich experience in designing router bis for furniture companies.

3) PCD diamond grades from Diamond Innovations (US), DeBeers(UK), Sumitomo (Japan), ILJIN (Korea)

4) Application: Particle board, MDF, Melamine board, HDF, Veneer, Solid wood, Plastics

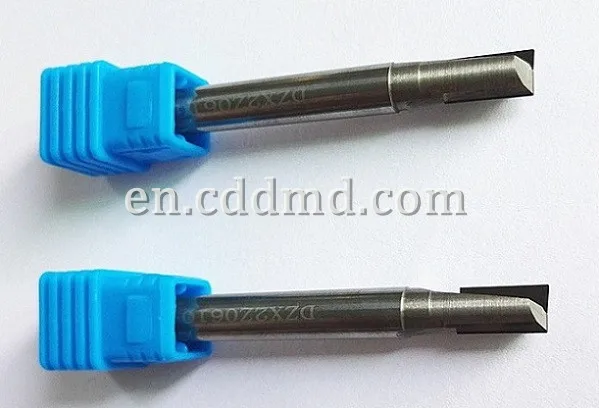

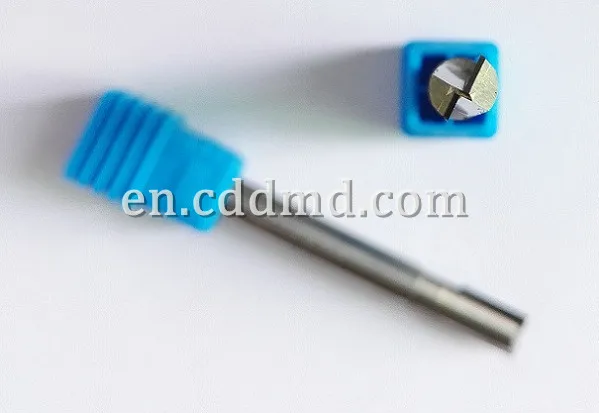

PCD end mill straight type for drilling and milling

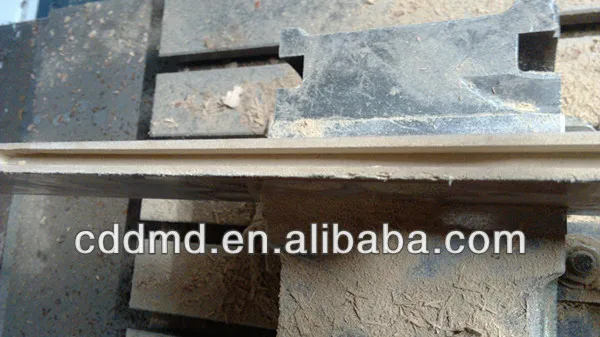

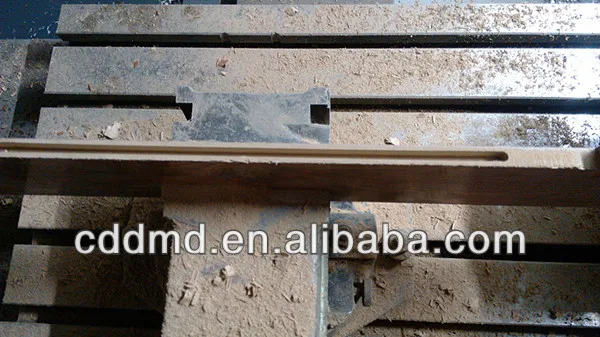

MDF sample testing (drill hole & mill groove)

MDF sample testing  (drill hole & mill groove)

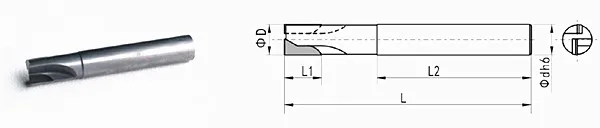

Specification

2 flute type	Dimmension(mm)
	tip	D	d	L	L1	L2	axial rake angle
DJD06 L10-2Z	2	6	6	60	10	45	0°/2°
DJD06 L15-2Z	2	6	6	60	15	40	0°/2°
DJD08 L10-2Z	2	8	8	80	10	60	0°/3°
DJD08 L20-2Z	2	8	8	80	20	50	0°/3°
DJD10 L10-2Z	2	10	10	80	10	50	0°/4°
DJD10 L20-2Z	2	10	10	80	20	50	0°/4°
DJD12 L10-2Z	2	12	12	100	10	70	0°/4°
DJD12 L20-2Z	2	12	12	100	20	70	0°/4°







About Chengdu Diamond Tools Co.

1) Manufacturing experience since 2001 year, factory in Chengdu city of Sichuan province

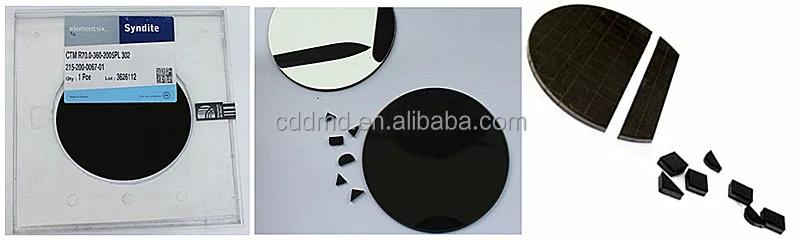

2) PCD diamond grades imported from GE (US), E6 (UK), Sumitomo(Japan), ILJIN(Korea)

3) PCD is applied by Vacuum Brazing process to ensure no welding scar, tip uneasy to drop

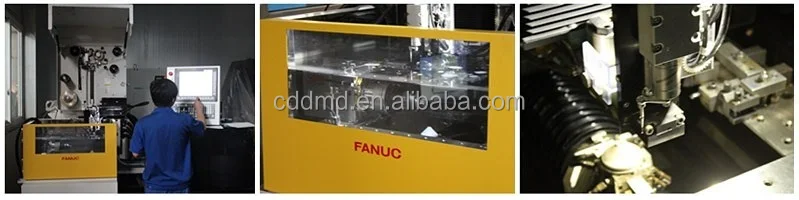

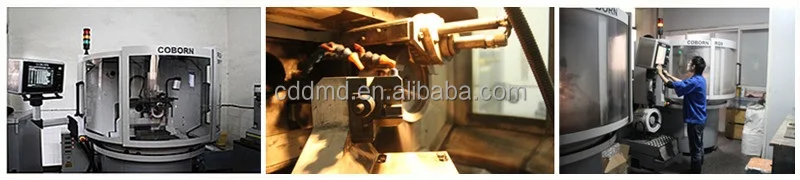

4) Nearly hundreds of imported CNC grinders and production equipment:

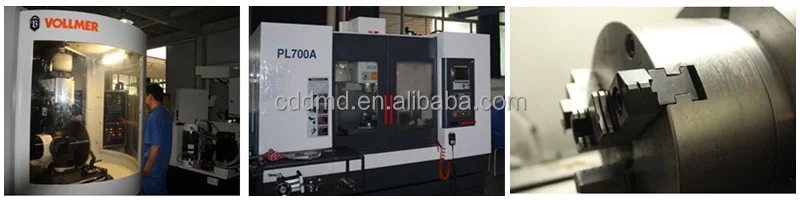

    CORBONRG9 from UK, Japan FANUC ROBOCUT, Germany VOLLMER sharpener, Germany inspection system ZOLLER

5) Inspection in every process to ensure 100% qualified

6) Pass ISO, Swiss SGS certified, comprehensive capabilities verified by Germany TÜV Rheinland

7) Free samples for trial

8) No MOQ required for manufacturing







 All messages will be replied within 12 hours



Contact us to get competitive prices and testing samples.
