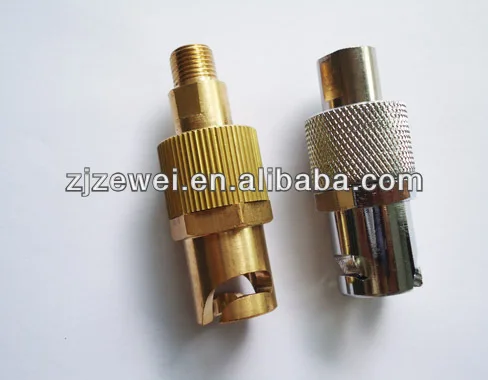

Grease Connectors Bayonet Type

Share on (1589544997):


Price:

Quantity:


Product Overview

Description








Product Description







Bayonet Type Grease Connectors Specification

  • Case Hardened Mild steel Zinc plated, stainless and brass in order to guarantee durability and safety.
  • Mild steel Zinc plated to provide long lasting corrosion-proof and salt spray resistance.
  • Stainless and brass grease nipples are available in most sizes.
  • Specification in accordance with 71412, 3402, 3403, 3405.
  • Over 70 thread types and 1200 designs straight, angled-90º, 45º hydraulic, button head and concave types.
  • Self forming threads and Drive-In Shanks make installation easy because thread tapping is then no longer necessary.
  • All standard grease nipples are available with no minimum quantities.
  • The most enviable grease nipple range in the world.
  • Protection caps-Coloured for identification.
  • Custom designed parts, according to your requirements.
  • We offer both metric and imperial grease nipples
  • Package:50~100 in a bag,then in a carton,also color box packing,plastic box packing. Or according to your demands to packing

 Female Thread

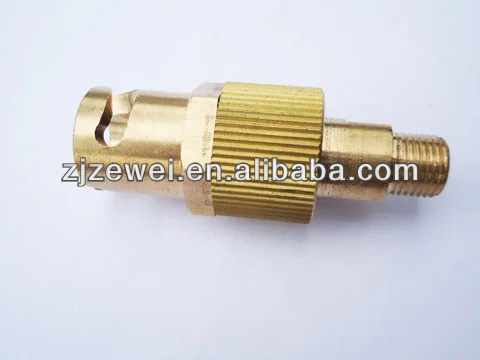

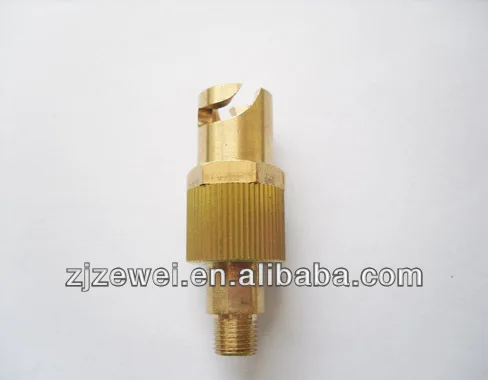

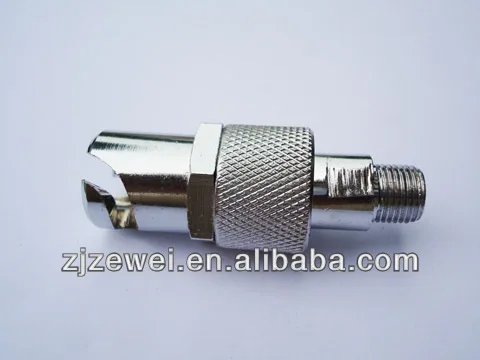

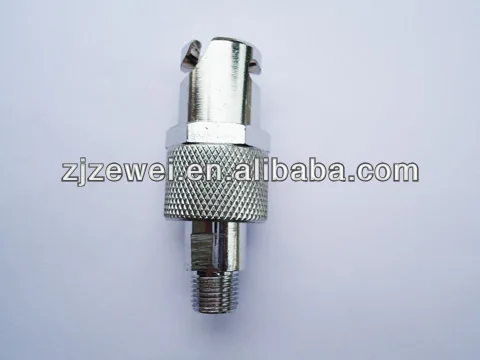

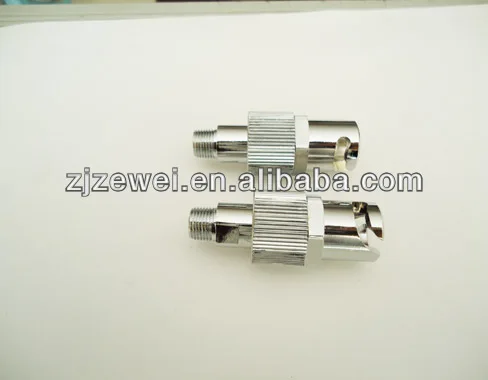

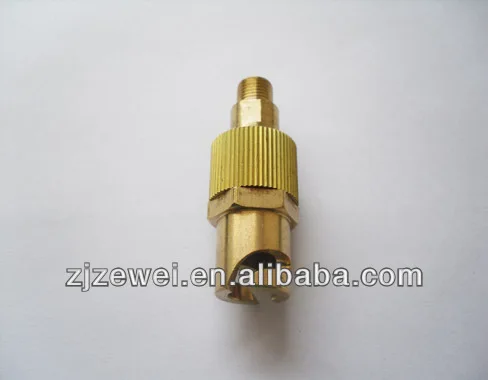

Male Thread

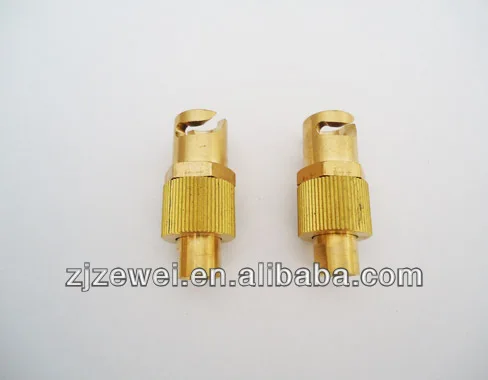

  The head of  this  Bayonet Type Grease Connectors  has

two helical slots which engage with crosspin of the nipple.  A spring

loaded sealing disc prevents leakage between the nipple and the connector

 when under pressure.

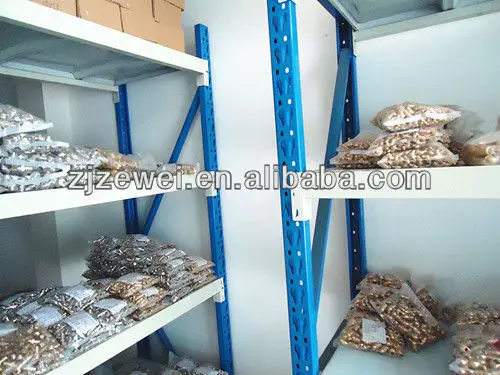

Show Room

coupler 028_.jpg
