hot chamber die casting machine zamak moulding injection machine
US $23850-$29270

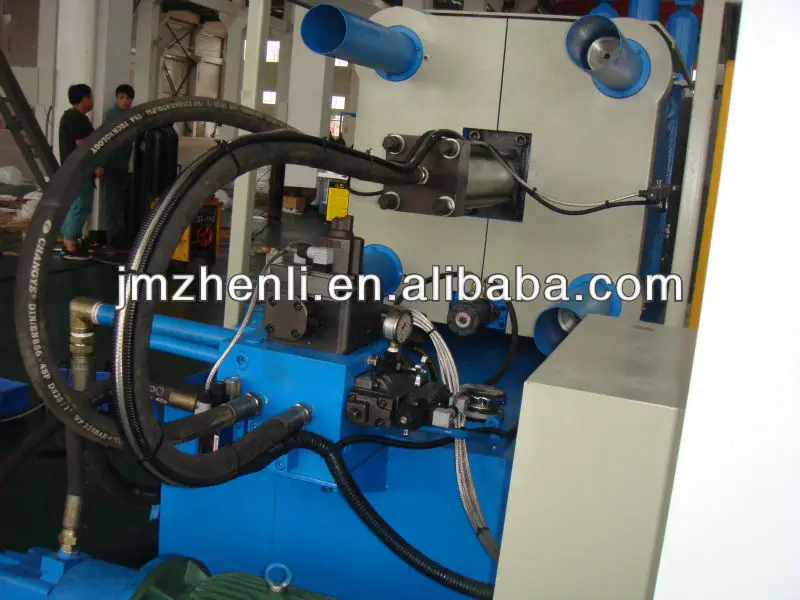

20 ton hot chamber zinc die casting machine making zipper machine
- Category: Die Casting Machine >>>
- Supplier: Jiangmen Zhenli Machinery Co. Ltd.
Share on (1589822889):
Product Overview
Description
hot chamber die casting machine,zinc alloy die casting machine,zipper machine
Product Description
2.Nozzle and gooseneck are heated by electric heater ,safety and durable.It keep temperature steady and avoid jamming of nozzle resulting defective products .
Specially double proportional control system.Using special 2 sets proportional control of flux and pressure rsulting open and local clamping speed,also adjust arbitrarily .
Made in Japan fully automatic pressure jet oil burner for light oil pressurized and low pressure firing with automatic safety device.

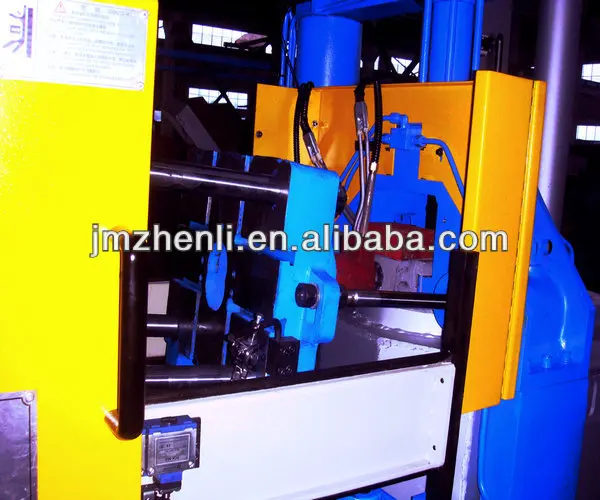

LOCK CLAMPING UNIT
INJECTION UNIT
1.Piston type accumulator with a horizontal connection unit ensures lower pressure wastage and fast reaction.It realize fill speed and long life time,using steadily and convenient amendment.
MOULD ADJUSTING DEVICE
1.The two way mould adjusting devices are machine control link and hydraulic control gear .

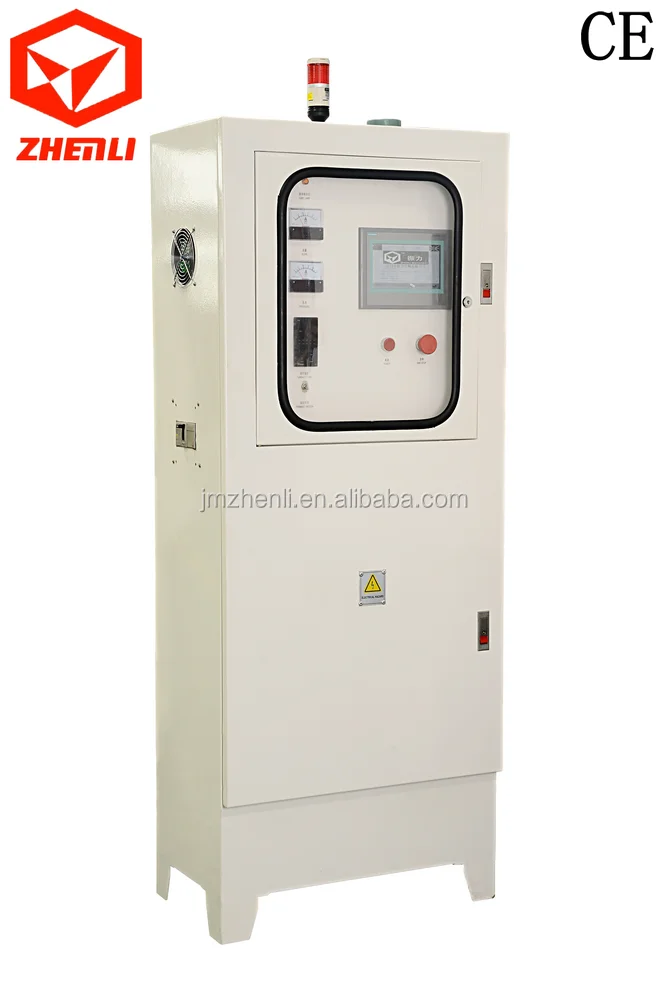

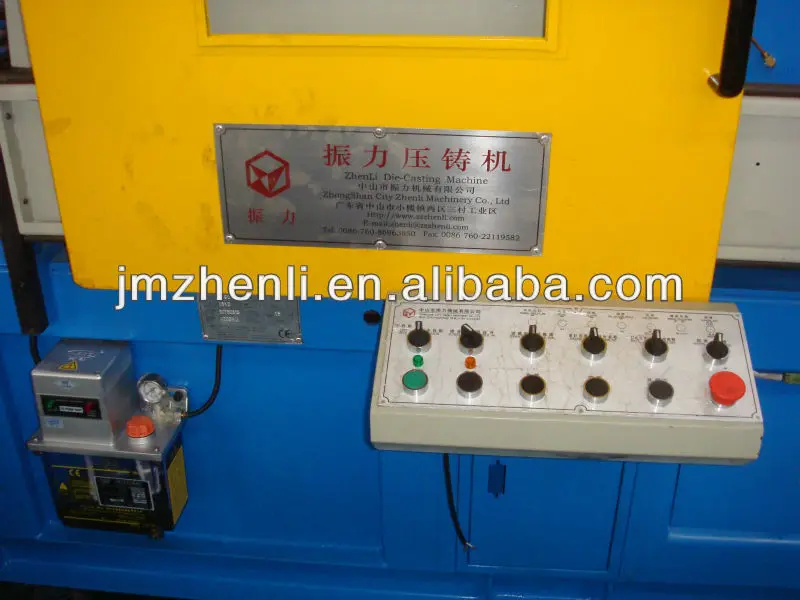

ELECTRONIC CONTROL PARTS
1.Independent electric box and holistic electric box for choosing and ensure easy arrangement from customers .
2.False intelligentized computer control to remember all the act data for convenient operationg and checking .
3.Using high resolution and clear LCD screen which can show Chinese and English,also the display language can convert freely between English and Chinese as to the user requirements .
4.Enlarged memory can store 120 sets mould information ,like time ,counting number ,speed ,pressure,travel stroke,mould thickness and choice conditon .
5.With the function of computer hardware checking itself to ring if it's fault.It's convenient for checking the machines's problem.
6.Imput and output checking function,also with LCD indicator.
7.Uses high precision electronic memasure checking clamping,the position control catually to 0.1mm.
8.Record production time,prodcution quantity and finished quantity automatically,also stop automatically.
ITEM | Unit | ZL-20 | ||
Locking Fore | KN | 200 | ||
Die Stroke | mm | 125 | ||
Ejection Force | KN | 20 | ||
Ejection Stroke(Max) | mm | 50 | ||
Die Thickness(Min-Max | mm | 100-260 | ||
Tie Bar Diameter | mm | 40 | ||
Space Between Tie Bars(W×H) | mm | 280×230 | ||
Shot Position | mm | 0,130 | ||
Plunger Stoke | mm | 85 | ||
Traverse Stoke | mm | 170 | ||
Injection Force(Max) | KN | 27 | ||
Diameter Of Plunger | mm | 36 | 40 | |
Max. .Shot Weight(Zn) | Kg | 0.35 | 0.4 | |
Hydraulic Pressure | Mpa | 11.0 | ||
Motor Power | KW | 5.5 | ||
Crucible Capacity(Zn) | Kg | 130 | ||
Capacity of Accumulator | L | 10 | ||
Furnace | Oil | Kg/h | 3.2 | |
Energy consumption | Electronic Furnace | KW | 20 | |
Capacity of Oil Tank | L | 160 | ||
Machine Size(L×W×H) | mm | 3000×1200×1620 | ||
Weight of Machine | Kg | 2000 | ||

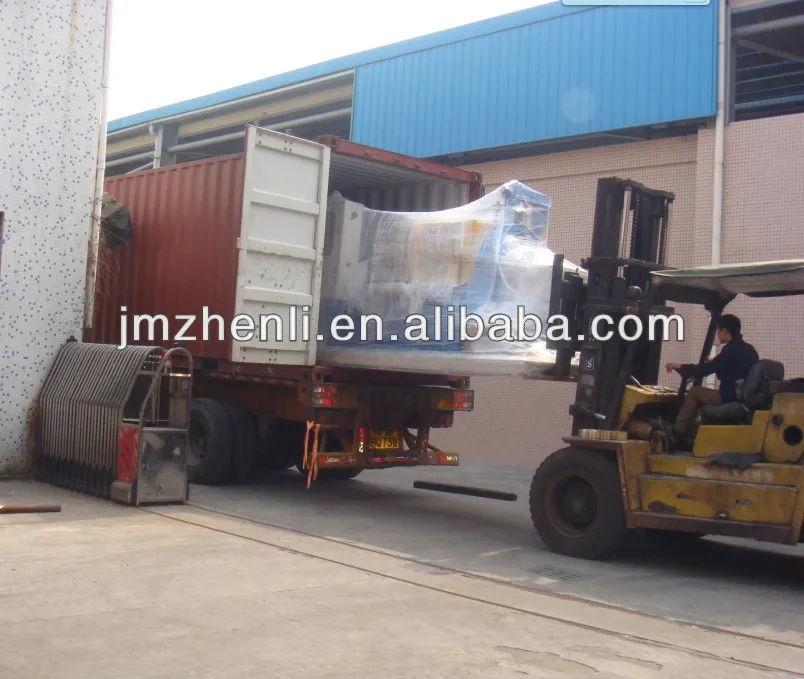

Packaging & Shipping
Our Services
when shipping arrival destination port,we will appoint one technician go to your factory,debugging and commissioning the machine for you ,and training your worker for free.
Company Information
established in 2002 and with more than ten years of development,ZHENLI machinery CO.,LTD,has owned 20000square meters production bases. ZHENLI is a high-tech company specializing in the R&D, production,sales and services. the main product of the company include "ZL" hot chamber die casting machine, ZLC cold chamber die casting machines and the peripheral devices.
adhering to the business philosophy of "keep improving and cast performance" and the spirit of "Exploration,innovation,pioneering and integrity",zhenli is dedicated to the development of precision computerized cold /hot chamber die casting machines which are widely applied in sectors of toys,home supplies,building hardware,industrail parts,telecommunication,auto parts and electronics and satisfy the technical requirements for production of castings.
FAQ
Q: Is your company a trading corporation or manufacturer?
A: Our company is a die casting machine manufacturer with more than 25-year experience.
Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.
Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.
Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.
Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
