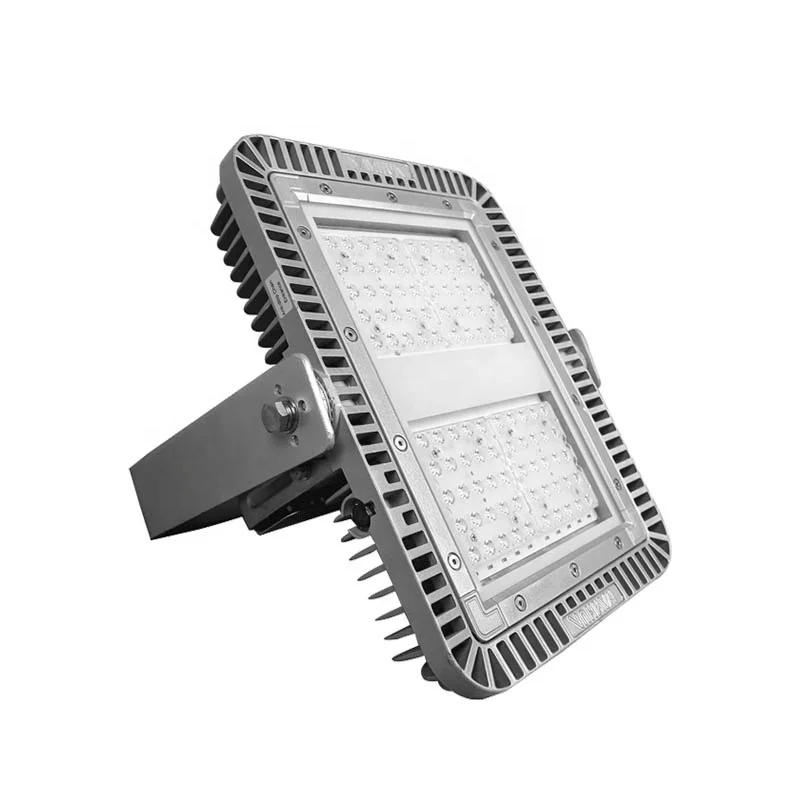

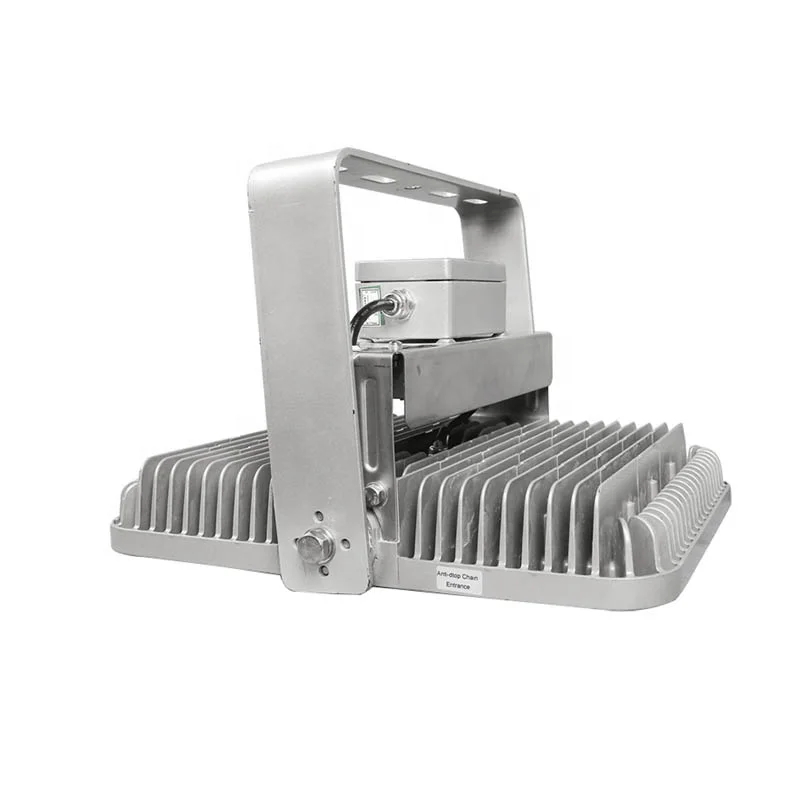

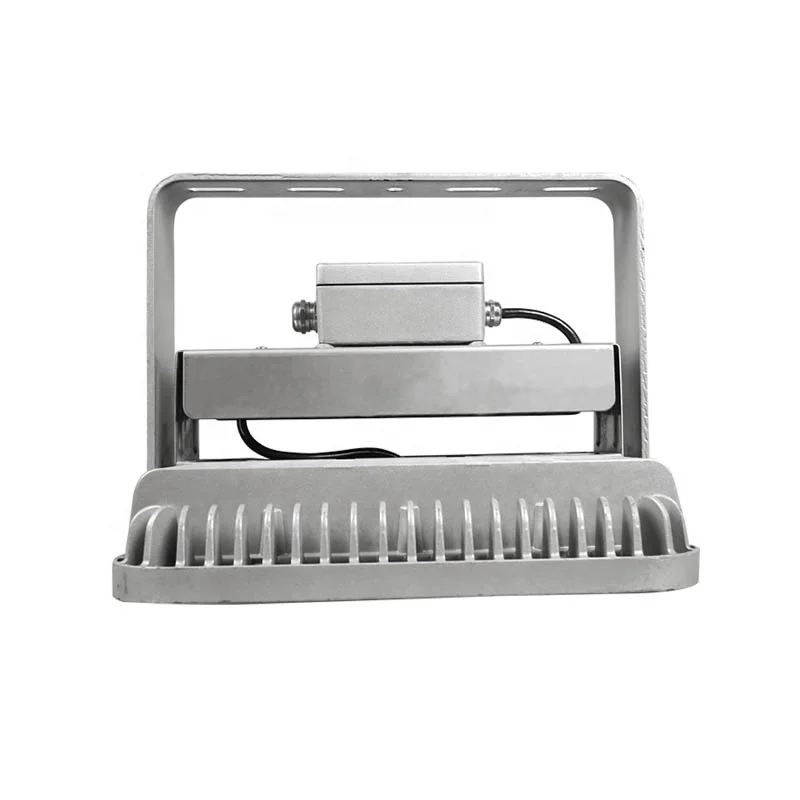

NANHUA LF30 SAA mobile led lighting/Port, Mine site,Offshore LED Flood Light
- Category: >>>
- Supplier: Shanghai Nanhua Electronics Co. Ltd.
Share on (1590153857):
Product Overview
Description
Product Description
● LF30 series high power LED flood lights use high grade international brand LED light source and drivers, provide stable and durable lighting for Port, Mine site,Offshore, etc outdoor very harsh environment.
● Standard: IEC60598-1/IEC60068-2/IEC60529/IEC62262/UL1598/EN55015.
● Certification: UL&cUL / SAA / CE(TUV).

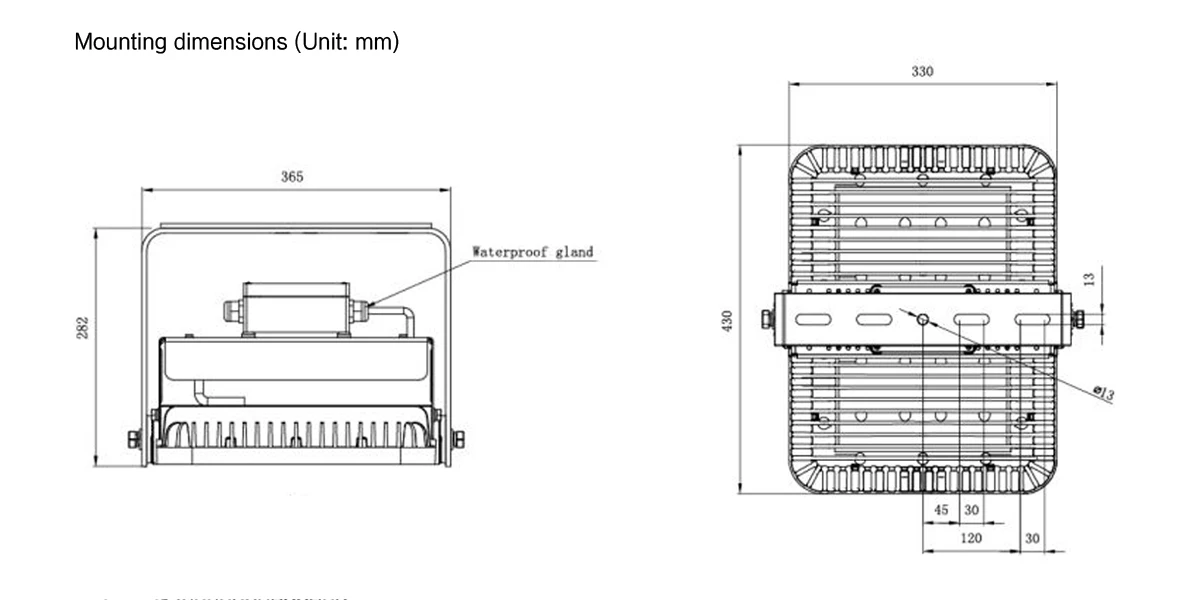

Product Size
Product Presentation
General Specifications
OPTICS | ||||||
LEDs life span | ≥50000h | Beam angle | 15°/25°/60°for option | |||
Color temperature | Cold white：5500K-6000K Warm white：2700K-3000K | Lumen per Watt | Cold white：≥ 115 lm/w Warm white：≥100 lm/w | |||
CRI | Cold white：Ra≥70 Warm white：Ra≥80 | |||||
ELECTRIC | ||||||
Rated voltage | AC100V~AC240V | Frequency | 50Hz~60Hz | |||
Rated power | 250W 200W 150W 100W | PF | ＞0.9 | |||
Lightning surge | GB/T 17626.5-2008 ±2KV | Electrostatic | GB/T 17626.2-2008 ±6KV | |||
discharge EMC | GB/T 17626.5-2008 GB/T 17626.2-2008 GB/T 17626.4-2008 | |||||
MECHANICA | ||||||
Body material | Aluminum alloy | Cover material | Tempered glass | |||
Safety wire material | Stainless steel | Operating temperature | Ta -30˚C ~ +60˚C(overheat protection) | |||
IP Rate | IEC60529 IP65 | Anti-vibration | IEC60068 5G | |||
IK rate | IEC62262 IK08 | Salt spray rate | ISO9227 720H | |||
Body color | Silver | Weight | 13 kg | |||
• Integrated die cast body, superb mechanical strength achieve 5G vibration resistant capacity.
• Professional fin type heat dissipation design, guarantee LEDs life span.
• 2 degree tilt angle structure design, prevent water and dust accumulation.
• Module design balance the temperature and pressure interior and exterior of the product, protect LEDs devices.
• International brand LED light source and drivers guarantee product stability and durability.
• Tempered glass cover with IK08 rate.
• Various beam angle for optional.
• SS safety wire design, improve product safety level.
• 2 degree tilt angle structure design, prevent water and dust accumulation.
• Module design balance the temperature and pressure interior and exterior of the product, protect LEDs devices.
• International brand LED light source and drivers guarantee product stability and durability.
• Tempered glass cover with IK08 rate.
• Various beam angle for optional.
• SS safety wire design, improve product safety level.
