Product Overview
Description
Company Information
Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.

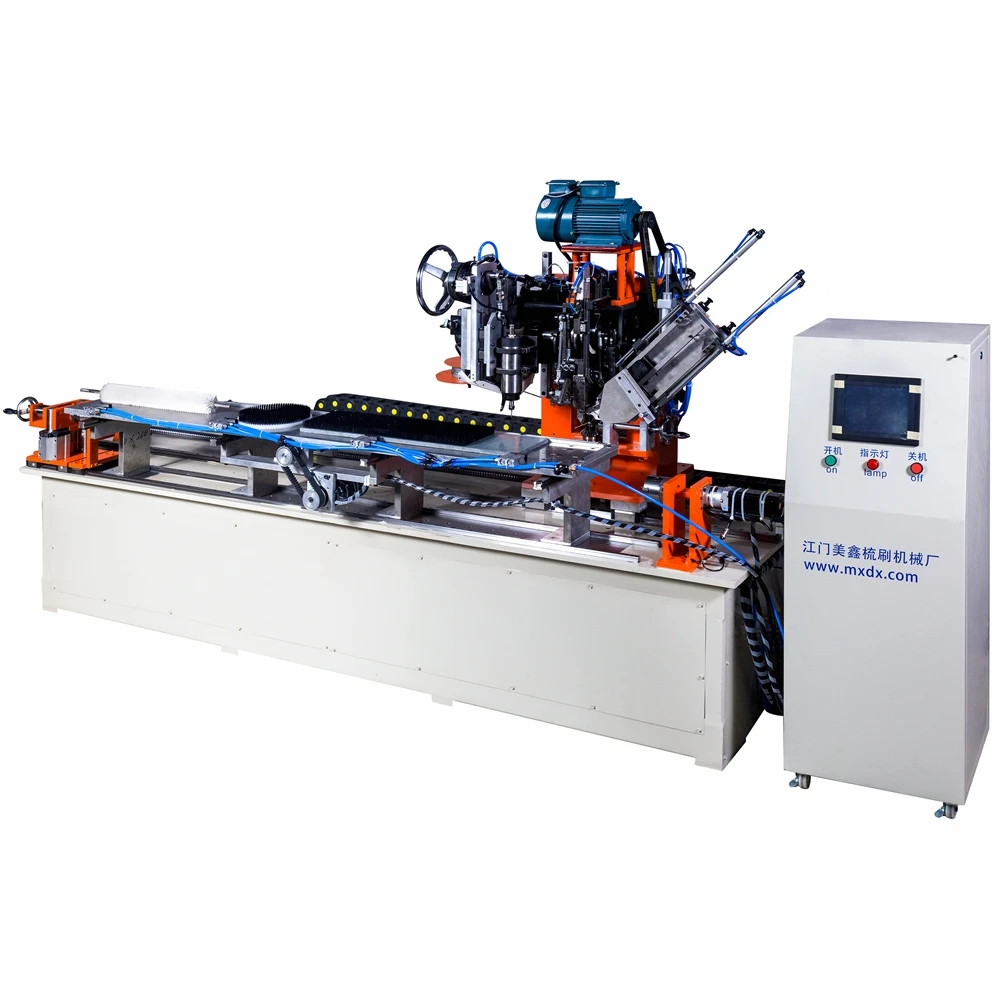

Product Description
Machine paremeter
| 1 | machine size | 2045*1520*2040mm(L*W*H) |
| 2 | axis | 3 axis |
| 3 | Power | about 8KW |
| 4 | Power voltage | 380VAC/220VAC |
| 5 | wire | round wire(stape nail) |
| 6 | hole diameter | 3.5-4.2mm, |
| 7 | max outside filament length | 20-50mm |
| 8 | Journey of A axis | 750mm |
| 9 | Journey of Y axis | 250mm |
| 10 | Angle of Z axis | 360° |
| 11 | roller diameter | 70-220mm |
| 12 | Tufting speed | 3 holes/sed |
| 13 | Weight | about 900kg |
| 14 | Packing | wooden box |
| 15 | Function | Drilling and Tufting |
| 16 | Production | about 2000pcs/10 hours |
- Machine spare parts:
- Italy brake motor
- driving Motor: servo motor(Panasonic)
- driving screw:TBI ball screw
- Lubrication:TBI straight line guide rail
- Japan bearing( IKO,BB15 and BB20)
- Schneider low voltage electrical appliances
- Stepless speed:Frequency converter using Delta inverter
- PLC(ADTECH CNC Control System) Fiber box container:two or three colours
