Product Overview

Description

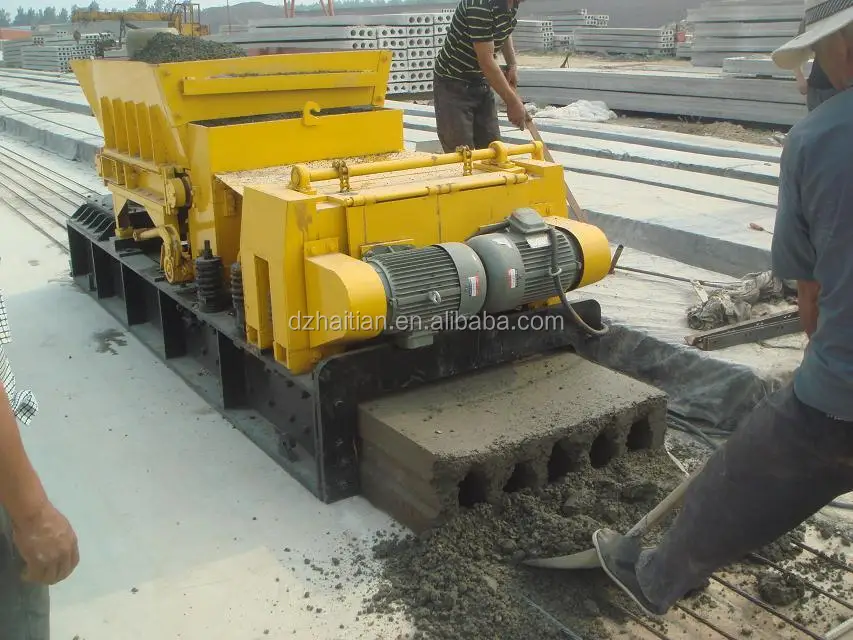

Precast Concrete hollow  core Slab Machine

Stee cable reinforced concrete hollow core slab machine

Haitian is professional for Precast concrete hollow core slab forming machine.The dimension range of the slabs are as bellow: Length is from 4.2m to 18m, width are 600mm,900mm and 1200mm, the thickness is 120mm,150mm,180mm,200mm,250mm, 300mm and 380mm.It became the best and economical choice of the factory who produce high strength hollow core slab for workshop, school, hospital, shopping mall, office building, warehouse and residence.

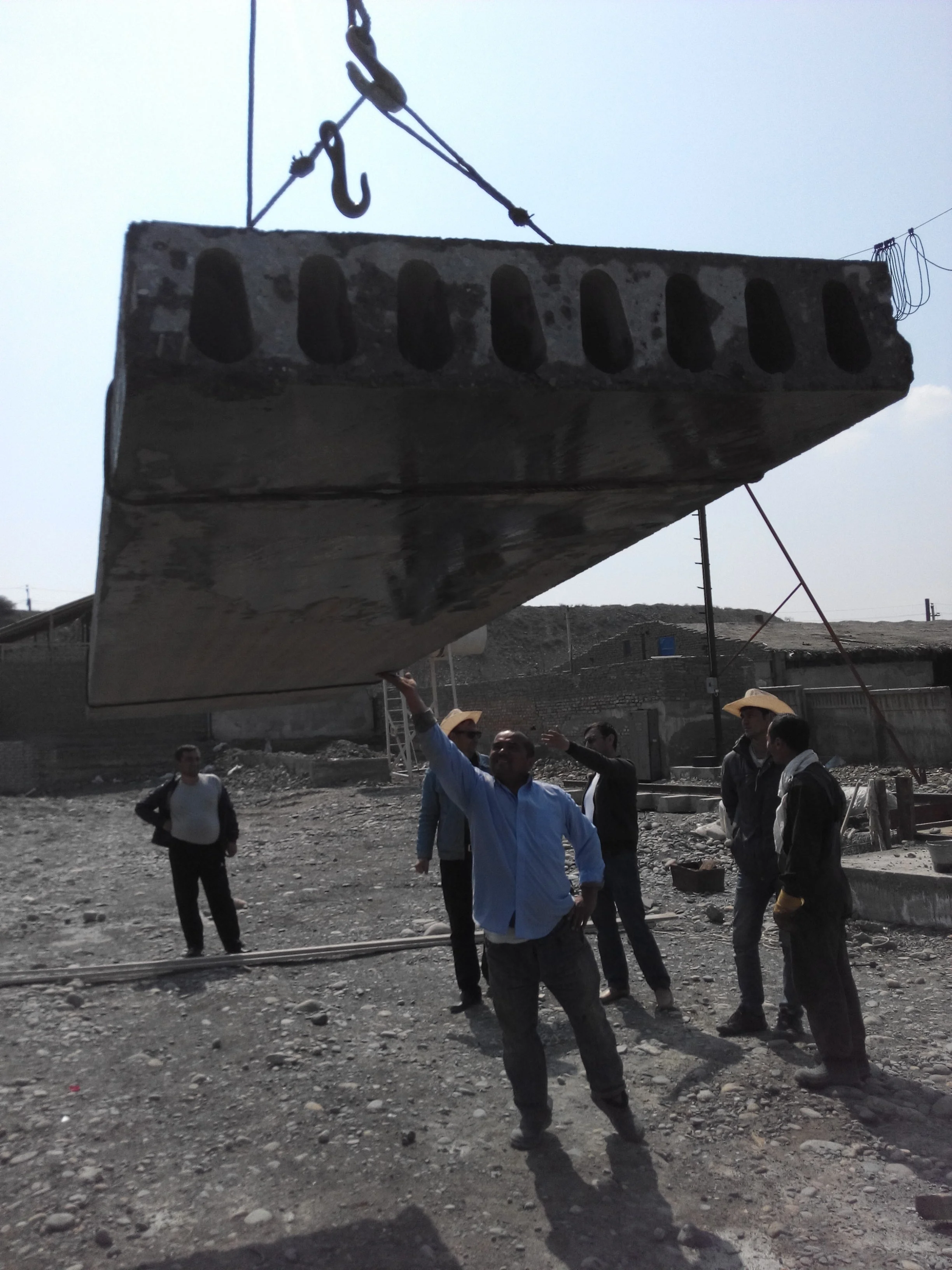

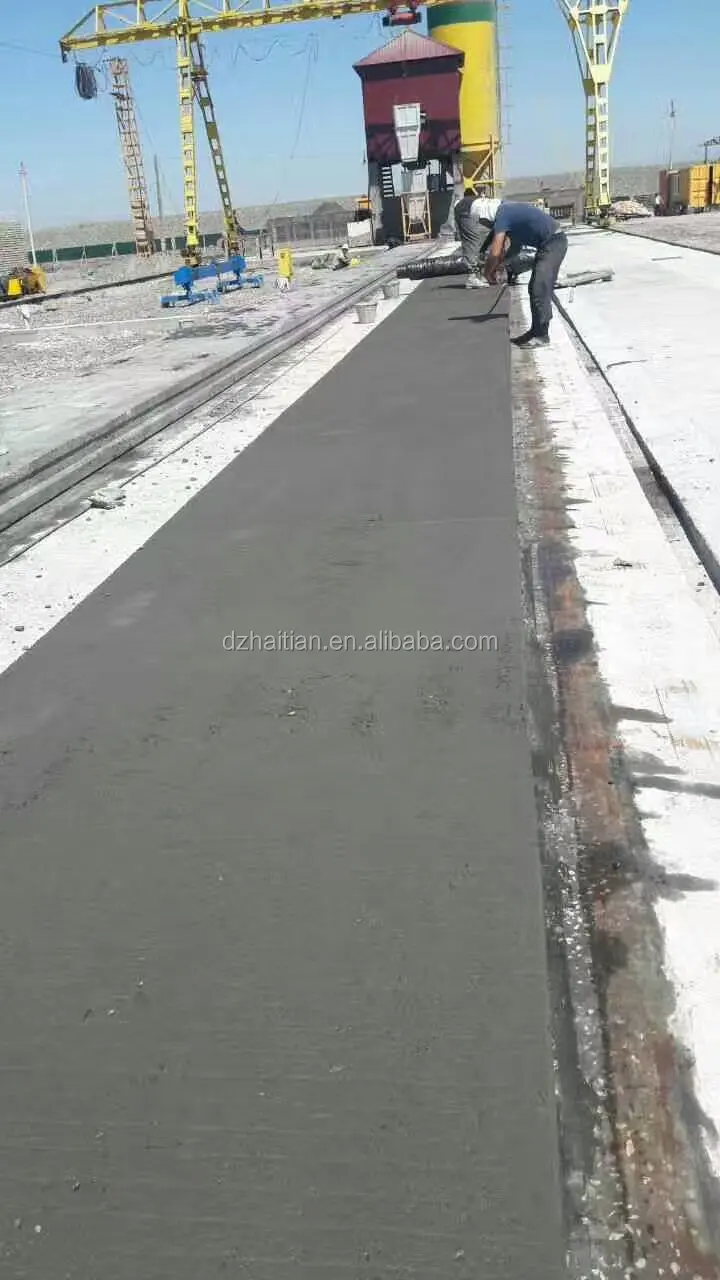

roof slab installIMG_20150407_1352594220X1200 SLAB IN UZ200x1200 slab300 SLABS 2220x1200 slab machine





No.

Model

Size of Slab (mm)

Power (kw)

Weight / meter (kg)

No. of Steel Strands, Steel Rope Ø, Span in Meter,
& Max. Load Carring Capacity kN/m2

1

TW

120-600

Thickness - 120
Width - 600

8.5

100

8 Nos.

5 mm

4.5 mtr

4.6 kN/m2

6 Nos.

7 mm

4.5 mtr

6.54 kN/m2

6 Nos.

7 mm

6 mtr

2.27 kN/m2

2

TW
150-600

Thickness - 150
Width - 600

10.5

125

5 Nos.

7 mm

4.5 mtr

8.27 kN/m2

7 Nos.

7 mm

6 mtr

4.94 kN/m2

5 Nos.

9.5 mm

6 mtr

5.23 kN/m2

3

GLY
 150-1200

Thickness - 150
Width - 1200

18.5

250

12 Nos.

7 mm

4.5 mtr

10.98 kN/m2

12 Nos.

7 mm

6 mtr

4.54 kN/m2

10 Nos.

9.5 mm

6 mtr

6.19 kN/m2

4

GLY
 180-1200

Thickness - 180
Width - 1200

18.5

270

10 Nos.

9.5 mm

6 mtr

9.72 kN/m2

8 Nos.

12.7 mm

6 mtr

12.83 kN/m2

10 Nos.

12.7 mm

7.5 mtr

8.72 kN/m2

5

GLY
 200-1200

Thickness - 200
Width - 1200

22

300

10 Nos.

9.5 mm

6 mtr

11.36 kN/m2

8 Nos.

12.7 mm

7.5 mtr

8.11 kN/m2

10 Nos.

12.7 mm

9 mtr

6.36 kN/m2



Sr. No.

Model

Size of Slab (mm)

Power (kw)

Weight / meter (kg)

No. of Steel Strands, Steel Rope Ø, Span in Meter,
& Max. Load Carring Capacity kN/m2

6

GLY
 250-1200

Thickness - 250
Width - 1200

33

315

8 Nos.

12.7 mm

7.5 mtr

11.15 kN/m2

10 Nos.

12.7 mm

9 mtr

9.16 kN/m2

10 Nos.

12.7 mm

10.5 mtr

5.76 kN/m2

10 Nos.

12.7 mm

12 mtr

2.86 kN/m2

7

GLY
 300-1200

Thickness - 300
Width - 1200

40

380

12 Nos.

9.5 mm

7.5 mtr

11.59 kN/m2

10 Nos.

12.7 mm

9 mtr

8.63 kN/m2

10 Nos.

12.7 mm

10.5 mtr

6.60 kN/m2

12 Nos.

12.7 mm

12 mtr

5.60 kN/m2

8

GLY
 380-1200

Thickness - 380
Width - 1200

39.5

480

14 Nos.

9.5 mm

9 mtr

10.20 kN/m2

10 Nos.

12.7 mm

10.5 mtr

7.64 kN/m2

10 Nos.

12.7 mm

12 mtr

5.91 kN/m2

12 Nos.

12.7 mm

13.5 mtr

4.58 kN/m2
