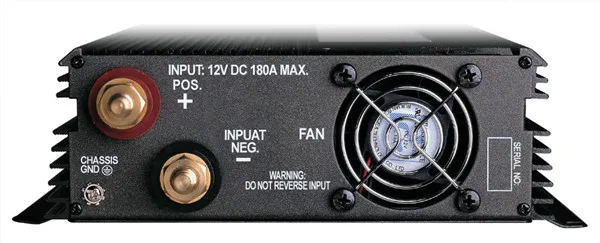

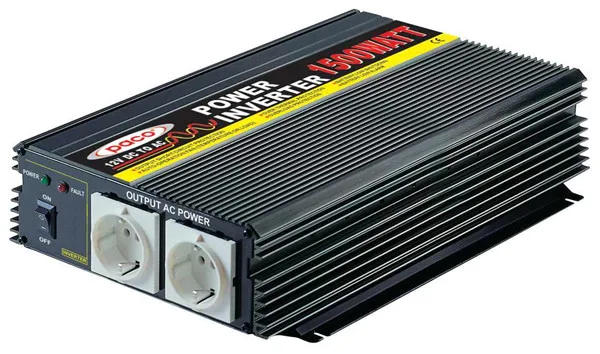

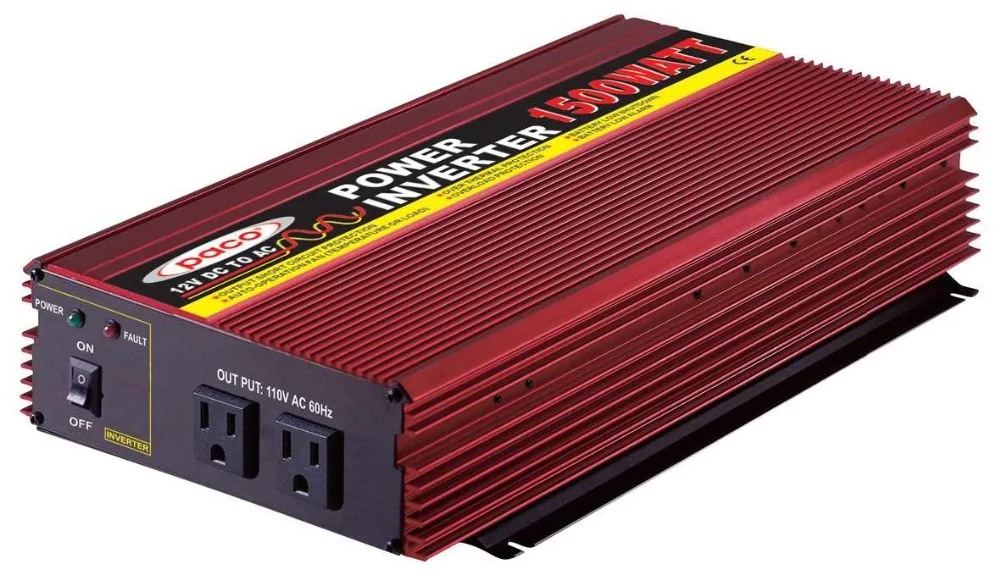

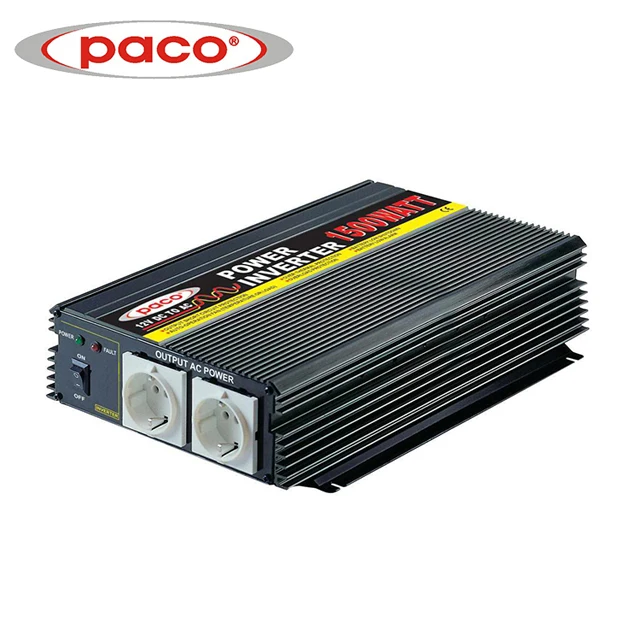

12 Volt 1500 Watt Inverter for 220v 110v Home Electrical Appliance

Product Overview

Description

Product Name:     12 Volt 1500 Watt Inverter for 220v 110v Home Electrical Appliance



1.CE/CB/ROHS
2.LED Indicator
3.Auto-operation fan
4.Overload,overheat,polarity reverse Protect









Function and characteristic
1. Input range of 12V DC to 24V DC;
2. Output voltage range of 115V AC or 230V AC;
3. For use in cars, boats, trucks, trailers and mobile homes;
4. Take the power inverter to camping and get AC power for lamps, radios or TVs.
5.In an emergency such as blackout, attach the power inverter to your car battery or portable battery and get power to run your appliances;
6.Ultra-Compact Metal Housing
Small and rugged; stored easily in any tool box, briefcase or glove compartment.
7.Low-Battery Alarm/Shutdown
Automatically detects low voltage and shuts down to preserve your battery.
8.Integrated Fuse Protection
Protects your battery and power inverter from damage due to outlet overload.
9.Illuminated On/Off Switch
Shows power inverter under operating and battery charged sufficiently.





Specifications

Ideal	PI-1500
Output power (Countinuous Watts)	1500
Output power (Peak Watts)	3000
Nominal Input Voltage (DC)	12V (10~15V)/24V (20~30V)
Nominal Output Voltage (AC)	115V AC or 230V AC
Frequency	50Hz or 60Hz +/- 5%, Crystal controlled
Output Regulation	Intelligent Pwm +/- 0.5%
Output Waveform	Modified Sine wave
Low Battery-voltage Alarm (Volts)	10.5 +/- 0.5V   /   21+/-1V
Low Battery-Voltage Shutdown (Volts)	10+/- 0.5V   /    20+/-1V
Efficiency	85~90%
Thermal Protection	65℃ +/-5 ℃
Overload	Shut down / Alarm
Battery Polarity Reverse	By Fuse
Output Short	Output short Cicuit Protection
With Cooling Fan	Yes Auto-operation fan (temperature or load)
AC Outlet	USA Type: 2AC Outlets, European type: 2AC outlets
Replaceable Fuse (12V DC)	9 x 20A
Replaceable Fuse (24V DC)	9 x 20A
Product Dimension (L x W x H)cm	26 x 19.8 x 7
Weight	4.5 kg
Qty (PCS)	4
Carton Measurement (cm)	55 x 45 x 30.5
Container 20FT (PCS)	1484

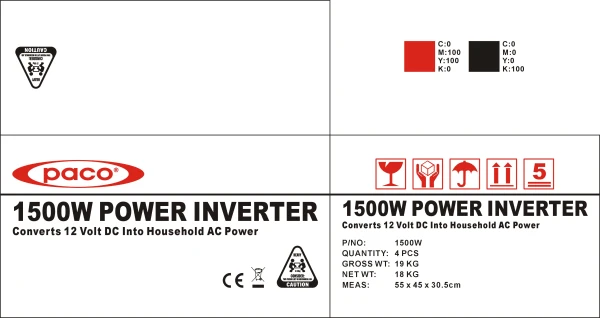

The outer master carton

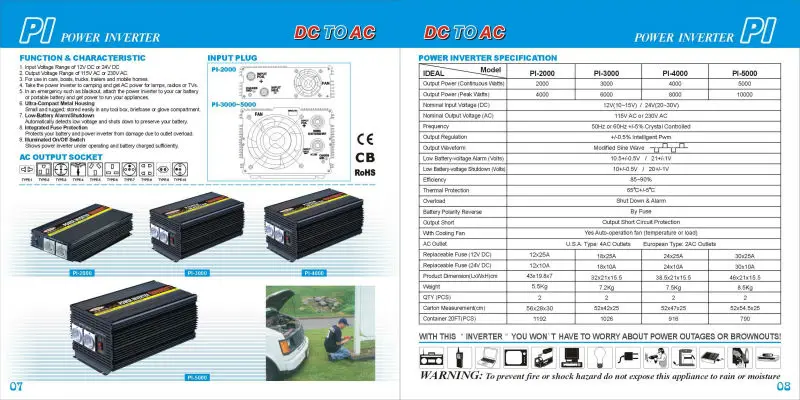

Relative models

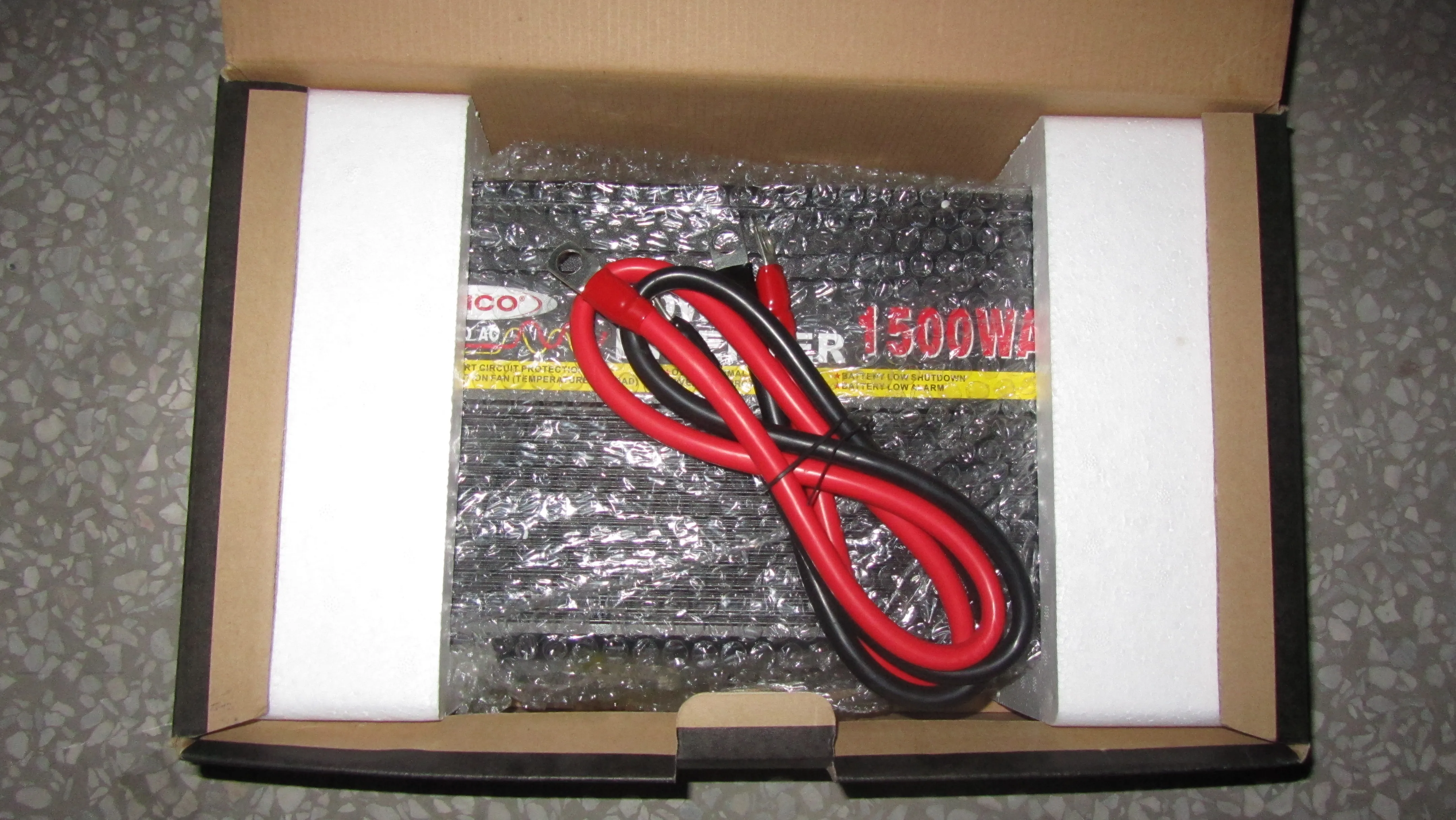

Package & Delivery:



1. Exported standard colorful carton packing, or according to your request.

2. 35-45 working days upon receive the deposit or original L/C







Term



MOQ: 500 sets

Port: Zhongshan

Payment term: L/C, T/T, D/A, D/P, Western Union, MoneyGram, Paypal

Supply Ability: 30,000 pieces per month



Main Products



1. Power Inverter

2. 7-stage switch mode automatic battery charger

3. Power Inverter with Charger

4. Solar Charge Controller

5. DC to DC Converter

6. Solar Lantern

7. Automatic Voltage Regulator

8. Portable Cooler & Warmer



Market Distribution





About us



LIGAO (Zhongshan) electrical appliance Co., LTD is one of the most specialized manufacturers of electrical appliance with over 20 years of experience.

Conducted by ISO9001:2000 and gain UL, GS, CB, CE, and E-mark approvals.



We believe company Lives by Quality,

We provide the best quality products, considerate services, and competitive prices!



Company Information:

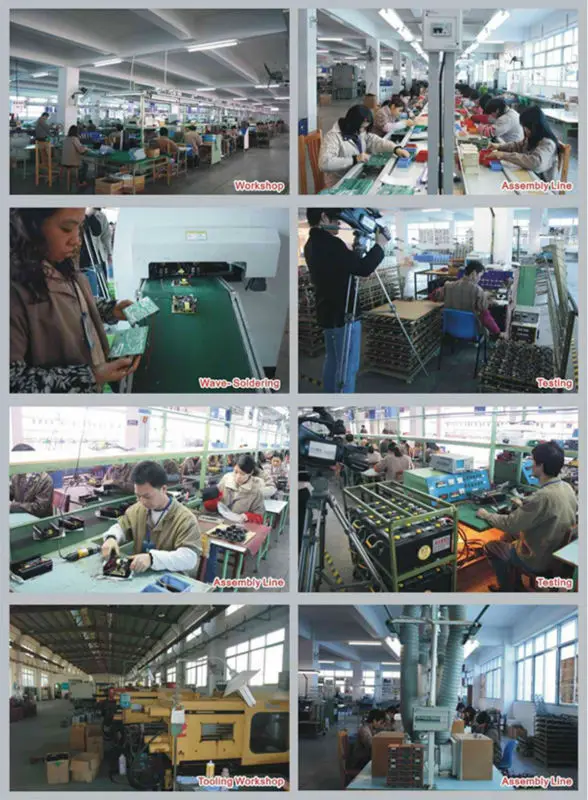

Investment on Manufacturing Equipment:        US$5 Million - US$10 Million

Factory size:                                                              40,000 Square Meters

Production line Workers:                                           400 people

R&D engineer:                                                           5-10 people

QC Staffs:                                                                  5-10 people

Sales Team:                                                              10 people









One year warranty.

OEM & ODM is AVAILABLE!

Excellent Pre-sales and After-sales service system.
