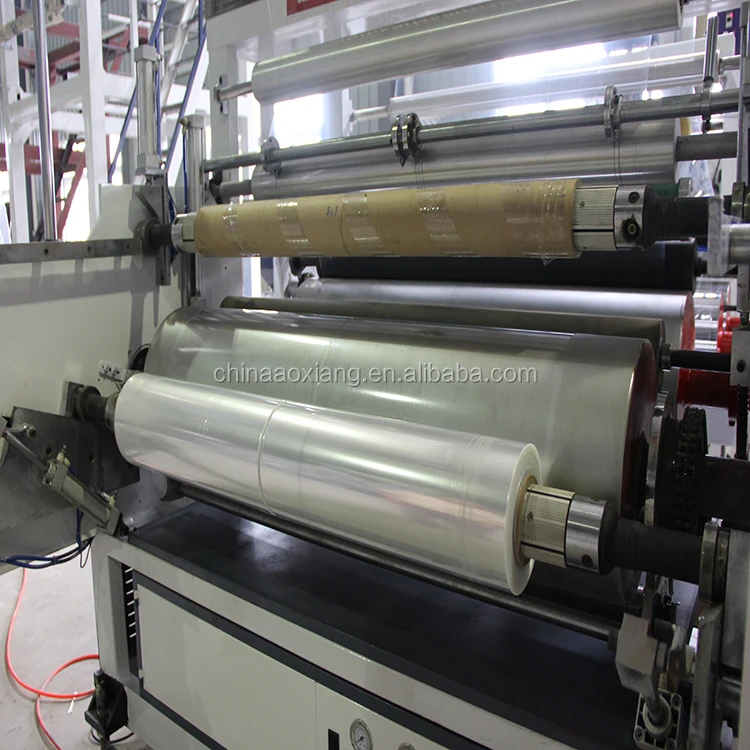

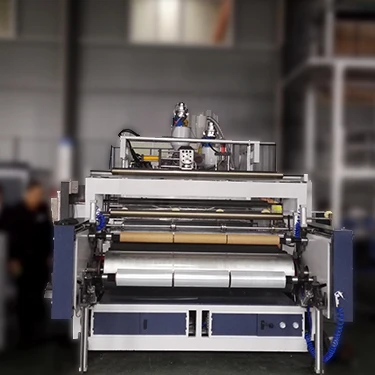

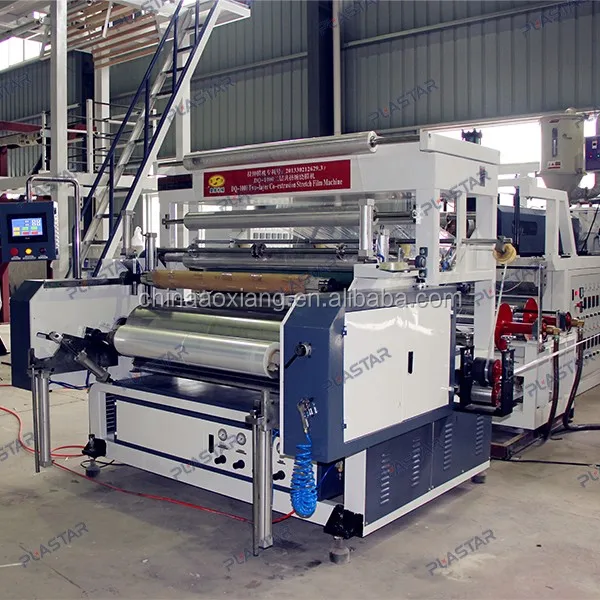

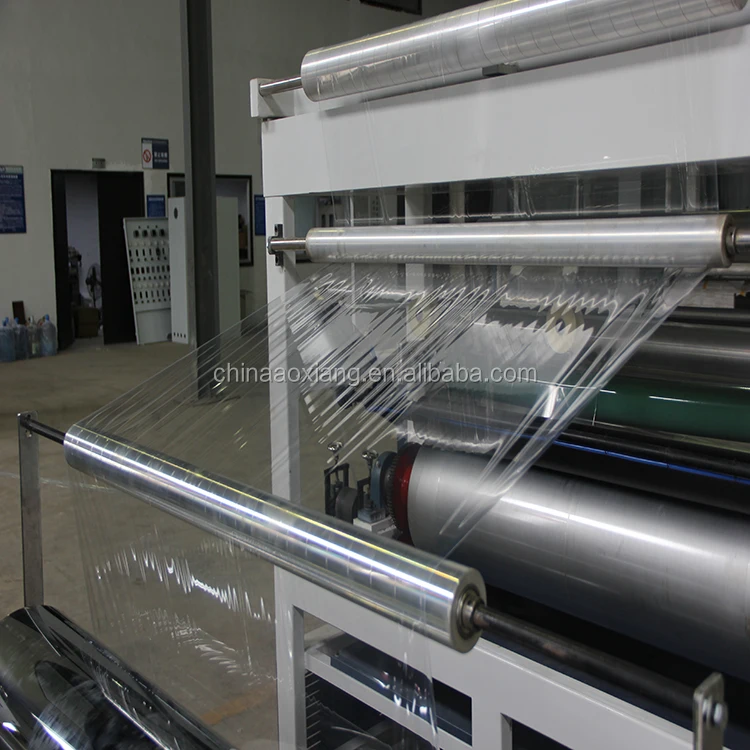

Automatic Double Layers Lldpe Cling Film Stretch Plastic Film Machine
- Category: >>>
- Supplier: Wenzhou Aoxiang Packaging Machinery Co. Ltd.
Share on (1591665137):
Product Overview
Description
Products Description
Product Application
1. Introduction of Stretch Cling Film Machine:
Stretch cling film machine mainly use LLDPE,LDPE or recycled LLDPE material to produce one side sticky or 2 sides sticky stretch film,cling film.
Three layers stretch cling film machine:

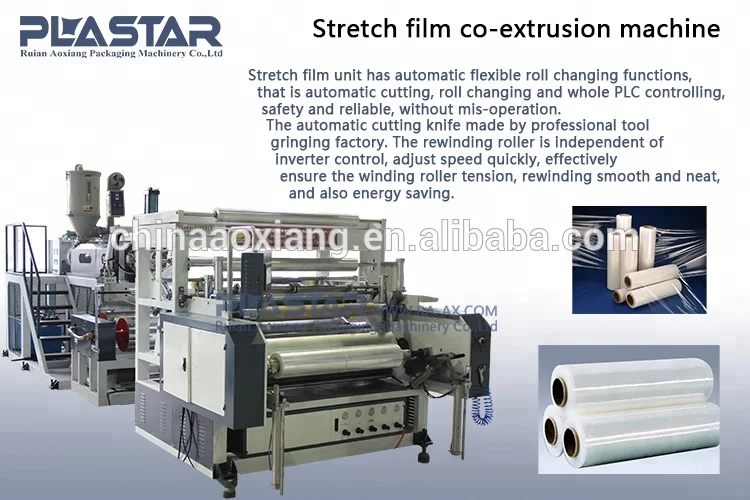

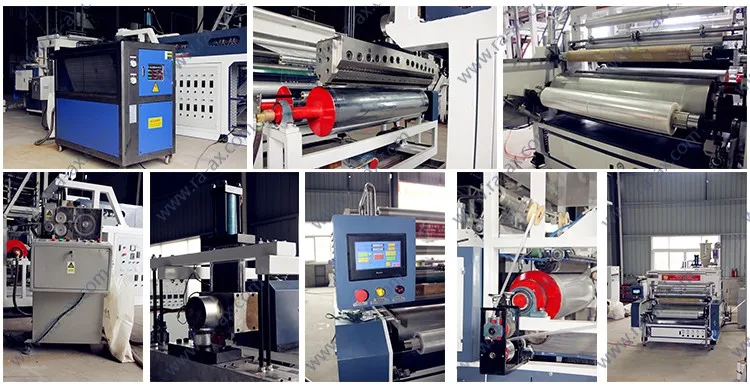

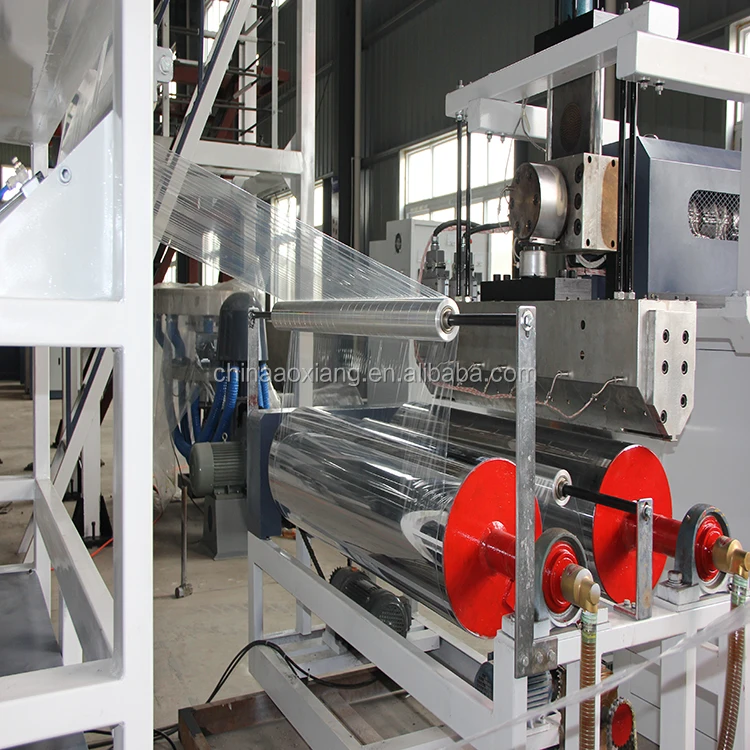

1) Main parts: one electrical power control box,2 extruders, 1 die,2 cooling forming rollers,on-line recycling system,auto-cutting
system,auto-winding system,2 winding shafts etc.
2) Layers to be produced: 2layerS(one side sticky or 2 sides sticky stretch film)
3) Heating power: Total power is 80 kw
4) Spare parts: All advanced spare parts are imported from Japan,Taiwan,China brand parts etc.
5) Width to be produced: min 200mm to max 1000mm
6) Thickness to be produced: 0.008mm-0.05mm
7) Auto carton loading&unloading system,no need to put air into the air shaft,and no adhensive tapes required(optional system)
Three layers stretch cling film machine:
1) Main parts: one electrical power control box,2 extruders, 1 die,2 cooling forming rollers,on-line recycling system,auto-cutting
system,auto-winding system,2 winding shafts etc.
2) Layers to be produced: 2layerS(one side sticky or 2 sides sticky stretch film)
3) Heating power: Total power is 80 kw
4) Spare parts: All advanced spare parts are imported from Japan,Taiwan,China brand parts etc.
5) Width to be produced: min 200mm to max 1000mm
6) Thickness to be produced: 0.008mm-0.05mm
7) Auto carton loading&unloading system,no need to put air into the air shaft,and no adhensive tapes required(optional system)
SPECIFICATIONS FOR PLASTAR 3 LAYERS STRETCH FILM MACHINE | Item | Data | ||||
FEATURE | MATERIAL TO BE USED | LLDPE / MLLDPE | ||||
2 | MAX. FILM WIDTH | MM | 1000 | |||
3 | THICKNESS OF FILM | MM | 0.008-0.05 | |||
4 | FILM USAGE | food package,wooden package,industry package. | ||||
5 | MAX. EXTRUSION OUTPUT | KG/H | 100 | |||
SCREW DIA. | MM | 55/75 | ||||
7 | SCREW L/D | 30：1 | ||||
8 | SCREW / CYLINDER | 38CRMOALA) HARDNESS 75 OR OVER | ||||
DRIVING MOTOR | KW | 22kw/37kw | ||||
DIE | MM | 1250 | ||||
TEMPATURE CONTROL | ZONES | 3 | ||||
WINDING UNIT | WINDING TYPE | FRICTION TYPE AUTOMATIC SINGLE WINDER | ||||
EFFECTIVE WIDTH | 1000 MM | |||||
DIMENSION (LxWxH) | 7000*2500*2600MM | |||||
2. Use:
1) The most usage pallet packaging: Such as fertile, cement, chemicalindustrial raw material, building material etc.
2) Horizontal packaging: Metal pipe, aluminum alloy material, timber etc.
3) Rotational twist: Rolling paper, carpet etc.
4) Binding: Glass container, acceptance etc.
5) Break-bulk packaging: Soybean, grain, plastic particle etc.
6) Storage packaging: Such as grass.
7) Manual packaging: It is used in wholesales, journal, printing, electronic product, foodstuff etc.
8) Ring twist packaging: Type, wire, cable, steel silk etc.
3. Finished Products of Stretch Cling Film Machine:
It is a very good kind of packaging material mostly used in the industrial field,port pallet packaging,,building material
packaging, hardware packaging etc.It enjoys the following advantages:
1) Good tensile strength
2) Superior anti-pricking ability
3) High transparency
4) Good ductility and anti-impact strength
5) Stable sticky sides etc
1) The most usage pallet packaging: Such as fertile, cement, chemicalindustrial raw material, building material etc.
2) Horizontal packaging: Metal pipe, aluminum alloy material, timber etc.
3) Rotational twist: Rolling paper, carpet etc.
4) Binding: Glass container, acceptance etc.
5) Break-bulk packaging: Soybean, grain, plastic particle etc.
6) Storage packaging: Such as grass.
7) Manual packaging: It is used in wholesales, journal, printing, electronic product, foodstuff etc.
8) Ring twist packaging: Type, wire, cable, steel silk etc.
3. Finished Products of Stretch Cling Film Machine:
It is a very good kind of packaging material mostly used in the industrial field,port pallet packaging,,building material
packaging, hardware packaging etc.It enjoys the following advantages:
1) Good tensile strength
2) Superior anti-pricking ability
3) High transparency
4) Good ductility and anti-impact strength
5) Stable sticky sides etc
Certifications
Packing& Delivery

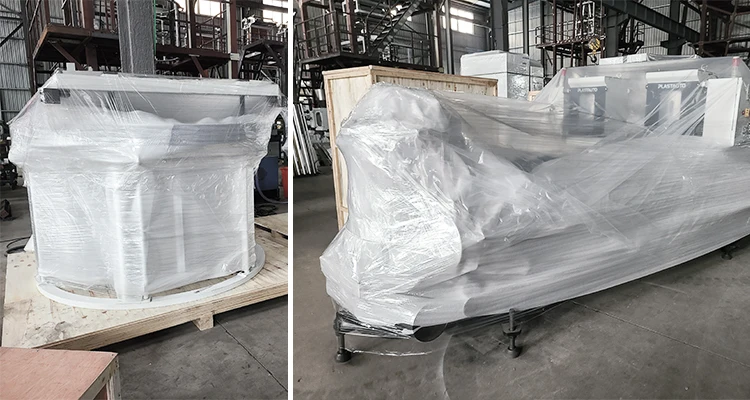

Bulky goods packing with stretch film, other easy damage part packing in wooden box.
Recommend Products
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory
2. Q: What certificate do you have?
A: We have ISO9001, SGS, GB4455 and CE certificate.
3. Q: How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: we have customers all over the world.
6. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located? How can we visit there?
A: Our factory located in Feiyun Industry Zone, Ruian City, Zhejiang Province, CHina.
You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
We welcome all friends ro visit us for future cooperation!
A: We are a factory
2. Q: What certificate do you have?
A: We have ISO9001, SGS, GB4455 and CE certificate.
3. Q: How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: we have customers all over the world.
6. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located? How can we visit there?
A: Our factory located in Feiyun Industry Zone, Ruian City, Zhejiang Province, CHina.
You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
We welcome all friends ro visit us for future cooperation!
