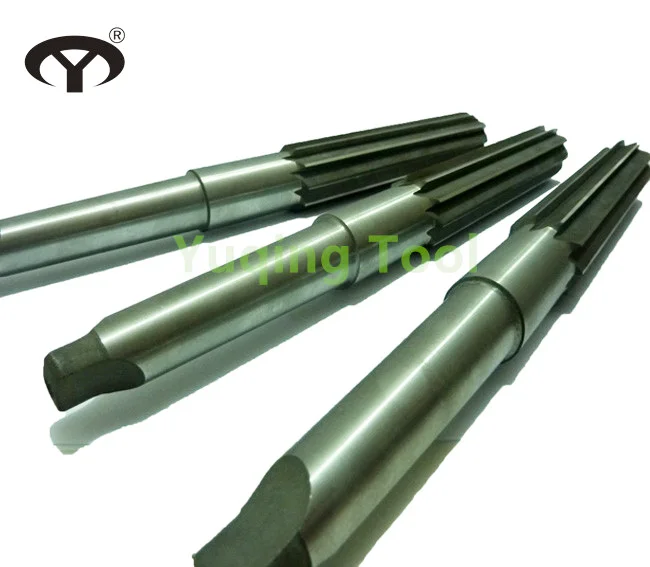

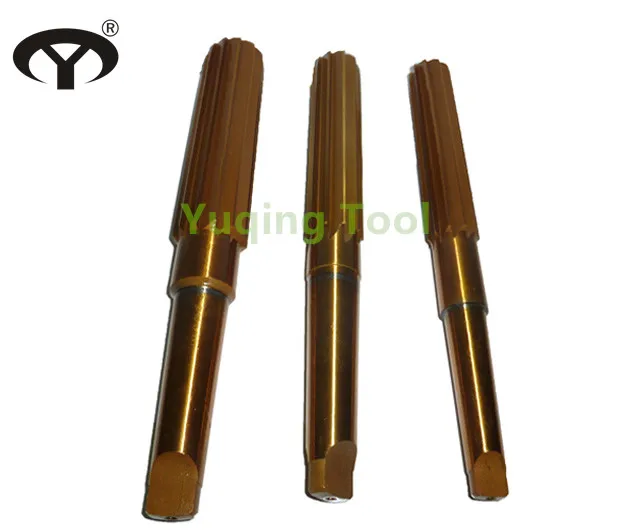

HSS M2 C45 Taper Shank Chucking Reamer with TIN coating

Product Overview

Description

HSS M2+C45 Taper Shank Chucking Reamer with TIN coating



Type of front end with edge of in clination are ordered accordig to nonstadard.



Outside Dia.	Overall Length	Flute Length	MT.NO
10	140	22	1
11	140	22	1
12	105	25	1
13	105	25	1
14	160	25	1
15	160	25	2
16	170	25	2
17	170	25	2
18	180	28	2
19	180	28	2
20	190	28	2
21	190	28	2
22	200	28	2
23	200	28	2
24	220	28	3
25	220	28	3
26	230	30	3
27	230	30	3
28	230	30	3
30	240	30	3
32	240	30	3































Reamer series : Taper shank , straight shank machine reamer , taper pin reamer , taper reamer, complex reamer.



Production process of HSS M2 morse taper shank chucking reamer :











Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
