China Top 10 professional rubber conveyor belt manufacturing plant

Product Overview

Description

China Top 10 professional rubber conveyor belt manufacturing plant —Hebei Ssangyong Rubber Co.,Ltd.



Established in 2003, Hebei Ssangyong Rubber Co.,Ltd is a professional manufacturer specialized in research, development and production of rubber conveyor belt for over 10 years.



With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards,such as DIN,AS,BS,JIS,SANS,RMA,etc.



Depending on the strict management system and consummate after-sales service system,we provide our customers with high quality and low price conveyor belts,also a warm service.



Product catalogue of our factory:



1).ordinary conveyor belt for general usage

2).solid woven carcass flame retardant conveyor belt

3).heat/cold resistant conveyor belt

4).abrasion resistant conveyor belt

5).oil resistant conveyor belt

6).chemical resistant conveyor belt

7).polyester(EP) core conveyor belt

8).nylon(NN) core conveyor belt

9).corrugated sidewall conveyor belt

10).endless/annular conveyor belt

11).patterned conveyor belt

12).chervon profiled conveyor belt



Features

Polyester Nylon (PN or EP):

• Synthetic woven fabric, with polyester fiver in the warp and nylon fiber in the weft


• Medium, long distance and heavy load transportation of materials


• Low elongation and good troughability

Nylon Nylon(NN):

• Consists of synthetic woven fabric with nylon fiber


• High impact and abrasion resistance with extended belt life


• Highly flexible and good troughability


• Manufactured to AS1332 or DIN Standards

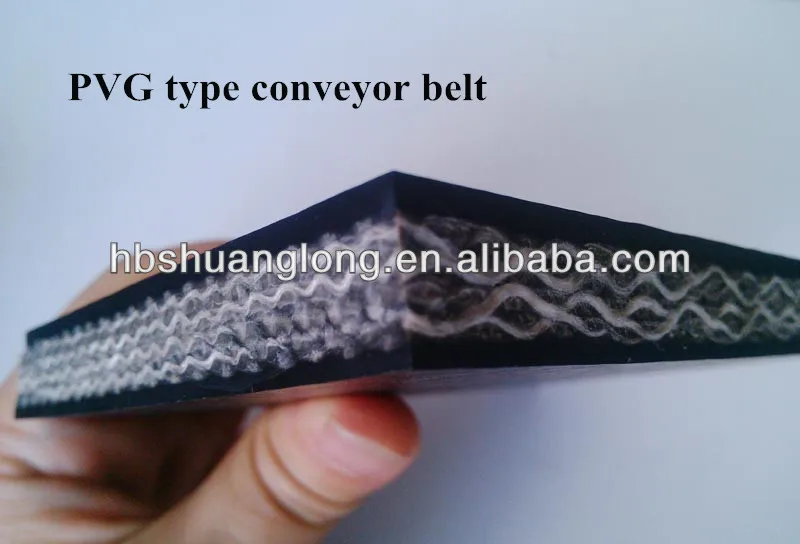

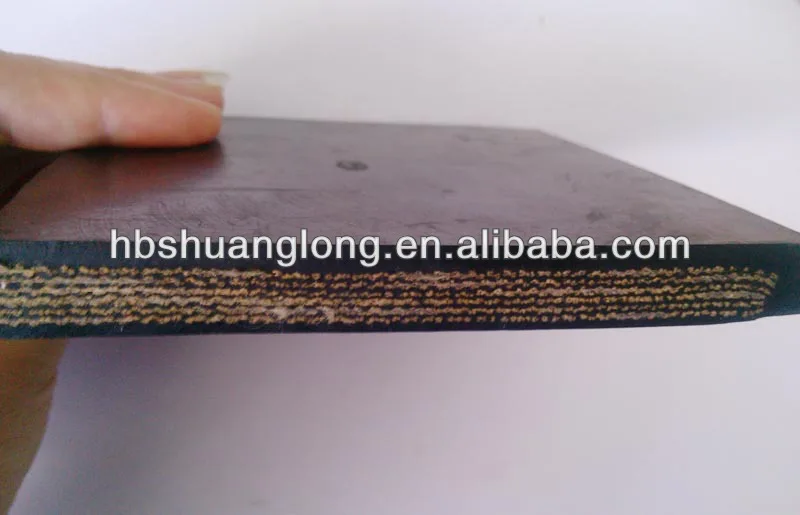

Belt Construction:

• Comprising of top and bottom cover rubber


• Textile fabric carcass of one or more plies to provide the tensile strength


• Rubber skim coats which play a significant role in determining the belt load support and troughability





A. Top Cover: Various thicknesses and grades available

B/D. Carcass: From 1 ply to multiple plies

C. Skims: From 0.5mm upwards

E. Bottom Cover: Various Thicknesses and grades available. Bare back also available.

F. Moulded Edge (Sealed) or Cut Edge



Applications:



Surface and Underground Mining

Quarries and Sandpits

Iron and Steel Industry

Harbour and Port Installations

Thermal Power Plants

Timber and Paper Industry

Agriculture Industry

General Conveying

Cement Works



Cover Grades:

General and Special Application Covers

:- Abrasion Resistant

- Heat Resistant

- Chemical Resistant

- Fire Resistant

- Oil Resistant- Antistatic



Stock:

Roll and Cut lengths available ex-stock

Made to order ex-factory in various specifications, widths and cover grades

Full range of packaging options available



Usage of all kinds of rubber conveyor belt:



conveyor belts is widely used in agriculture, industrial and mining,cement, coking ,metallurgy,chemical, steel mills, congeeration powder plant, hydroelectric station construction site, casting ,foundry and other industries conveying a variety of solid block-shaped and powder materials or packaged items,such as grain,fertilizer,coal,sand,gravel,concrete,slag,metal powder,sinter,iron ore,rubble,wood chip,etc.



Specifications and technical datas of EP/NN/CC/TC rubber conveyor belt:



carcass material	fabric type	single fabric thickness (mm/ply)	single fabric strength (N/mm)	Number of fabric piles	Cover rubber thickness (mm)		belt width (mm)	belt length (m)
					upper	bottom
Cotton Canvas (CC)	CC-56	1.10	56	2-10	2.0-8.0	0-4.5	400-2500	≤400
Polyester Cotton (TC)	TC-70	1.00	70	2-10	1.5-8.0	0-4.5	400-2500	≤400
Nylon (NN)	NN100	0.75	100	2-10	1.5-8.0	0-4.5	400-2500	≤400
	NN150	0.80	150
	NN200	0.90	200				500-2500
	NN250	1.15	250
	NN300	1.25	300	2-6
	NN400	1.45	400				800-2500
	NN500	1.55	500
Polyester (EP)	EP100	0.80	100	2-10	1.5-8.0	0-4.5	400-2500	≤400
	EP125	0.85	120
	EP150	0.90	150
	EP200	1.05	200				500-2500
	EP250	1.25	250
	EP300	1.35	300	2-6
	EP350	1.50	350				600-2500
	EP400	1.80	400
	EP500	2.00	500



Interlaminar bonding strength:

Item		between the fabric layers	between cover and belt carcass
			cover thickness 0.8-1.5mm		cover thickness>1.5mm
average value of all samples,N/mm≥		4.5	3.2		3.5
lowest peak value of all samples,N/mm≥		3.9	2.4		2.9
Remark:highest peak value of all samples shall not exceed 20N/mm



The cover rubber layer's physical properties:

grade of cover rubber		Tensile strength,  Mpa,≥	Elongation at break,% ≥	abrasion loss,  mm3≤	Change rate of tensile strength and elongation  at break after 70℃x168h aging
laceration resistant type(H)		24	450	120	-25 ~ +25
abrasion resistant type(D)		18	400	100	-25 ~ +25
ordinary type(L)		15	350	200	-25 ~ +25



We can also produce conveyor belts comfort to international standards, such as DIN22102,AS1332,BS490,RMA-Ⅰ/Ⅱ,JISK6322,SANS1173,etc.



   Hebei Ssangyong Rubber Co.,Ltd.-- Professional conveyor belt manufacturing plant

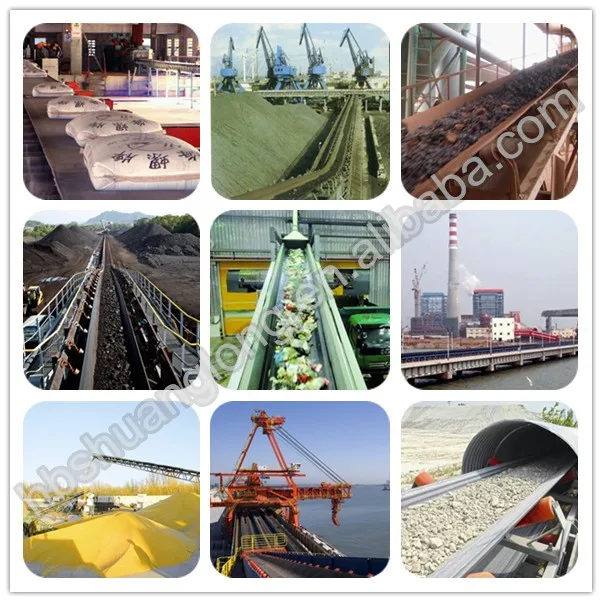

  Applications of rubber conveyor belts:

  Safety certificate of approval for mining products and Certificate of ISO9001:2008 Standard:
