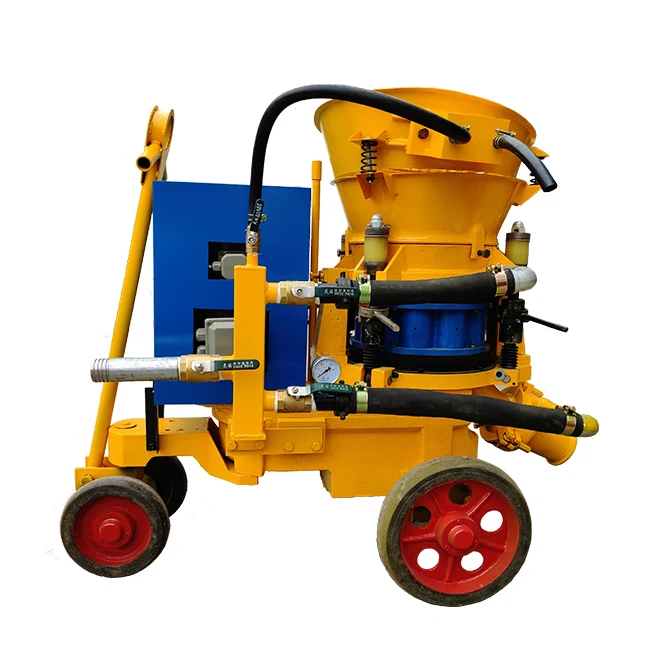

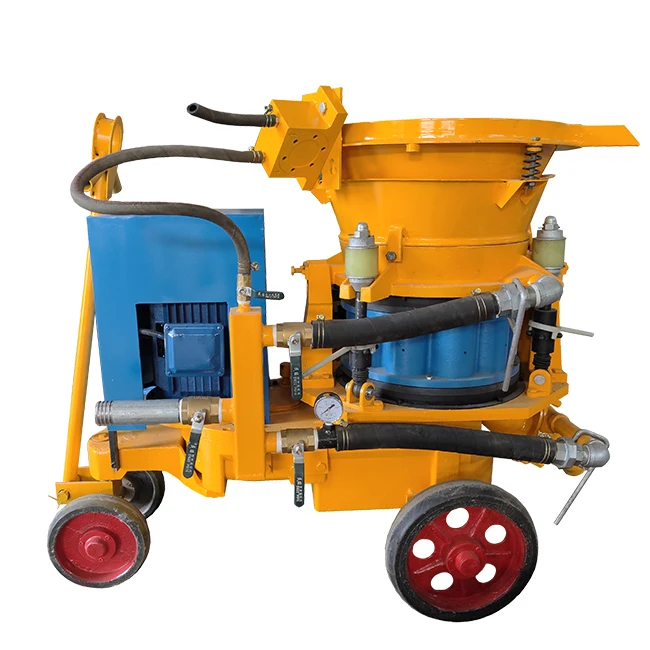

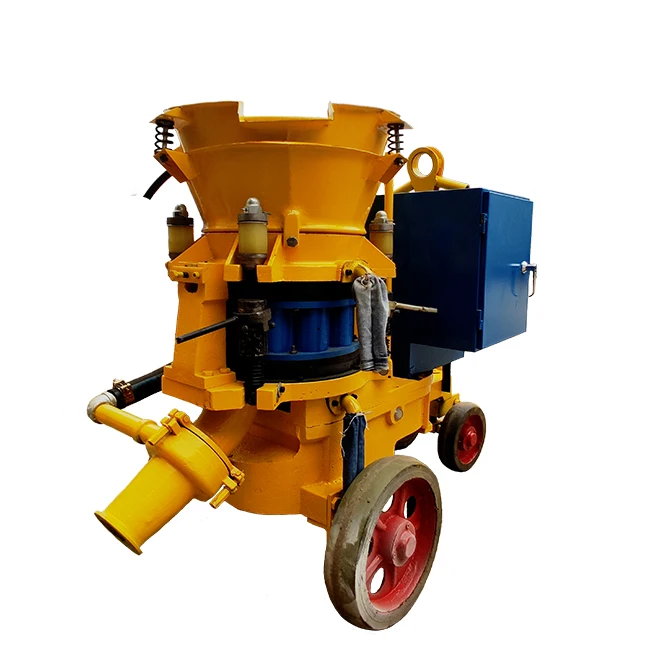

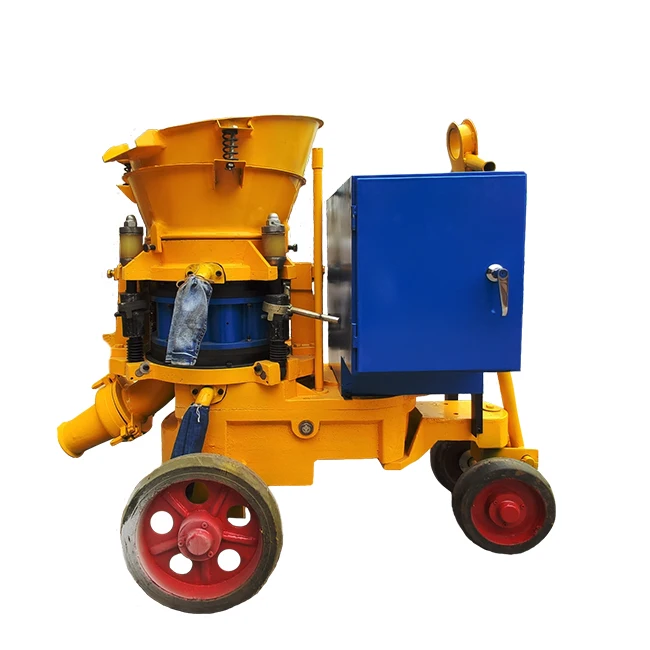

XUDA PZ-Series Shotcrete Machine is mainly used for dry-mix shotcreting and damp-mix shotcreting. It has some obvious advantages such as advanced technology, Perfectstructure, stable performance, convenient operation and longevity of service etc. It is widelyemployed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc
Details Images
PZ-3
PZ-5
PZ-9

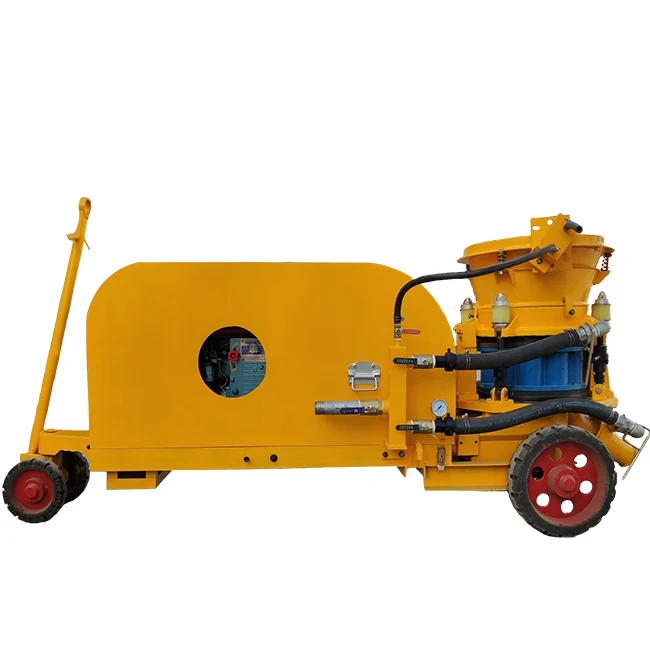

Diesel driven
shotcrete price
Pneumatic driven
shotcrete price
Rotor
Frequency conversion system
Pressure gauge
Mix Hopper
Dust bag
Discharge hole
Product Paramenters
Model
PZ-3
PZ-5
PZ-9
Driven
Electric / Diesel / Pneumatic
Power
4.5kw
5.5kw
7.5kw
Output
3m³/h
5m³/h
9m³/h
Max Horizontal Distance
200m
Max Vertical Distance
100m
Hose Inner Diameter
φ42mm
φ51mm
φ51mm/φ65mm
Max. Aggregate. size
φ15mm
φ15mm
φ20mm
Voltage
220v/380v/440v/480v-3 Phase
Weight
550kg
750kg
900kg
Dimensions
1130 x 540 x 1020mm
1350 x 750 x 1200mm
2550 x 900 x 1250mm

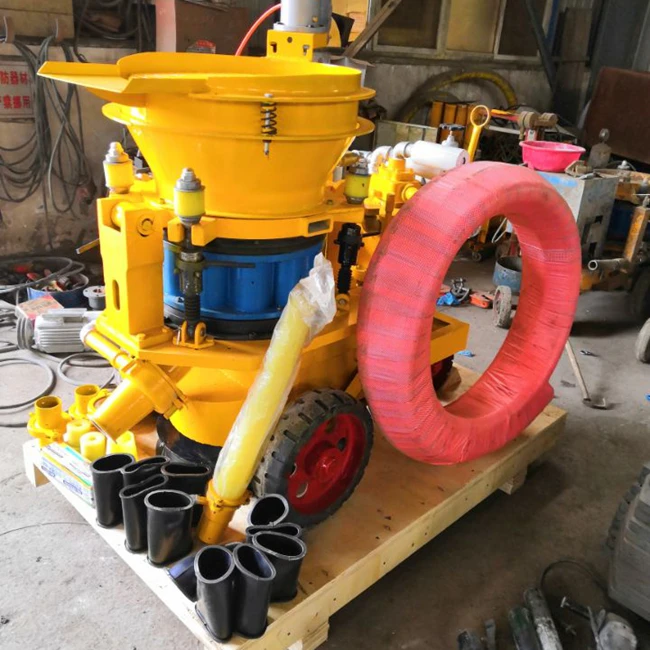

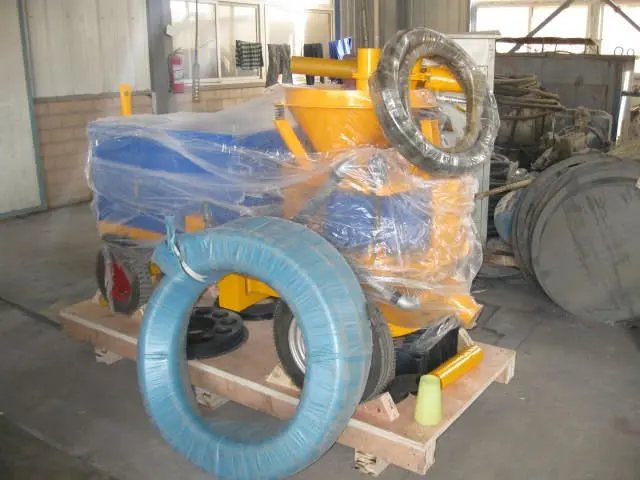

Product packaging
Company Profile
ZHENGZHOU XUDA MACHINERY CO.,LTD
Zhengzhou Xuda Machinery Co., Ltd is a comprehensive manufacturing factory with 20 years experience in Zhengzhou city of China.Our main product are Dry-mix and Wet-mix shotcrete machine,Mortar plastering machine, Hydraulic concrete pump,Mortar/Cement grouting pump,Hydroseeder,Mixer,Drilling rig,etc. shotcrete price
With a shotcrete machine manufacturing factory which cover about 1000 square meters,we employ 5high quality talents and 20 specialized workers.Lots of them have 10-20 years experiences.
Customer Photos
Recommend Products
FAQ
Q: How many types shotcrete machine do you have ? A:We have 3m3/h,5m3/h,9m3/h three types shotcrete machine.And each type all can customize diesel driven or pneumatic driven.shotcrete price
Q:How long is the warranty on the machine? A:One year. If the machine has any non-human fault, we will free express replacement parts.
Q:What if I don't know how to operate the machine? A:We have English instructions and we will send detailed operation video. If you have any questions, we'll answer them by online video.
Q:I am afraid of being cheated for the first business, what are the safeguards? A:We can trade through Alibaba Credit Insurance Order, which protects the buyer's rights and can apply for a refund if there is a problem with the machine.

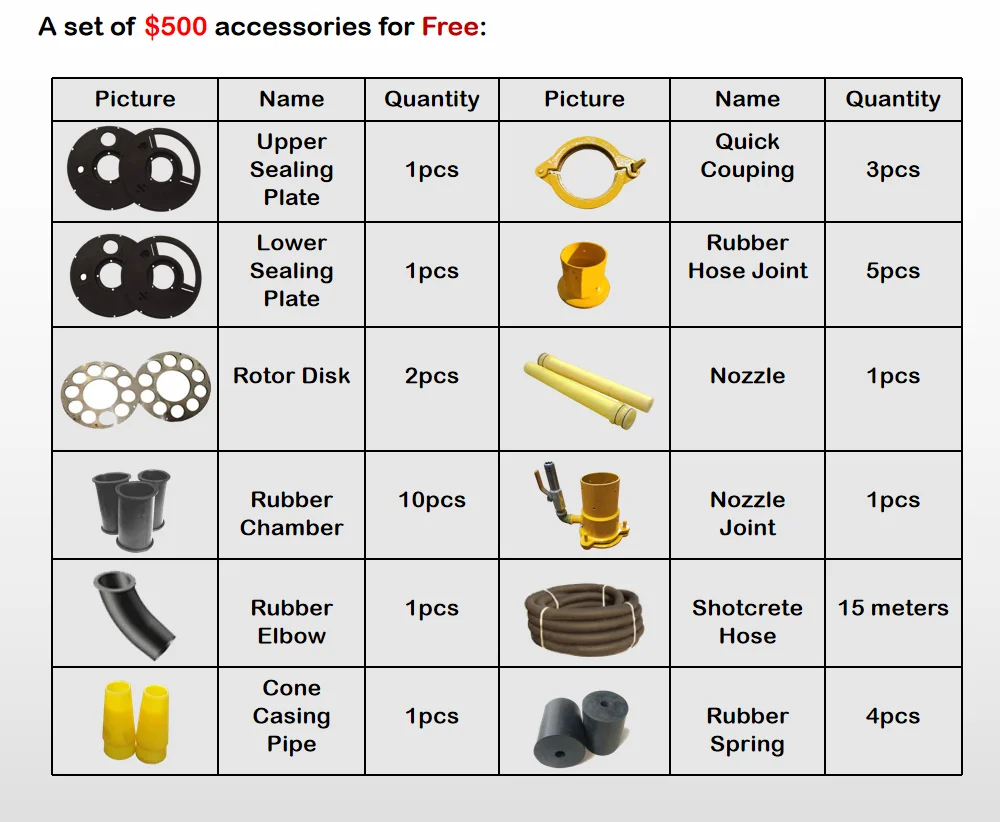

Q:Why is your price higher than others? A:Our machine material is thicker and more expensive, and we will give a set of spare parts worth $400 to ease the time for customers to buy new wearing parts.shotcrete price
Q:Are you a trade company? A:No,we are a professional manufacture factory with more than 20 years.Located in Zhengzhou city of China.
