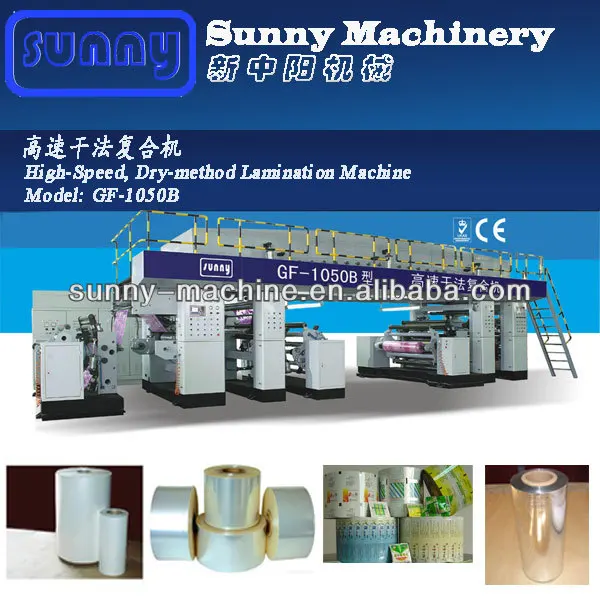

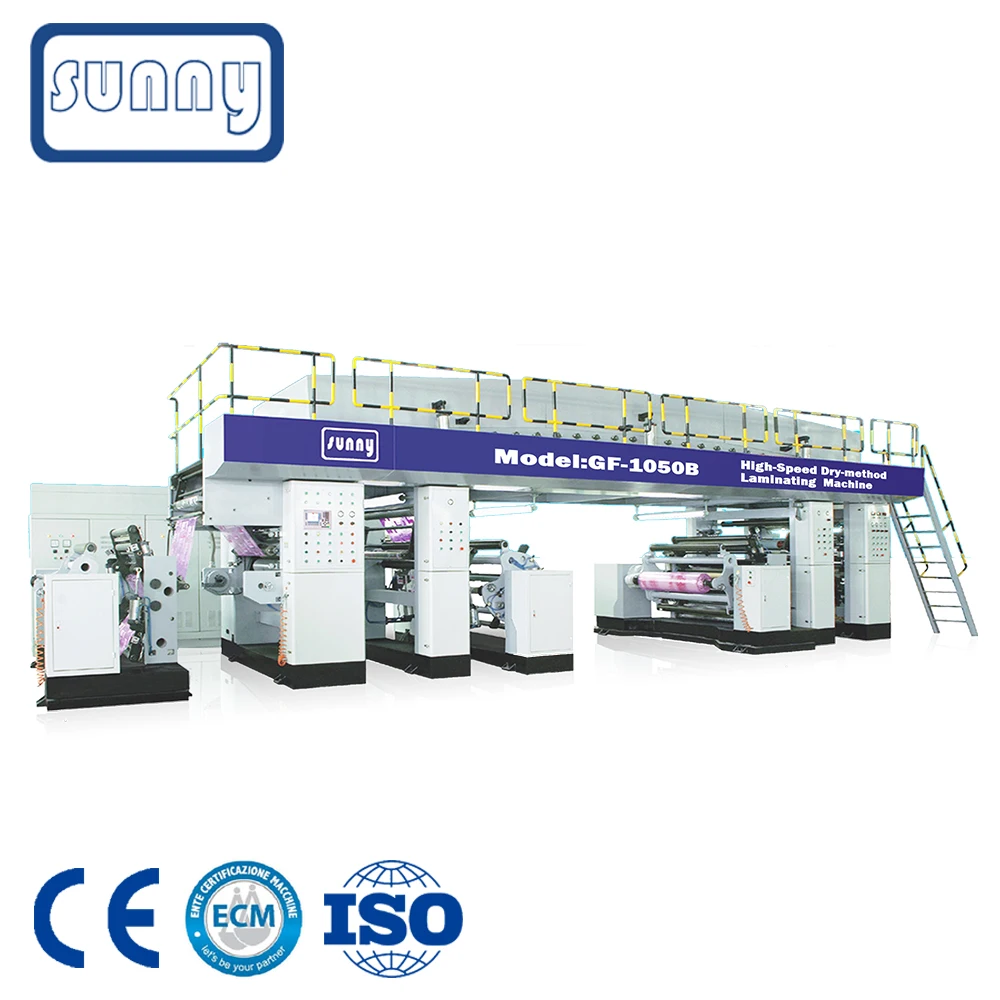

Dry method mirror film lamination machine for BOPP CPP PE PET NYLON

What is the details of our machine?

1.Main Technical Parameters:

1). Laminating type: Dry-method laminating

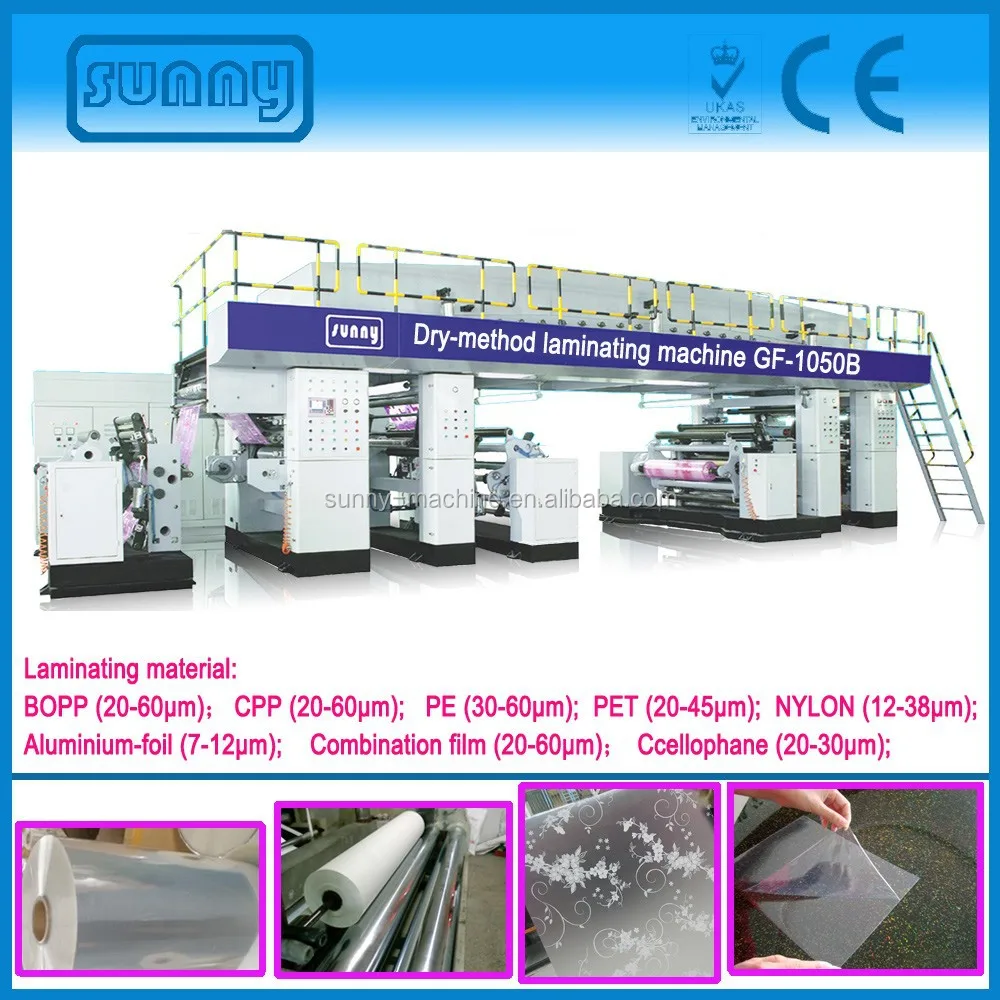

 2). Laminating material (adaptation material range):

BOPP  20-60μm; CPP 20-60μm;    PE 30-60μm; PET  20-45μm;   NYLON  12-38μm;  Aluminium-foil 7-12μm; Combination film 20-60μm;   Cellophane   20-30μm

 3).Film width: Max. 650-1050mm

 4 ). Coating glue type: gravure coating directly

5 ). Coating glue volume: By web roller line number and glue consistency control

6 ). Machine speed: Max.180m/min

7 ). Operation speed: Max.150m/min

8 ). Guide roller width: 1200mm

9 ). 1st unwind diameter: Max.φ600mm

10 ). 2nd unwind diameter: Max.φ600mm

11 ). Rewind diameter: Max.φ800mm

12 ). Paper-core diameter: Inner diameter: 76mm, OD:92mm

13 ). Unwind tension: Max.20kgf

14 ). Rewind tension: Max.25kgf

15 ). Drive motor power: rewind 2 x 5.5kw, gluing 4kw, laminating 7.5kw, draught Fan 3 x 2.2kw, exhaust fan 3 x 1.5kw, other about 5kw

16 ). Supply power: 380V±10%, 50 Hz 3 Phase 5 lines

17 ). Complete machine capacity: about 200kw (oven heating power 162kw)

18 ). Compressed air: pressure 0.8MPa

19 ). External dimension: 12490mm × 5150mm × 4800mm (L x W x H)

20 ). Complete machine weight: 22000kg (22T)

21 ). Machine color: main engine operating cabinet is milk white, main control cabinet and oven, pipeline is light gray, platform decorative board is medium blue (or confirmed by customer)

2.  Detailed Specification

1).Unwind device (1st unwind machine, 2nd unwind machine)

2).  Enter roll device

3).  Coating glue device

4).  Drying Device

5).  Laminating, Traction Device

6). Aliminium-Foil Unwind Device

7).  Rewind Device

8). Operating control device

Other machines as below:

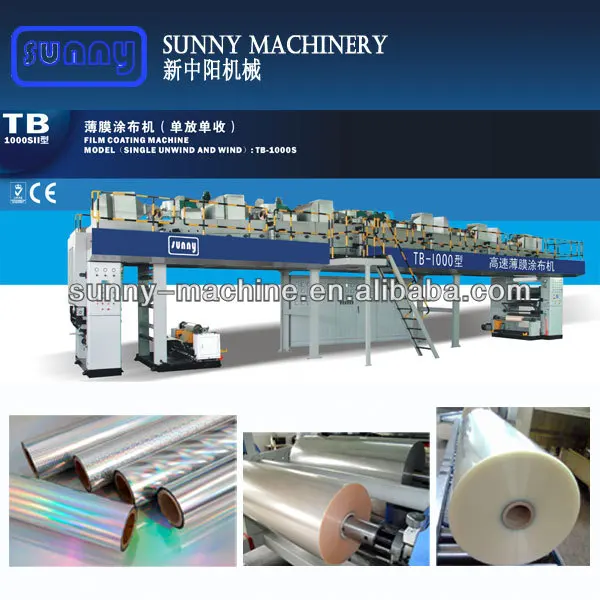

Horographic  UV Coating machine

High-speed Slitting machine GFTW-1200A

Packaging & Shipping

 PACKAGE: SEAWORTHY WOODEN OR NAKED



Our Services





Company Information

Recently exhibitions:

Shantou sunny machinery factory is an integrated professional plant for manufacturing, designing and marketing of slitting, rewinding, laminating, coating, and casting film machinery facilities with more than 17 years experiences.

Over the years, we always set a motto of "science and technology as the guide, customer-focused", products occupied the market quickly, and obtained widespread highly praise and trust from new and old clients. By going continuously improvement and technological innovation, our company has been developed into a very competitive advantage manufacturer gradually among the same industries. Before production, a completely project will be provided to customer, because we have Mechanical Engineer Department, Electric Department, Software Department, so we can offer customer our standard machinery, also we can make all kinds of modification according to customer specific requirements.More surprises in our website www.sunnycn.com.cn.
