FEATURES: Abrasion resistant, Frictional coefficient almost keeps at a constant level .
TECHNICAL DATA
ITEM NO.

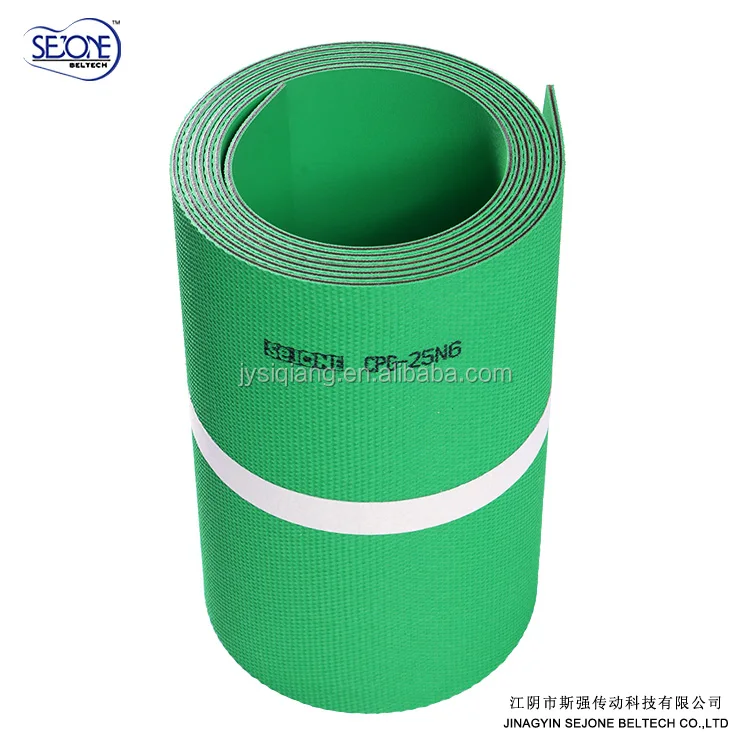

CPG-25N6
ANTISTATIC
NO
THICKNESS (MM)
2.5
TRACTION LAYER MATERIAL
PA
BELT WEIGHT (KG/M2)
2.95
FRICTION COVER MATERIAL
NBR
MANUFACTURING WIDTH (MM)
500
FRICTION COVER COLOR
GREEN
TENSILE FORCE FOR 1% ELONGATION PER UNIT OF WIDTH (N/MM)
6.5
REVERSE COVER MATERIAL
NBR
MIN PULLEY DIAMETER (MM)
60/60
REVERSE COVER COLOR
GREEN
WORKING TEMPERATURE (OC)
-20~80
JOINING METHOD
THERMOFIX
DETAILED IMAGES
Packaging & Shipping
PACKAGING
Put the paper tube inside.
Transparent plastic film applied. To protect belts from damp environment.
Bubble plastic film applied. To prevent belts from pressure and squeeze.
The outer packing: Durable woven bag or customized wooden case.
SHIPPING
FOB ShangHai.
FCA anywhere of China.
CIF anywhere.
Company Information
Our factory was established in 2003. We have more than 11 years' experience in this business.
We specialized in the production of Power transmission belt, Conveyor belt, Machine tapes, Spindle tapes, Folder-gluer belts and Seamless belts. These belts are widely used in Textile industry, Paper and Printing industry, Packaging machinery, Wood-processing, Food and Tobacco industry, Parcel and Mail sorting,etc.
We are in conformity with ISO 9001:2008 standard.
We are manufacturer as well as exporter. We can help you to lower your purchase cost.
We have new products development. --- Self-owned lab and annually new products scheme.
We have very good geographic advantage. --- We are only 2 hours away from Shanghai.
Our Services
Samples available.
Joints making --- Flexproof, Thermofix, Fast-joining, Steel buckles.
Punching, Crosspiece, rubber bars, rubber baffles etc.
We provide OEM service, ODM service and OBM service.
FAQ
Payment terms --- 30%-50% TT in advance. The balance against B/L copy.
