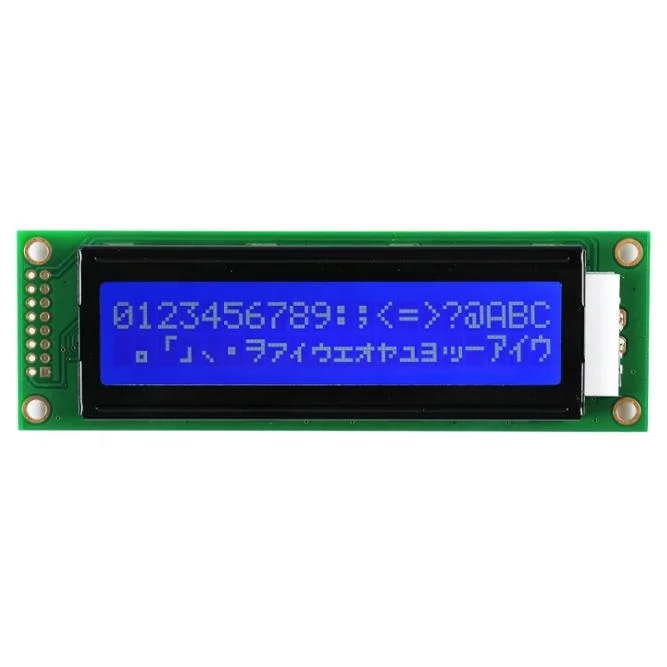

24x2 Character LCD module 24x2 LCD display



Product Description







Product information:














































































Module No.:



HSM2402A



Display Type:



20 Characters x 4 Lines



Outline Size:



116 x 36 x13.1 mm



Viewing Area:



94.5 x 17.8 mm



Encapsulation:



COB



Screen Color:



Yellow-Green/Blue/Gray



Backlight Color:



Yellow-Green/Green/White/Blue/Orange/Red



Backlight::



Side LED



Driver IC:



AIP31066



Connector:



Conductive Silicon Rubber



Pin Number:



16



Interface:



8-bit MPU interface



Driver Condition:



1/16 Duty,1/5 Bias



Viewing Direction:



6 O’Clock



Operating Voltage:



5V/3.3V



Operating Temperature:



-20~+70℃



Storage Temperature:



-30~+80℃










Character LCD 20x4 (5 x 8 dots)
 STN-YG / STN-Blue / STN-Gray /FSTN-Gray
 +3.3V / +5.0V power supply
 Viewing Direction: 6H / 12H
 Backlight (Side LED): Yellow-Green / Green / White / Blue / Orange / Red / Amber / RGB
 Fonts: English-Japanese / English-European / English-Cyrillic (Russian)

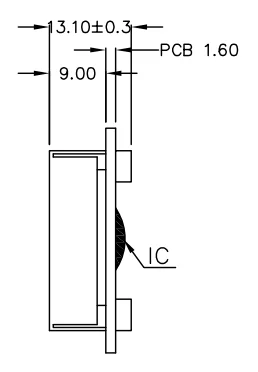

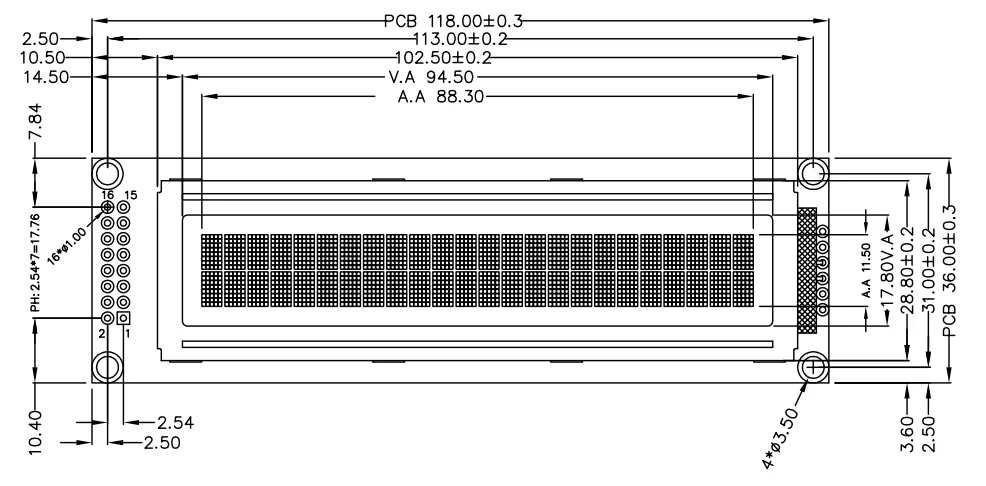

 Mechanical Diagram:





Interface Pin Description:
























































No.



Symbol



Function



1



VSS



 Ground (0V)



2



VDD



 Supply Voltage for Logic (+5.0V )



3



VO



 Contrast Adjustment



4



RS



 Data/Instruction Select



5



R/W



 Read/Write Select



6



E



 Enable Signal



7--14



DB0—DB7



 Data Bus



15



LED_A



 LED Power Supply + (5.0V)



16



LED_K



 LED Power Supply - (0V)






Company profile


HUA XIAN JING Display Limited was established in 2008.We are specialized in R&D,production and sales of LCD panel,LCD module,COG LCD,TFT LCD, resistive & capacitive touch panel products,OLED and backlight.





1-101-5





Production Flow














Our Services




























Fast Quotation:LCD panel 24 Hours, LCD Module 48 Hours
Mass production lead time:30 days
Sample lead time: 15 days
 Quality control100% product testing and inspection before shipment
After-sales service100% free replacement for defective products




FAQ


Q.Are you manufacturer?


A:Yes, we are .





Q.How long is the warranty and after-sale service?


A:One-year warranty period for non-artificial damage/not men made defects.Customers are responsible for all charges for returning and reshipping . Pleases contact us before any returning and reshipping .





Q.Do you accept the OEM design?


A:Yes,we do.Samples sent in 10 ~ 15 working days , 30-35 working days for mass production after payment.





Q.How do you ensure quality?


A:All finished products sold out are strictly selected and tested by Huanxianjing's QC departments.





Q.Delivery time?


A:Regularly , for Standard products , samples sent in 1 ~ 2 business days after payment confirmed ; for quantities : 2-10 business days after payment confirmed.


For Customized products , samples sent in 10 ~ 15 working days , 30-35 working days for mass production after payment





Q.How to pay?


A:We accept T / T , L/C / , Western Union , PayPal and Cash . The best way is telegraphic / bank transfer ( T /T ) . For L / C





Q:Package?


A:Standard packing to protect from any damage . Goods are wrapped in air bubble film and covered by anti-static trays , and then packed in suitable cartons. The packing is able to withstand rough handling.
