Taiwan internal solenoid electromagnetic clutch and brake assembly group for Food processing system
- Category: Other Power Transmission Parts >>>
- Supplier: Dongguan Taiji Speed Reducer Clutch Co. Ltd.
Share on (1595659609):
Product Overview
Description

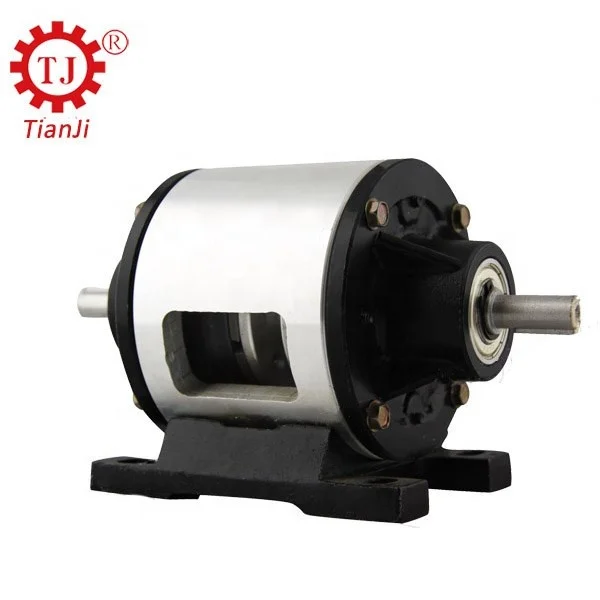

Taiwan internal solenoid clutch and brake assembly for Food processing system
Product description
The price will depends on the model you choose
The price will depends on the model you choose
The price will depends on the model you choose
| PRODUCT DETAILS |
TJ-POA SERIES Model Number:
TJ-POA-0.6, TJ-POA-1.5, TJ-POA-2.5, TJ-POA-5, TJ-POA-10, TJ-POA-20, TJ-POA-40
The composition of electromagnetic clutch brake group:
Electromagnetic brake clutch group called the electromagnetic clutch brake assembly, mainly composed of A TJ - type A electromagnetic clutch and A combination of TJ - B2 type electromagnetic brake integration group. Roughly divided into exposed, capacitor, double electromagnetic clutch, electromagnetic clutch brake double/single flange etc. Above each of the electromagnetic clutch brake set of internal and external device is slightly different, but they all have A common characteristic: wide application, simple structure, high frequency operation, use safety, etc. Cat brand electromagnetic clutch brake set of packaging machinery, moon cake machine, bread machine, wire and cable equipment, textile machinery, food machinery, electronic equipment, super Acoustic machinery and other mechanical field is one of the common equipment.
Electromagnetic clutch brake group Features:
The main functions of the electromagnetic clutch brake assembly are starting, stopping, inching and positioning.
1, The structure is simple and compact, easy to operate, can ensure the accurate combination in a very short time.
2. As the armature fixed on the input shaft is adopted, the electromagnetic coil can be fixed on the end cover, which overcomes the disadvantage of the common electromagnetic clutch that the wiring slip ring should be set on the outer circumference of the rotating coil, greatly reducing wear, ensuring reliable and timely power supply to the coil, small control power and long service life.
3, with the spring seat, pin, spring to friction plate of axial moving device, and replace the current widespread use of the spline of the electromagnetic clutch, axial sliding device, make the processing is simple, it is easy installation and maintenance. Spring seat made of aluminum alloy reduces the residual magnetism on clutch effect. In the design of the electromagnetic clutch and brake combination, just check calculation for the pin shear and bending stress.

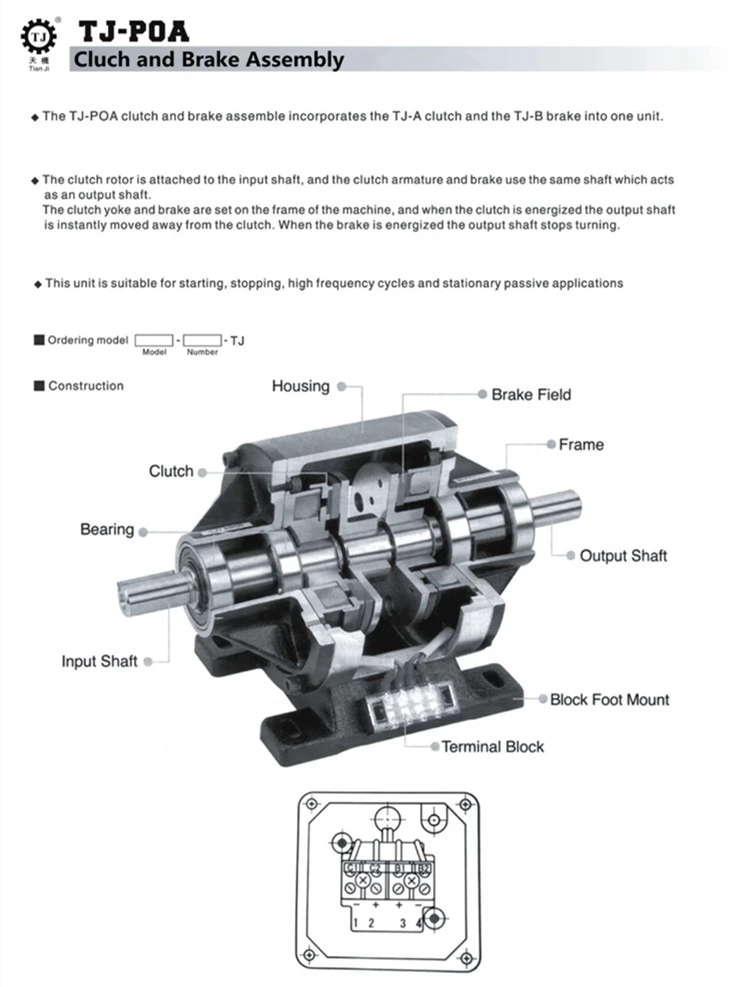

Electromagnetic clutch brake group Structure:

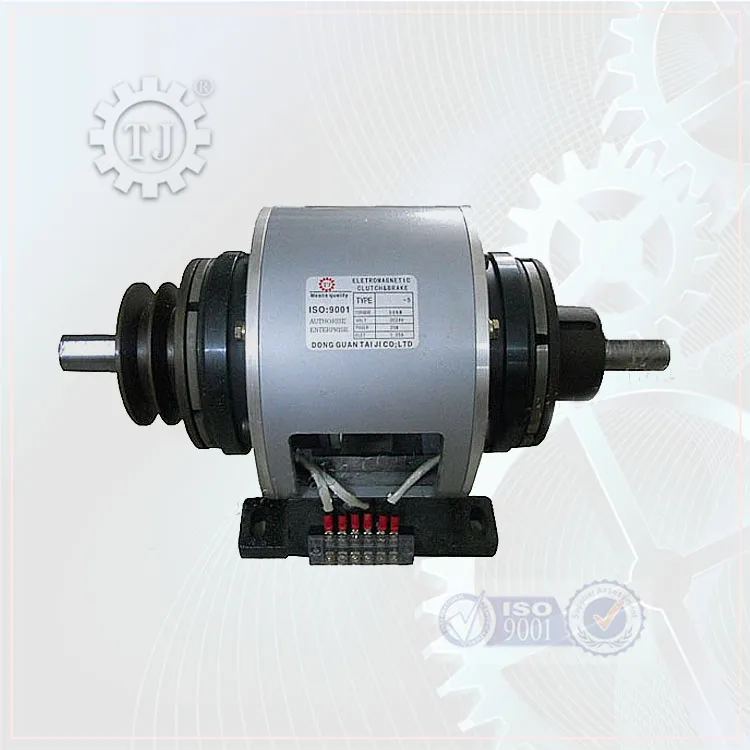

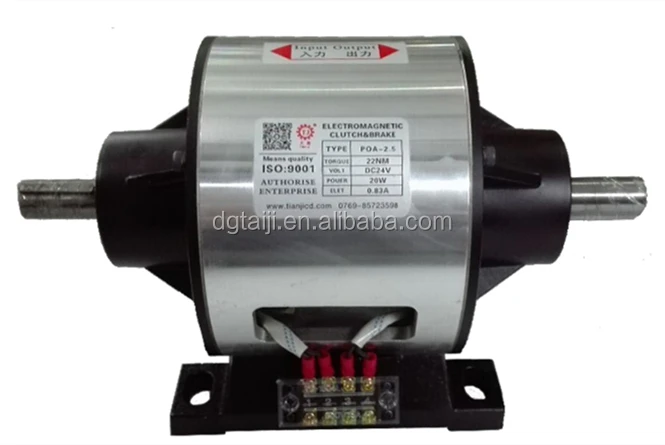

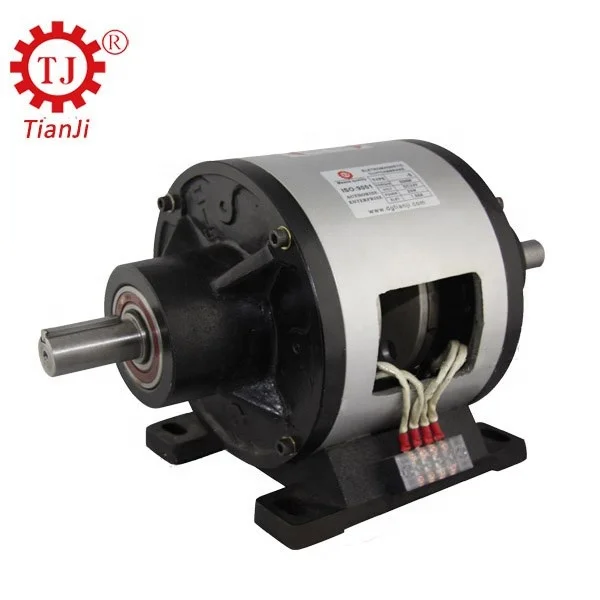

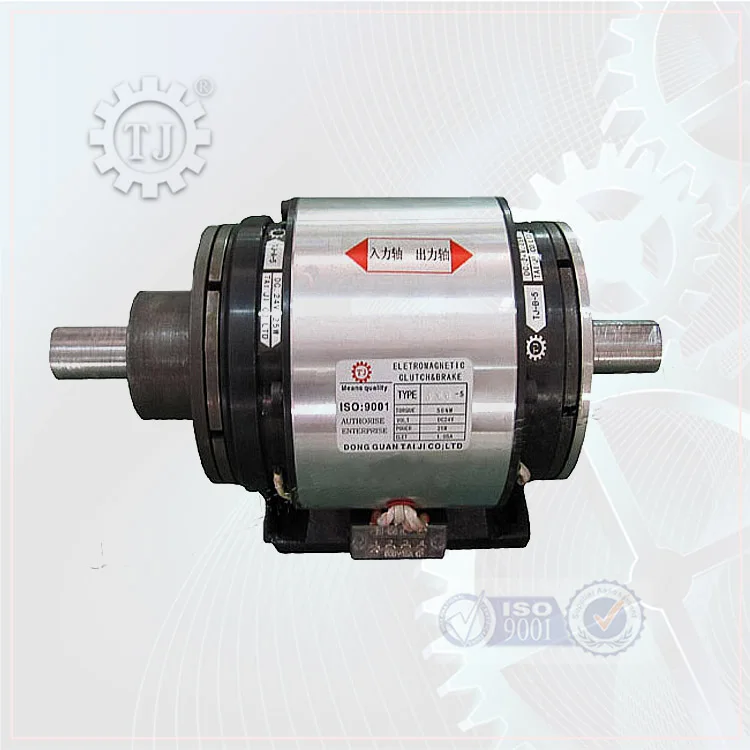

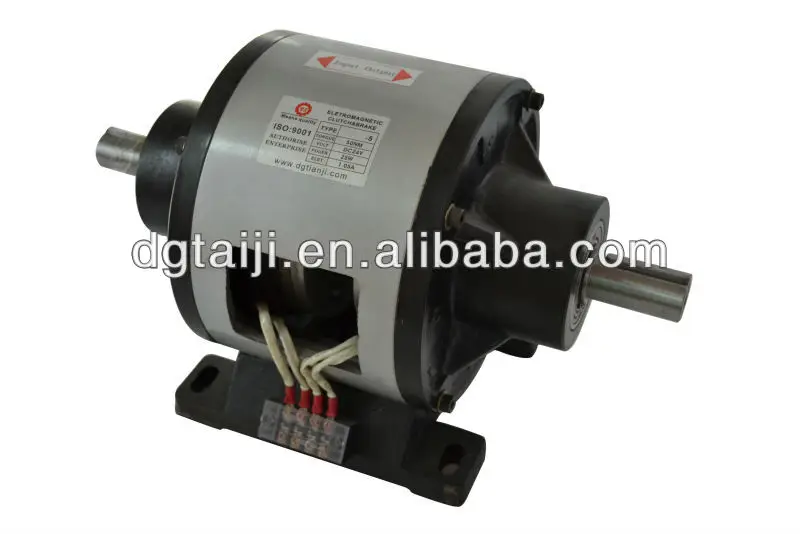

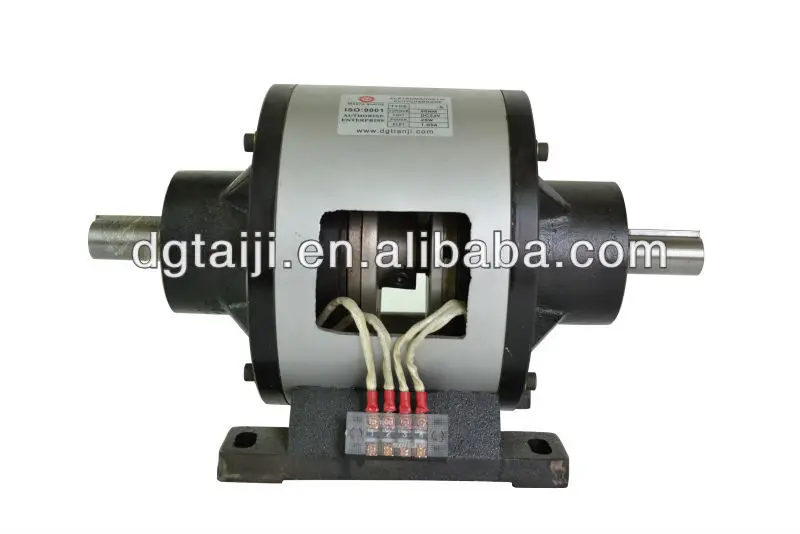

Clutch and Brake Assembly Photo Shows:

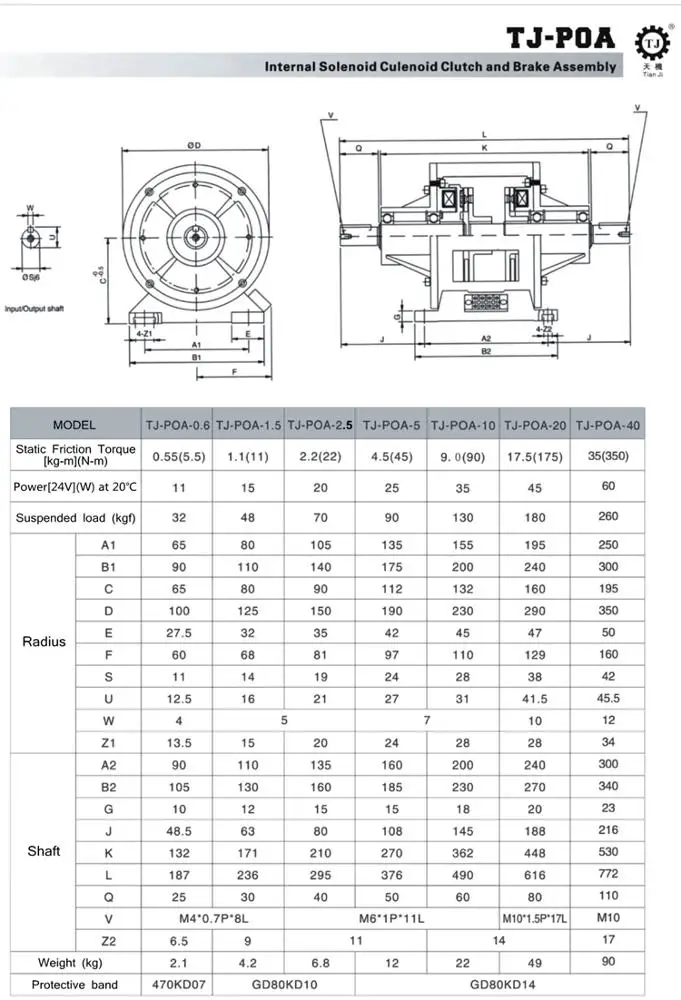

Electromagnetic clutch brake group Specification details:

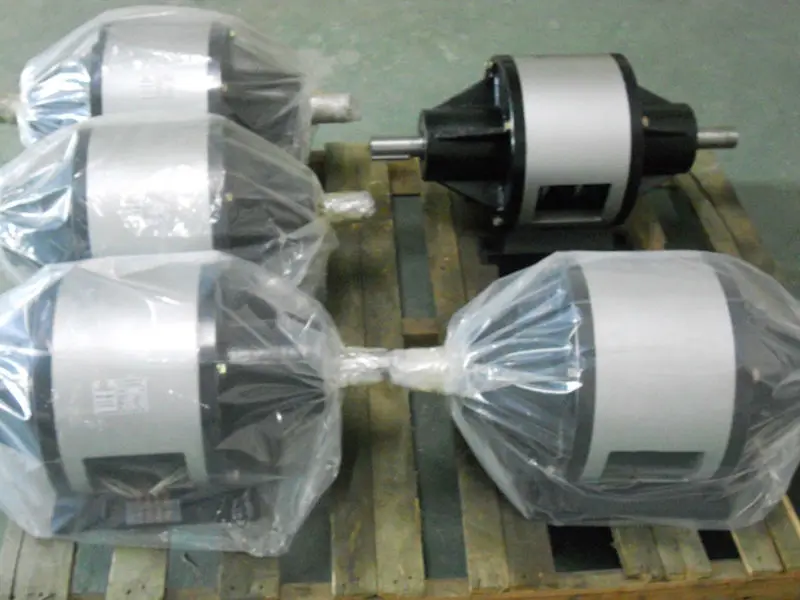

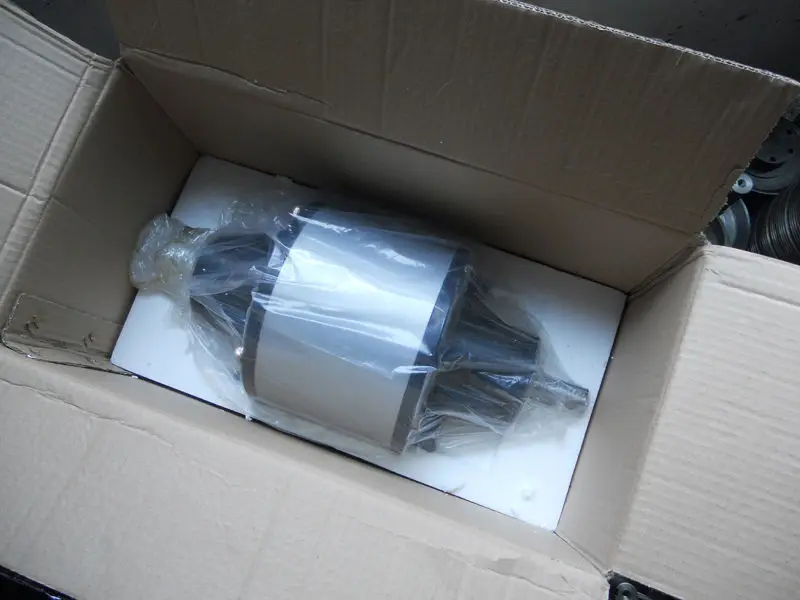

Packing:
Related Products
| MORE PRODUCTS |
Product Uses
| APPLICATION |
Company Information
| ABOUT US |
Advantages
Why do you choose us?
Your choice,We promise!
Eight reasons to choose us:
1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.
Five Core strengths:
1. The first domestic independent R & D manufacturer and 13 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
Certifications
| CERTIFICATE |
FAQ
| FAQ |
1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.
2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmisson parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.
3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.
4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30days.
5.What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
More concerned for our products , please do not hesitate to inquiry now!
