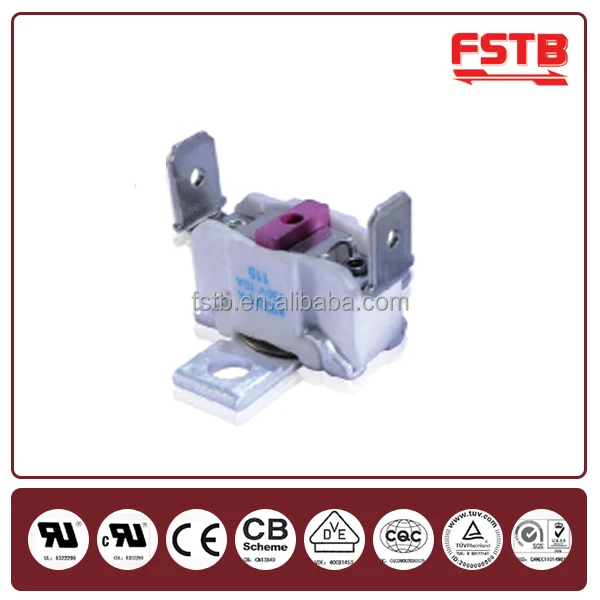

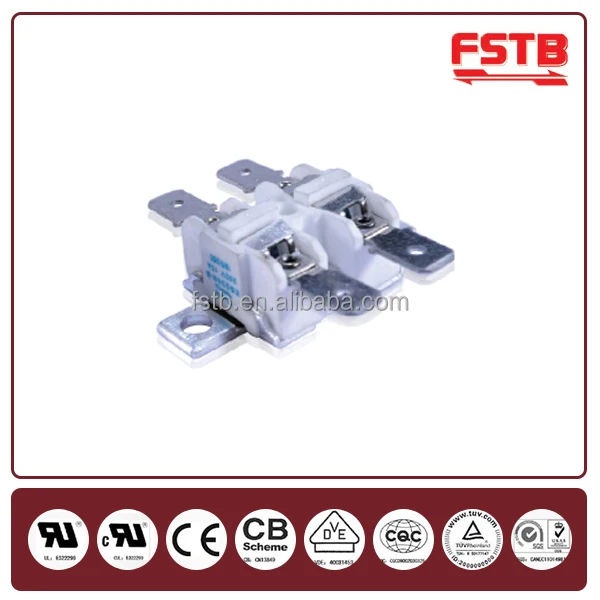

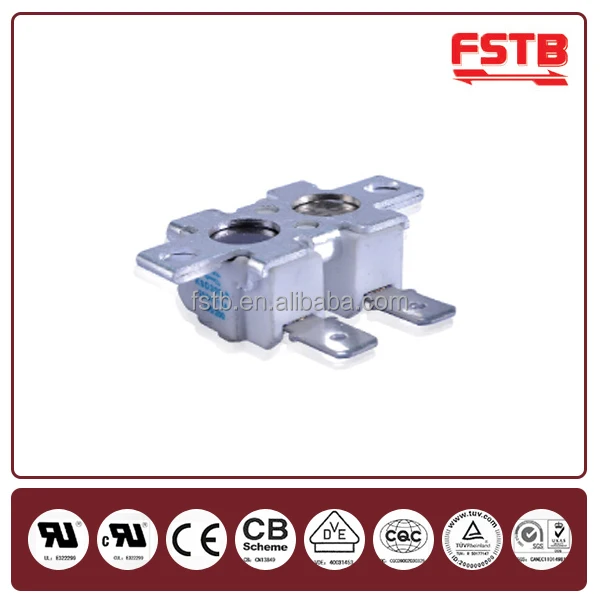

KSD309 High Temperature Ceramic Bimetallic Thermostat
Product Description
The KSD309 series high temperature bimetallic thermostat has the max. operating temperature (280°C) of snap-action thermostat. It suit for the high temperature home appliances, such as oven, toaster, microwave oven etc.

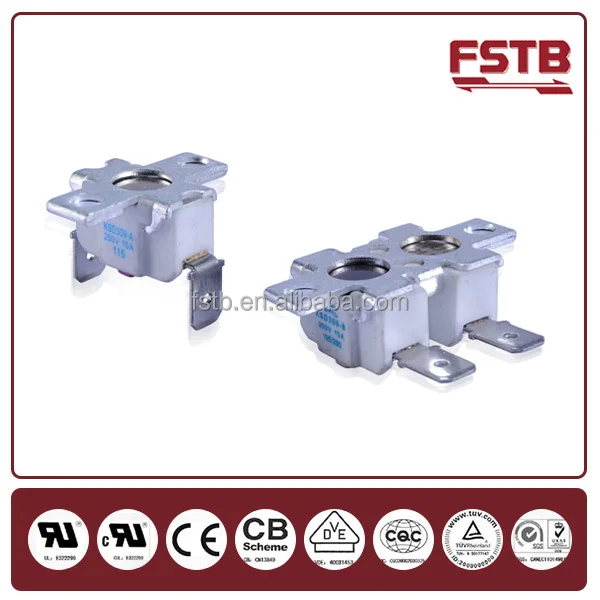

KSD309 series is divided into 2 sub-series: KSD309-A sub-series (single-temp. type), KSD309-B sub-series (dual-temp. type).
Advantages:
- High durability No breakdown, no flashover.
- Every product will be tested, extremely high temperature pass rate.
- High precision.
- High temperature resistance
- Assemble the temperature control and protection in one product.
Parameter:
Use | Temperature control/Overheat protection |
Appliance | Heating element/high temperature appliances |
Reset type | Auto reset |
Base material | Ceramic base |
Amperage | 10A/16A |
Max. Operating Temperature | 280°C |
Differential | Refer to the regulation |
Min. Diff | 8°C |
Tolerance | Refer to the regulation |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 100MW. |
Resistance Between Terminals | Below 80mW |
Maximum ambient temperature | 330°C |
Approvals | CQC |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Dimension of the main body:
KSD309-A
KSD309-B
