KSD309 high temperature bimetallic thermostat thermal controller for oven dishwasher thermostat
- Category: >>>
- Supplier: Foshan Tongbao Hualong Contrls Co. Ltd.
Share on (1597151871):
Product Overview
Description

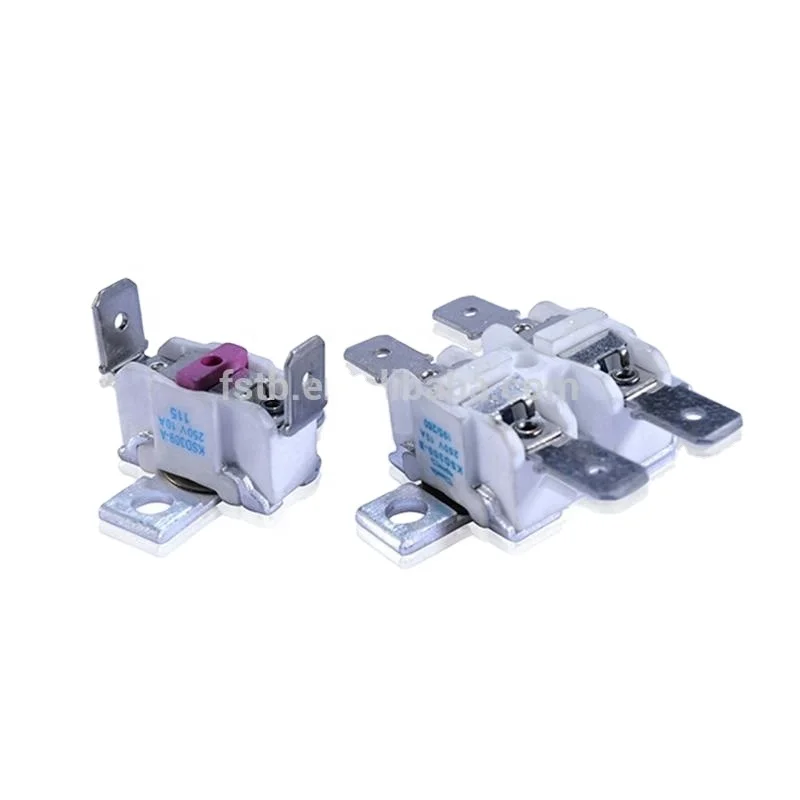

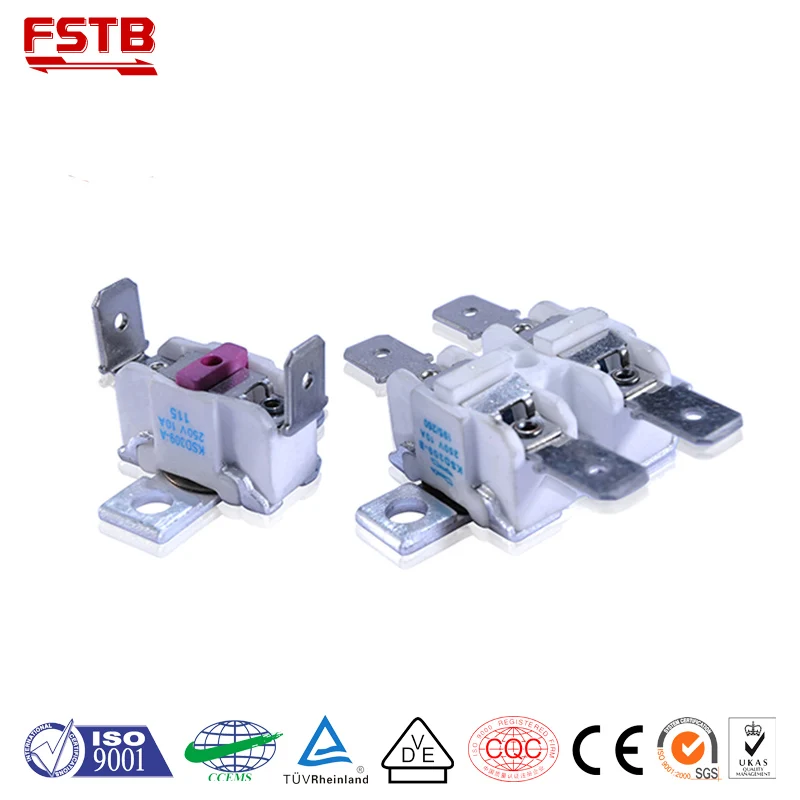

KSD309 high temperature bimetallic thermostat thermal controller for dishwasher
Product Description
The KSD309 series has the max. operating temperature (280°C) of high temperature limit switch. This high temperature thermostat suits for the high-temp. home appliances, such as oven, toaster, microwave oven etc. It’s also used for dishwasher thermostat.
KSD309 series is divided into 2 sub-series: KSD309-A sub-series (single-temp. type), KSD309-Csub-series (dual-temp. type).
Advantages:
- High durability
- No breakdown, no flashover.
- Every product will be tested, extremely high temperature pass rate.
- High precision.
- High temperature resistance
- Assemble the temperature control and protection in one product.
Parameter:
Use | Temperature control/Overheat protection |
Appliance | Heating element/high temperature appliances |
Reset type | Auto reset |
Base material | Ceramic base |
Amperage | 10A/16A |
Max. Operating Temperature | 280°C |
Differential | Refer to the regulation |
Min. Diff | 8°C |
Tolerance | Refer to the regulation |
Contact material | Silver |
Dielectric Strength | Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
Insulation Resistance | With a DC 500V megger, borne DC 500V, the tested value is over 100MW. |
Resistance Between Terminals | Below 80mW |
Maximum ambient temperature | 330°C |
Approvals | CQC |
Terminal type | Customized (Refer to our specification) |
Cover/Bracket | Customized (Refer to our specification) |
Dimension of the main body:
KSD309-A
KSD309-B
Covers and terminals:

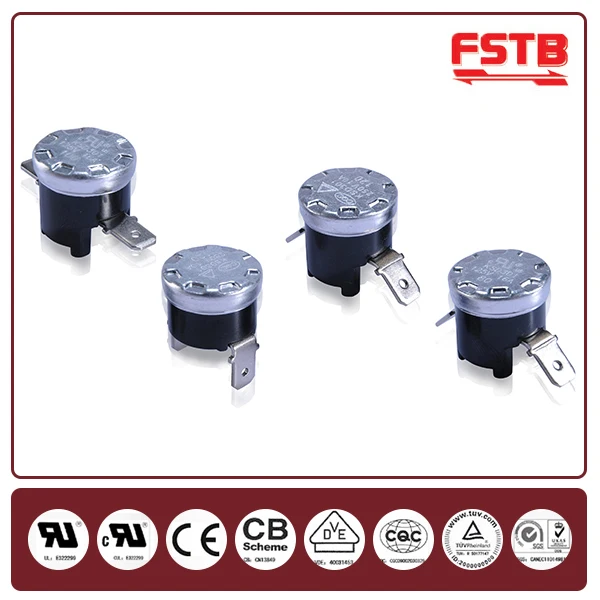

Major series of snap-action thermostats are as follows:
Series | Diameter of bimetal disc | Max. operating Temp. | Max. rated current | Switch structure | Service purposes |
KSD301 | F12.8mm (1/2″) | 280°C | 16A | SPST | Temperature control and overheating protection for low-duty electric heating applications. |
KSD302 | F22.25mm (7/8″) | 125°C | 25A | SPST | Temperature control and overheating protection for high-duty electric heating applications. |
KSD303 | F12.8mm (1/2″) | 50°C | 10A | SPST | Defrosting and temperature compensation for refrigerator. |
KSD305 | F22.25mm (7/8″) | ||||
KSD306 | F22.25mm (7/8″) | 120°C | 30A | DPST | Temperature control and overheating protection for electric heating applications such as water heater. |
KSD308 | F19mm (3/4″) | 100°C | 16A | DPST | Temperature control and overheating protection for electric heating applications such as water heater. |
KSD309 | F12.8mm (1/2″) | 280°C | 16A | SPST | Temperature control and overheating protection for high temperature heating applications. |
Products recommendation:
Getting more information about high temperature thermostat and limit switch, please refer to our website: www.thermostat-gb.com
