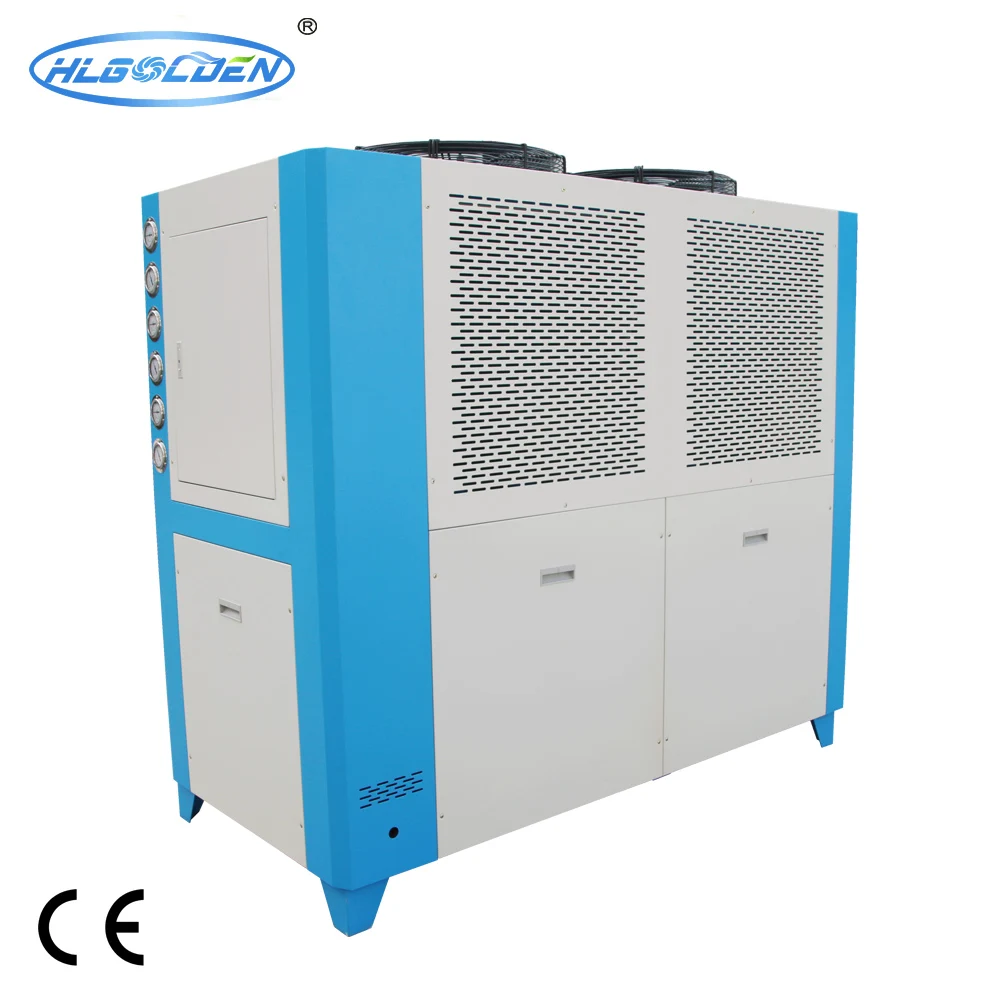

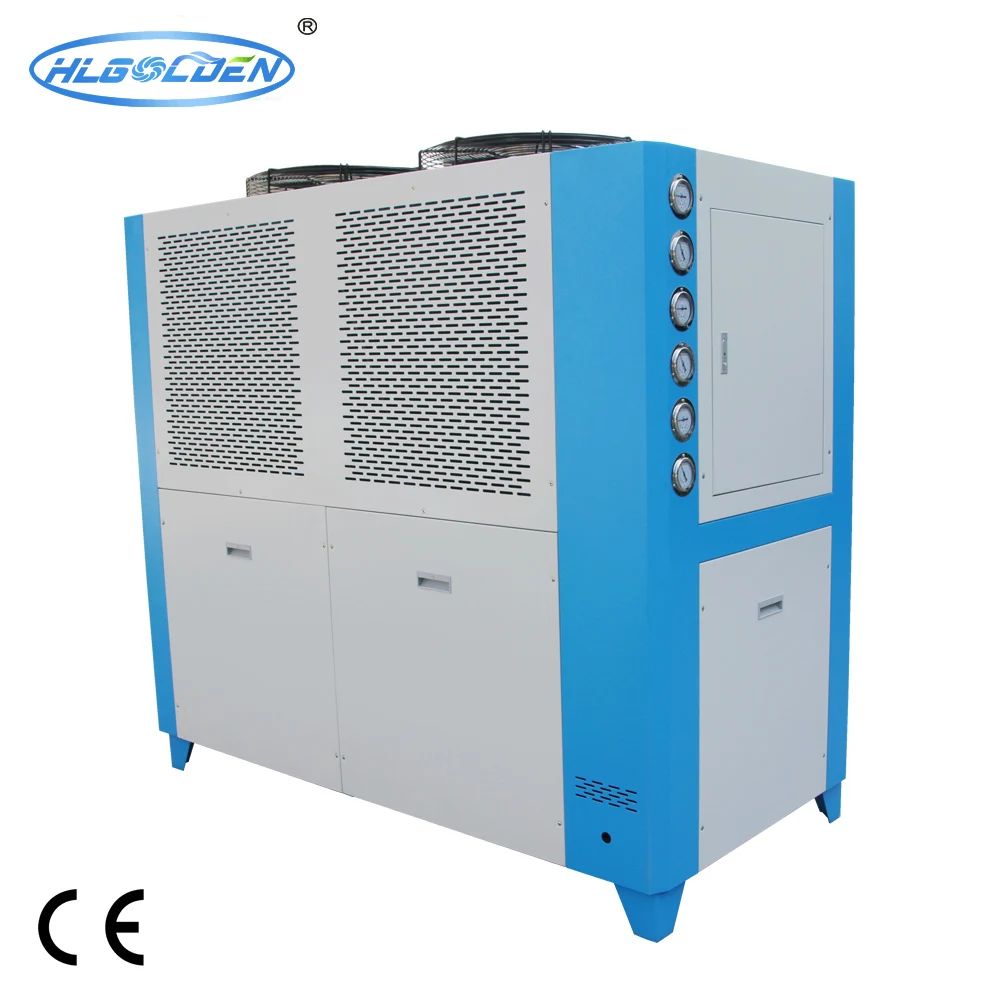

5 Ton Mini Water Chiller For Industrial Application

Product Overview

Description

5 Ton Mini Water Chiller For Industrial Application



Industrial cooling:

Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,laser carving,

vacuum coating, ultrasonic cleaning etc industries.Chiller that uses high effective a easy cleaning stainless

steel heat exchanger, exerts its unique advantage against erosion and filth in electroplating, PCB, oxidization,

chemical Industry,etc weak acid and alkaline conditions.



Commercial cooling:

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops,  large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks,  exhibition halls, stadiums, museums, convention centers, ticket agencies,  HR market, lottery centers; Real Estate Property: Apartments, villas, offices,  commercial buildings,  model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes,  Internet bars, beauty shops, golf course



Air cooled package chiller, the standard unit adapt Copeland or Danfoss

compressor. With high effiency and energy saving character.



1. Cooling capacity:7.9-118 kw



2. Voltage: 120/220/380V-3PH-50HZ.



3. Refrigerant: R22, R407.R134, R410 optional.



4. Chilled water temperature: Air conditioner use 12/7 deg, industrial use 17/12 deg.

Also as per customer’s demand to adjust.



5. Shell and tube type evaporator and Aluminium fins type condenser.



Model  HLLA ~			03SI	05SI	08SI	10SI	12.5SI	15SI	20DI	25DI	30DI	40TI	45TI
Rated Cooling Capacity		×1000 kcal/h	7.9	12.8	20.8	27.9	32.3	40.8	55.7	64.7	81.5	97.0	122.3
		KW	9.2	14.9	24.2	32.4	37.6	47.4	64.8	75.2	94.8	112.8	142.2
Input Power (KW)			3.85	5.55	8.15	10.4	12.0	16.0	20.1	22.5	31.2	33.7	45.7
Comp. Input Power×Qty.  (KW)			2.6	4.3	6.35	8.1	9.3	12.5	8.1×2	9.3×2	12.5×2	9.3×3	12.5×3
Chilled Water Pump Power  (KW)			0.75	0.75	1.1	1.1	1.5	1.5	1.5	1.5	2.2	2.2	2.2
Comp. Current (A)			6.8	10.5	14	17.5	20	25.6	33.8	37.2	49.8	55.8	72.6
Power Supply			3φ-380V-50HZ
Safety Protection			Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp.  protection, Low & High pressure protection, Low temp.  protection, Water flow protection.
Number of Refrigeration Circuit			1			2	1	3	2		3
Capacity Control (%)			0, 100			0, 50, 100	0, 100	0, 33, 66, 100	0, 50, 100		0, 33, 66, 100
Refrigerant			R22
Condenser			Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)			0.5	0.5	0.7	1.2	1.2	2.0	2.4	2.4	4.0	3.6	6.0
Evaporator			Pipe Coil Type			Pipe Coil Type  (Shell & tube type optional but without water tank)
Water Side Max Pressure (MPa)			-			1
Dia.of Pipe to Evaporator (inch)			1"		1-1/2"		2"				2-1/2"
Chilled Water Flow (L/m)			26.4	42.7	69.4	92.9	107.8	135.9	172.0	194.8	272.2	292.2	408.3
Evaporator Water Pressure drop (kPa)			-		17	23	28	30	28	28	32	32	31
Running Noise dB(A)			72	72	73	75	75	75	75	75	75	75	75
Tank Volume (L)			50	70	120	200	200	270	350	350	420	510	510
Total weight (Kg)			130	170	430	480	510	560	840	880	980	1130	1280













Dongguan Golden Refrigeration Equipment Co., Ltd. is a modern large enterprise, which integrates technology, industry and trade. we are a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. Golden takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
