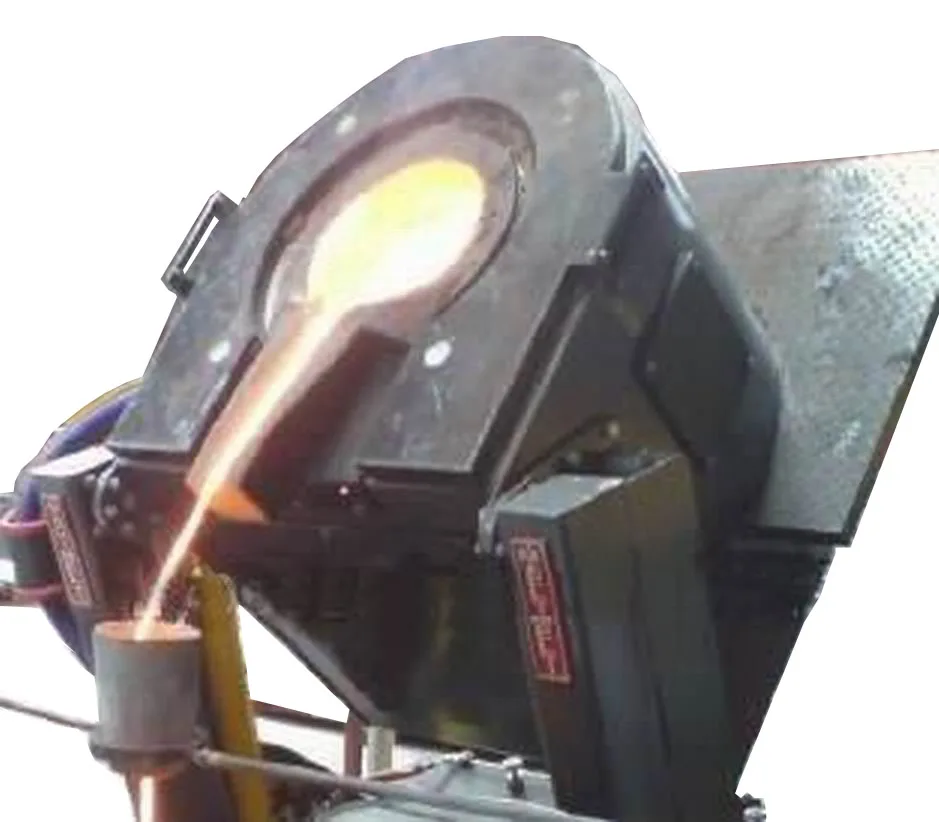

50kg Aluminum Scrap Melting Furnace for Aluminum Ingot

Product Overview

Description

Main technical parameters 50kg Aluminum Scrap Fuse Furnace for Aluminum Ingot



Model	furnace capacity	Medium frequency  power	Power supply  voltage	Melting furnace  frequency	Melting rate	Power consumption
units	Ton	KW	V	Hz	T/H	KWh/ton
GWL-0.05	0.05	30	380	2500	0.05	680
GWL-0.15	0.15	100	380	1000	0.2	670
GWL-0.25	0.25	160	380	1000	0.3	670
GWL-0.35	0.35	200	380	1000	0.5	660
GWL-0.5	0.5	250	380	1000	0.8	630
GWL-0.75	0.75	350	380	1000	1	620
GWL-1	1	500	660	500	1.2	580
GWL-1.5	1.5	750	660	500	2.3	570
GWL-2	2	800	660	300	3.5	570
GWL-3	3	1000	660	300	5	560



 Overview and application of melting furnace  :

This is the device converting three phase power current into single phase intermediate frequency current and enabling metal to produce

 eddy current loss through electromagnetic field induction to achieve heating and melting and is applicable to melting,heating or holding of steel,

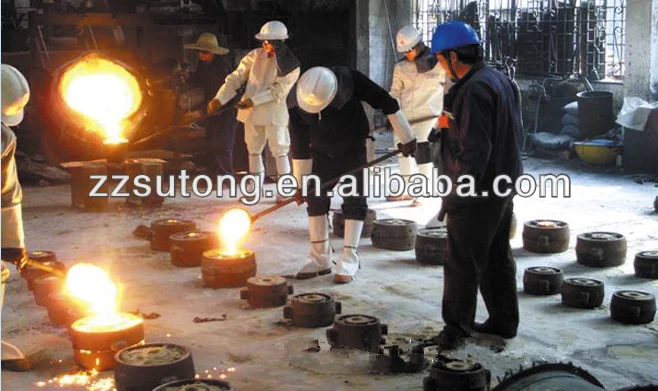

copper,iron,aluminum,zinc,tin,nickel silver and other ferrous or nonferrous metal and alloy material,as well as heating treatment prior to forging,sintering and tube-bending forming in casting and melting industries.

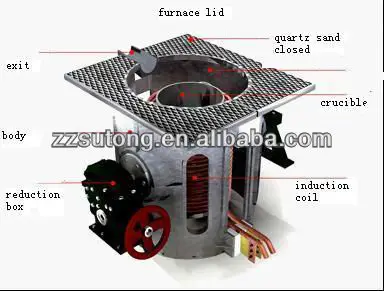

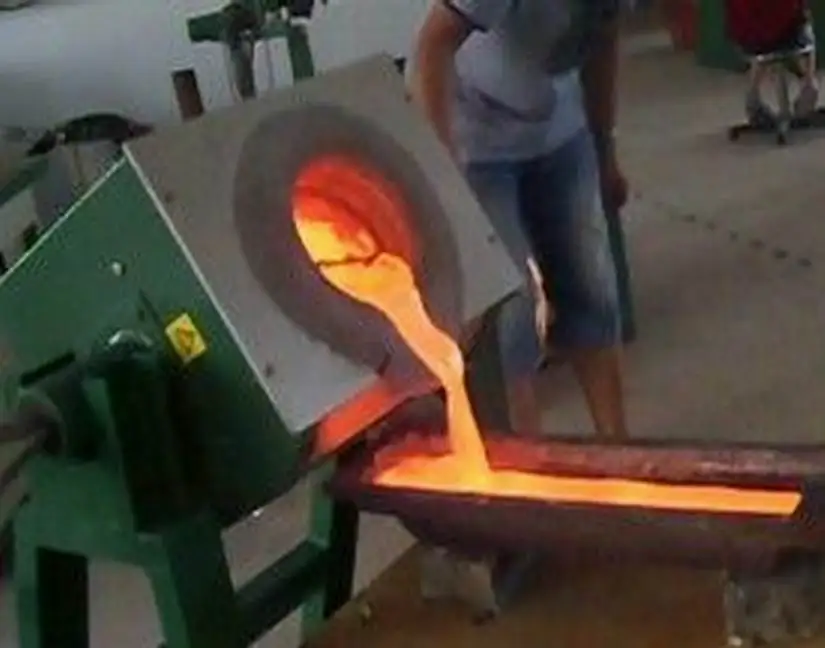

 Furnace with aluminum shell :















" classic quality , classic service!"

Welcome to contact us , trust us,trust your choice!
