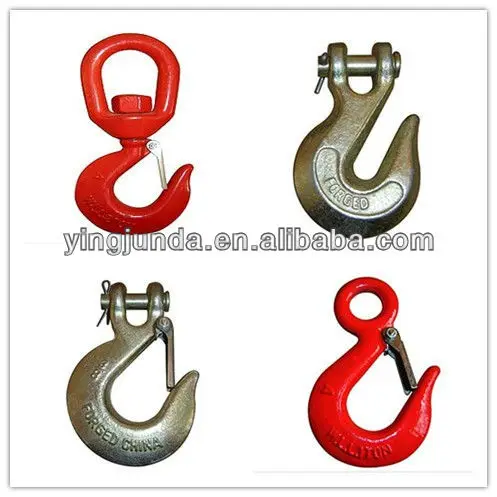

China Carabiner HookG80 Eye Hook with Latch Manufacturer Crane Hook Marine Tow Hook Hanging Wholesale Coat Various Types

Product Overview

Description

Tow Hook

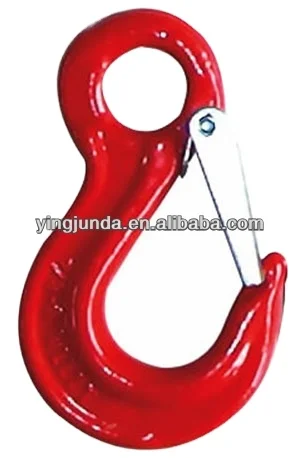

1.China Safety Hook G80 Eye Hook with Latch Manufacturer Crane Hook Marine Carabiner Hook Hanging Wholesale Coat Various Types



a.Heat treated: drop forged, tempered and quenched



b.Material: Stainless steel 304 or 316,Carbon Steel,Alloy



c.Standard: EUROPEAN TYPE,JIS TYPE,US. TYPE,DIN TYPE



d.Size: 6-26 or accoring to customer's design



e. Surface: Hot dipped galvanized,Electro galvanized,Self-colored



 2.Technical Parameter:



ITEM NO.mm	WEIGHT/KG	WLL/T	B.L/T	Φmm	Emm	Hmm	Kmm	Lmm
6	0.28	1.12	4.48	19	22	19	80	110
7/8	0.65	2	8	28	25	25	103	140.5
10	0.94	3.15	12.6	31	27.5	28	118	162
13	1.95	5.3	21.2	39	33	35	145	201
16	3.77	8	32	51	40	45	180	256
20	6.8	12.5	50	62	51	57	230	317
22	9.8	15	60	73	57	70	260	360
26	16.25	21.2	84.8	89	75	76	318	434







 3.Company Introduction



Qingdao YINGJUNDA Machinery Co., Ltd.
ODM&OEM SERVICES
Service	Drawings or samples processing/OEM/ODM service provided

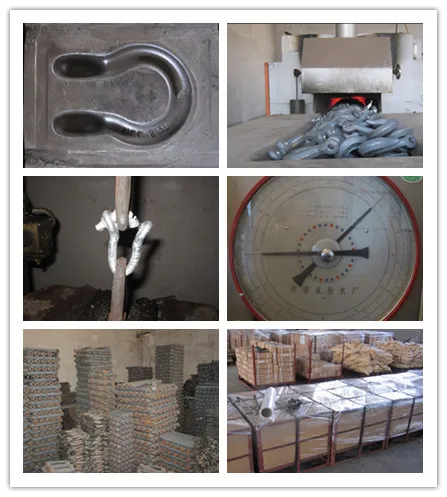

Produce Process	Drawings→ mould making → pre-forging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →delivery
Forging Material	Carbon Steel, Alloy steel, Stainless steel
Standard	ISO, GB, ASTM, DIN, JIS
Produce Equipment	Friction Screw Press Series, CNC Lathe, Machining Center  (Vertical Spindles), CNC Milling Machine, Bench Drilling  Machine, Heat Treatment Equipments and so on.
Surface treatment	Hot dipped galvanized,Electro galvanized,Self-colored
Inspection Equipments	Metallurgical analysis, tensile strength tester, Hardness  tester, Altimeter, Scale Micrometer, pressure tester, etc.
Delivery	Samples are sent by express Large quantity products delivered to customer by sea  or according to your request
Terms of payment	T/T or L/C

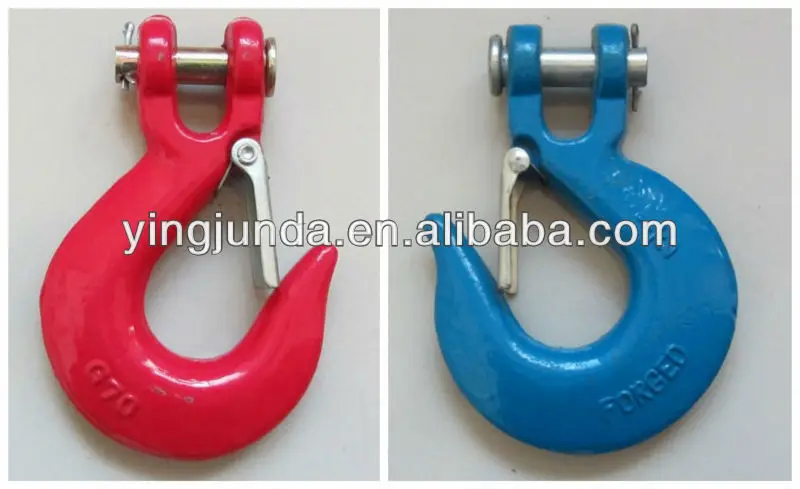

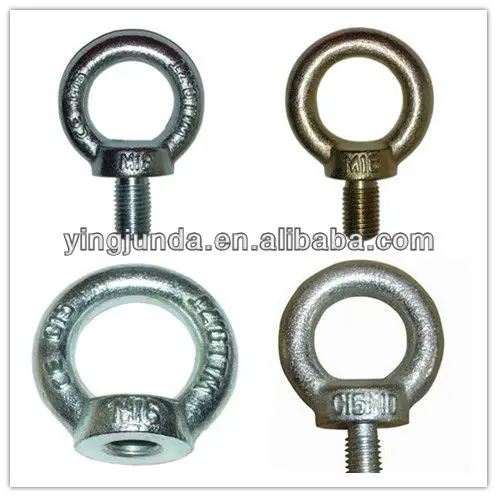

 4.kinds of pictures

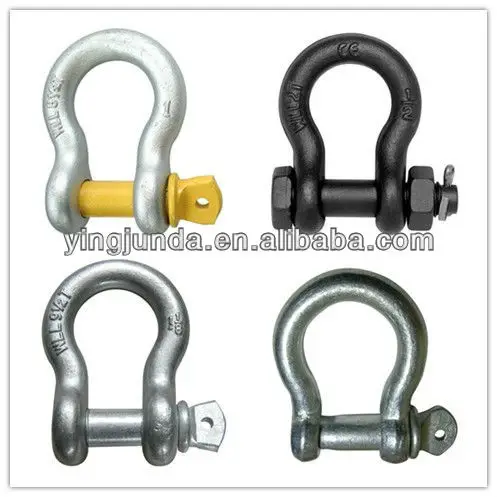

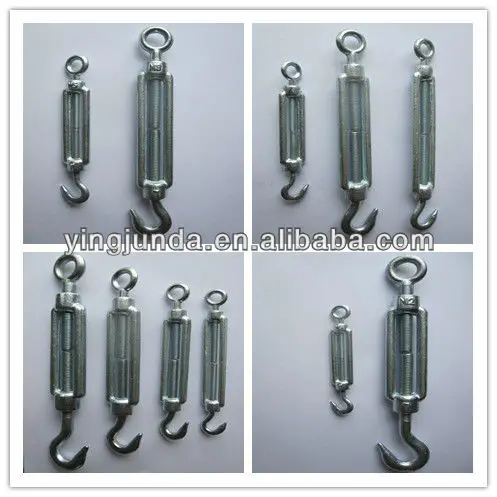

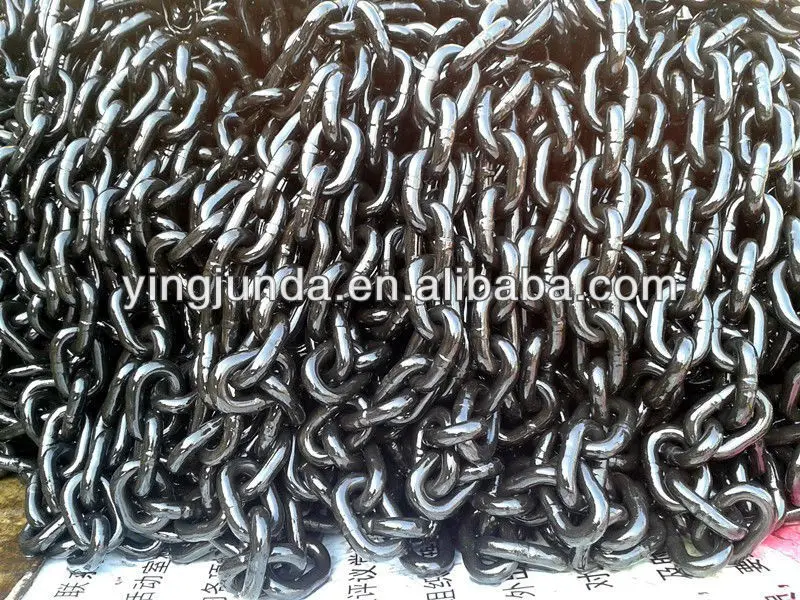

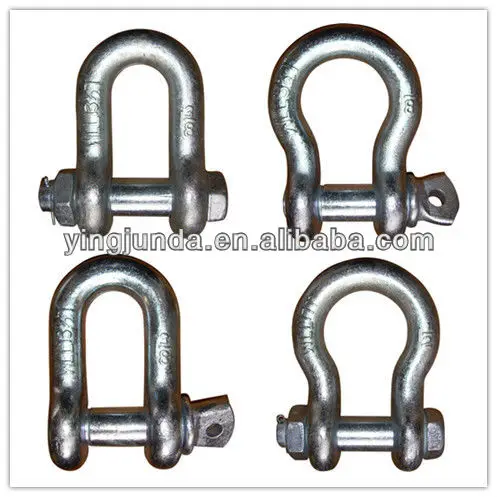

Qingdao YING JUNDA Machinery Co., Ltd. is a professional manufacturer of rigging hardware with well-equipped testing equipments and strong technical team. More than thirty five years, the company has been engaged in designing and making in shackles, turnbuckles, swivels, thimbles, hooks, bolt & nut, links, load binders, rings, wire rope clips, chains, winch & winch bar, steel cables and other rigging parts. Meanwhile, JING JUNDA accumulates extensive experience in rigging design and research and can provide OEM and ODM service. So far, the company built the largest scale manufacturing base for rigging hardware in Qingdao, China.

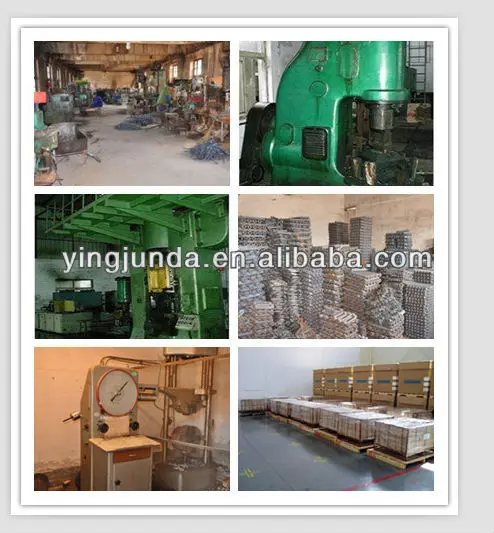

    YING JUNDA factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time.

    Relying on wide variety, good quality, novel designs, reasonable prices, fast delivery time and good service, bulk products have been purchased and extensively used in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia, South America, Africa and other regions, and have been highly praised by customers around the world.
