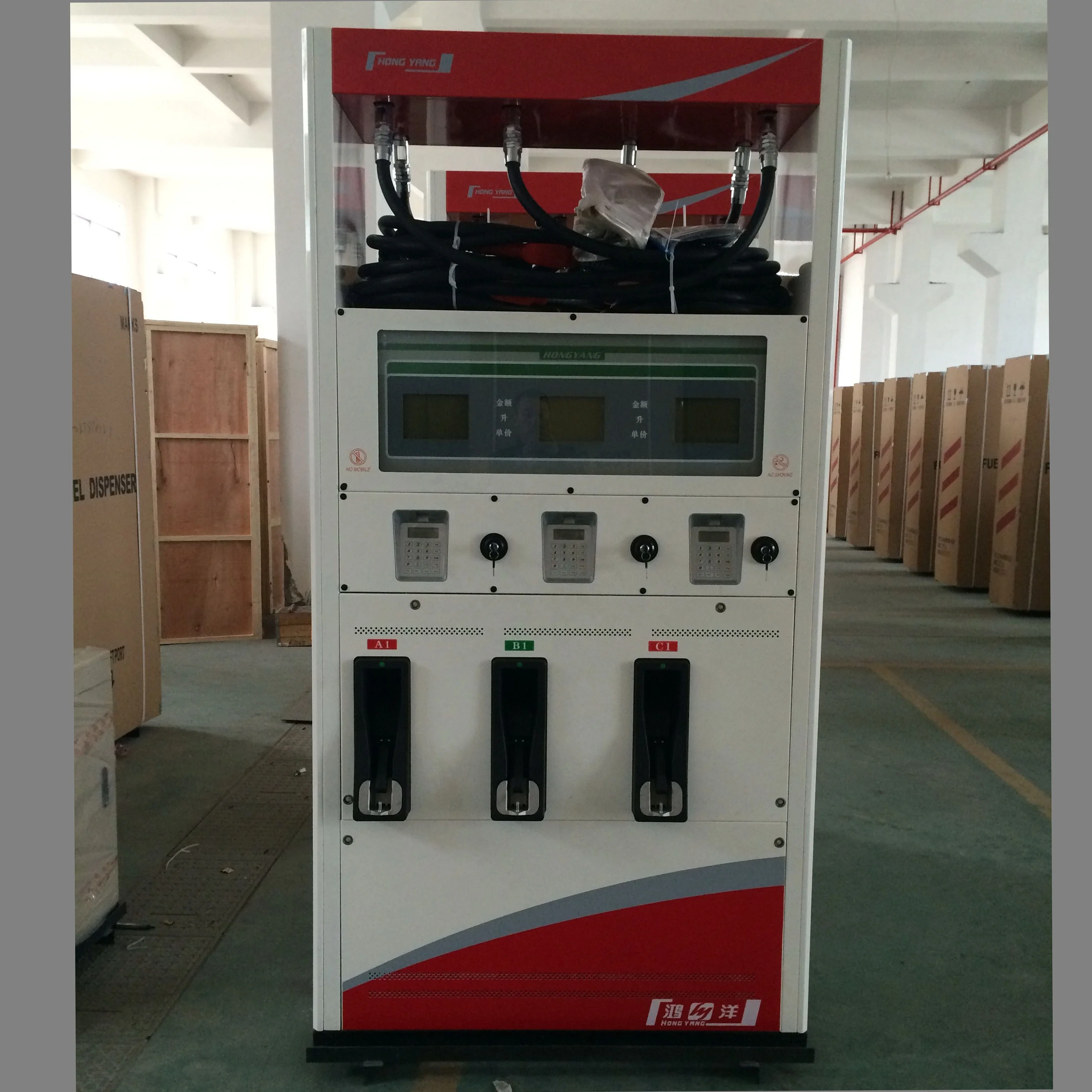

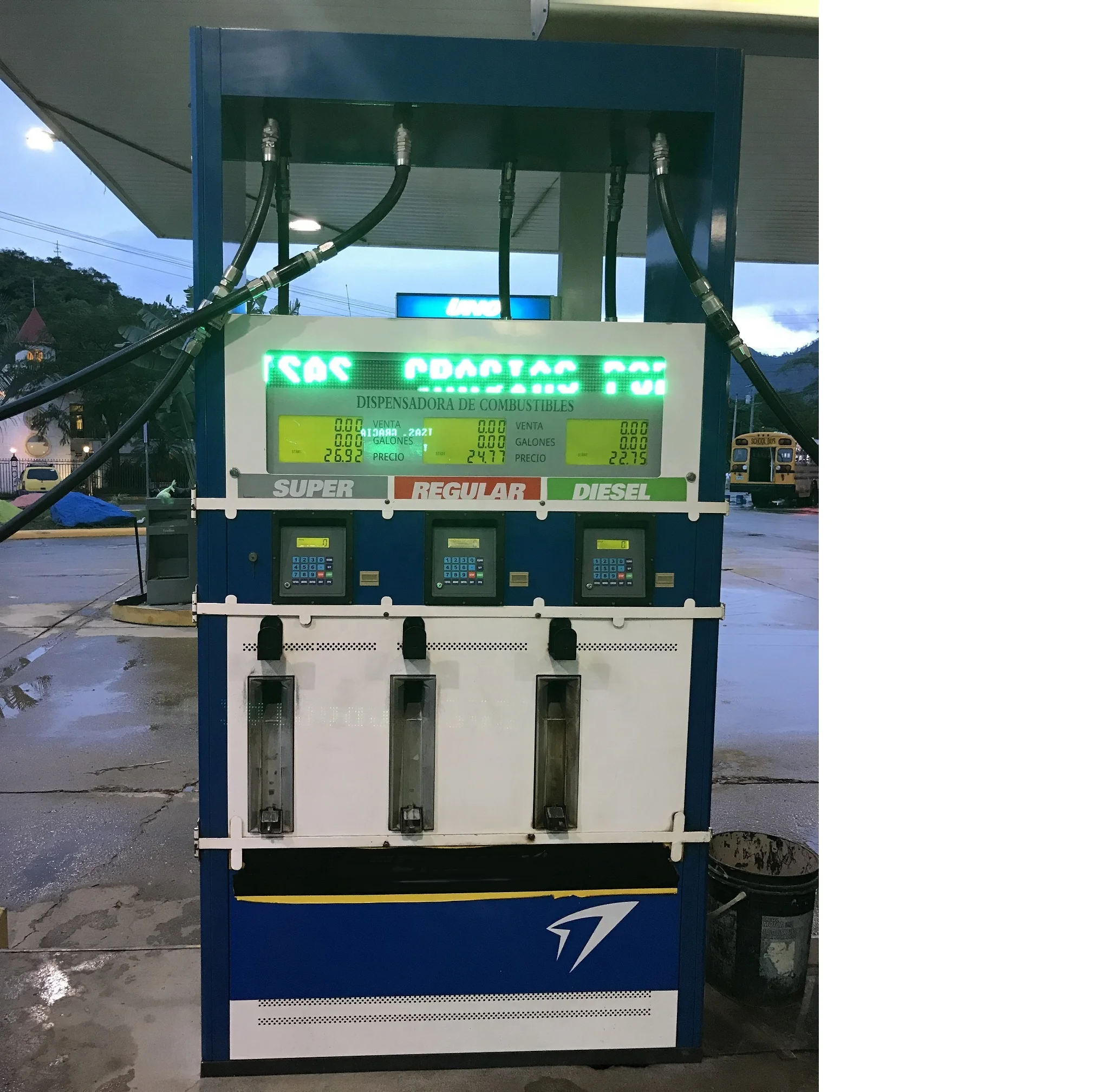

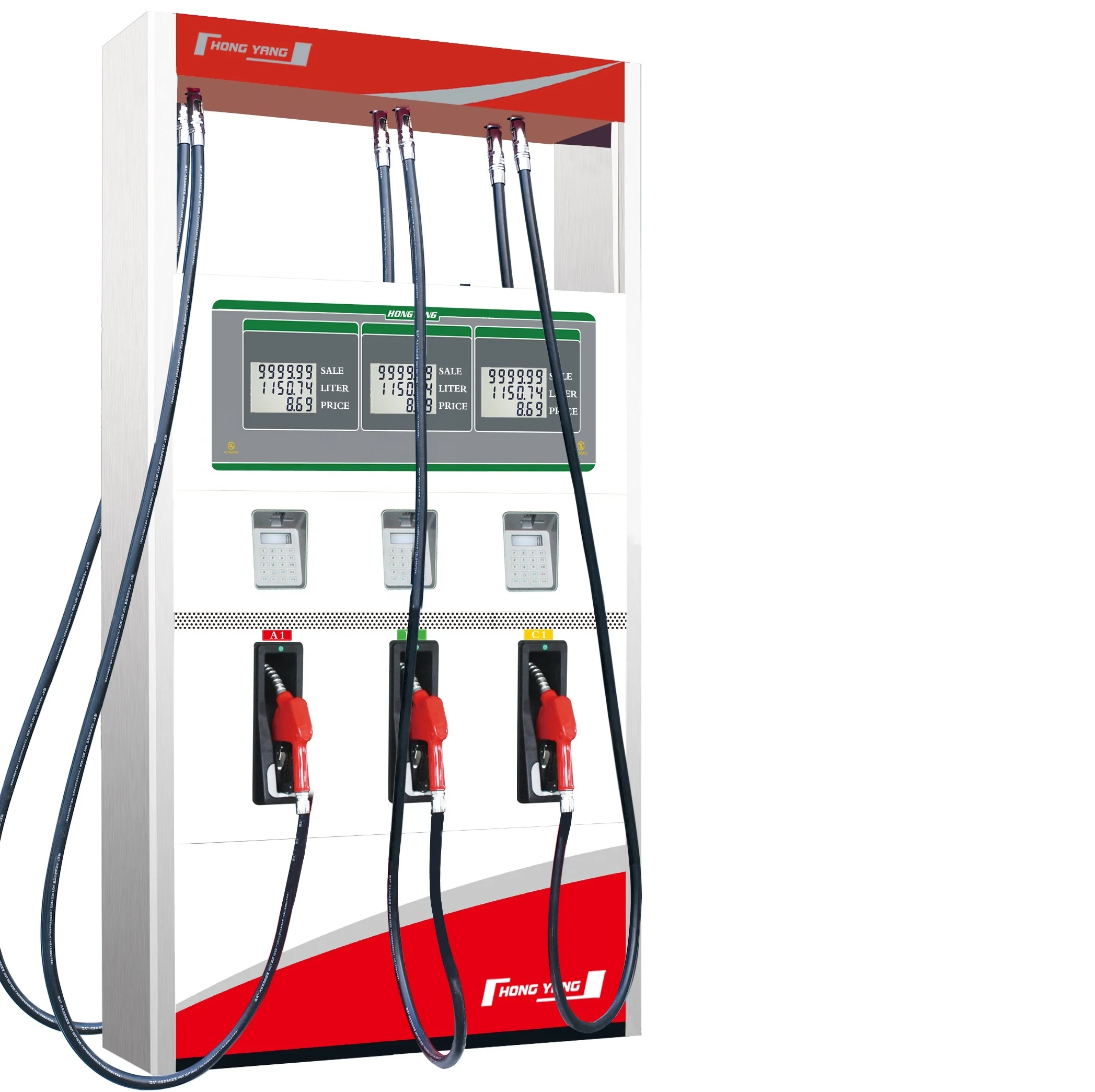

HONGYANG fuel dispnenser for ESSO station

Product Overview

Description

Specifications:

D series CMD1687SK - GB66 Pump Type   Inlet Pressure ≥54kPa. Flow rate (L/min.) 55±5 Suction Distance (m) 6(verticalmente) / 50(orizzontalmente) FlowMeter Type   Accuracy ±0.2% Motor Voltage(V) 110V/220V/380V,50Hz/60Hz Capacity(hp) 1HP(0.75kw) Input Voltage 110V/220V/380V,50Hz/60Hz Nozzle Auto Shut-off Nozzle Environmental Condition -40°C~~+55°C Control Type Solenold Vale Control Type Preset Function Provided(Small LCDIndicator) Display(Counter) Type LCD and Bright Backlight Digit of Volume 0~~999,999(6 Digits),Decimal point can be changed Digit of Amount 0~~999,999(6 Digits),Decimal point can be changed Digit of Unit price 0~~9999(4 Digits),Decimal point can be changed Digit of Total Range 0~~99,999,999,99 Optional Display Type LCD and Bright Backlight Digit of Volume 0~~99,999,999(8 Digits),Decimal point can be changed Digit of Amount 0~~99,999,999(8 Digits),Decimal point can be changed Digit of Unit price 0~~999999(6 Digits),Decimal point can be changed Digit of Total Range 0~~99,999,999,99 Totalizer 1~~9,999,999 Hose 4.5m Weight 285kg. Dimension(L×W×H) 1160*560*2215(mm) Dimension(L×W×H)Of Qty of Container 40ft: 27
