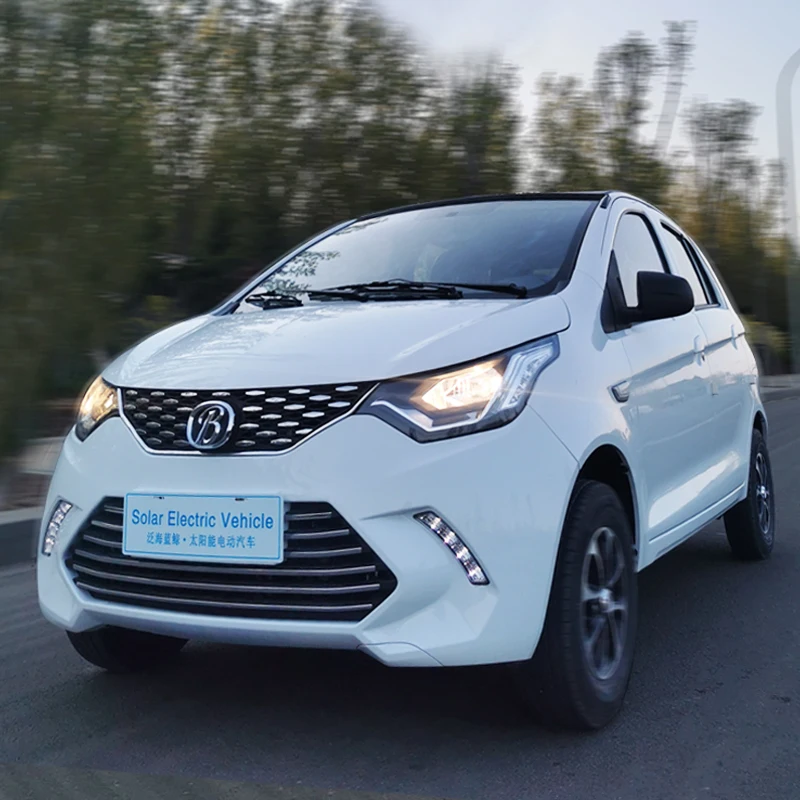

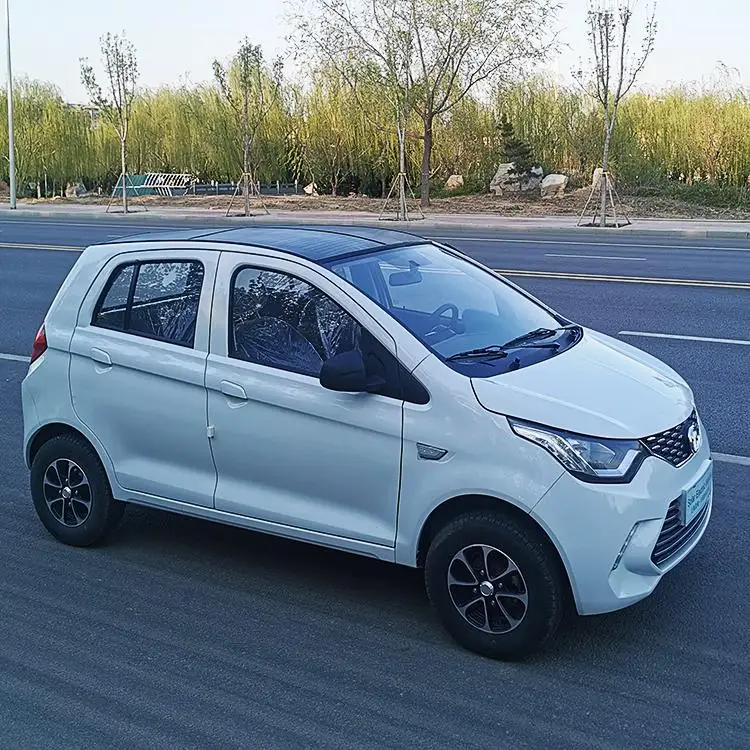

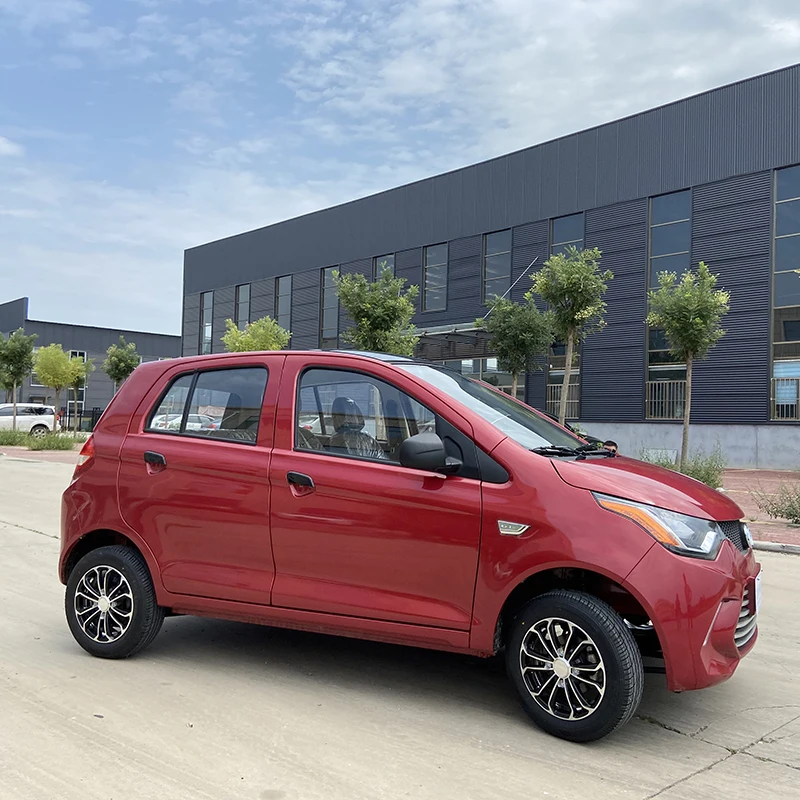

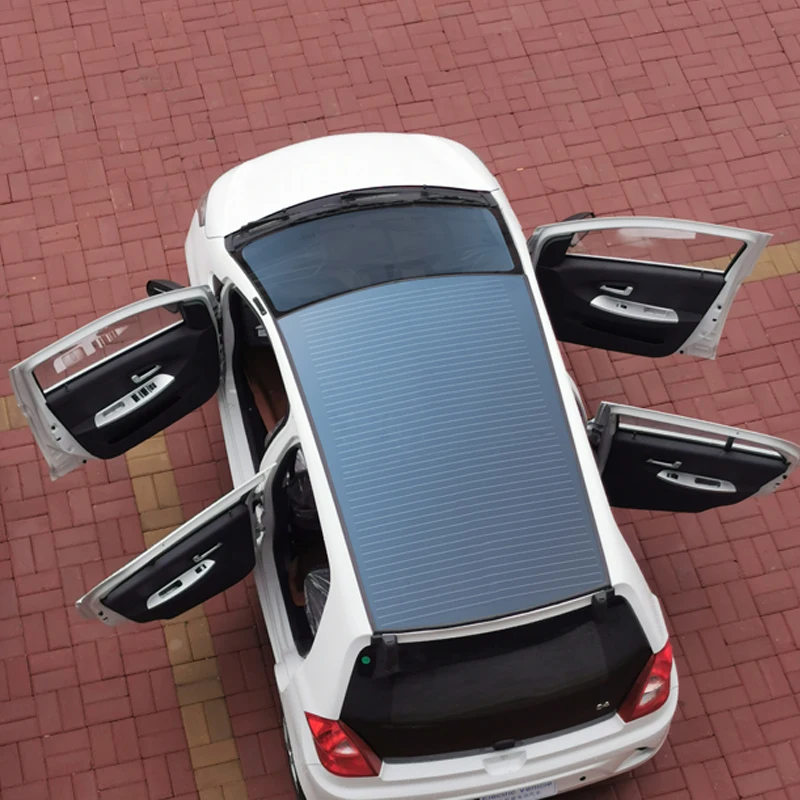

Solar panel electric car Model S6 , optional for different motors and power
- Category: >>>
- Supplier: Dezhou Fanhai New Energy Technology Co. Ltd.
Share on (1600051119080):
Product Overview
Description
| Model NO.: | S6-B | S6-D | S6-F | S6-H | |||||
| Basic Specification | Body size:L*W*H (mm) | 3380*1550*1500 | 3380*1550*1500 | 3380*1550*1500 | 3380*1550*1500 | ||||
| Wheel Base (mm) | 2260 | 2260 | 2260 | 2260 | |||||
| Wheel Track (mm) | 1330/1310 | 1330/1310 | 1330/1310 | 1330/1310 | |||||
| Climbing angle(Degree) | ≤35-40 | ≤35-40 | ≤40-45 | ≤40-45 | |||||
| Ground clearance (mm) | 170 | 170 | 170 | 170 | |||||
| ECO speed | 40 | 40 | 40 | 40 | |||||
| ECO range(km) | 120-140 | 180-200 | 260-300 | 360-400 | |||||
| maximum speed(km/h) | 70KM | 70KM | 100KM | 100KM | |||||
| Maximum range ( km ) | 100-120 | 160-180 | 200 | 300 | |||||
| Motor | Peak power (KW) | 10 | 10 | 20 | 20 | ||||
| Motor type | AC | AC | AC | AC | |||||
| Driving type | RWD | RWD | RWD | RWD | |||||
| Peak torque (N.m) | 108 | 156 | |||||||
| VCU (V) | 72V | 72V | 72V | 72V | |||||

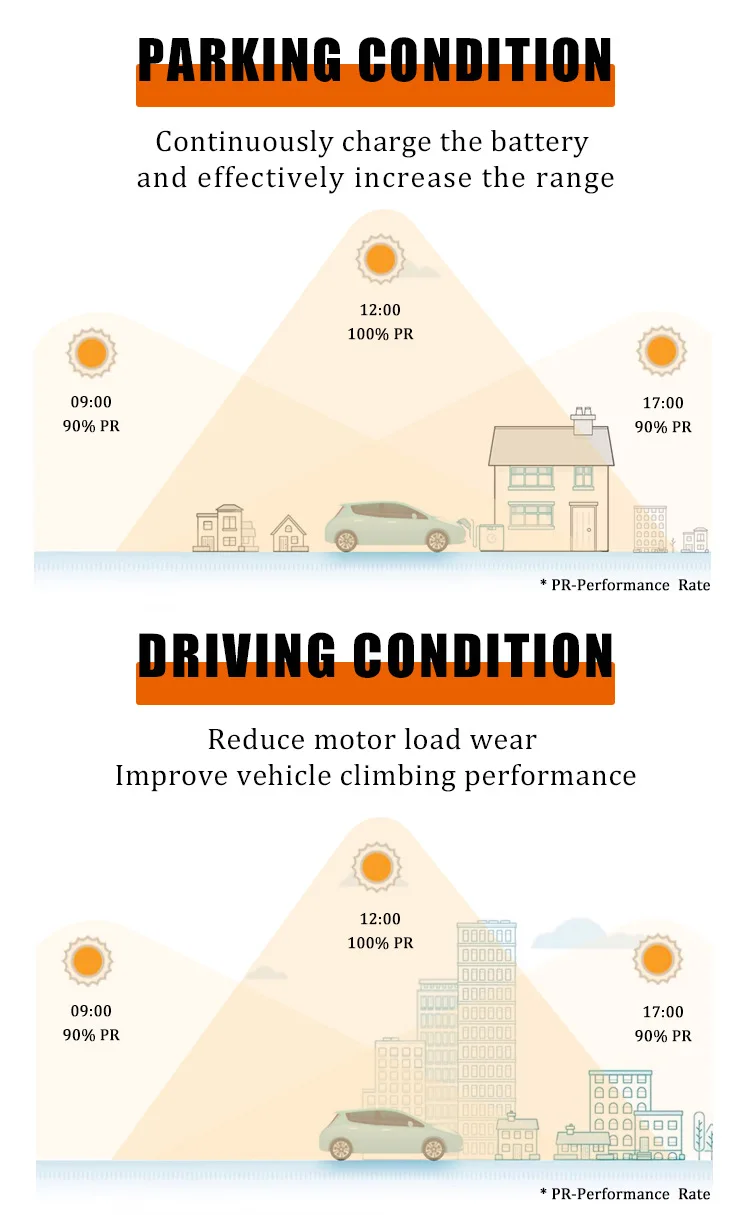

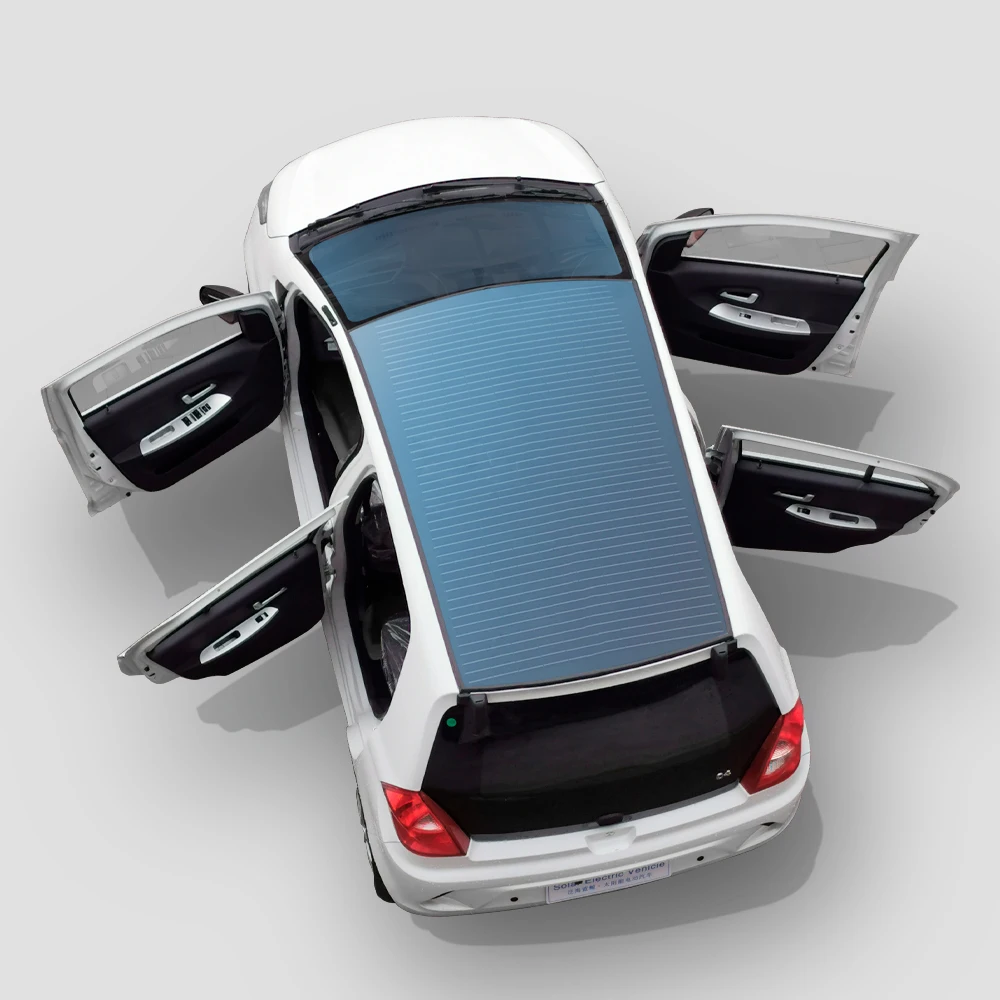

Solar power system | Solar type | Flexible monocrystalline silicon | |||||||
| Solar panel power (W) | 300 | 300 | 300 | 300 | |||||
| Controller type | MPPT | MPPT | MPPT | MPPT | |||||
| Output voltage (V) | 72V | 72V | 72V | 72V | |||||
| Battery | Battery type | Li battery | Li battery | Li battery | Li battery | ||||
| Battery capacity | 120AH | 160AH | 240AH | 320AH | |||||
| 8.64KWH | 11.52KWH | 17.28KWH | 23KWH | ||||||
| Number of battery | 1 | ||||||||
| Battery Life (DOD80%) | 2000times | ||||||||
| Normal Charge Times(hr) | 4-5 | ||||||||
| Input Voltage (VAC) | 220±15% | 220±15% | 220±15% | 220±15% | |||||
| Output current (ADC) | 20 | 30 | 40 | 50 | |||||
