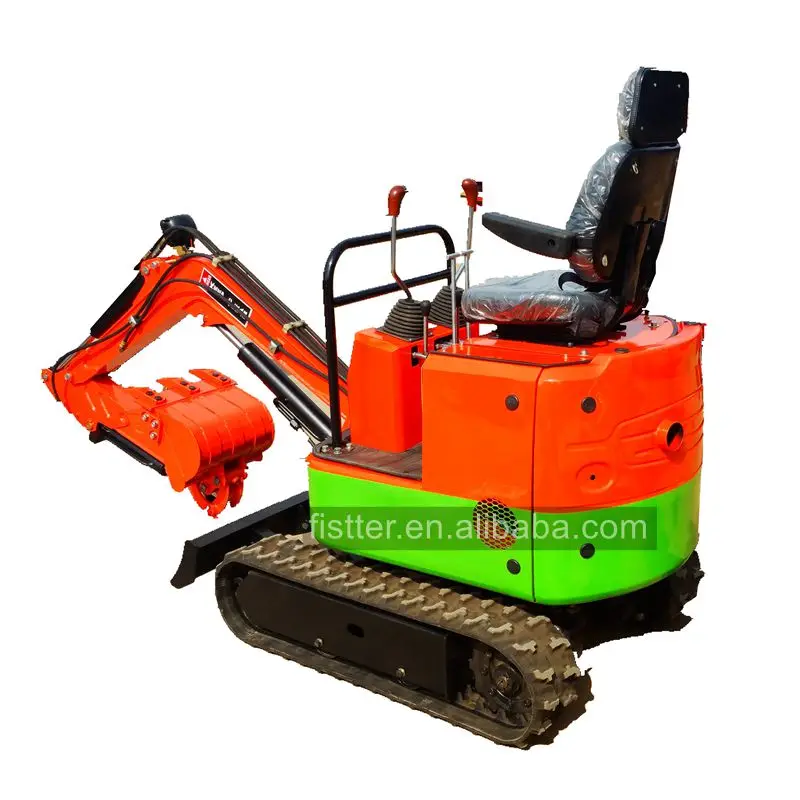

360 Degree Rotation Towable Backhoe Mini Excavator For Sale
- Category: >>>
- Supplier: Weifang Fistter Machinery Co. Ltd.
Share on (1600051201969):
Product Overview
Description
Products Description
Application:
1) Mini Backhoe excavator is CE approval;
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.

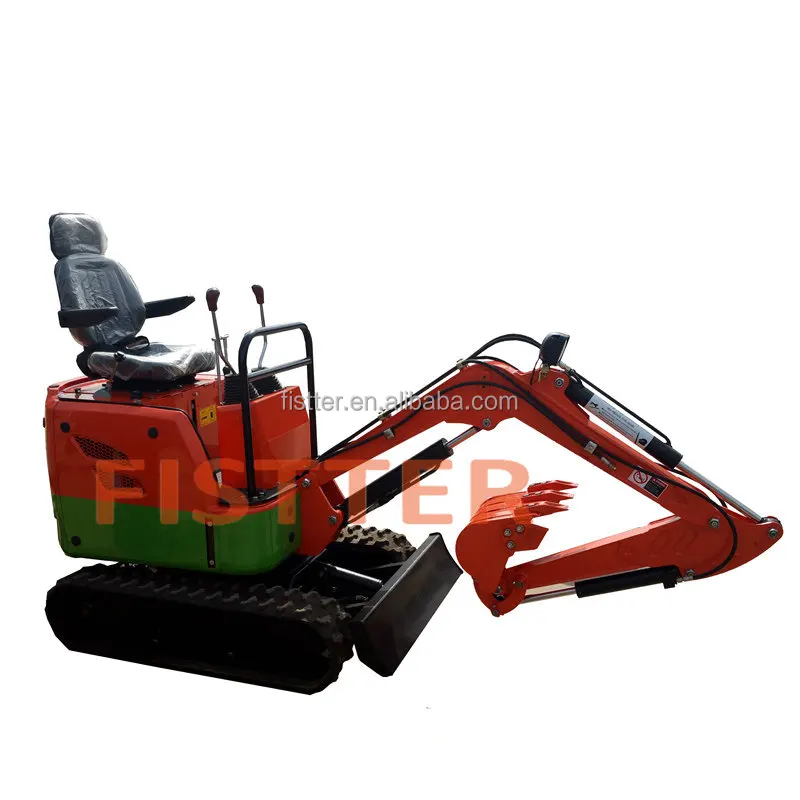

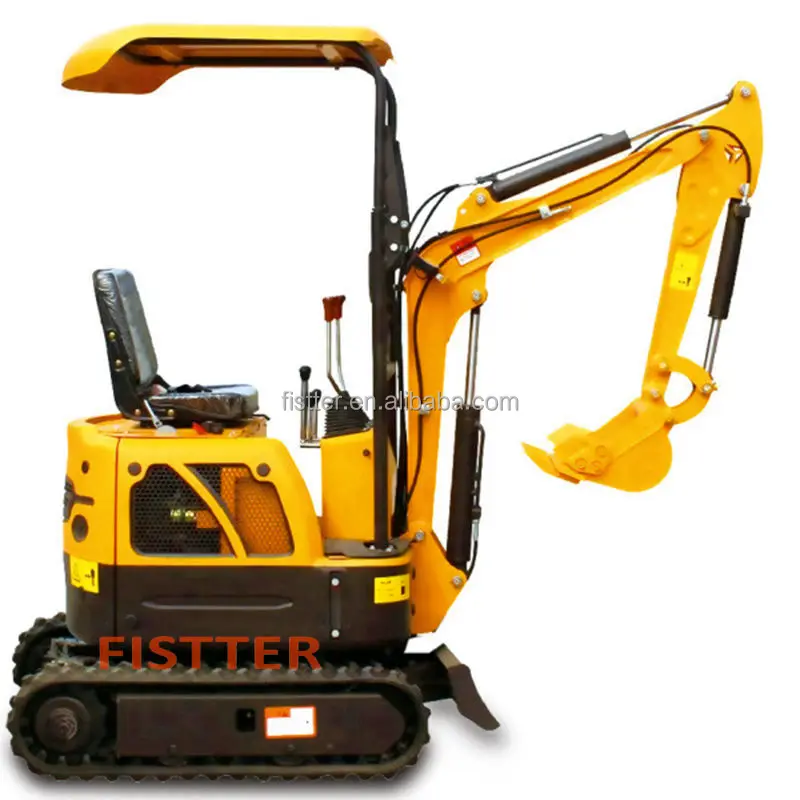

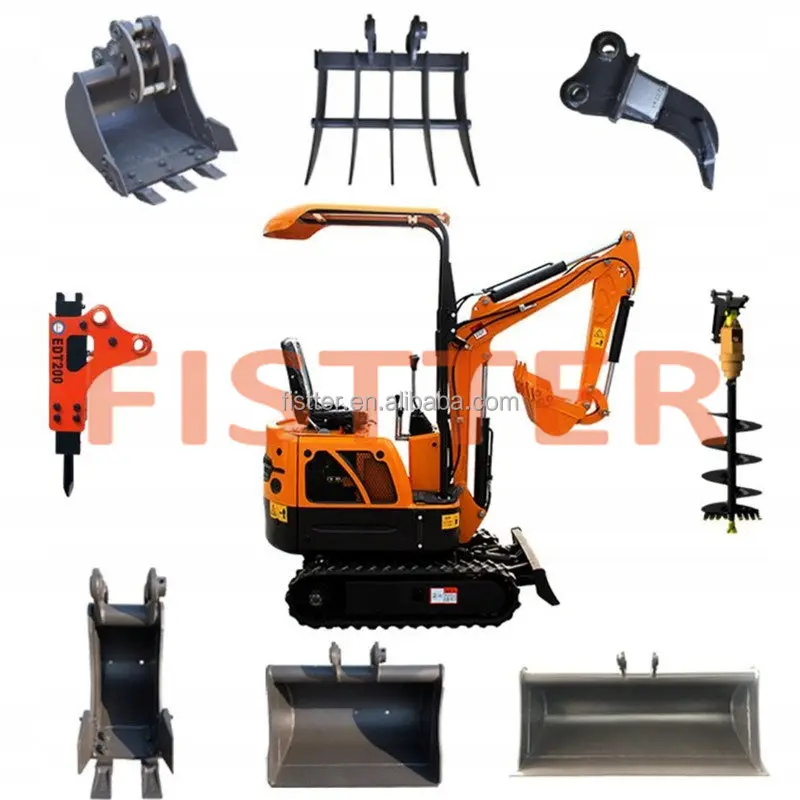

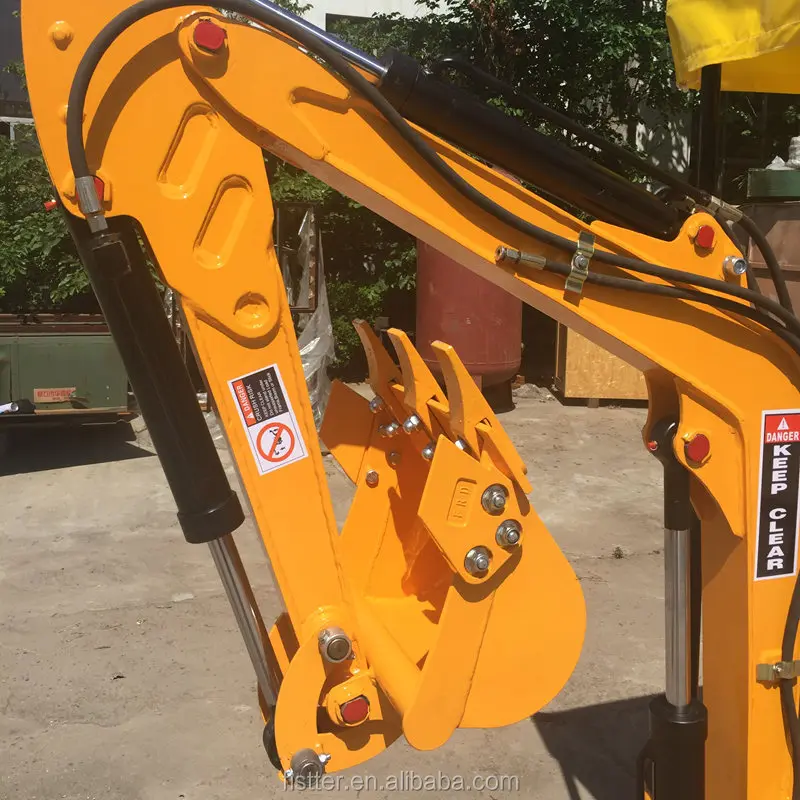

Details Images
Product Paramenters
Model | FB-10 |
weight | 900kg |
digging bucket capacity | 0.025cbm/120kg |
bucket width | 380mm |
Enging | Koop, B&S, LIFAN |
Bore stroke | Single cylinder, fan cool |
Rated power | 8.2kw/3600rpm |
Displacement | 6.8ml/r |
Travel speed | 1.5km/h |
Main Demensions | |
Overal dimension(LxWxH) | 2775x9300x2219mm |
Wheelbase | 910mm |
Total length of track | 1230mm |
Platform ground clearance | 380mm |
Platform back turning radius | 784mm |
Chassis width | 896mm |
Track width | 180mm |
Chassis ground clearance | 132mm |
Track height | 320mm |
Operating Range | |
Max. Digging depth | 1650mm |
Max. Vertical digging depth | 1375mm |
Max. Digging height | 2610mm |
Max. Dumping height | 1850mm |
Max. Digging radius on ground | 2850mm |
Min. Rotation radius | 1330mm |
Max. Upgrade height of bulldozer blade | 345mm |
Max. Digging depth of bulldozer blade | 255mm |

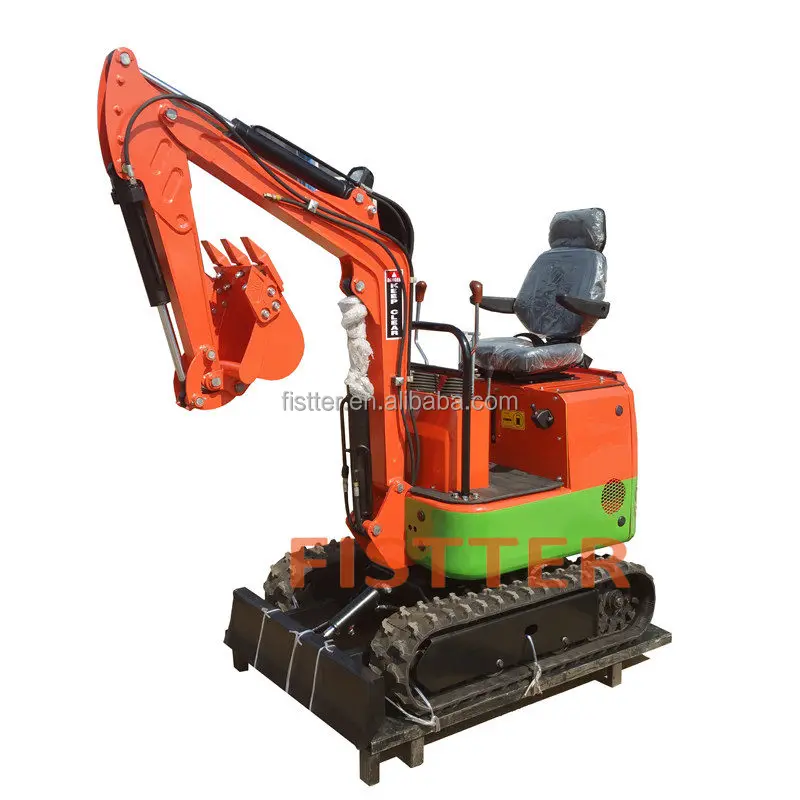

Product packaging
backhoes' packages
front end loader
Loading in container
Certifications
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
