Front door open double sides p8 outdoor Waterproof Iron Cabinet P8 LED Display Home Theater Wall Mounted Tv screen

Share on (1600051557964):


Price:$365.00 - $420.00

Quantity:


Product Overview

Description


Front door open double sides p8 outdoor Waterproof Iron Cabinet P8 LED Display Home Theater Wall Mounted Tv screen








1.outdoor high brightness ,can be 5500 to 6000 nits or higher , no problem at all even under direct sunlight


2.pixel pitch is small and clear ,Realistic images and brilliant colors,


3.With the protection rating of IP65 front ,Glue protection, mask protection,

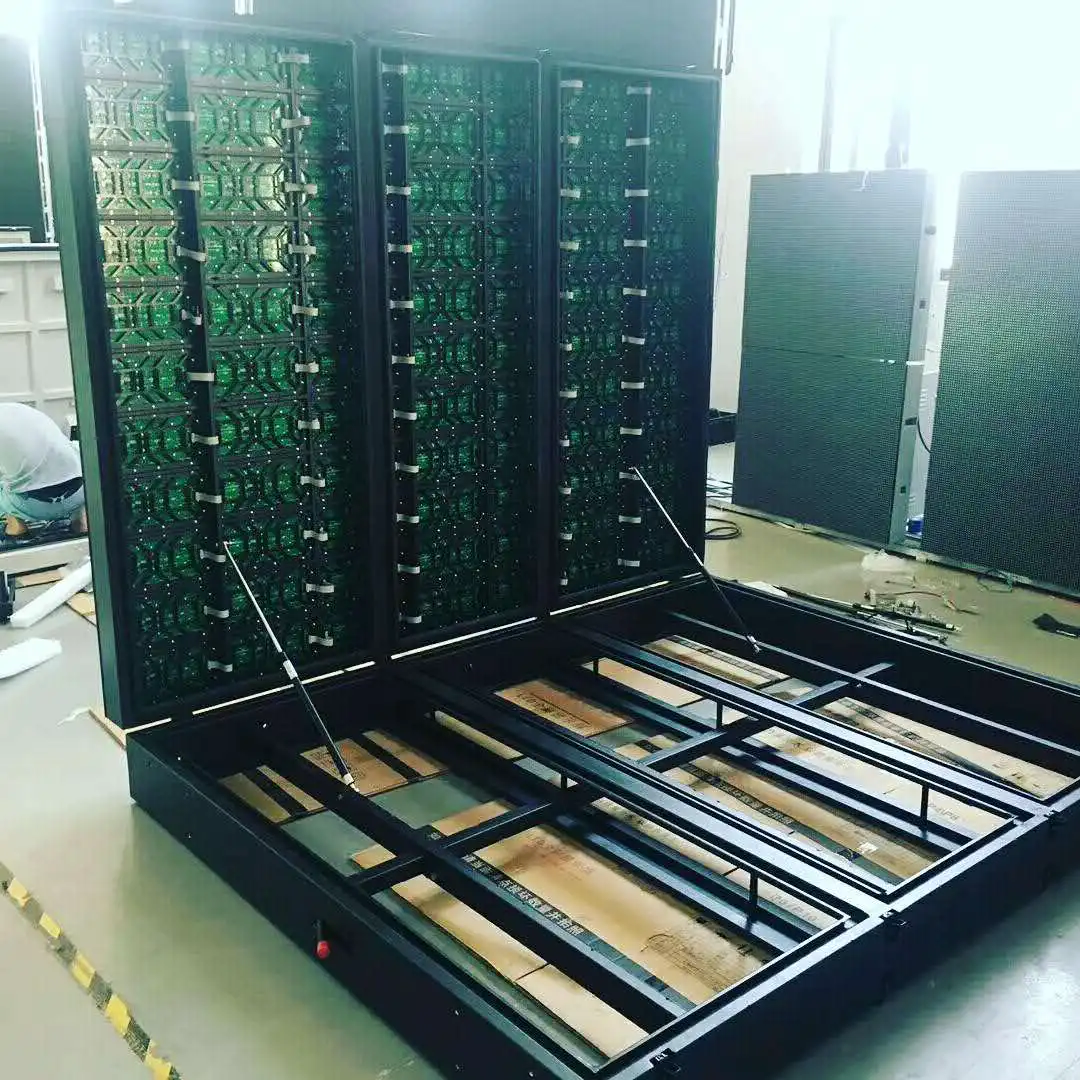

4.front door open  service with Gas rod












Product Description



























































































Outdoor front service P8 LED Display
Model numberP8
Pixel pitch8mm
Module resolution32*16
Module size      256mm*128mm
Pixel density15625dots/sqm
LED EncapsulationSMD3535
Module weight0.26kg
Average consumption600w/sqm
Max power consumption1200w/sqm
Best view distance8m~80m
Best view angle140º
Brightness≥5400cd/sqm
Scanning1/8scan
Refresh rate1920HZ
Frame frequency360HZ
Grey scale16384
Working voltage220VAC/50Hz±10%
Life span100000hours
Working temperature-20℃ to +60℃
CertificationCCC/CE/RoHS











Packaging & Shipping






















Our Services


1.webp.jpg 2.webp.jpg














Company Information








Shenzhen Scree optoelectronics Co.. Ltd, is a large-scale comprehensive high-tech enterprise,which is dedicated to the R & D, production, sales, assembly and engineering installation,with two major production bases,one is in shenzhen ,one is in dongguan ,Total plant area is over 40000 m^2,





we have been focusing on the LED display field, founded in 2009 . Our products include LED outdoor full-color display screen, LED indoor full-color display screen, LED rental screen, LED car top screen, LED transparent screen, LED curtain screen, LED floor screen and other LED display products and used for leasing products, billboards, highway signs, shaped screen, stadium screen and other





The company's products have passed ISO9001:2008 quality management system


certification. CE. CCC. UL and other quality certification and related ROHS certification,





Products are sold to North America, Europe, the Middle East, Southeast Asia, Africa, Australia and other overseas markets, has been recognized and praised by customers around the world.










FAQ





Q1:what does the pixel ptch mean ,and how to choose pixel pitch ?
A: it menas the best distance people view this led display ,the pixel pitch smaller ,the distance you view ,it looks clear ,





Q2:how led display is installed ?


A:client need to do steel structures accoring the the cabinet size ,usually we could provide the Steel structure drawings,after clinet placed the order





Q3.any size could do ?


A;yes ,but because the modules size is fixed ,so just exist a little difference between your size





Q4:software of led dsiplay is the same ?


A:it depends on the system you choose ,different system using the diffirent software .
