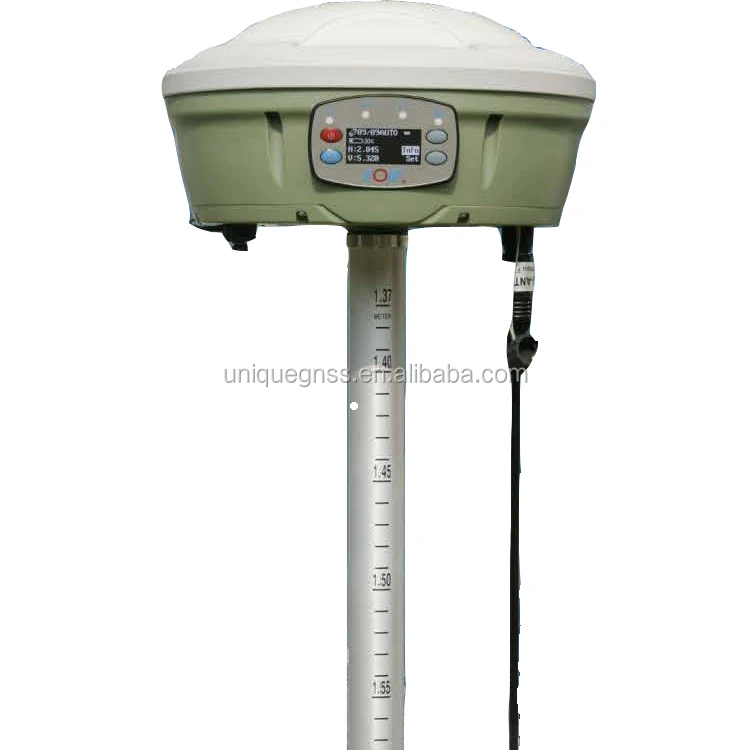

Foif brand gps survey equipment with Hemisphere board GNSS A90
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600051675615):
Product Overview
Description
FOIF A90 GNSS RTK RECEIVER
Product Description
1. Compact design, more productive
2. Professional GNSS satellites tracked simultaneously( GPS, Glonass, Galileo, Beidou)
3. Automatic data collection during centering
4. When the pole is tilted in 30 degrees, A90 still could get the right point data by automatic correct system.
5. Applies WIFI connection to realize WebUI control designed to modify settings and monitor the receiver status
6. Bundled Android field software brings a big change in user experience and accessibility
2. Professional GNSS satellites tracked simultaneously( GPS, Glonass, Galileo, Beidou)
3. Automatic data collection during centering
4. When the pole is tilted in 30 degrees, A90 still could get the right point data by automatic correct system.
5. Applies WIFI connection to realize WebUI control designed to modify settings and monitor the receiver status
6. Bundled Android field software brings a big change in user experience and accessibility

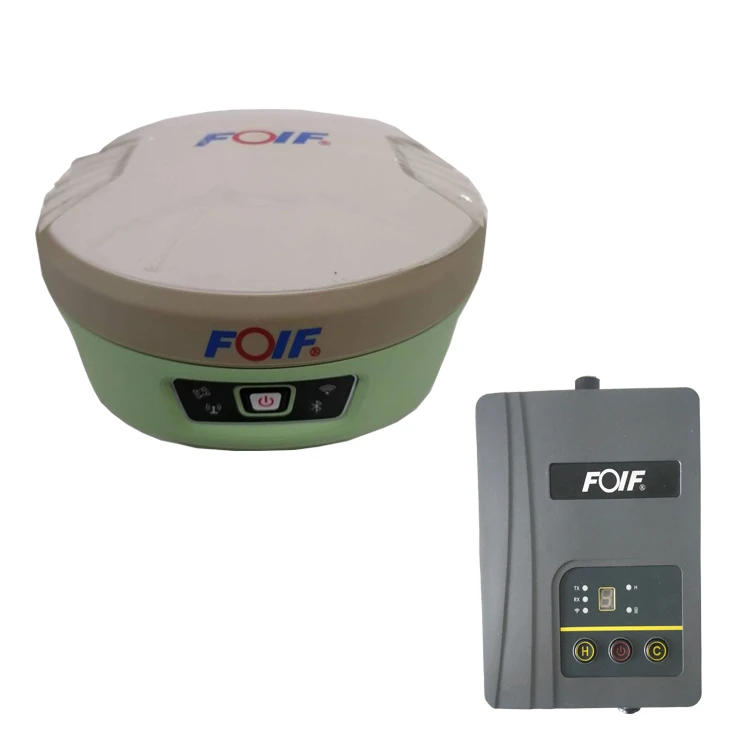

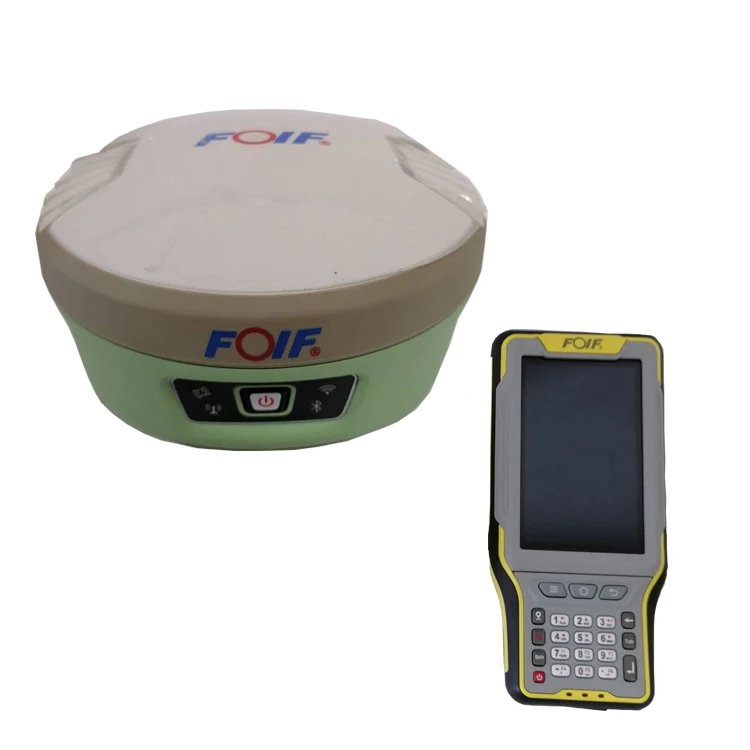

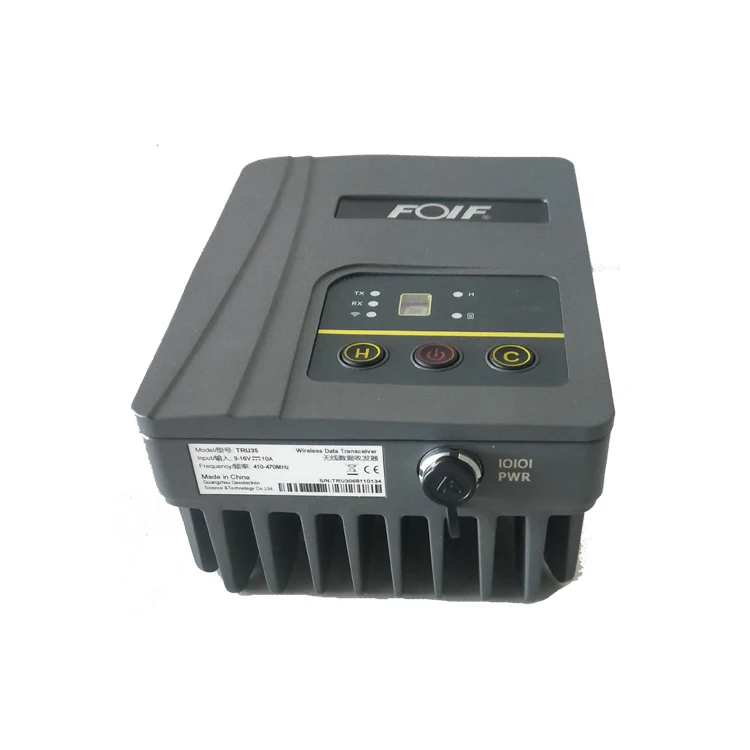

Detailed Images
Specification
Items | Specification | |
GNSS | GNSS board | P328 |
Channel | 394 | |
Satellites | GPS: L1 C/A, L1P, L1C, L2P, L2C, L5 | |
GLONASS: G1, G2, P1, P2 | ||
BeiDou: B1, B2, B3 | ||
Galileo: E1BC, E5a, E5b | ||
QZSS: L1 C/A, L2C, L5, L1C | ||
SBAS: L1 C/A, L5 | ||
Update rate | 5Hz( Standard to 5 Hz, can pay to activate 50 Hz) | |
Static Accuracy | Horizon: ±( 2.5+1*10"D) mm; Vertical: ±( 5+1*10"D) mm | |
RTK Accuracy | Horizon: ±( 8+1*10"D) mm; Vertical: ±( 15+1*10"D) mm | |
L-Band | Atlas | |
Power | Battery | Dual batteries, 7.2V/3400mAh*2 Can work at least 10 hours |
Input | 9-28V DC | |
System | OS | Linux |
Memory | Internal 8G; TF extended, Max≥32G | |
Bluetooth | V2.1+EDR/ V4.1 Dual Mode, Class 2 | |
WI-FI | 802.11 b/g/n | |
4G | North America: EC25-A, 4G | |
FDD LTE: B2/B4/B12 | ||
WCDMA: B2/B4/B5 | ||
Internal UHF | TRM 101; Power 1W, Frequency 410-470 MHz | |
Work Distance: 5km in good environment | ||
Protocol | SATEL, PCC-GMSK, Trim Talk 450S, South, TrimMark IIII(19200), GeoTalk, GeoMark | |
Electric Bubble | Support, Support tilt survey | |
Interface | TNC | For UHF Antenna |
5 pin | External radio and external power | |
7 pin | USB Port, NMEA Out put | |
Others | Micro SIM Slot and TF slot | |
Operation | Button | Power button, also can show Power status |
Indicator | 5 indicators: Satellites, Datalink, Bluetooth, WIFI Status, Power Indicatior | |
Language | Supports TTS Multi language voice | |
Physical | D*H | 157mm*76mm |
Weight | 1.2KGS with 2 batteries inside | |
Environment | Work Temperature | -30℃~+65℃ |
Stock Temperature | -40℃~+80℃ | |
Protection | IP67 | |
Shock | Withstand 2 meters pole drop, 1.2m drop without pole | |
Humidity | 100% |
Delivery

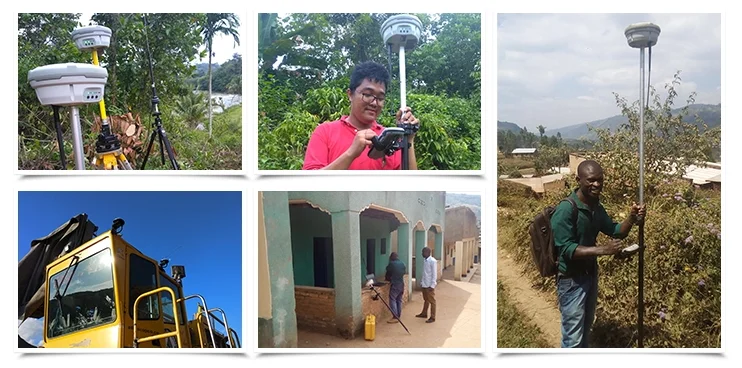

Customer Photos
