Overview

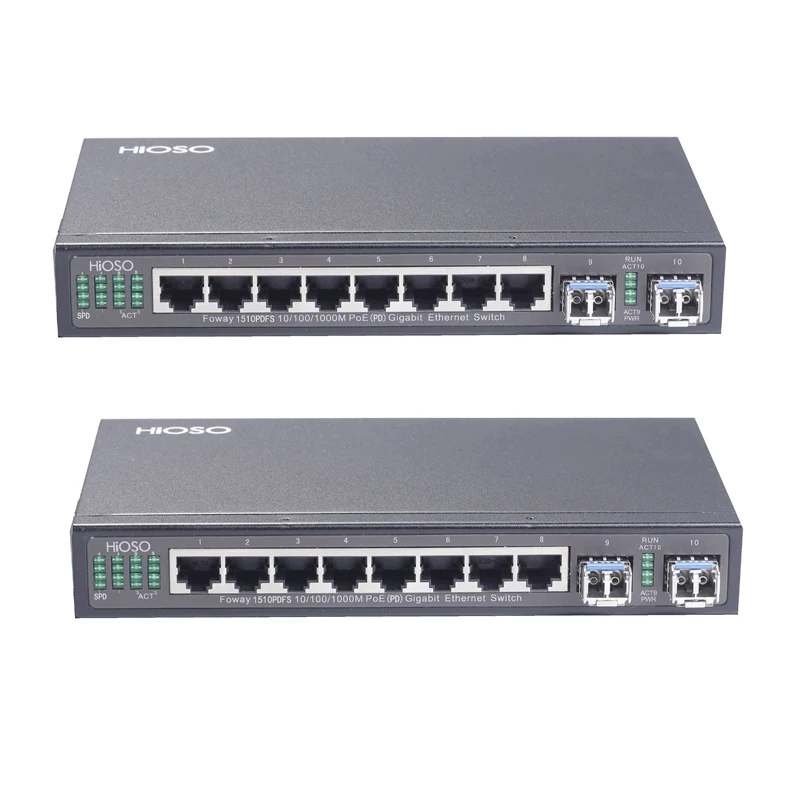

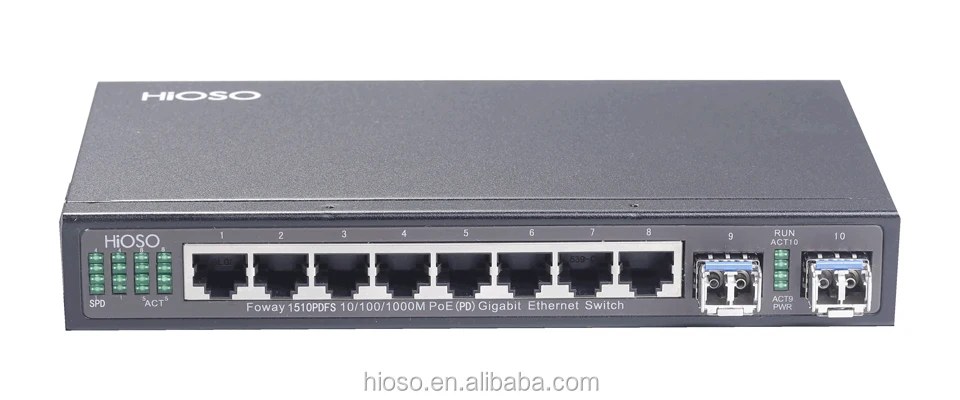

HiOSO FOWAY1510PD series includes two types, FOWAY1510PDFS without management and FOWAY1510PDFSM with Web management. It provides 8 10/100/1000M adaptive RJ45 ports and 2 1000M SFP uplink ports , can support 1Gbps or 2.5Gbps rate via set up (default rate is 1Gpbs).
FOWAY1510PDFS is PoE-PD, No.1~8 RJ45 ports can be powered by PSE device, including standard PSE device(such as PoE switch) and non-standard PSE device(such as PoE power adapter). If there are kinds of non-standard PSE Device connected to FOWAY1510PD, the one with highest voltage will supply power for the reversed PoE switch.
FOWAY1510PDFS is without management, it doesn’t support the test of port being powered.
FOWAY1510PDFSM is with Web management, it supports the test of port being powered. When PSE devices are connected to No.1~8 ports, or other network devices are connected via PoE power adapter, the management system of switch will automatically test the situation of port being powered, and open the data transmission function of relevant port. If connected device doesn’t have PoE power supply function, the relevant port can not work. FOWAY1510PDFSM is with temperature sensor inside, can snoop temperature inside switch.
FOWAY1510PD can automatically recognize whether connected device is PSE or not, if yes, the switch will be ready to be powered and the ports will transmit data, if no, the ports won’t transmit data.
Technical Specification
| Specification |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX Fast Ethernet,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3ab 1000Base-T,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1d Spanning Tree. |
Transmission material | Fiber material,one side is LC connector,another side is SC/LC connector |
Wavelength | SFP Module: 850nm/1310nm/1490nm/1550nm |
Distance | 1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
Port | 8 PD RJ45 ports: 10/100/1000M adaptable 2 SFP ports: 1000M |
MAC address | 16K |
| 2Mbit |
Bit error rate | <1/1000000000 |
MTBF | 100000 hours |
Power supply | PSE:DC48V |
Power consumption | <10W |
Working temperature | -40℃~85℃ |
Storage temperature | -40℃~125℃ |
Humidity | 5%~90% non-condensing |
Dimension | 290mm(L)*185mm(W)*80mm(H) |
Order Information
No | Product code | NMS | Ports | Power |
1 | FOWAY1510PDFS | NO | 8 10/100/1000M RJ45 + 2 1/2.5G SFP uplink | DC48V |
2 | FOWAY1510PDFSM | Yes | 8 10/100/1000M RJ45 + 2 1/2.5G SFP uplink | DC48V |
