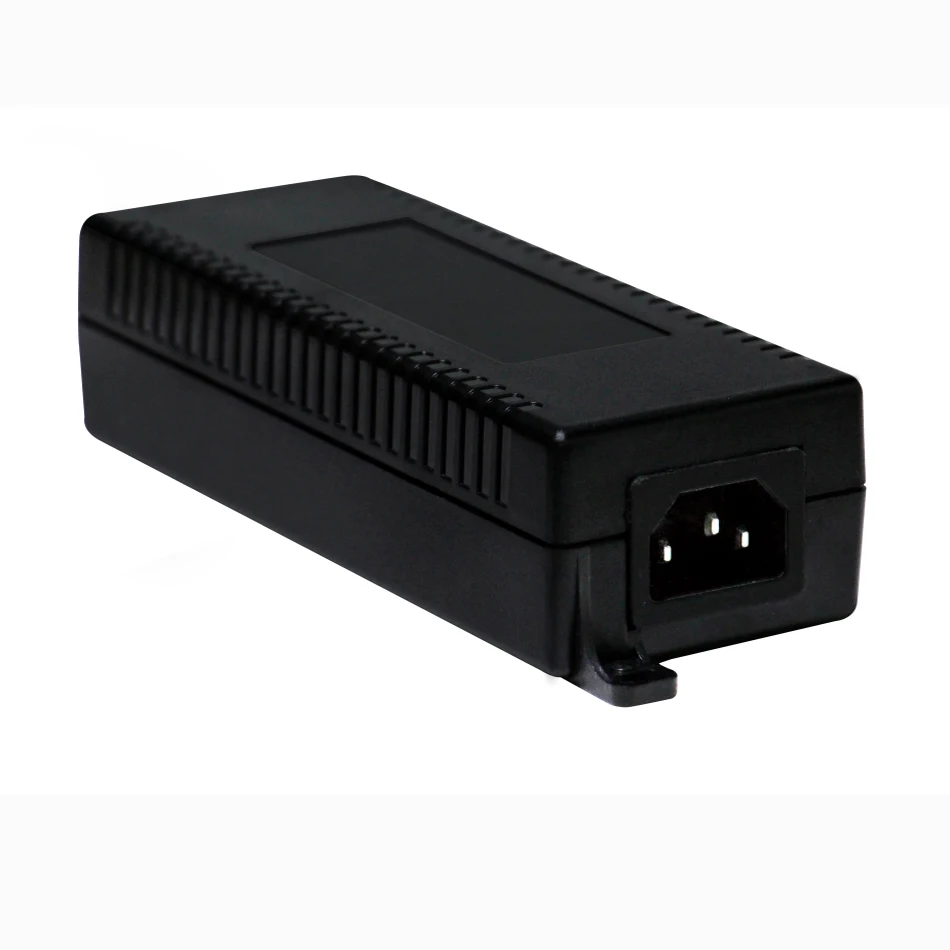

IEEE802.3Af at 30W Gigabit POE Injector supply for ip camera

30W Gigabit POE Injector

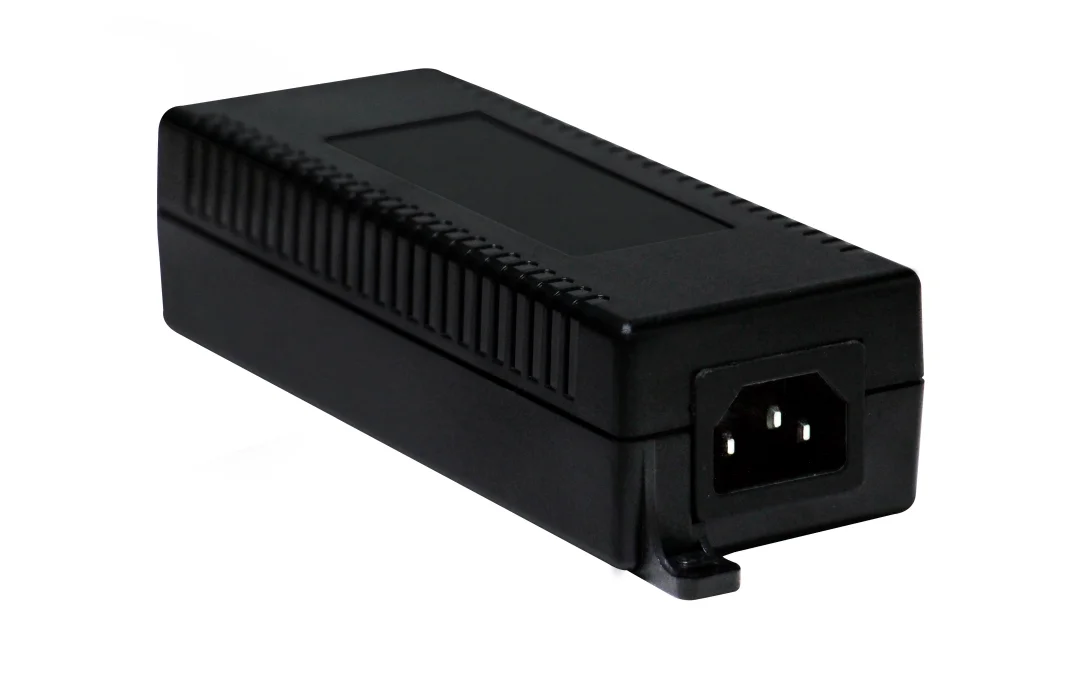

ZX900-AFG-N301 Gigabit Ethernet POE power supply. The POE port supports a maximum output power of 30W, and the port supports 10/100/1000 self-adaption. Support AC 100-240 V voltage input, working temperature range -20 ℃ ~ + 50 ℃, seamless ultrasonic bonding, better protection effect. Comply with FCC, CE, RoHS standards, reliable hardware design, can ensure your automation system runs without interruption and stability.

[Feature]

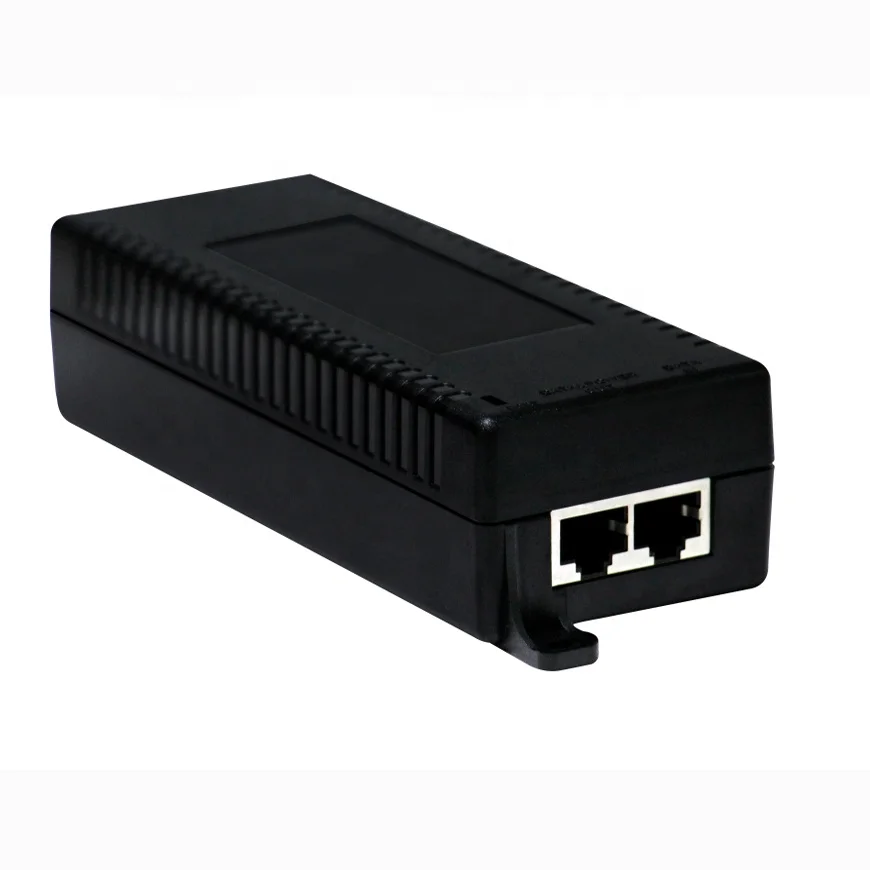

1. Support 1x10/100/1000M POE Port+1x10/100/1000M Ethernent Port

2. Compatible with IEEE802.3af(15.4W),IEEE802.3at(30w)

3. Support AC 100-240 V power supply

4. working temperature -20~50°C

5. Support wall mount

[Application Environment]

 Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

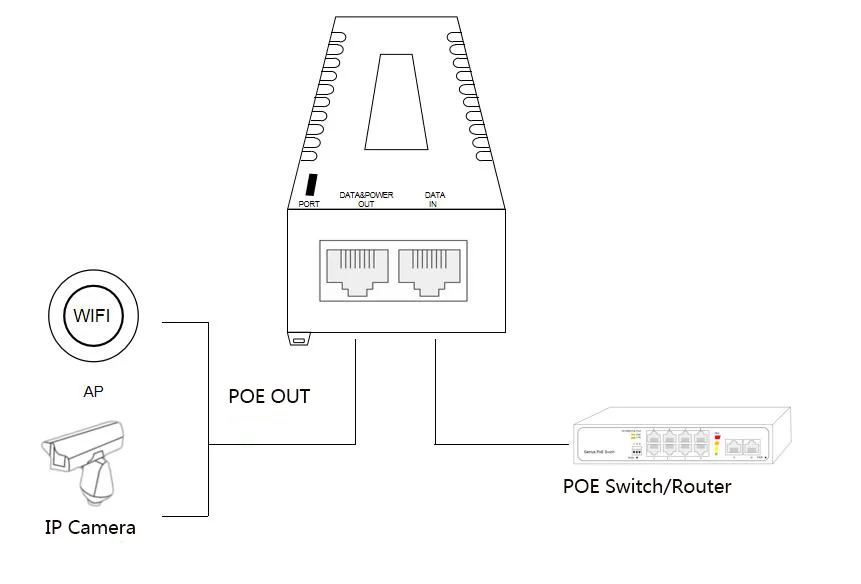

 Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

 Real-time monitoring: simultaneous transmission of real-time control signals, images and data
