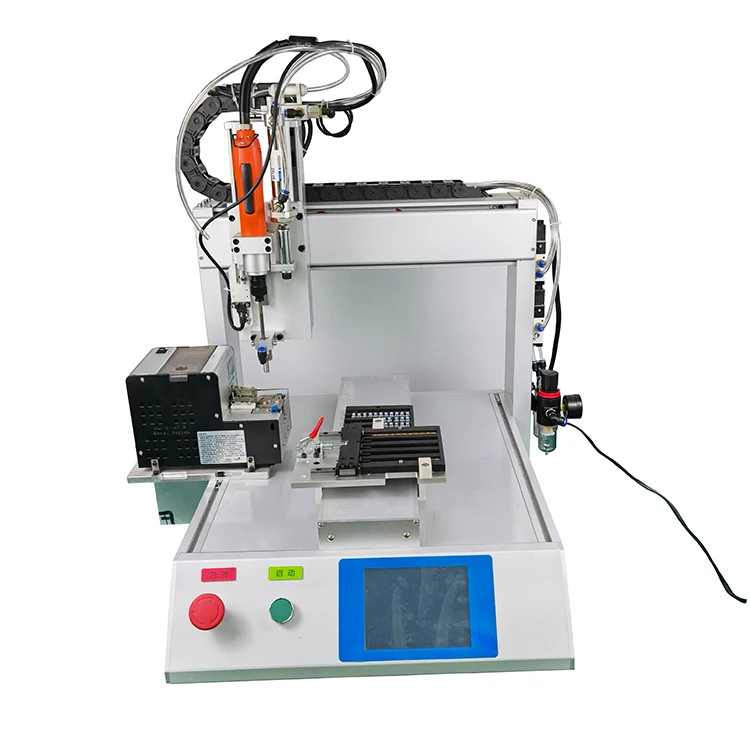

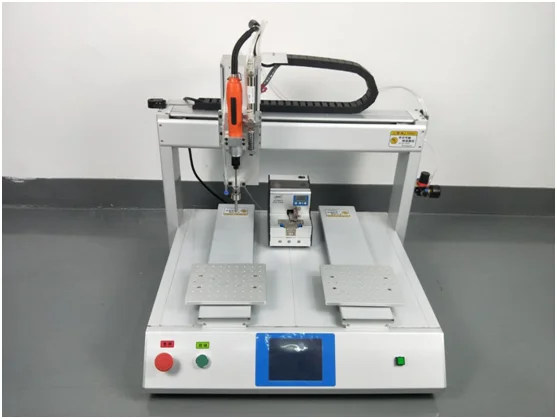

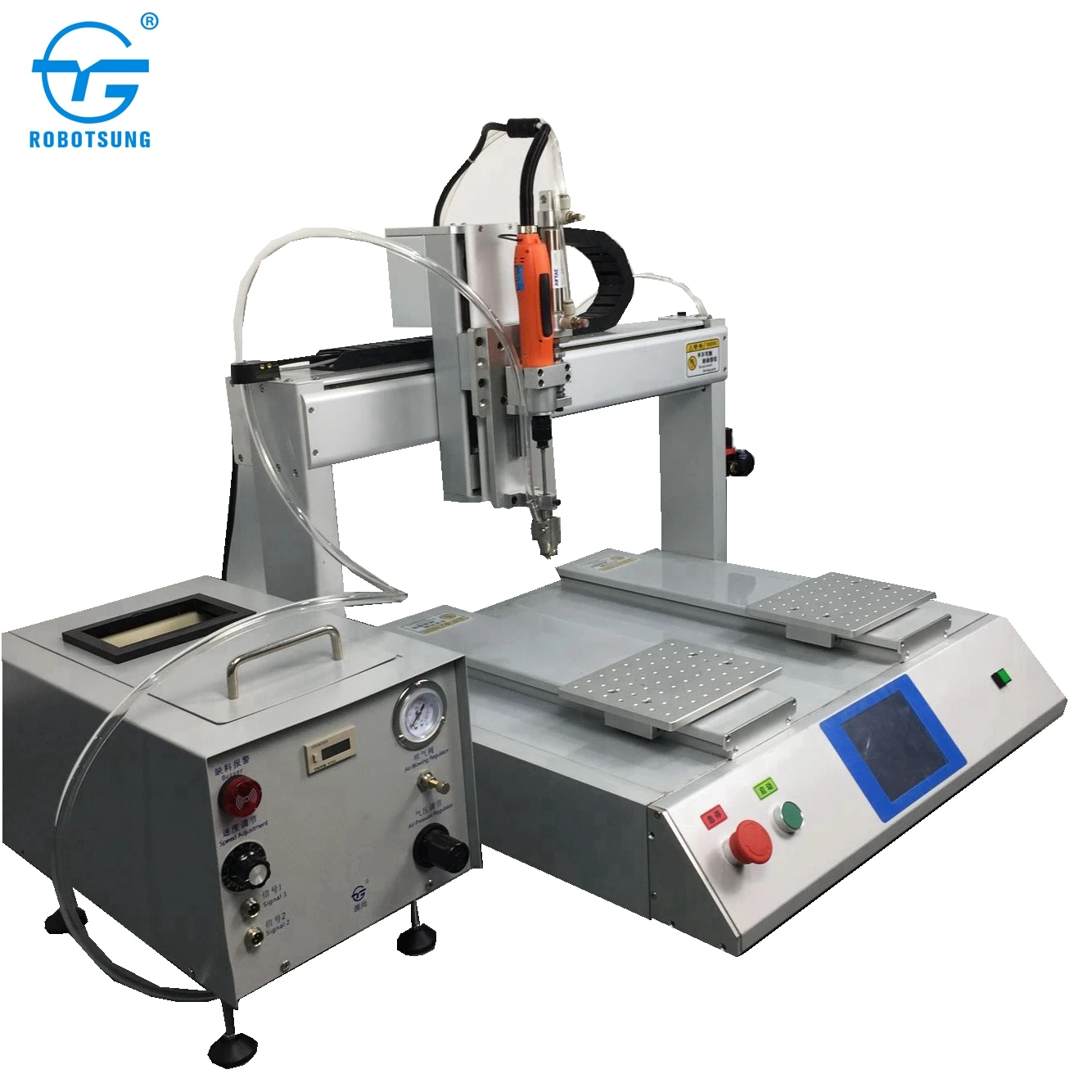

Factory two platform screw driver locking robot desktop screwdriver machine M1-M6
Product Description
Factory two platform screw driver locking robot desktop screwdriver machine M1-M6
Specifications
Features:
1.Applicants:this machine is suitable for screw M2 to M6.For M1 screw,please choose our Auto screwdriver Robot
2. Electric screw gun or Air screw gun for your option.It depands on your screw size and products.Brand we use "KILEWS" and "HHB"
3.Rail and distributor are designed as each screw.Only silimar screws can use a same machine
4.Hopper is made of high quality plastic which make it more durable
5.Screw conveyer tube diameter depands on screw size.Normally provide 1.5m.
6.When tighten screw,one screw in tube standby
7.Torque and air pressure are adjustable.
Advantages:
1.Easy to use and save time and labour.Feeding automaticly,one screw / second if you are skilled.
2.Small weight:easy to carry,take it to anywhere you need it.
3.Voice reminding:once there is no screws or few screws in hopper,machine will make noise and remind you.
Model | YS-L301 | YS-L401 | YS-L501 | |
Structure | Weight | About 60kg | About 70kg | About 80kg |
Size | L670 ×W550 ×H610(mm) | L770 ×W650 ×H610(mm) | L870 ×W750 ×H610(mm) | |
XYZ working area | 300 ×300 ×100(mm) | 400 ×400 ×100(mm) | 500 ×500 ×100(mm) | |
specification | Electric screwdriver Number | Single | ||
Working table | Single | |||
Move speed | XYZ max 500mm/sec | |||
Move Accuracy | ±0.03mm | |||
Max Load | Y:10kg Z:5kg | |||
Voltage | AC 220V 50HZ | |||
Power | 360w | |||
Air resource | >0.4MPa | |||
Air consumption | 10m³/hour | |||
Machine Frame | aluminium alloy table,metal plate frame | |||
Motor | Stepper motor(Can customed servo motor ) | |||
Drive type | Timing belt+precision guide(Custom accept,eg:presscision ball screw) | |||
Axis | 3 axis (controller can add additional 3axis) | |||
Control Specification | System control | Embedded real time control | ||
Display | LCD Display,show datas,5.7inch touch screen | |||
File Save | File format,Unlimited file number,each file max 6000 points,Total byte 64M | |||
I/O | 16inputs/16outputs | |||
Outer control USB | RS232 | |||
Machine start | Auto and single step | |||
Buzzer | warning light and buzzing sound | |||
Auto Screw Feeder | Auto screw Feeder | Beside the screwdriver machine | ||
Screw size | Screw length 1.3 times more than screw head diameter.Total screwlength bellow 40mm.M1 TO M10 screw | |||
Number | 1 set | |||
Screw imput method | Air blow(can customed inhale tyle ) | |||
Screw Pocket volume | About 4000pcs(M3 screw) | |||
Screw scope | M3.0-M10 | |||
Electric screwdriver | Number | 1pcs | ||
KILEWS/HHB | As customer demand | |||
Screw head tyle | hexagon bolt,plum screw | |||
Applications | Products size | According to customer products | ||
Robot vertical distance | According to customer products | |||
Screw tighten depth | Set by customer | |||
efficiency | Tighten screw speed | About 1.1 s/pcs(2 screws one time) | ||
Detection | Torque detection | yes | ||
Screw damage detection | yes | |||
Tighten miss detection | yes | |||

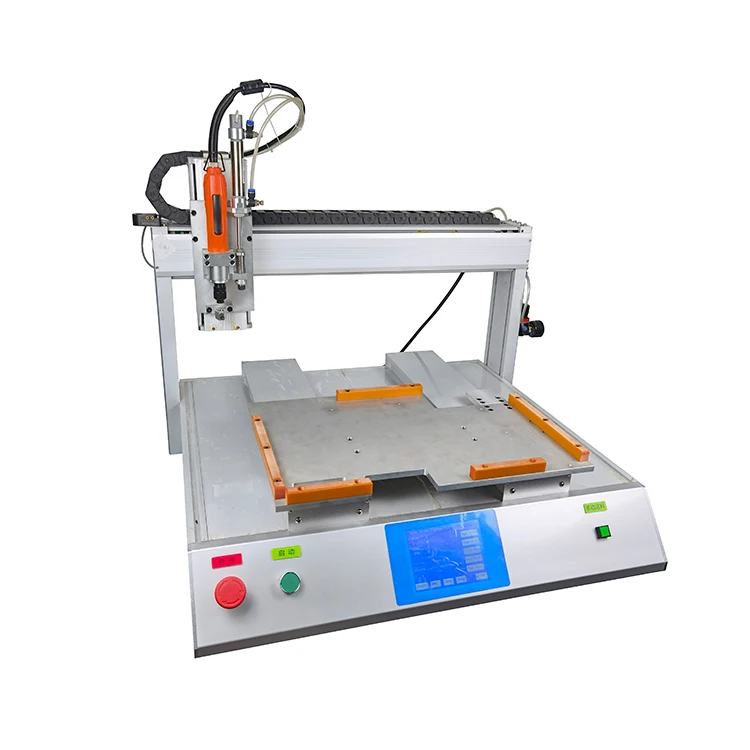

Machine shows:
![7L3C]3V0MR}`~6SJVY76ELW](http://sc03.alicdn.com/kf/Hbd93ce4bc350444cab34a1b75ae6bdb5Q/229389802/Hbd93ce4bc350444cab34a1b75ae6bdb5Q.jpg)
