Product Overview
Description
The machine is suitable to process the middle and large size work piece in steel , cast iron ,non-ferrous metal material . With the feature of big power and high rigidity , this machine is applied to heavy-cut the inner circle ,ex-circle , end surface and thread in both metric and English system , and could drill and bore the holes .
* Higher stability one-piece machine bed
* 3-gear spindle speed step-less in gear
* Higher rigidity pedestal
* Wider layer board
* Integrated automatic lubrication system
* Higher stability one-piece machine bed
* 3-gear spindle speed step-less in gear
* Higher rigidity pedestal
* Wider layer board
* Integrated automatic lubrication system
ITEMS | UNIT | CK6163 | CK6180 | ||
Capacity | Swing over bed | mm | Φ630 | Φ800 | |
Swing over cross slide | mm | Φ350 | Φ550 | ||
Distance between centers | mm | 1000/1500/2000/3000 | |||
Width of bed way | mm | 550/600 | |||
Max. load capacity | T | 3/5 | |||
Spindle | Spindle bore | mm | Φ104/Φ130 | ||
Spindle bore taper | - | MetricΦ120, MT#5 MetricΦ140, MT#6 | |||
Spindle speed steps | - | Manual 3 steps | Manual 3 steps HYD. 4 steps | ||
Spindle speed range | rpm | 10-1000 | 17-1000 | ||
Chuck size | mm | Φ315 | |||
Chuck type | - | 3-jaw manual | |||

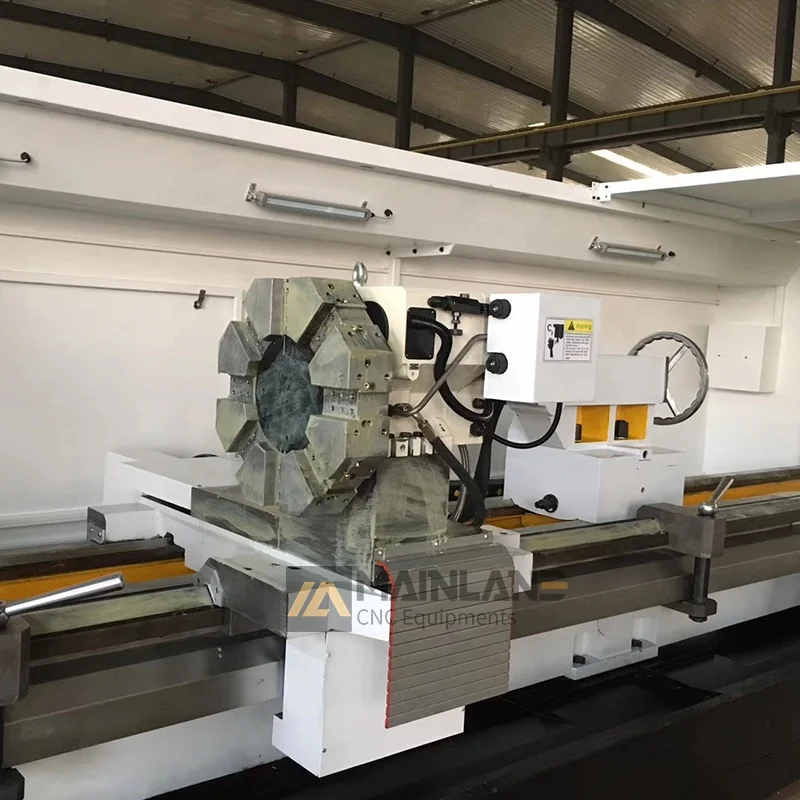

Turret | Turret type | - | NC turret 4 position | ||
Tool shank size | mm | 32x32 | |||
Carriage | X axis travel | mm | 320 | 420 | |
Z axis travel | mm | 850/1350/1850/2850 | |||
X axis rapid traverse speed | mm/min | 4000 | |||
Z axis rapid traverse speed | mm/min | 4000 | |||

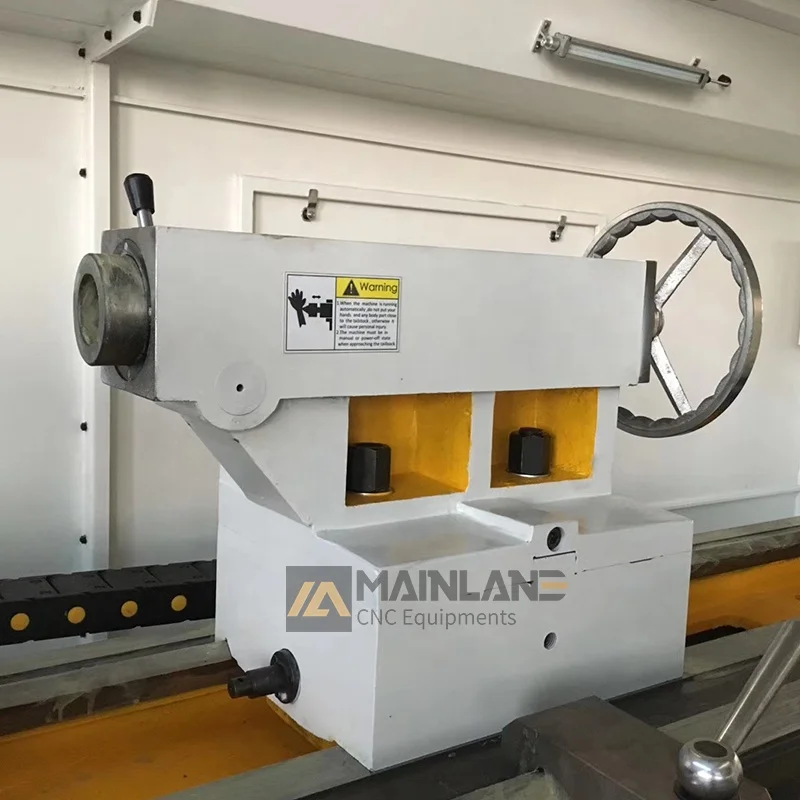

Tailstock | Tailstock quill diameter | mm | Φ104 | ||
Tailstock quill taper | - | MT#5 | |||
Tailstock quill travel | mm | 250 | |||
Motors | Main spindle motor | kW | 11 | ||
Coolant pump motor | kW | 0.125 | |||
Accuracy | Positioning accuracy | mm | 0.020 | ||
Repositioning accuracy | mm | 0.010 | |||
Dimensions | Width x Height | mm | 1690x1740 | ||
Length | mm | 3390/3890/4390/5390 | |||
Weight | Net weight | T | 4.7/5.1/5.5 | ||
Standard Accessories:
4-jaw Manual Chuck;
4 station turret;
Manual Tailstock;
Full-splash Guard
One piece machine bed
Wider layer board
3 gear speed change,stepless in gear
4 station turret;
Manual Tailstock;
Full-splash Guard
One piece machine bed
Wider layer board
3 gear speed change,stepless in gear
Optional Accessories:
Hydraulic Solid Chuck;
Hydraulic Hollow Chuck;
Hydraulic tailstock;
6/8/12-station turret;

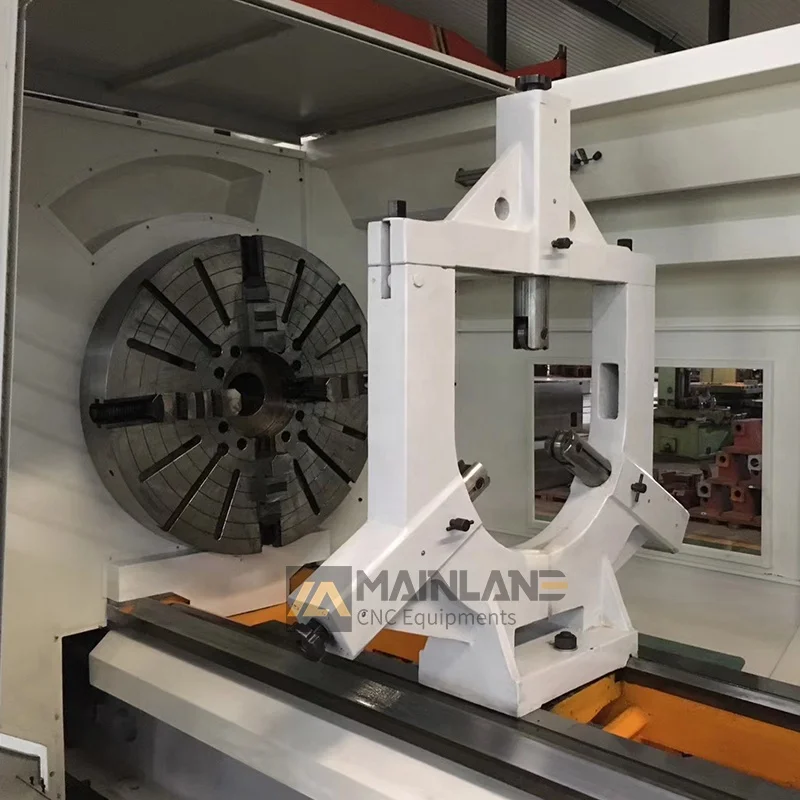

Center Rest and follow rest;
4-Jaw chuck.
Living tools
Hydraulic Hollow Chuck;
Hydraulic tailstock;
6/8/12-station turret;
Center Rest and follow rest;
4-Jaw chuck.
Living tools

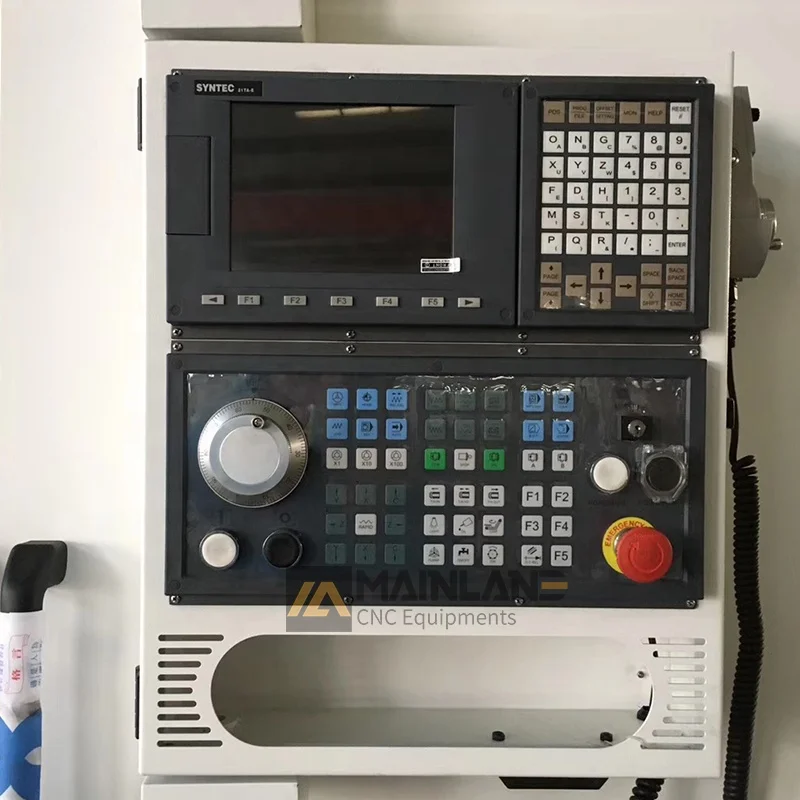

CNC Controller system:
GSK; FANUC; Siemens; KND
