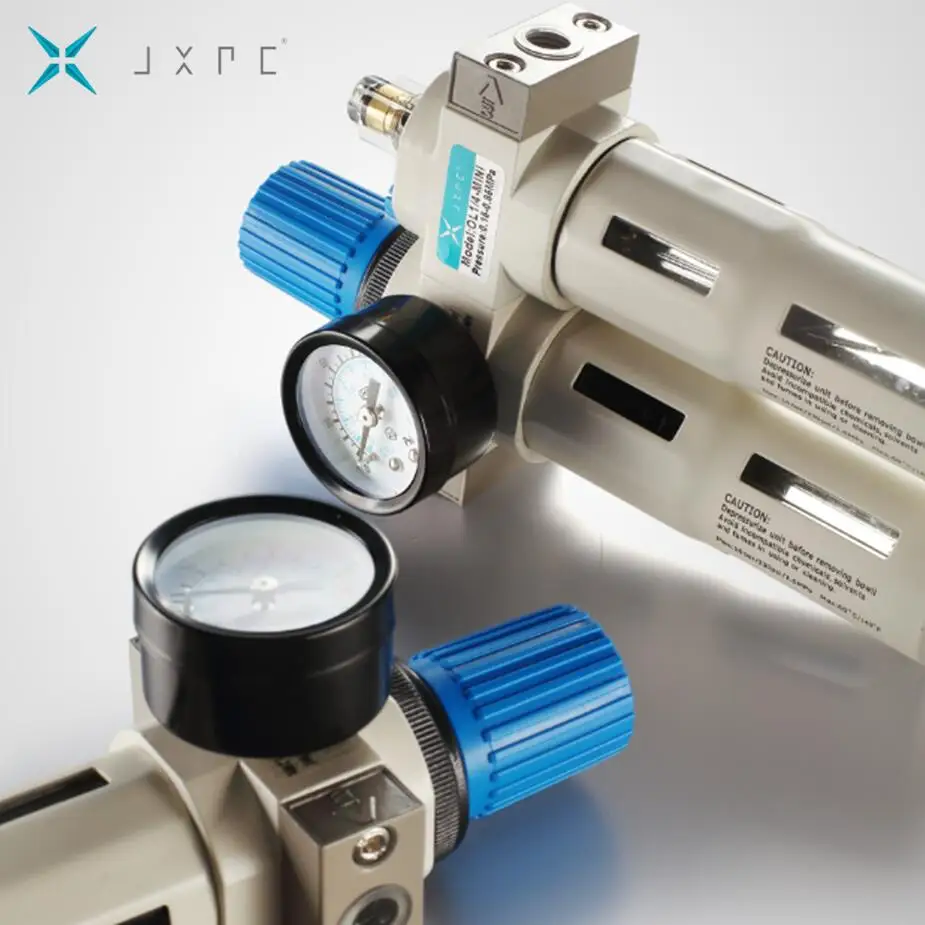

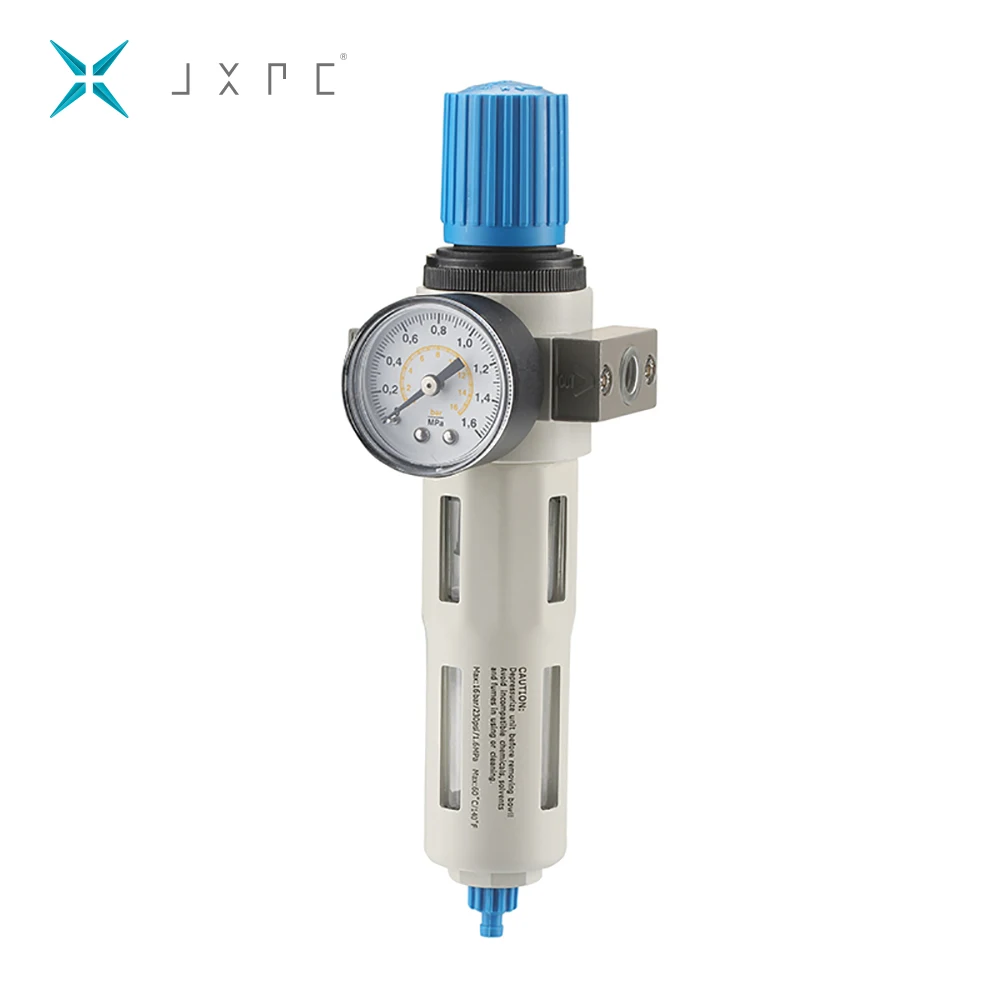

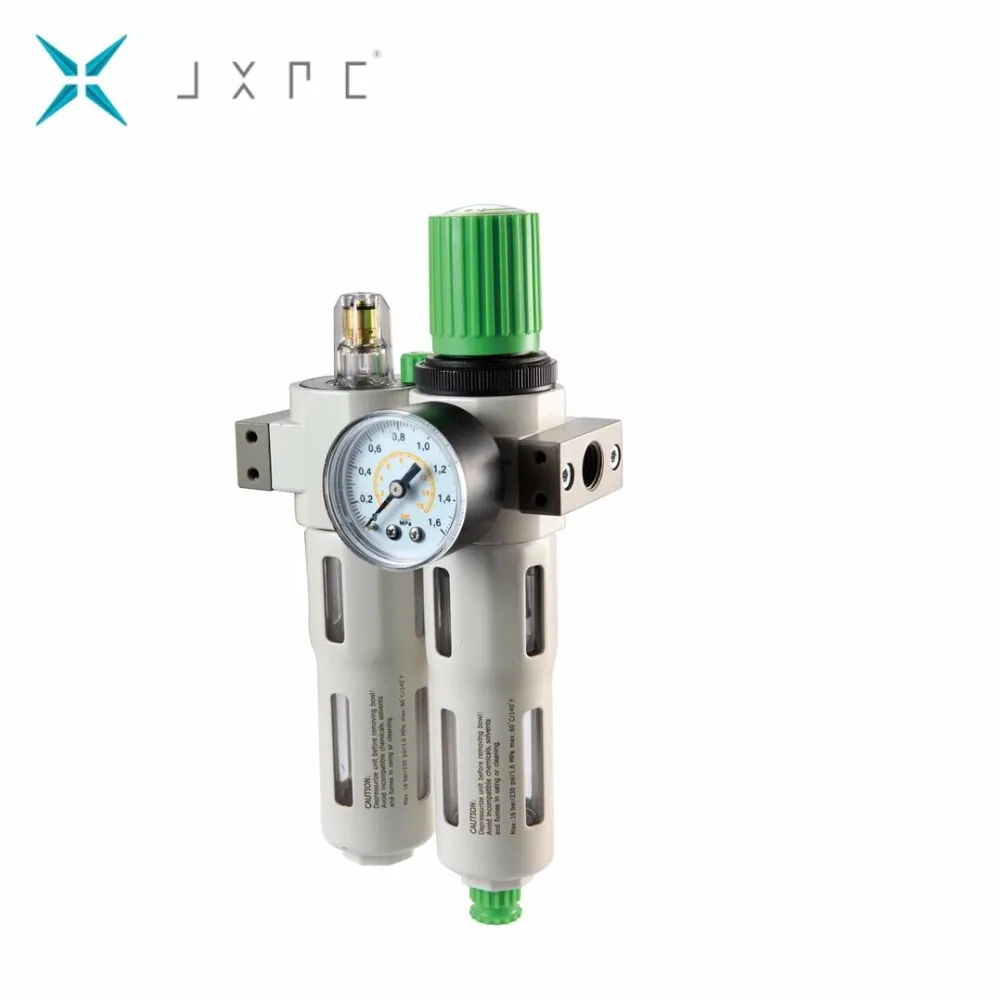

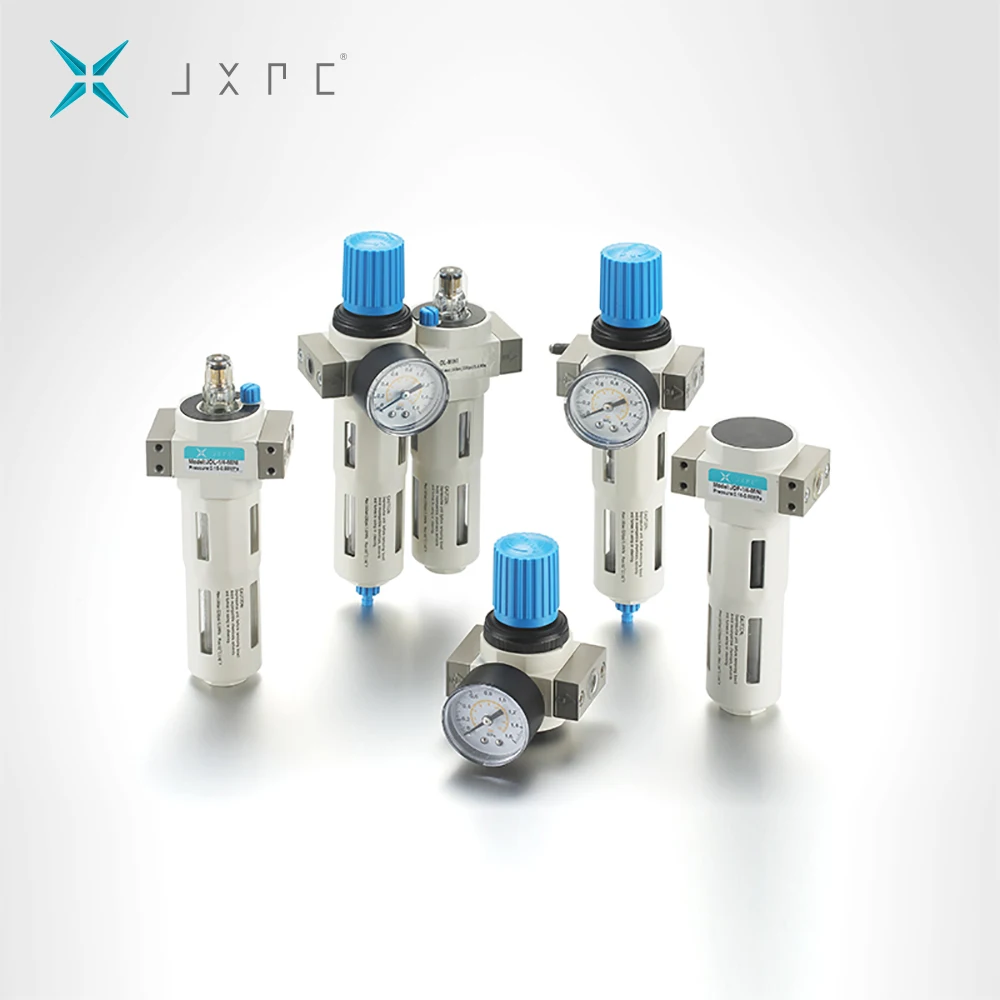

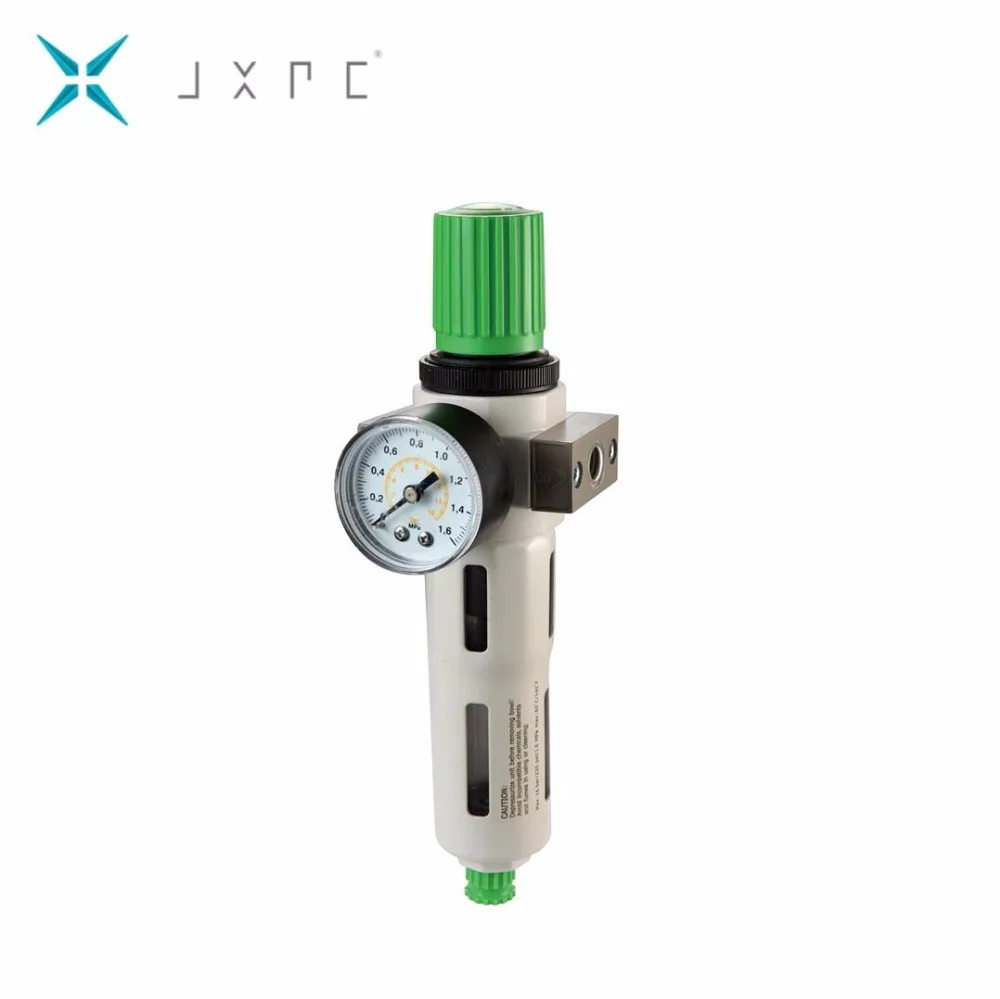

JXPC Good Price Pneumatic FRL Unit Air Compressor Filter Pressure Regulator
- Category: >>>
- Supplier: Ningbo New Jiaxing Automatic Industry Co. Ltd.
Share on (1600052239489):
Product Overview
Description
Product Description
* Temperature Range: 0-60 Degree
* Primary Pressure of 1-16 bar
* Body Material: Aluminum Die-casting Forming
* Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
* The Filter Removes Solid Particles And Condensates With Compressed Air
* Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
* Protect Your Air Tools With Much Longer Life
* Primary Pressure of 1-16 bar
* Body Material: Aluminum Die-casting Forming
* Prepares Air Properly For All Types Of Compressed Air Tools And Equipment
* The Filter Removes Solid Particles And Condensates With Compressed Air
* Step Less Regulator Accurately Maintains Air Pressure Over A Wide Range Of Flows
* Protect Your Air Tools With Much Longer Life

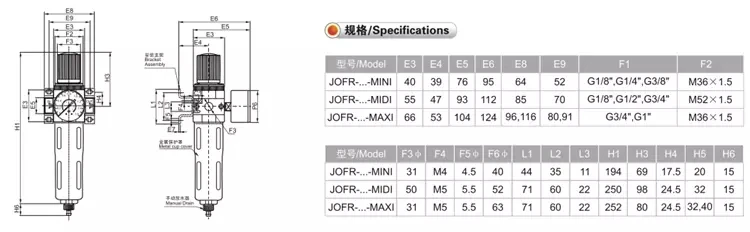

JOFR | ||||||||||||||||
Model | MIN | MIDI | MAXI | |||||||||||||
JOFR-1/8"-MINI | JOFR-1/4"-MINI | JOFR-3/8"-MINI | JOFR-3/8"-MIDI | JOFR-1/2"-MIDI | JOFR-3/4"-MIDI | JOFR-3/4"-MAXI | JOFR-1"-MAXI | |||||||||
JOFR-1/8"--7MINI | JOFR-1/4"--7MINI | JOFR-3/8"--7MINI | JOFR-3/8"-7-MIDI | JOFR-1/2"-7-MIDI | JOFR-3/4"-7-MIDI | JOFR-3/4"-7-MAXI | JOFR-1"-7-MAXI | |||||||||
JOFR-1/8"-5M-MINI | JOFR-1/4"-5M-MINI | JOFR-3/8"-5M-MINI | JOFR-3/8"-5M-MIDI | JOFR-1/2"-5M-MIDI | JOFR-3/4"-5M-MIDI | JOFR-3/4"-5M-MAXI | JOFR-1"-5M-MAXI | |||||||||
Working Medium | Filtered compressed Air | |||||||||||||||
Features of Structure | Sintered filter with water separator;MINI/MID:Diaphragm type-regulator;MAXI:Piston regulator | |||||||||||||||
Mounting Type | Pipe mounting or foot mounting | |||||||||||||||
Assembly position | vertical±5 | |||||||||||||||
Connection | G1/8" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" | ||||||||
Standard Flow Rate | 750 | 1400 | 1600 | 3100 | 3400 | 3400 | 9000 | 10000 | ||||||||
900 | 1500 | 1700 | 3400 | 3900 | 3900 | 9500 | 16000 | |||||||||
650 | 1200 | 1350 | 2400 | 2500 | 2500 | 7300 | 7600 | |||||||||
Working Pressure | 0.5-12 bar/0.5-7bar | |||||||||||||||
Working Temperature | 0-60°C | |||||||||||||||
Primary Pressure | 1-16 bar | |||||||||||||||
Grade of filtration | 40um/5um | |||||||||||||||
Max.Capacity | 22ml | |||||||||||||||
Recommended Oil | ISO VG32 or Equivalent Oil | |||||||||||||||
Min Lubricant Flow Rate | 3L/MIN | 6L/MIN | 10L/MIN | |||||||||||||
