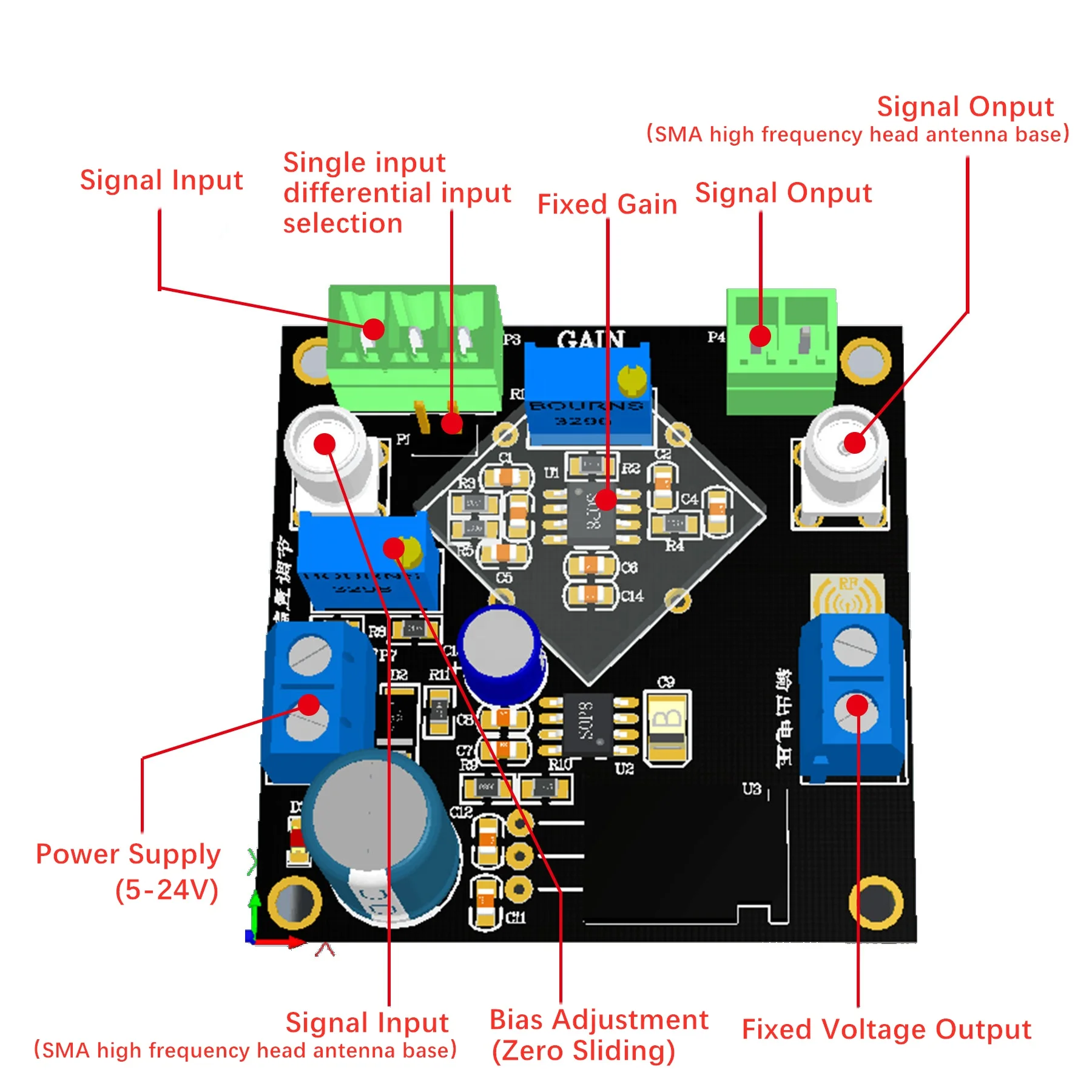

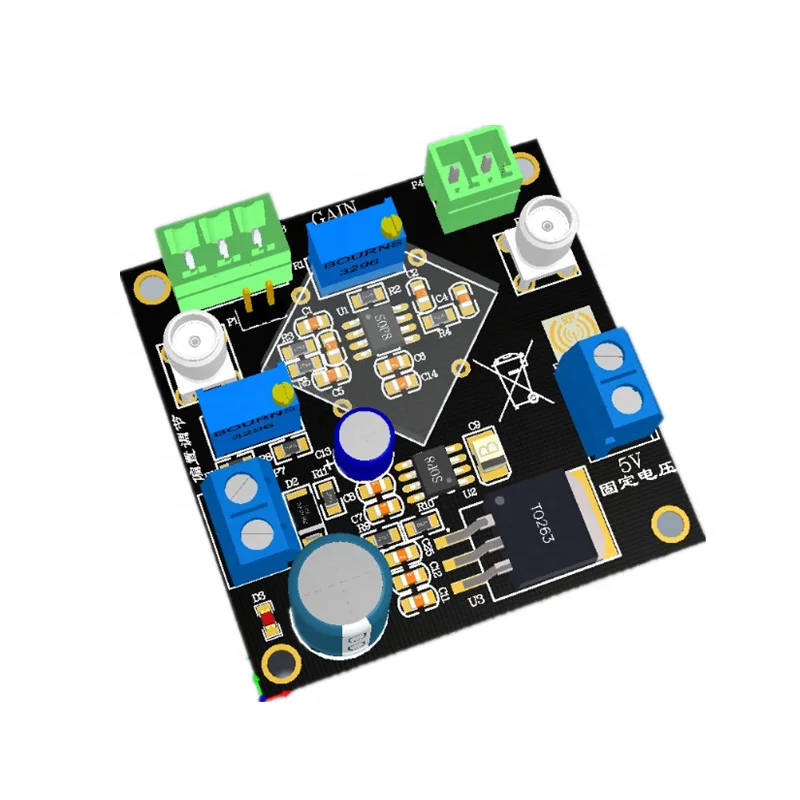

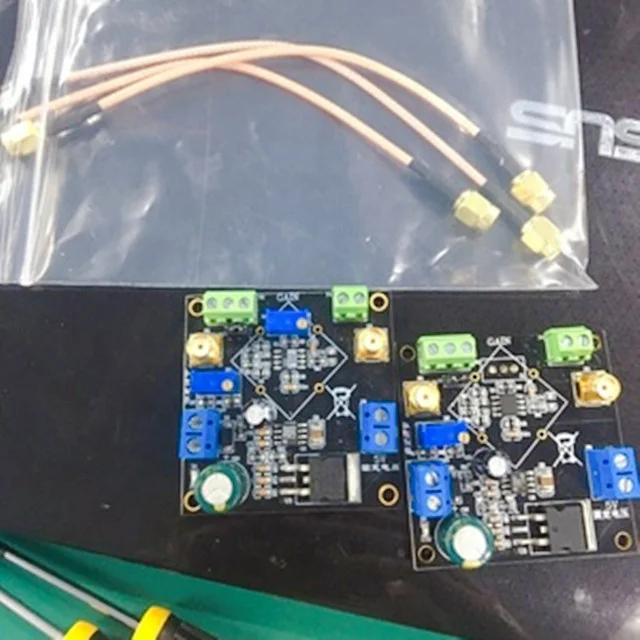

AD623 Low Cost Low Noise Programmable Gain Instrumental Amplifier Module
- Category: Amplifiers and Comparators >>>
- Supplier: Shanghai Chengtest Electronics Technology Ltd. Co.
Share on (1600052284577):
Product Overview
Description
Quick Details
| Place of Origin: | China |
| Size: | 50mm X 50mm |
| Input Voltage Noise: | 9 nV/VHz (1 kHz) |
| Maximum Magnification: | more than 2000 times |

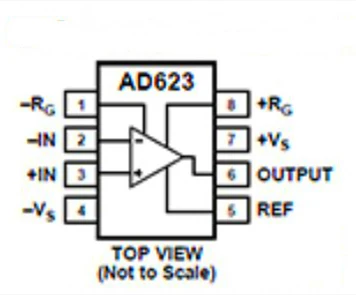

| Model Number: | AD623 |
| Power Supply: | 5~24V |
| Brand Name: | CHENGTEC |
| Type: | Instrumentation Amplifiers |
| Input Signal Type: | single ended signal or differential signal |
| Module Saturation Output Amplitude: | AC Peak Value Is 10vpp (Soil 5vpp) |
| Module Bandwidth: | lower than 50KHz (under high gain ), higher than 1MHz(under low gain) |
| Product name: | Low Noise Programmable Gain Instrumental Amplifier Module |
| Application: | Programmable Gain Instrumental Amplifier |
| Fixed Output Voltage: | 5~10V |
| Selling Units: | Single item |
| Single package size: | 20X20X7 cm |
| Single gross weight: | 0.1 KG |
